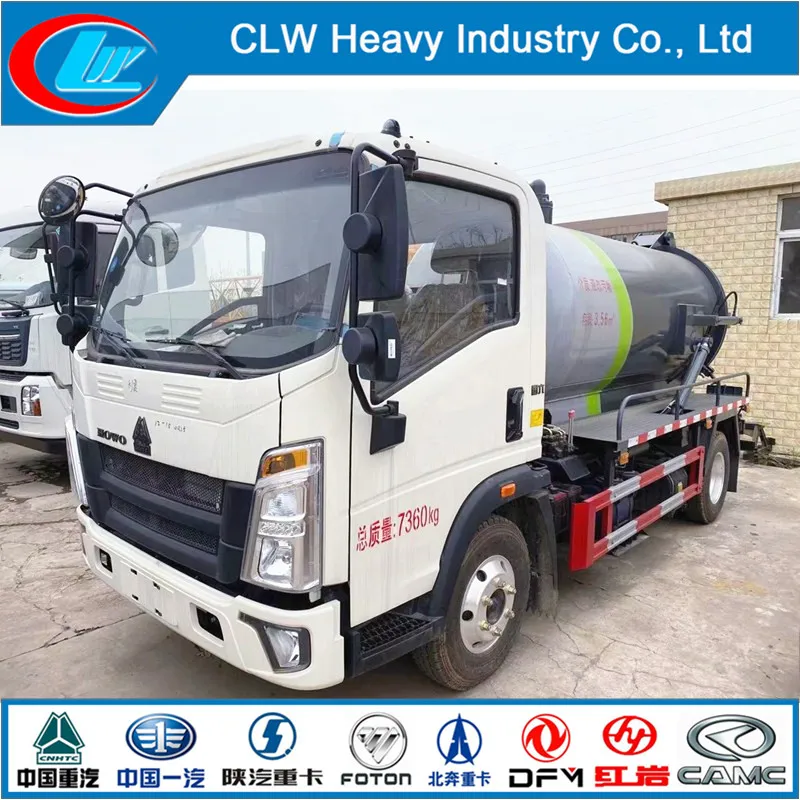

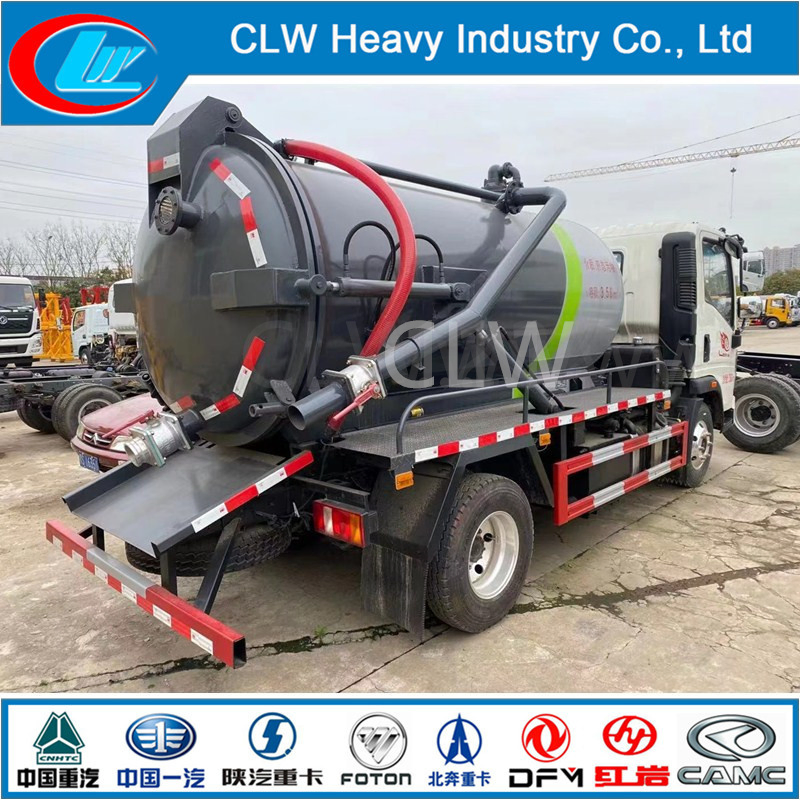

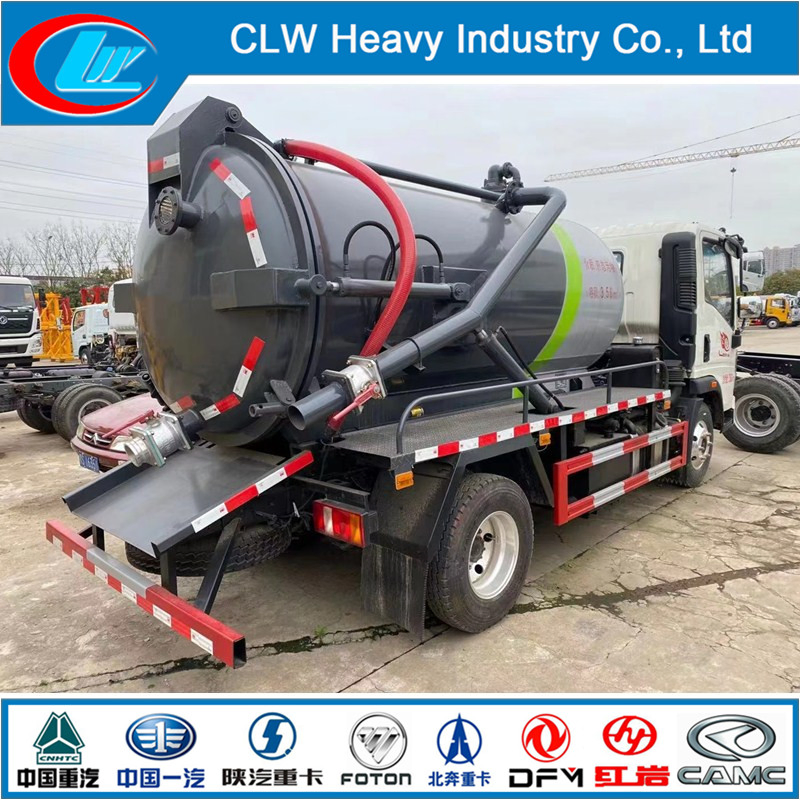

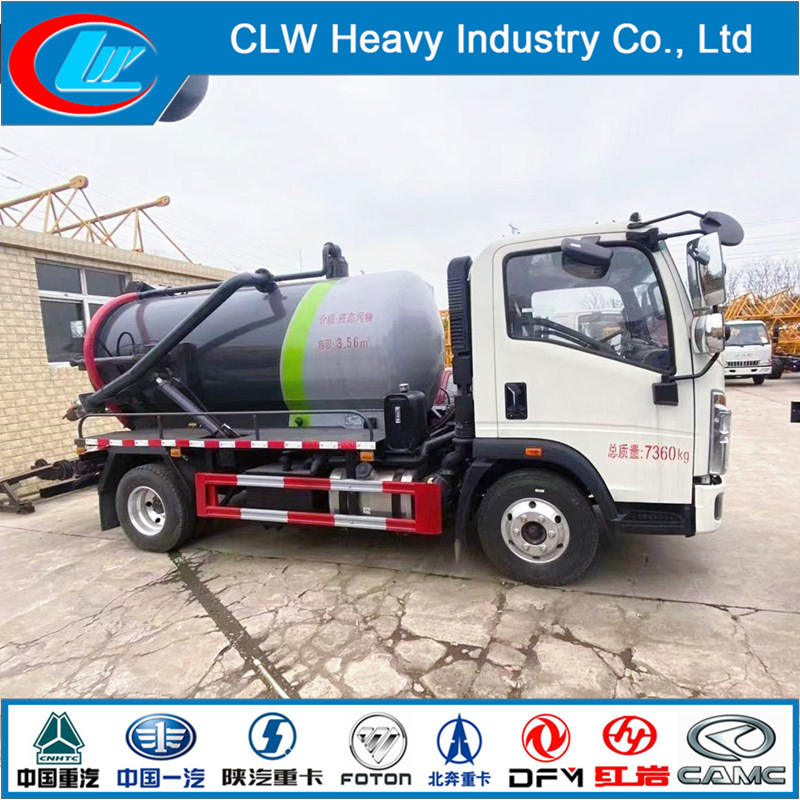

The vacuum sewage suction truck is a specialized vehicle designed to collect, transport, and discharge liquids such as dirty water, sludge, septic waste, and crude oil. It is also capable of handling solid materials like small stones and bricks.

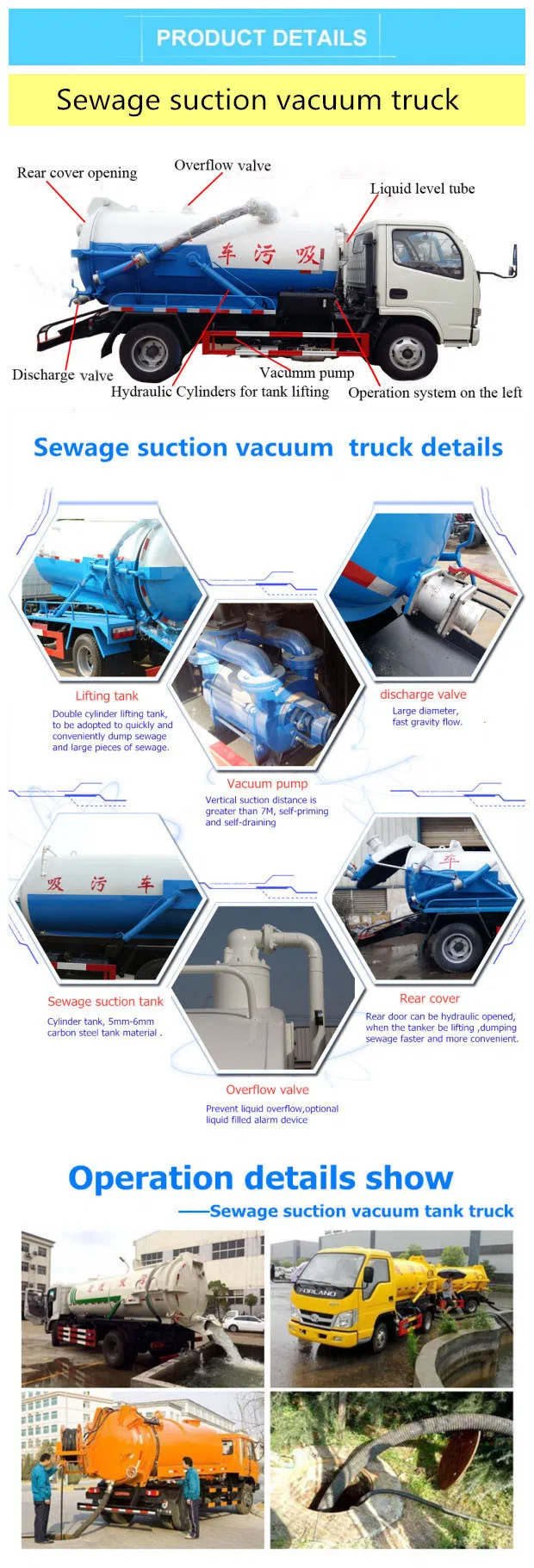

Equipped with a high-performance suction tanker, vacuum pump, hydraulic system, and pneumatic components, this truck fulfills diverse operational requirements for municipal and industrial sanitation.
| Suction Tanker Specifications | |
|---|---|
| Capacity | 8,000L ~ 12,000L |
| Material | High quality mild steel |
| Inner Tank Treatment | Anti-corrosive treatment |
| Structure | Automatic machine welding, cylindrical tank |
| Hydraulic Dump System | Tank lift angle up to 45° |
| Rear Door | Hydraulic open with mechanical interlocking |
| Chassis Description - SINOTRUK | |
|---|---|
| Driving Type | 4x2 |
| Cabin | 2080mm cab, one and half row, with A/C |
| Tire | 10.00R20, (6+1) pcs |
| Engine Details | |
| Brand | YUCHAI brand, YC4E160-33 |
| Emission Standard | EURO 3 |
| Horse Power | 160HP / 118kW |
| Transmission & Axle | |
| Gear Box | DC6J65TC - 6 forward with 1 reverse |
| Front/Rear Axle | 3.6T / 8T |
| Brake System | Full air brake system, exhaust brake |
| Fuel Tank | 220L Steel fuel tank |
