📋 Basic Specifications
Certification
ISO9000, CCC, TS16949, CE
Emission Standard
Euro IV, Euro V
Product
Vacuum Sewage Suction Truck
Chassis Brand
HOWO, Foton, JAC, JMC, Dongfeng, FAW
Pump Brand
Jurop, Moro, Weilong, Yifeng
Tank Material
Q245 Carbon Steel (5mm-6mm)

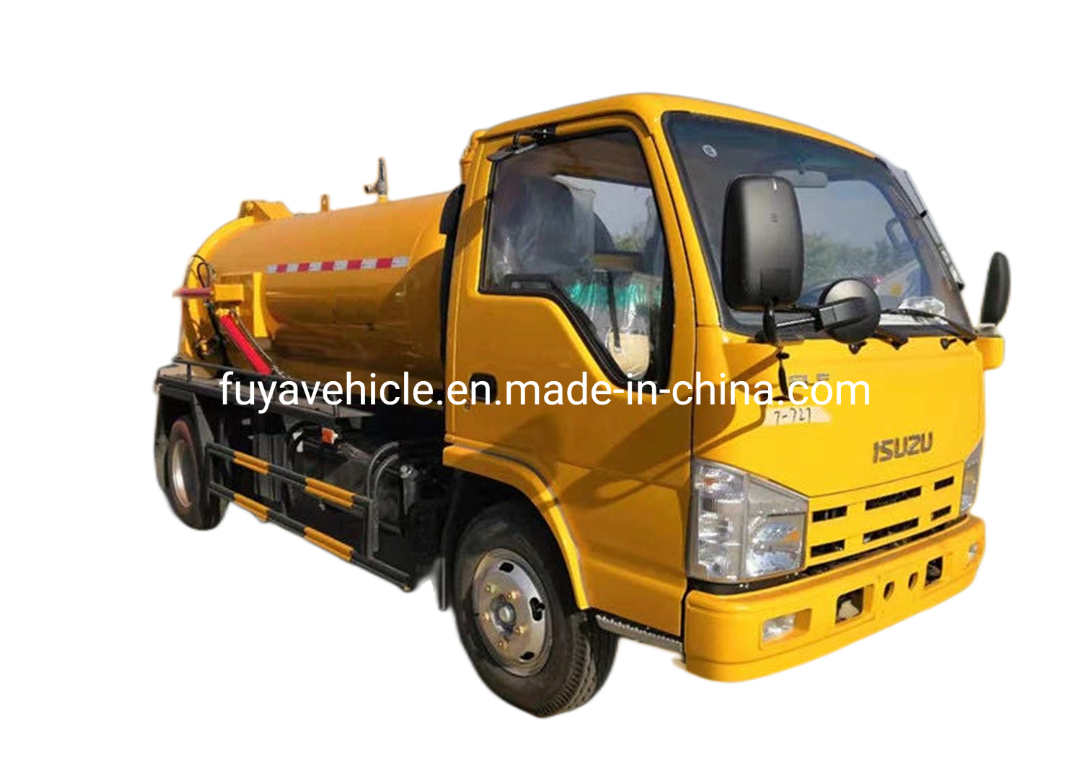

🚛 Product Overview
The Vacuum sewage suction truck is a specialized vehicle designed to collect, transport, and discharge liquids such as dirty water, sludge, septic waste, and crude oil, as well as solid materials like small stones and bricks. It is an essential tool for cleaning sewers, cesspits, and gullies, widely utilized in environmental and sanitation fields.
✨ Key Features
-
✔
Cylinder vacuum tank can be hydraulically lifted to 40-45 degrees for efficient discharge.
-
✔
Equipped with high-performance EU vacuum pumps (Italy brand) or top-tier equivalent brands.
-
✔
Advanced overfill system with music horn to prevent pump damage from liquid overflow.
-
✔
Rear door features hydraulic opening and closing for easy maintenance and cleaning.
-
✔
Durable construction using 6mm thick carbon steel for long-term service life.
📊 Technical Data
| Drive Type |
4x2 Left Hand Drive / Right Hand Drive |
| Dimensions (L×W×H) |
6000 * 2000 * 2710 mm |
| Wheelbase |
3360 mm |
| Gross Weight |
7360 kg |
| Engine Power |
130 HP (Euro V) |
| Tank Volume |
5,000 Liters |
| Tank Material |
6mm Carbon Steel |
| Vacuum Pump Options |
JUROP PN45D / MORO PM60A / Chinese Top Brand |
| Suction Depth |
> 6 - 7 Meters |

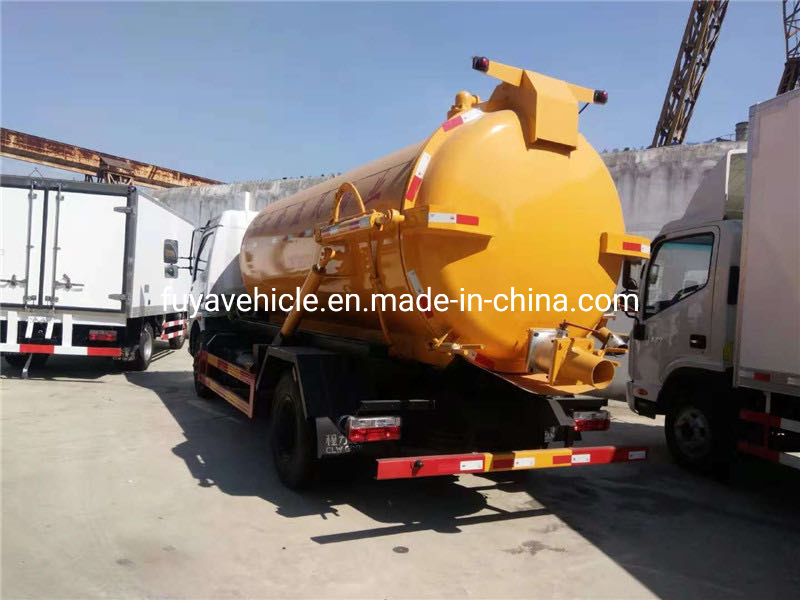

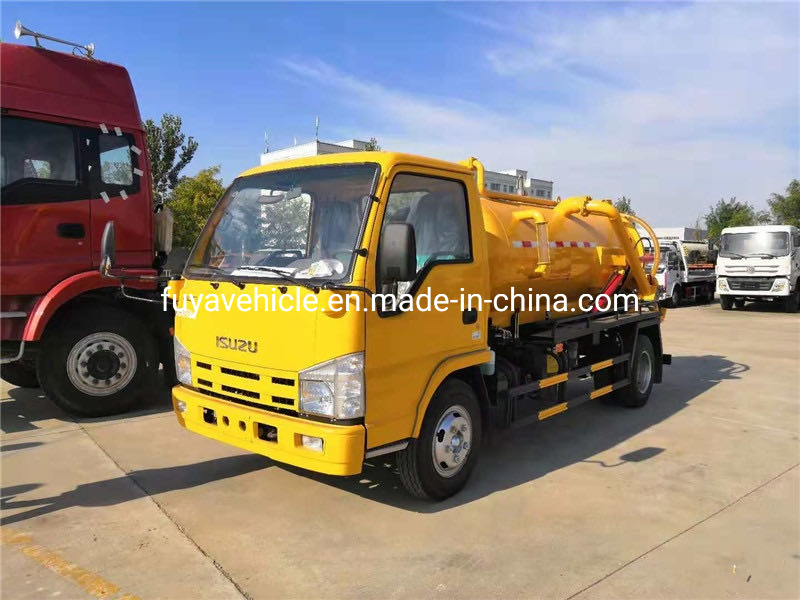

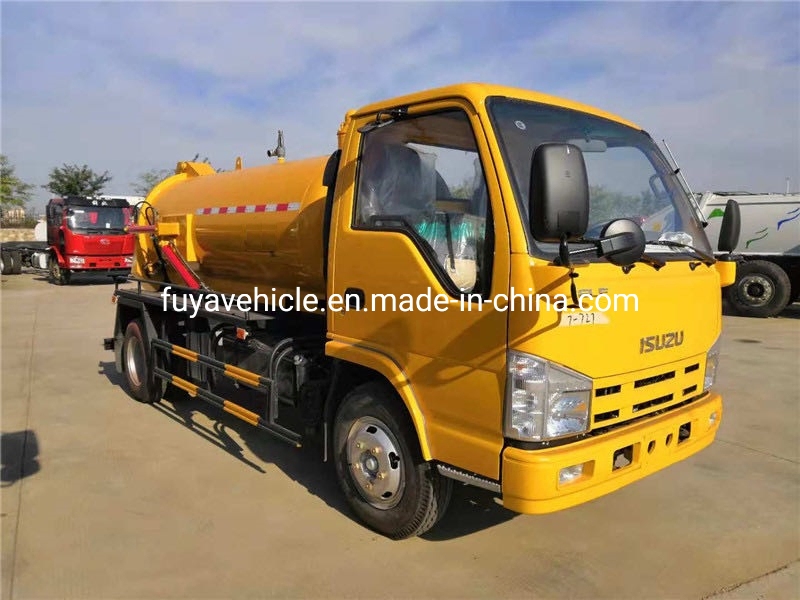

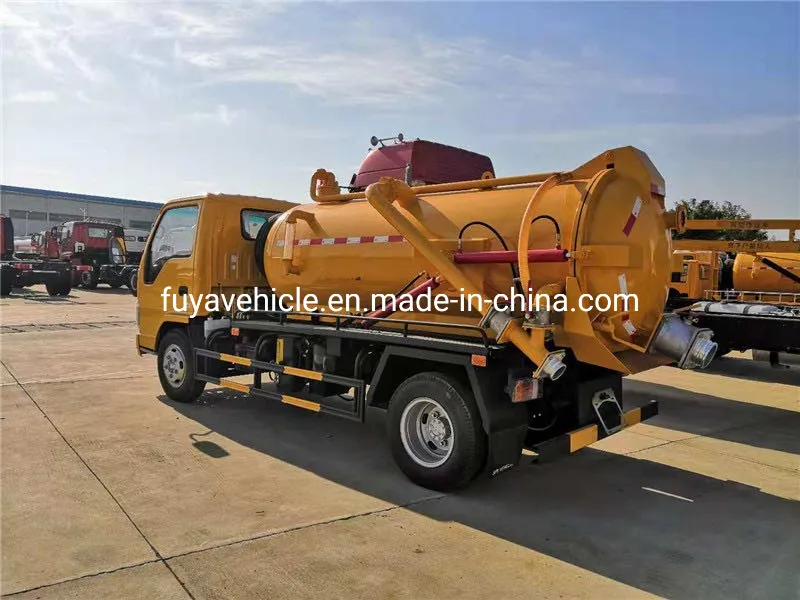

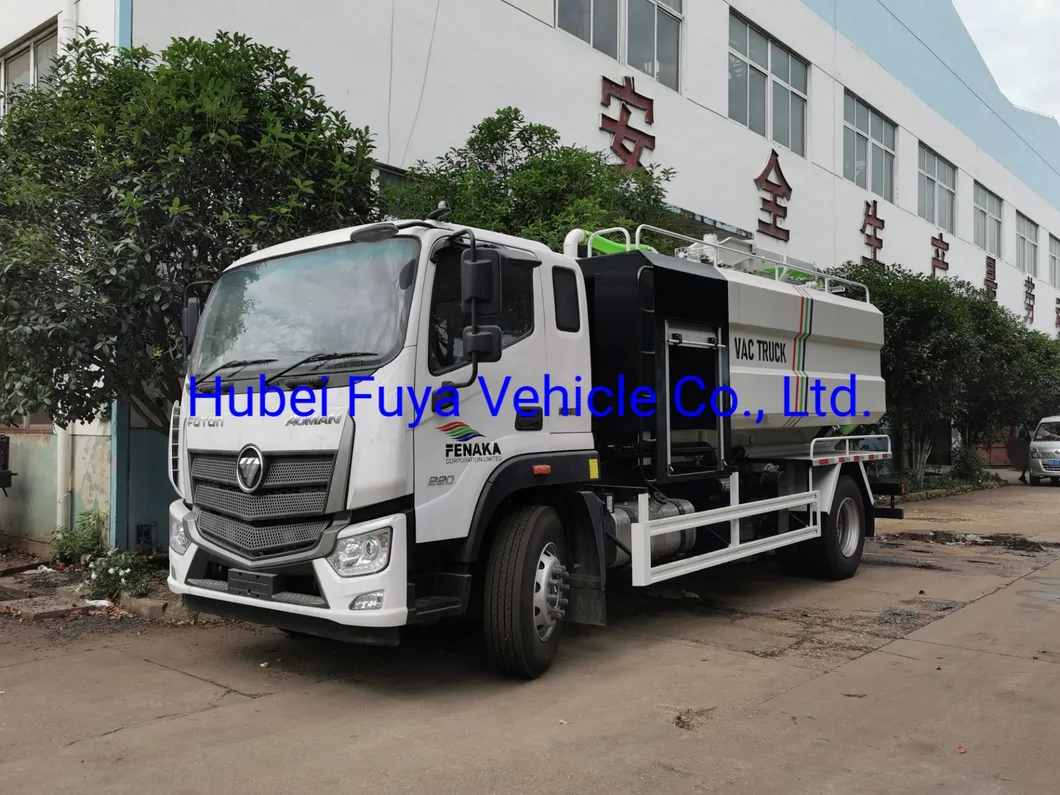

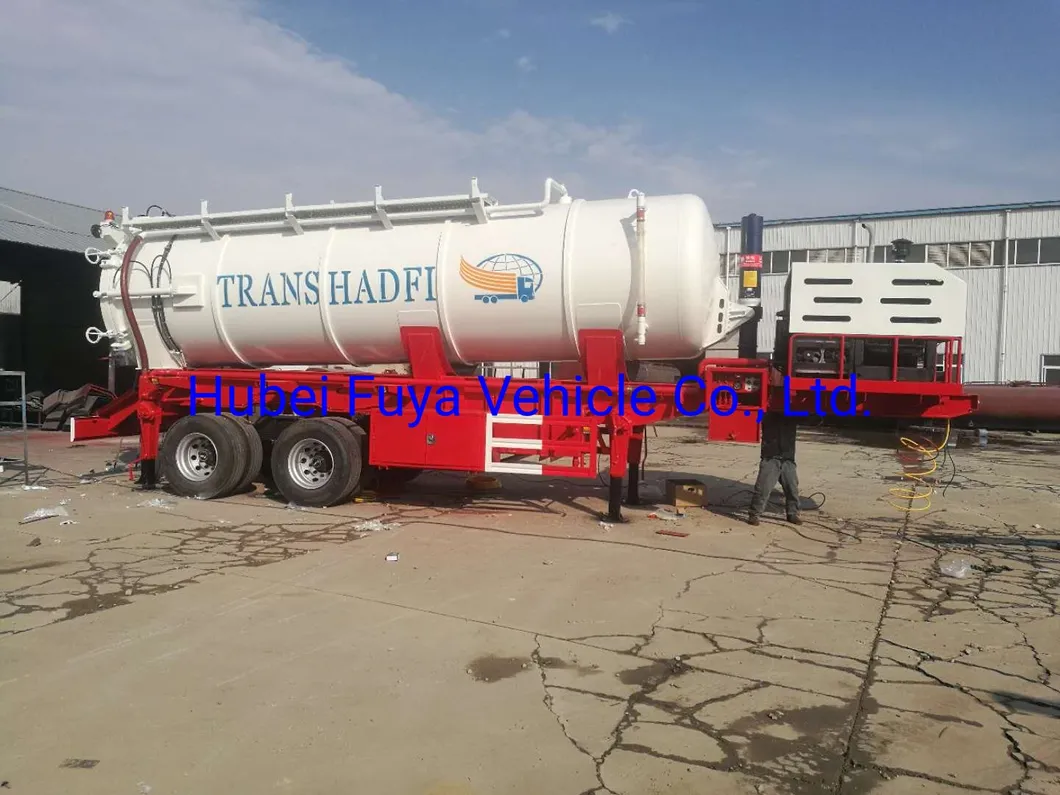

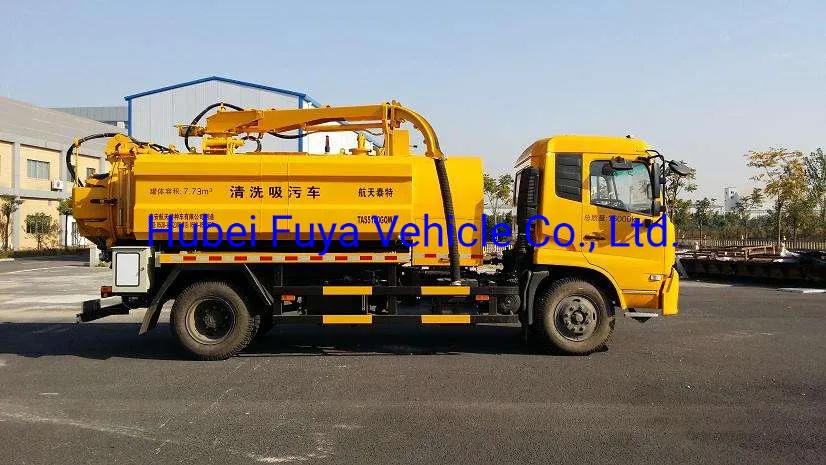

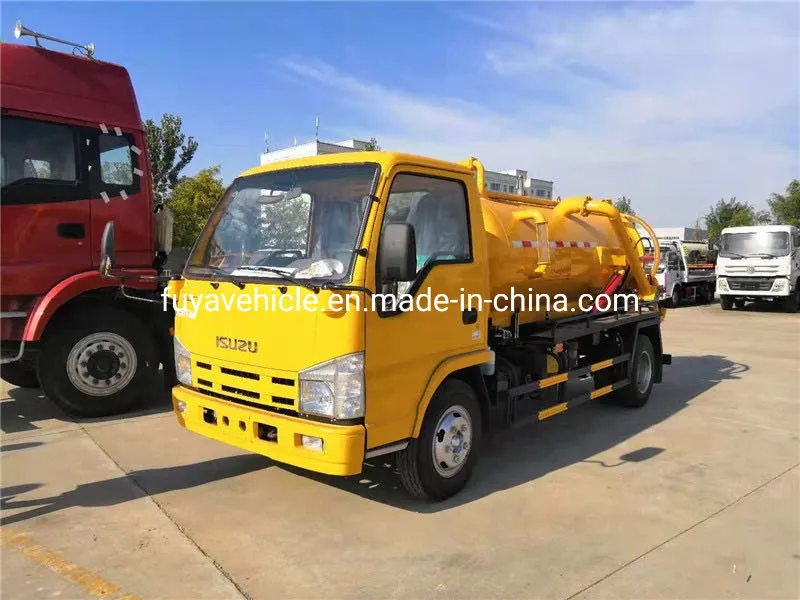

📸 Product Gallery

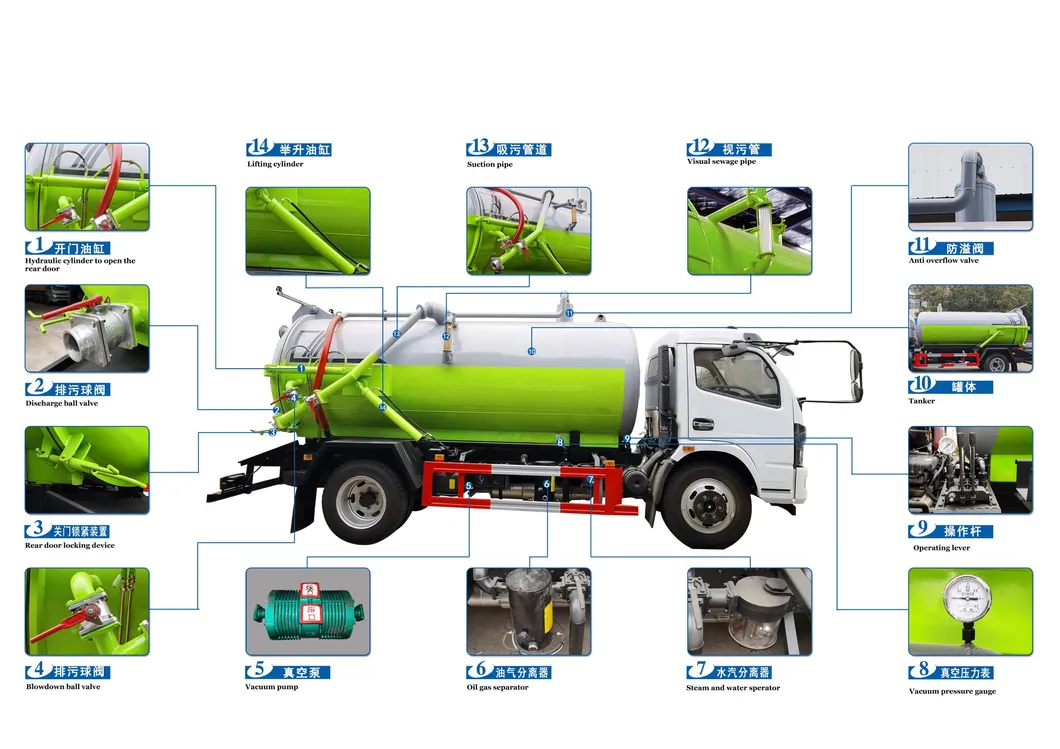

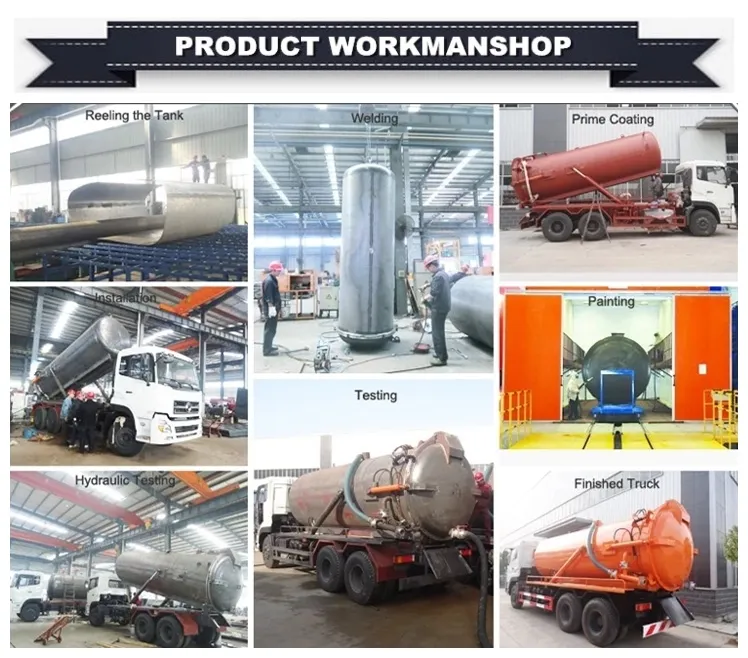

🛠 Workshop & Details

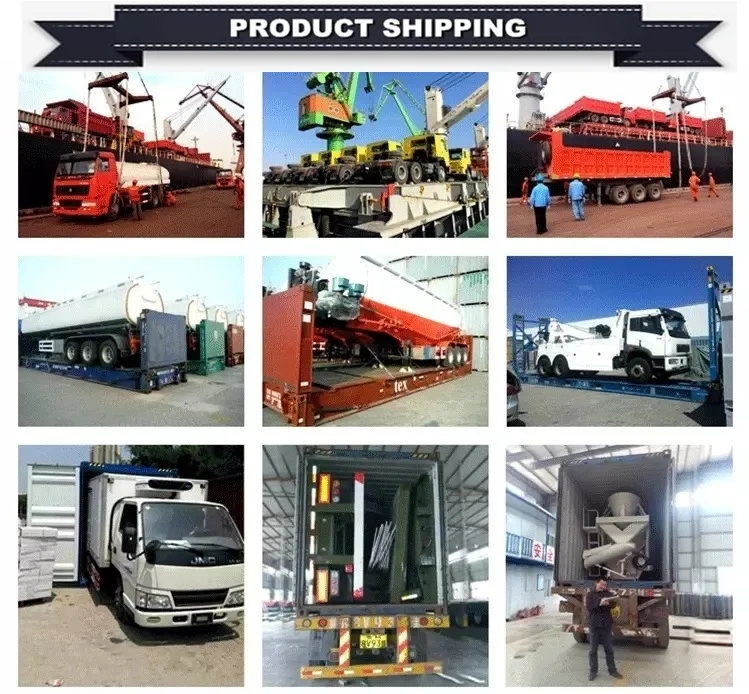

🚢 Shipping & Logistics
RORO
The truck is driven directly into the ship and secured. This protects the vehicle from weather and damage during transit.
BULK VESSEL
The truck is lifted by crane onto the vessel deck. This is a cost-effective method for larger shipments.
CONTAINER
Suitable for smaller truck models, providing maximum protection inside a sealed container.
❓ Frequently Asked Questions
1. What is the primary use of this vacuum truck?
It is designed for the collection, transport, and discharge of liquid waste, sludge, septic materials, and small solid debris from sewers and gullies.

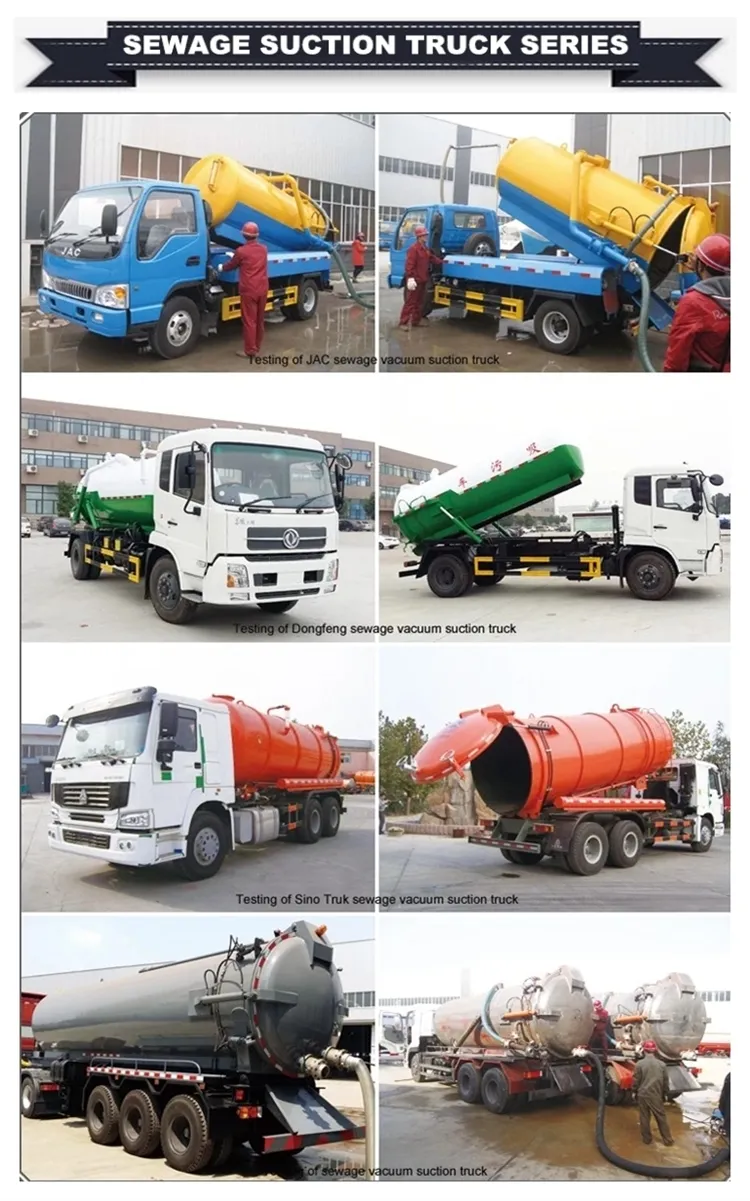

2. What tank capacities are available?
We offer a wide range of vacuum tank capacities, starting from 3,000 liters up to 22,000 liters to suit different operational needs.
3. Which vacuum pump brands do you provide?
We equip our trucks with high-quality pumps including Italian brands like JUROP and MORO, as well as top-tier Chinese brands like Weilong and Yifeng.
4. How is the waste discharged from the tank?
The tank can be hydraulically lifted to an angle of 40-45 degrees, and the rear door can be opened hydraulically for complete and easy discharge.
5. What kind of warranty is provided?
We provide a one-year quality guarantee for the three key components: the engine, transmission, and axles.
6. Can the truck be customized for specific regions?
Yes, we offer both Left Hand Drive (LHD) and Right Hand Drive (RHD) configurations, and we can meet various international emission standards like Euro IV and Euro V.
