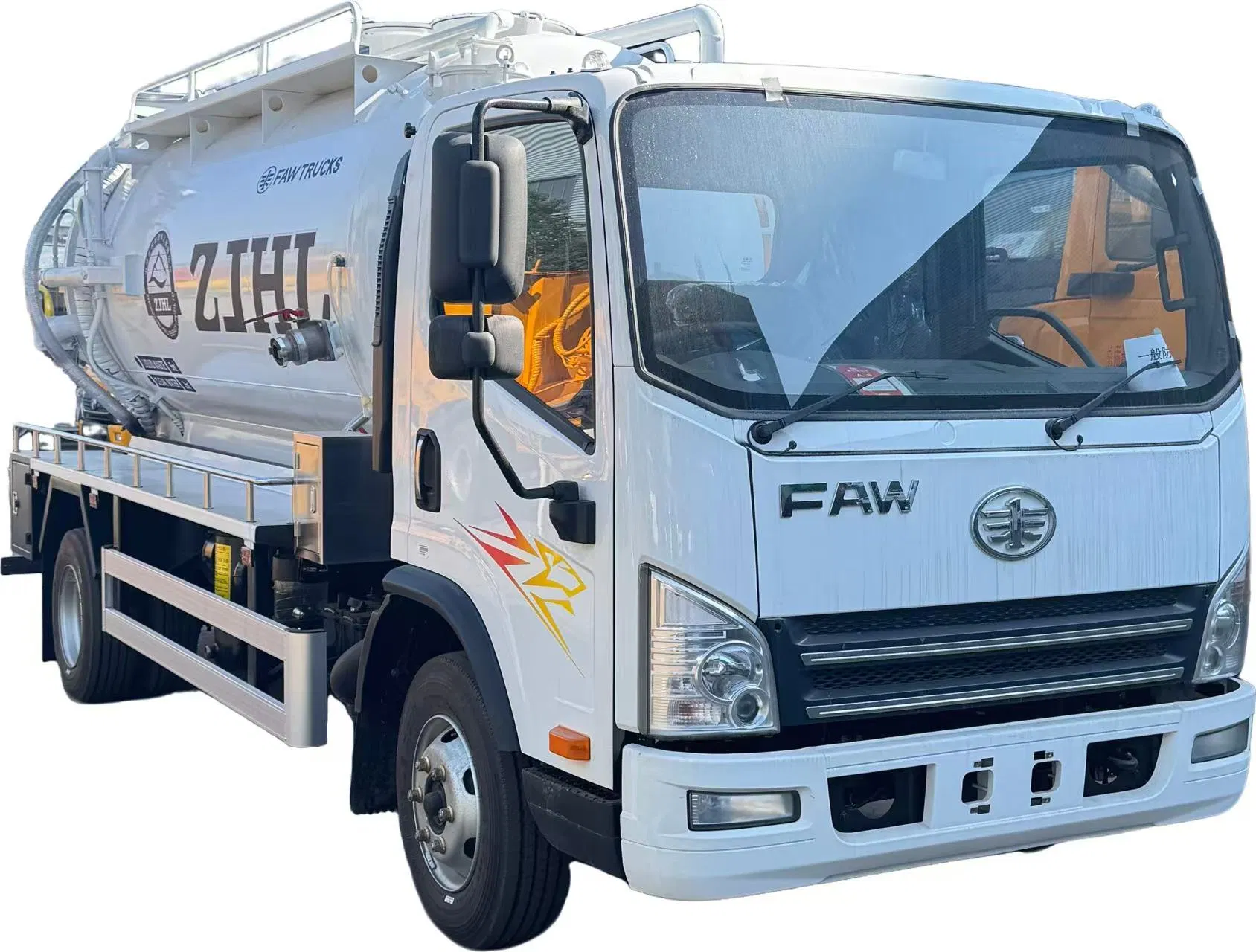

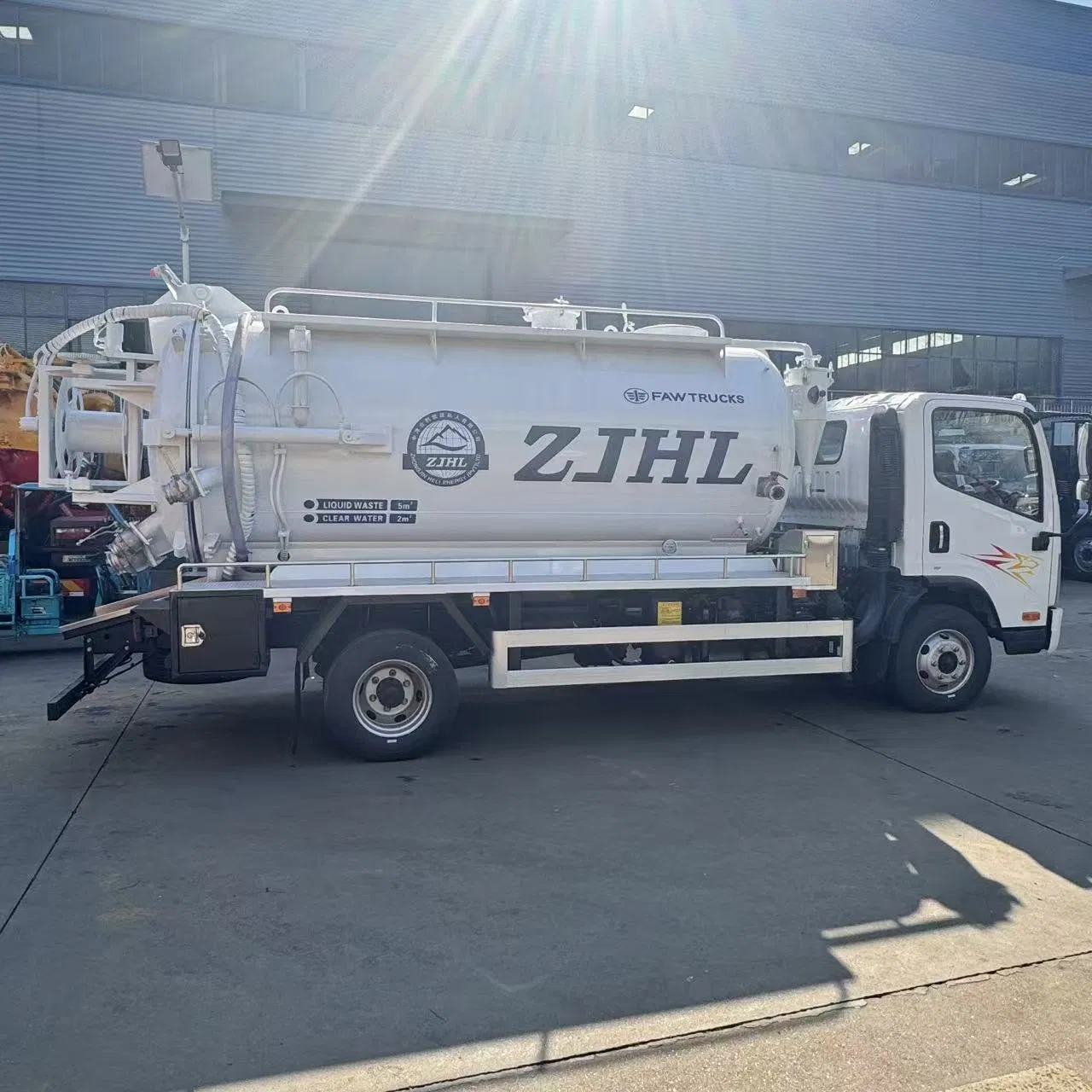

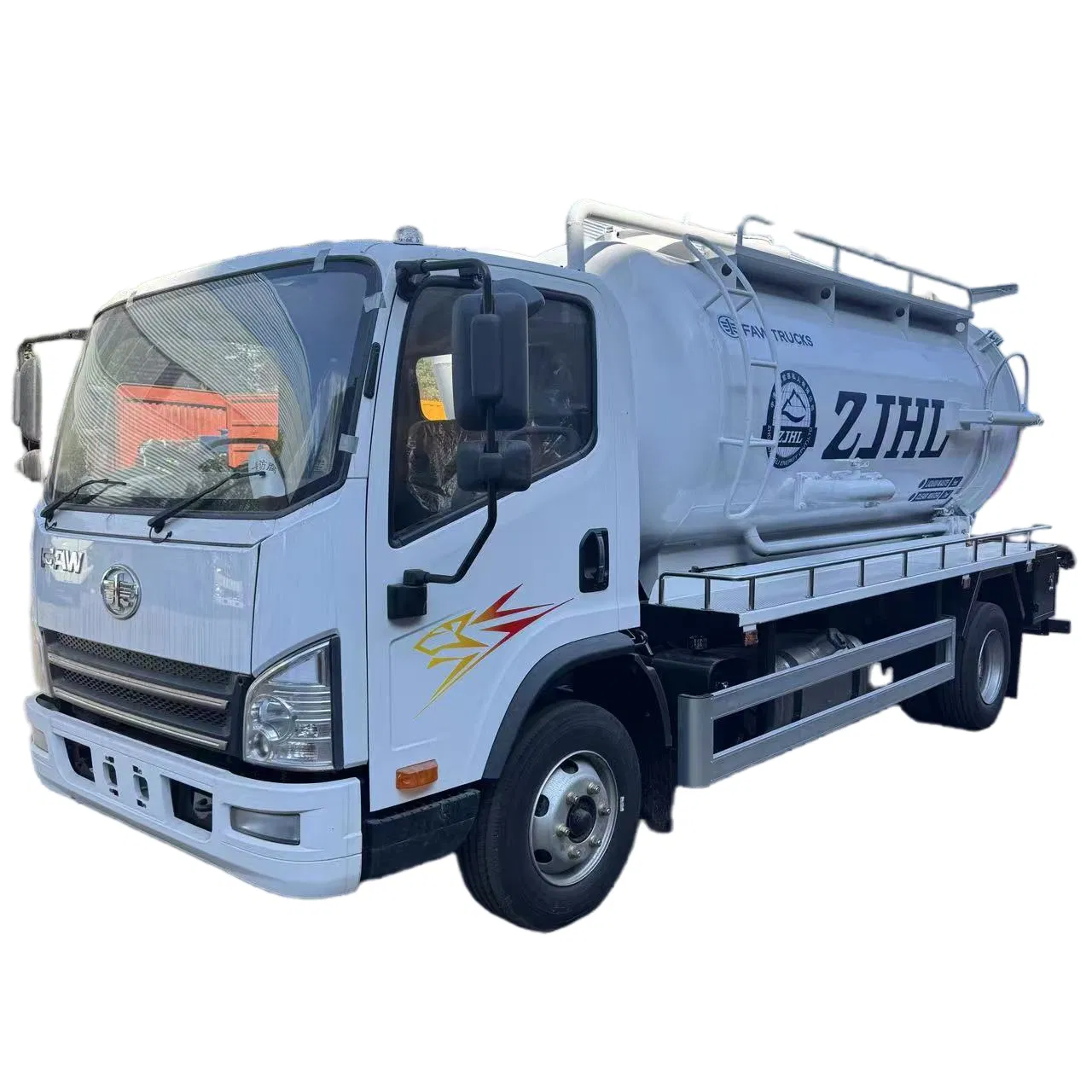

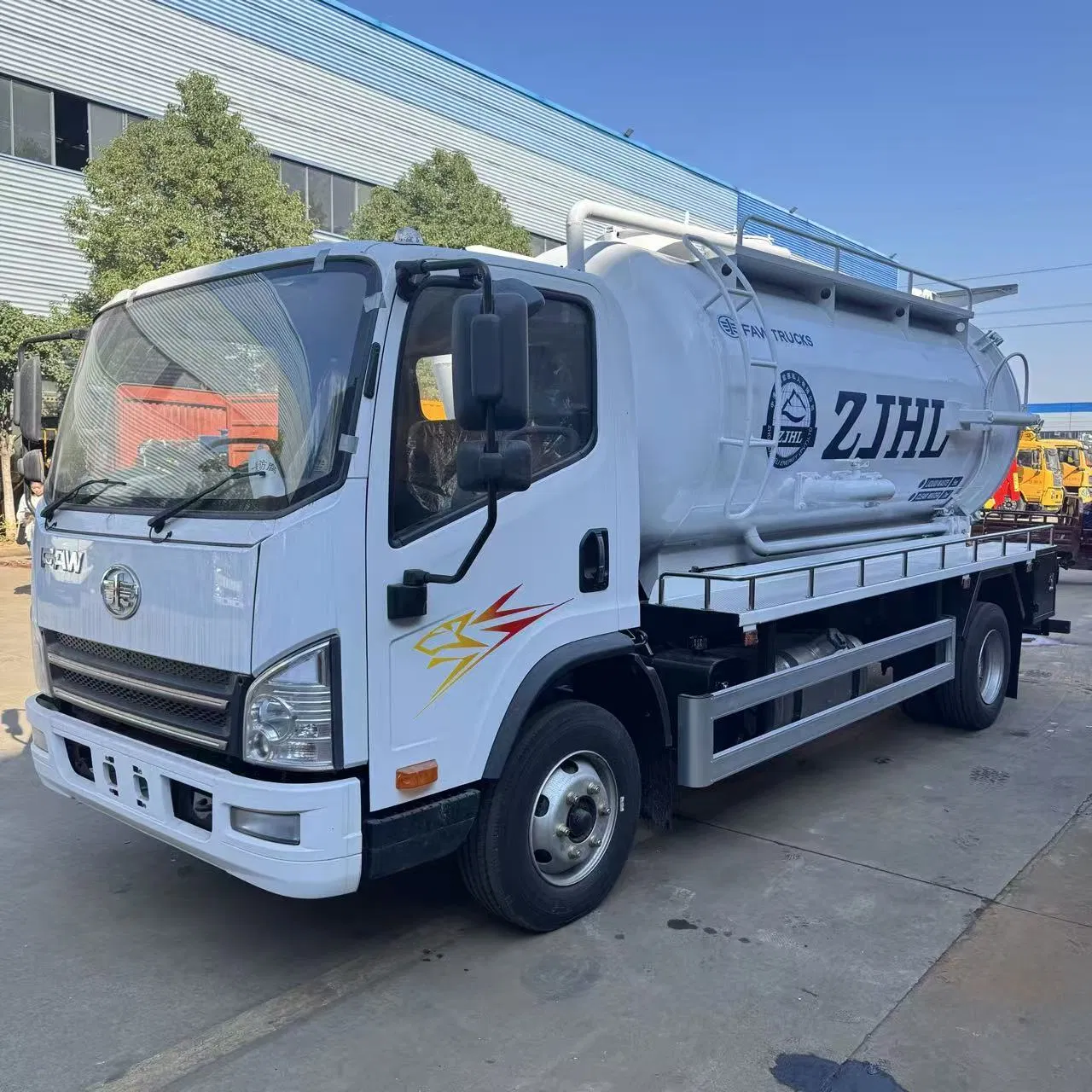

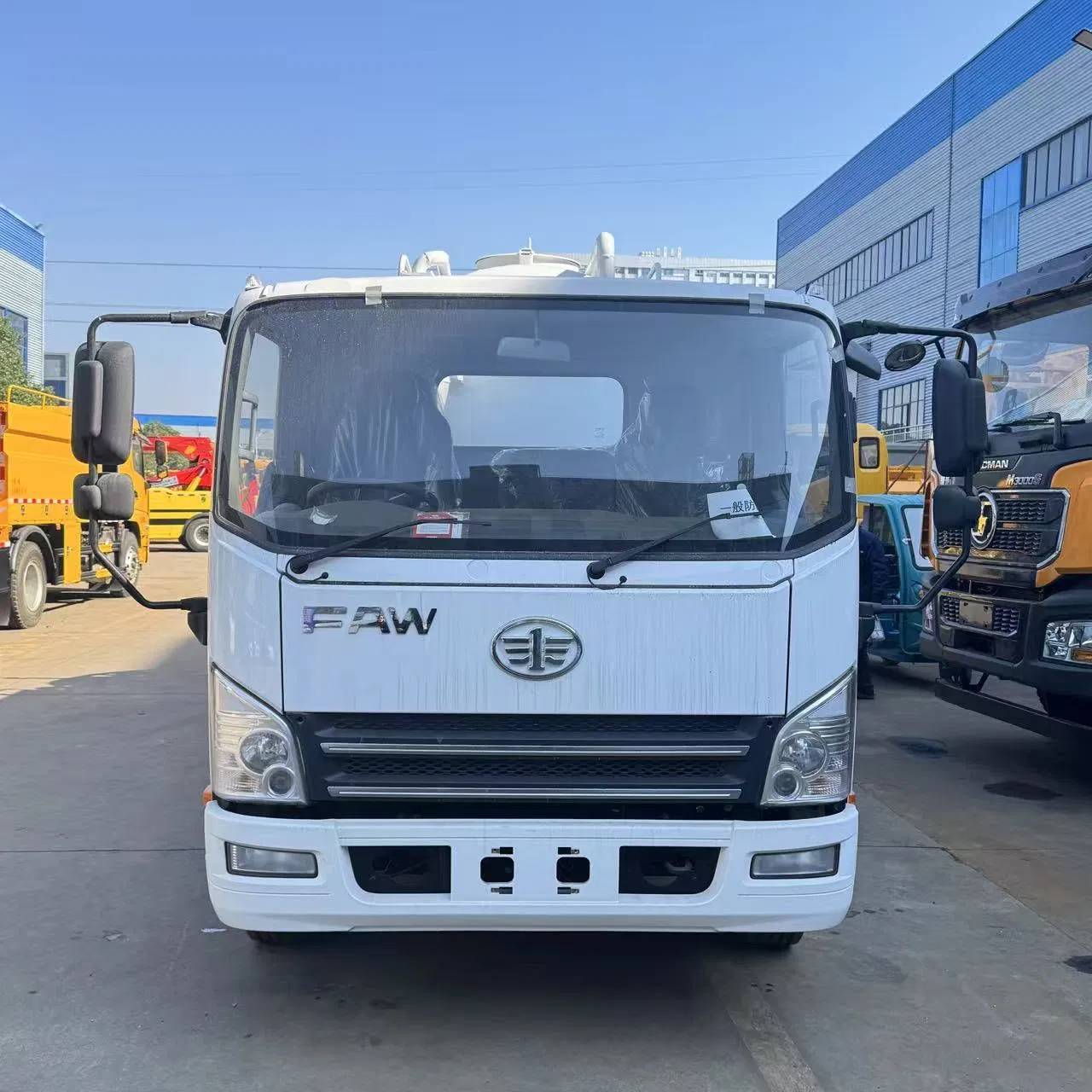

4X2 FAW 8m³ Sewage Suction Truck High Capacity Vacuum Sewage Cleaning Truck for Municipal Sanitation

1 / 5

4X2 FAW 8m³ Sewage Suction Truck High Capacity Vacuum Sewage Cleaning Truck for Municipal Sanitation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

xwc1

Certification

ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Emission Standard

Euro 3/4/5/6

Payload

Transmission

Manual

Fuel Type

Diesel

Tank Volume

3000-33000L

Drive Wheel

4x2

Horsepower

Less Than 150HP

Condition

New

Product Description

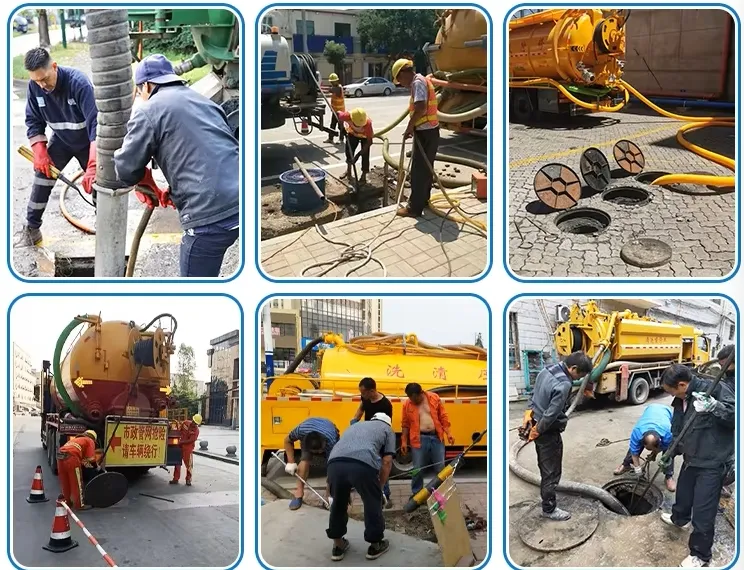

The sewage suction truck is designed for the efficient suction, discharge, and transportation of sludge, excrement, or chemical sewage tank sludge in sewers, rain wells, septic tanks, and various ditches. It is perfectly suited for operations in small streets, communities, and industrial sites such as oil refining, steelmaking, and chemical plants.

Key Features & Advantages

High-Performance Suction: Equipped with well-known brand vacuum pumps (Import options available) providing large suction force and long range.

Advanced Cleaning: Powerful cleaning function capable of sucking particles smaller than the suction pipe diameter.

Efficient Operation: Integrates sewage suction, rotating filtering, and self-draining functions to reduce vehicle trips.

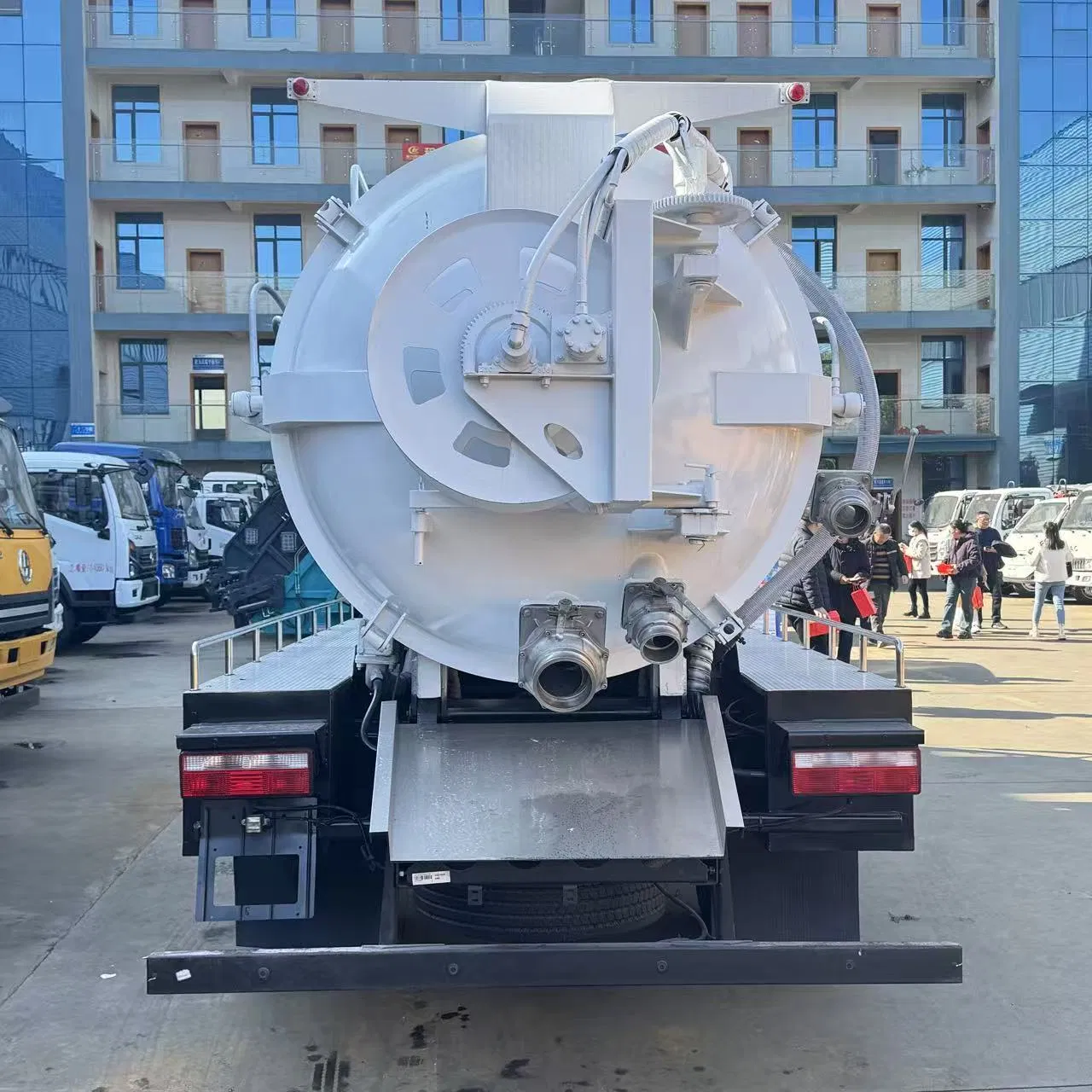

Hydraulic System: Cylinder vacuum tank can be lifted hydraulically to 40-45 degrees; rear door opens/closes hydraulically.

Safety Overfill System: Equipped with a music horn overfill system to prevent pump damage when the tank is full.

Durable Materials: Tank options include Carbon steel (Q235A), stainless steel (Q304/Q316L), or PE lined steel.

Technical Specifications

Chassis & Performance Parameters
Drive Mode	4X2
Vehicle Brand	Faw / Dongfeng / Sinotruk
Horsepower	<150HP
Gearbox	6 Speed Manual Transmission
Tyre	7.00R16
Wheelbase	3360 mm
Max Speed	105 Km/h
Tank Volume	8 m³
Tank Material	6mm Carbon Steel Q235
Suction Time	≤ 5 min
Effective Suction Range	≥ 8 m

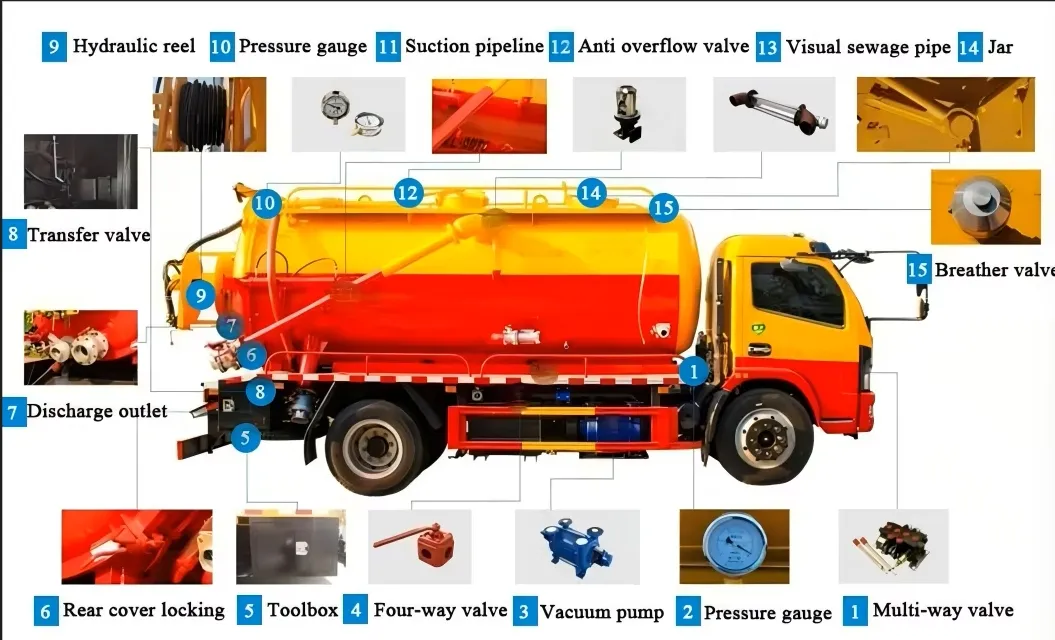

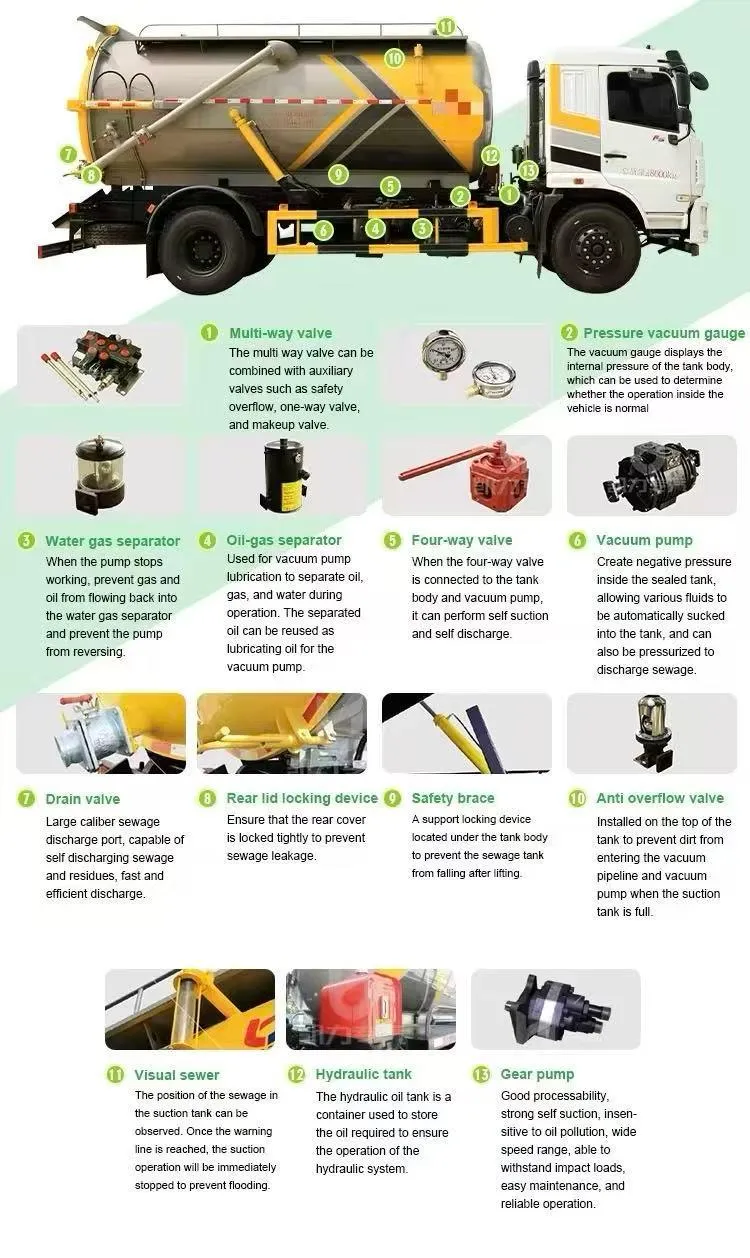

Product Gallery

Manufacturing Excellence

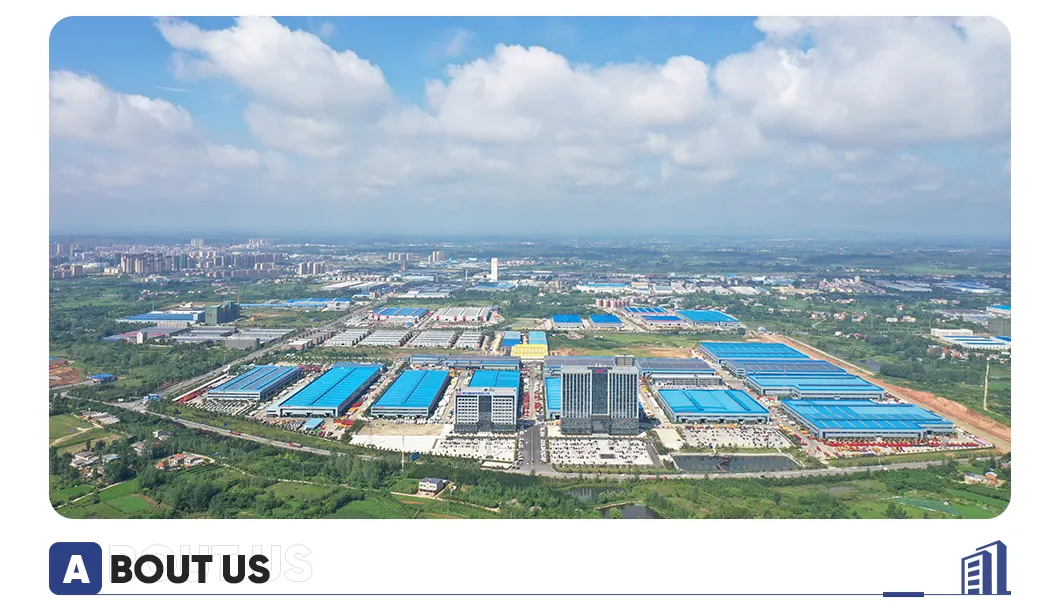

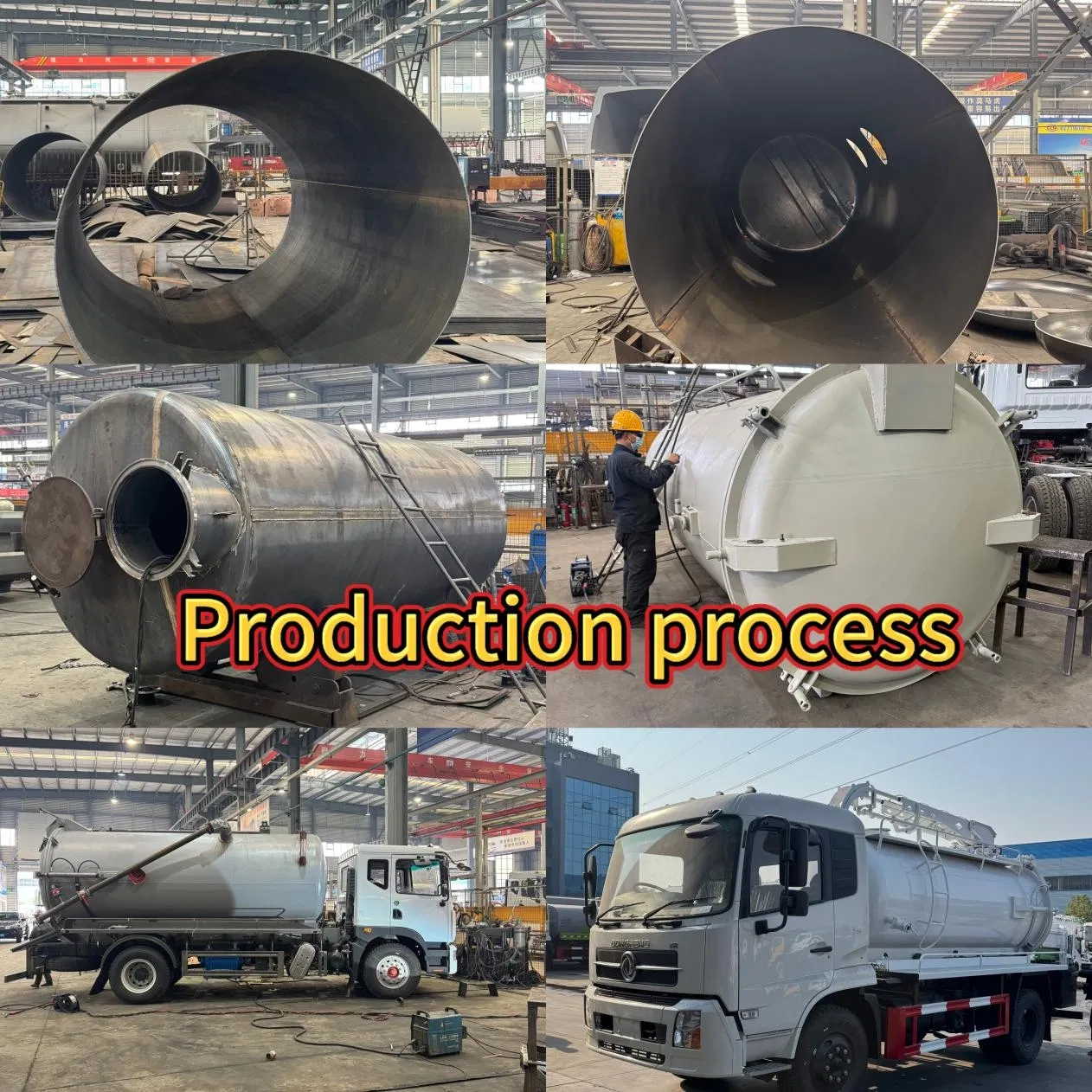

Our production facility features over 2000 sets of advanced production equipment and 200 sets of testing facilities. With an annual production capacity of 100,000 units, we provide a wide range of special trucks exported to over 30 countries worldwide. We maintain first-class production standards to ensure the highest quality for municipal and industrial sanitation needs.

Frequently Asked Questions

Q1: What is the primary function of this sewage suction truck?

A: It is designed for the suction, transportation, and discharge of sludge, excrement, and chemical waste from sewers, septic tanks, and industrial ditches.

Q2: What is the capacity range available for the sewage tanks?

A: The effective volume of our sewage tanks ranges from 3,000 liters to 33,000 liters, depending on the model and chassis configuration.

Q3: How long does it take to complete a suction operation?

A: The standard suction time is less than or equal to 5 minutes, with an effective suction range of 8 meters or more.

Q4: Can the tank be customized with different materials?

A: Yes, we offer carbon steel (Q235A), stainless steel (Q304/Q316L), and PE-lined steel options to suit different types of chemical or waste transport.

Q5: What safety features are included to prevent pump damage?

A: The truck is equipped with an overfill system including a music horn and anti-flow valves to prevent sewage from entering and damaging the vacuum pump when the tank is full.

Q6: Which chassis brands are compatible with this upper body?

A: We provide configurations for major brands including FAW, Dongfeng, Sinotruk, and other custom options based on client requirements.
