Yale Truck
1 / 5
| Model NO. | ZBJ5071TSLC |
| Type | Sweep and Suck Type |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| Transmission Type | Manual |
| Emission Standard | Euro 6 |
| Fuel | Diesel |
| Payload | 2580kg |
| Cleaning Process | Cold Water Cleaning |
| Chassis | QL1070BUHACY |
| Engine | 4KH1CN6LB |
| Dustbin Volume | 4m³ |
| Tank Volume | 1.6m³ |
| Sweeping Width | 3.2m |
| Max. Speed | 95km/H |

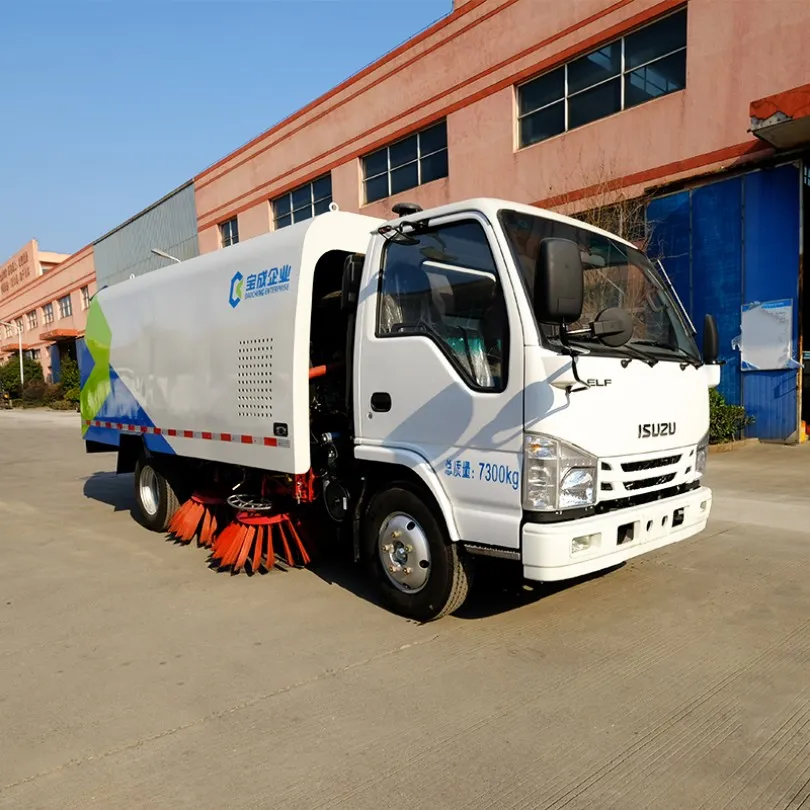

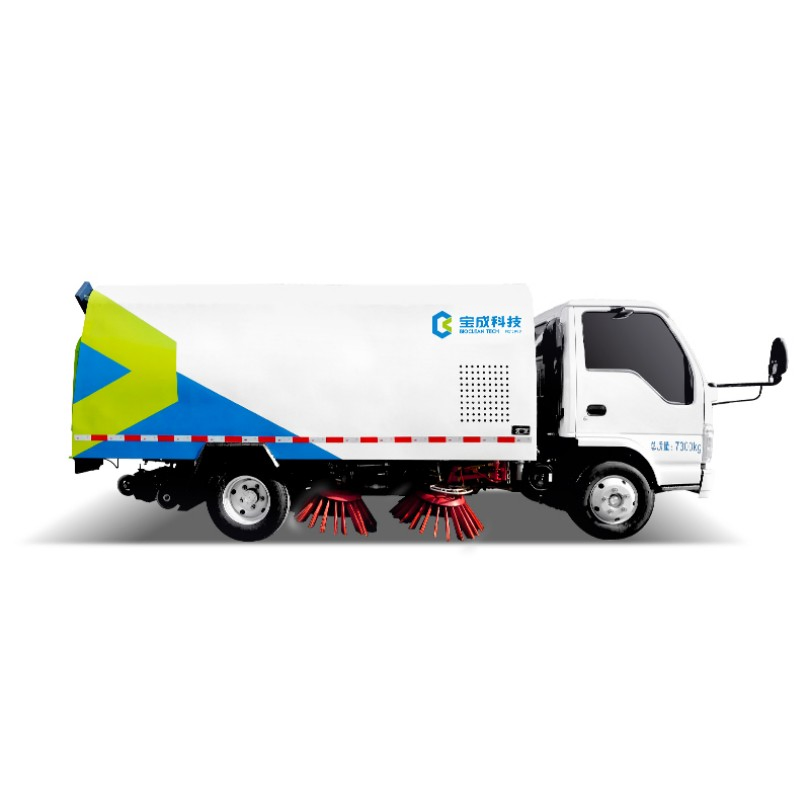

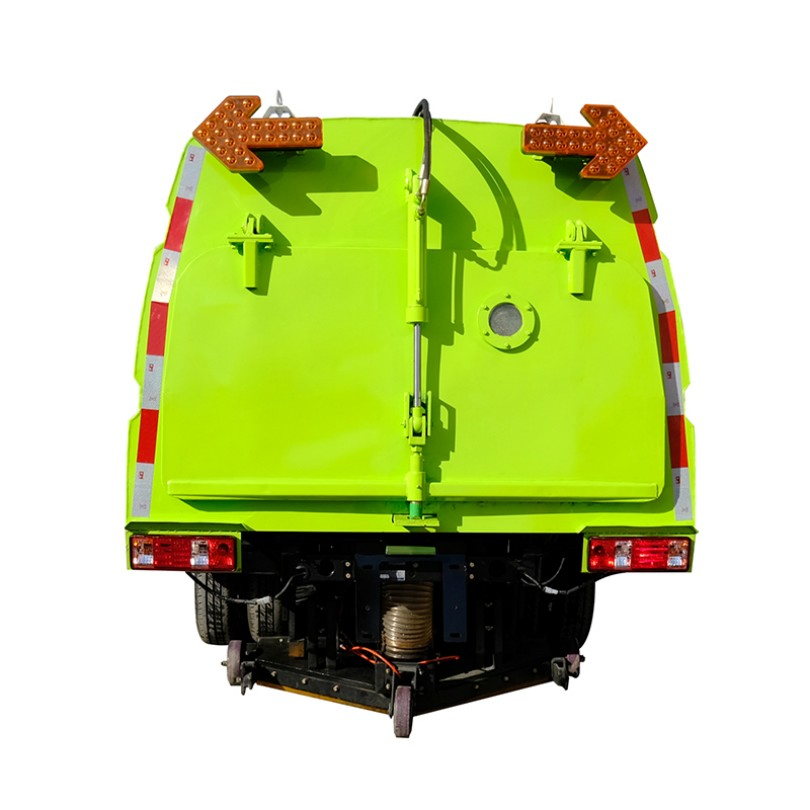

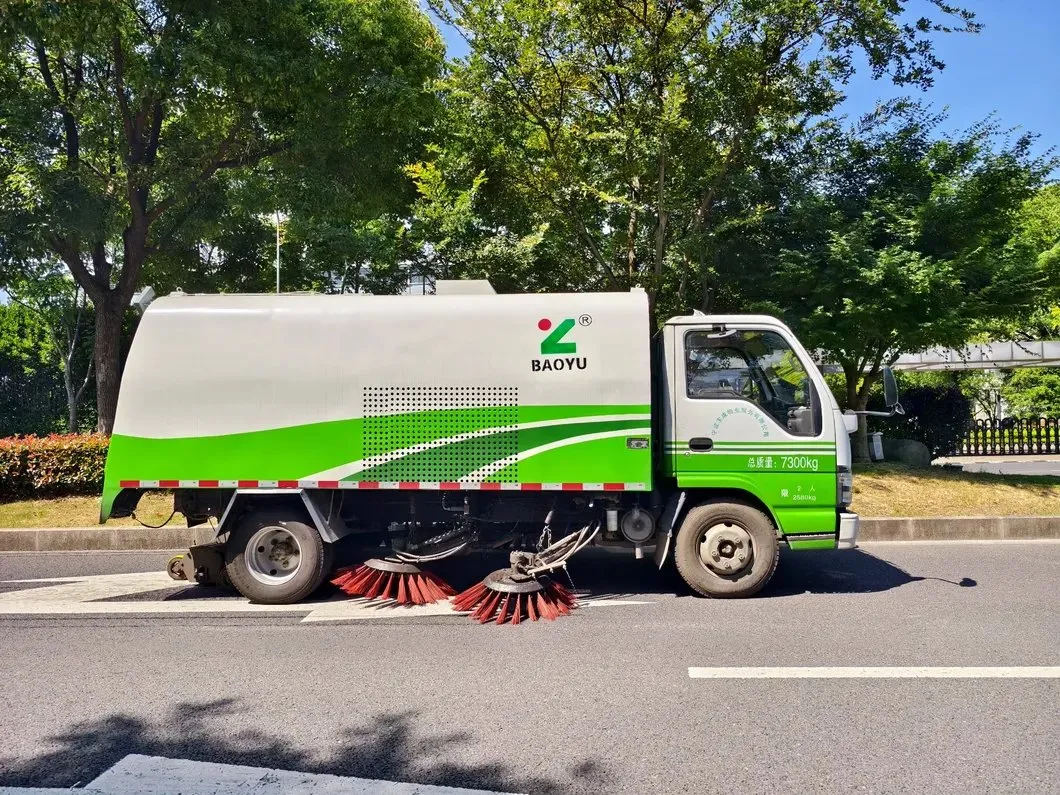

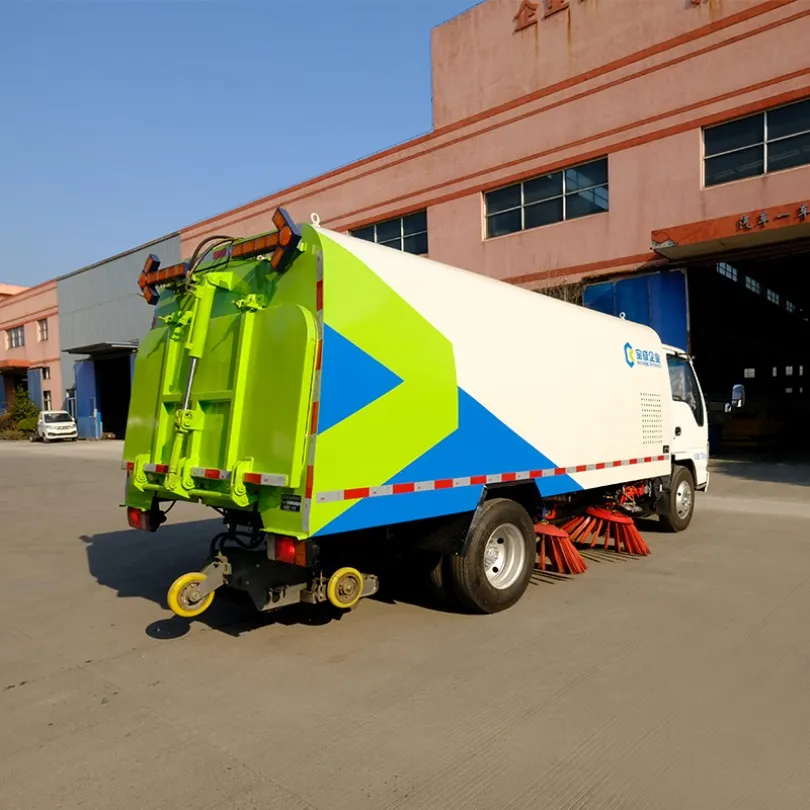

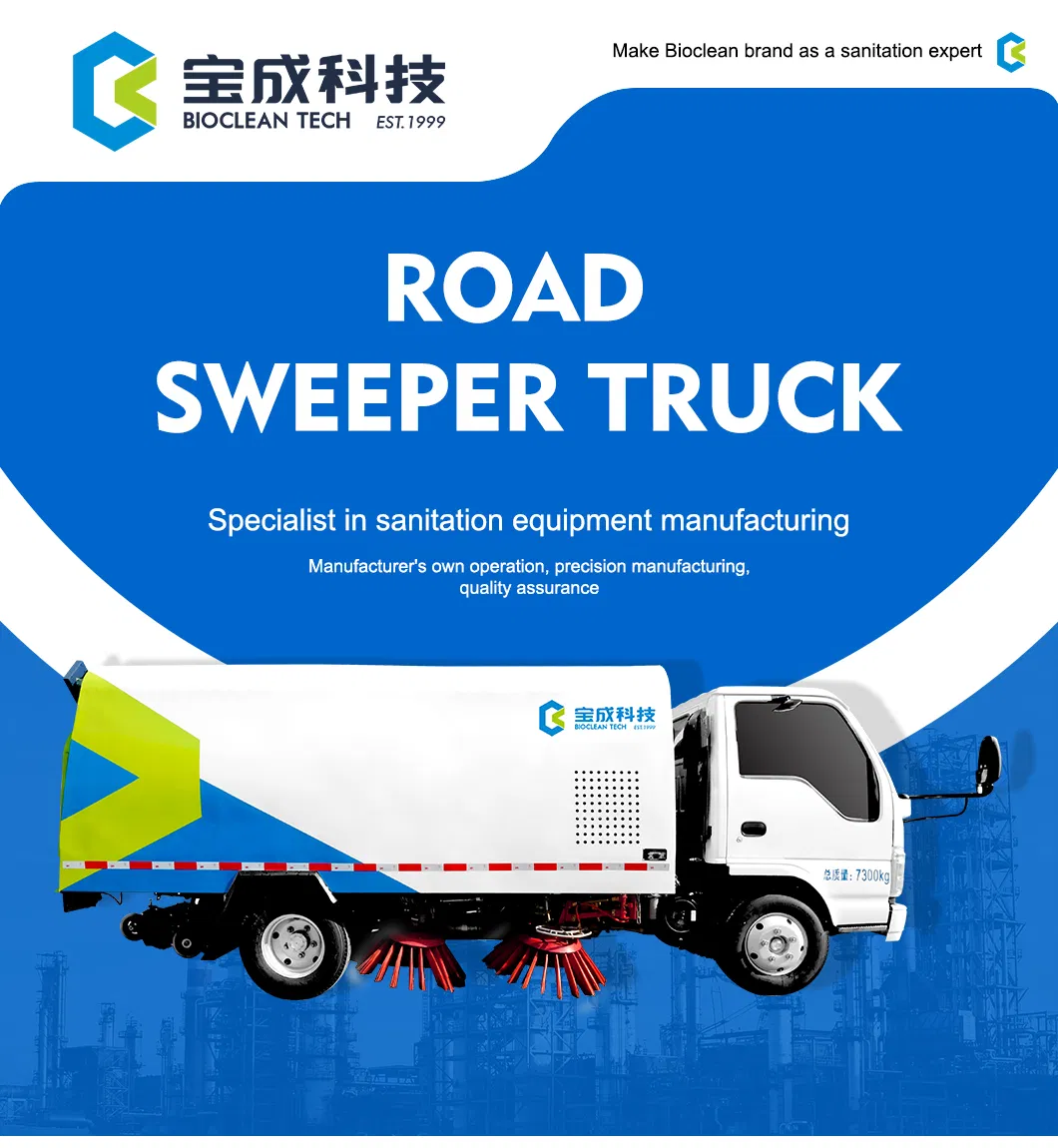

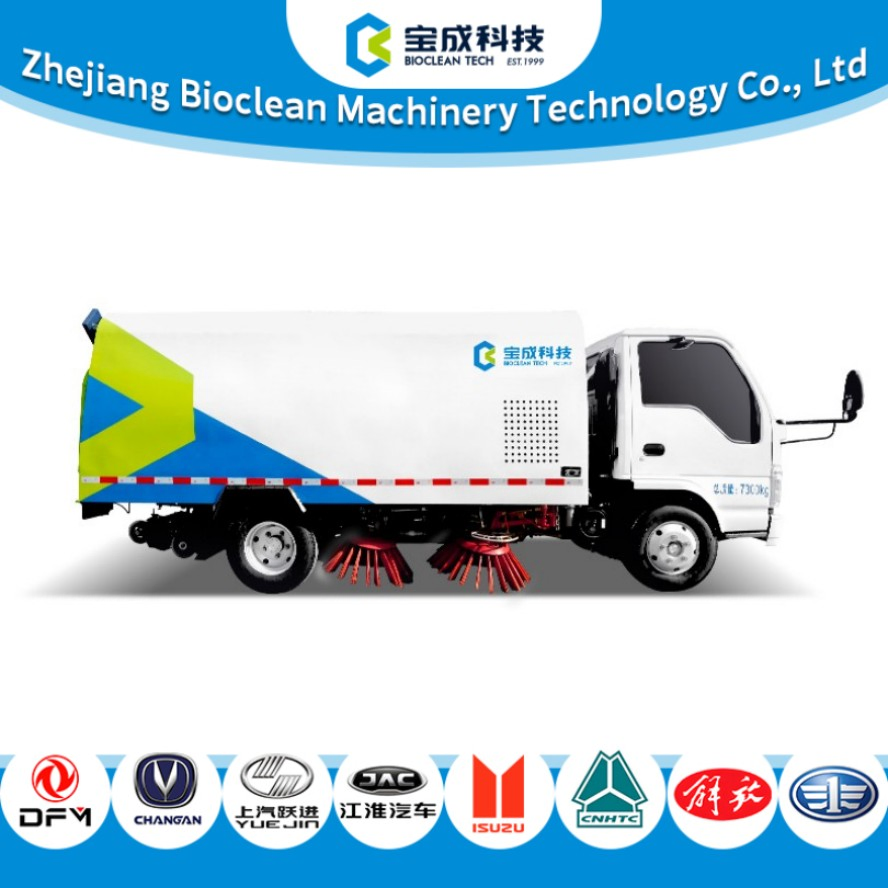

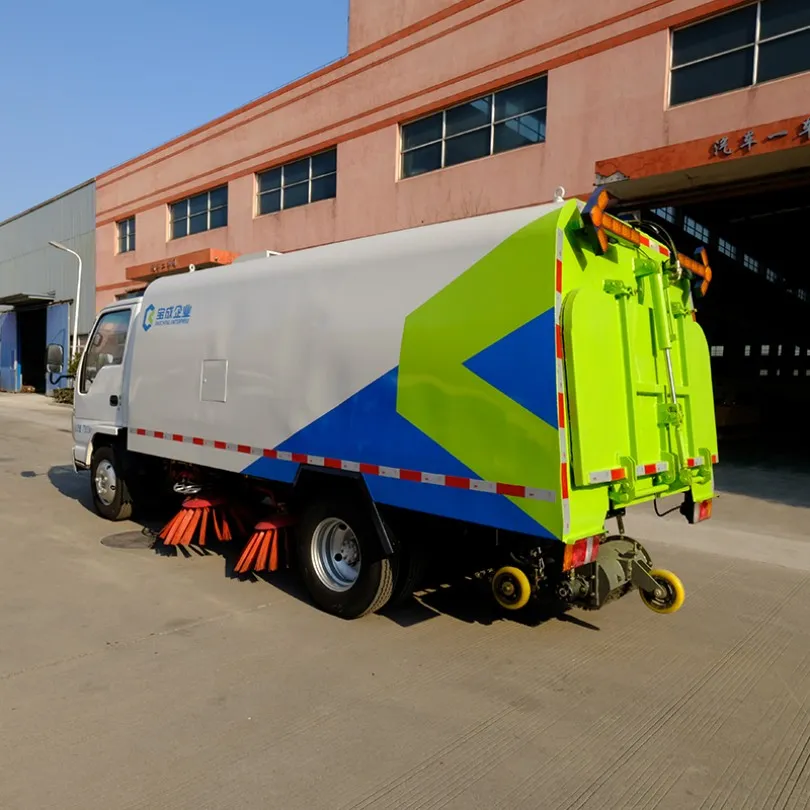

The road sweeper is built on a Class II chassis and equipped with a dedicated sub-frame, a high-capacity debris hopper, an auxiliary engine, a high-pressure blower, and a fully integrated sweeping system—making it ideal for municipal street cleaning. The twin rotary brushes are mounted between the front and rear axles, with the suction nozzle positioned just behind the rear axle. Each brush assembly features hydraulically controlled ground-pressure adjustment for consistent sweeping performance.

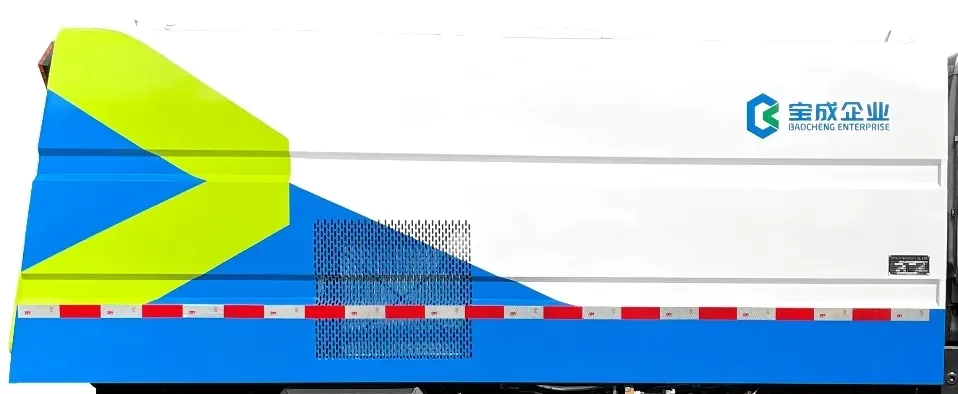

The large-capacity debris hopper reduces the need for frequent dumping, while also incorporating water sprinkling and dust suppression features. This ensures an environmentally friendly process with minimal dust emissions.

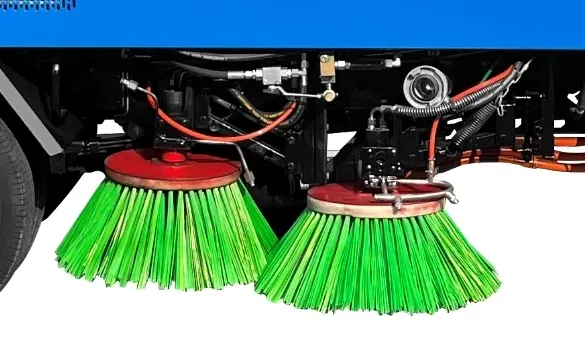

Four symmetrically mounted, high-durability side sweeping discs work in tandem with a powerful rear suction nozzle to thoroughly remove all types of road debris, dust, and rubbish.

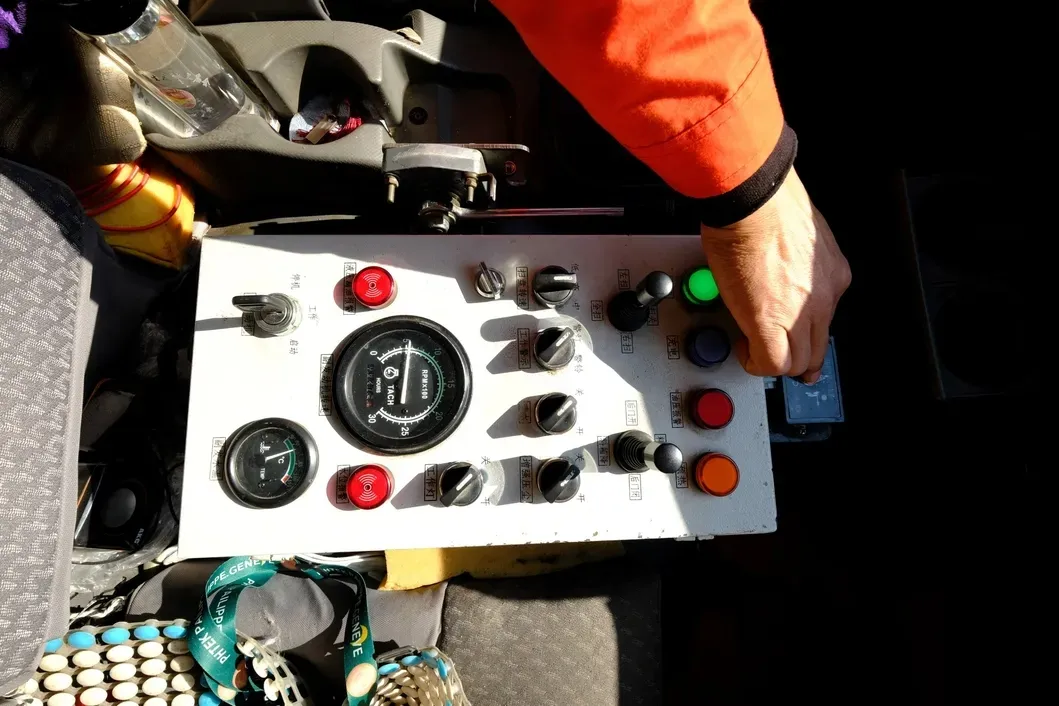

Designed for ease of use, the vehicle is simple to drive and operate with minimal training. Intuitive controls allow for quick start-up and seamless operation focus on productivity.
Built with rigorously selected high-quality steel, ensuring exceptional strength and resilience. Superior corrosion resistance protects the body from environmental factors.
| Package Size | 5815×2100×2400(mm) |
| Package Gross Weight | 3600kg |

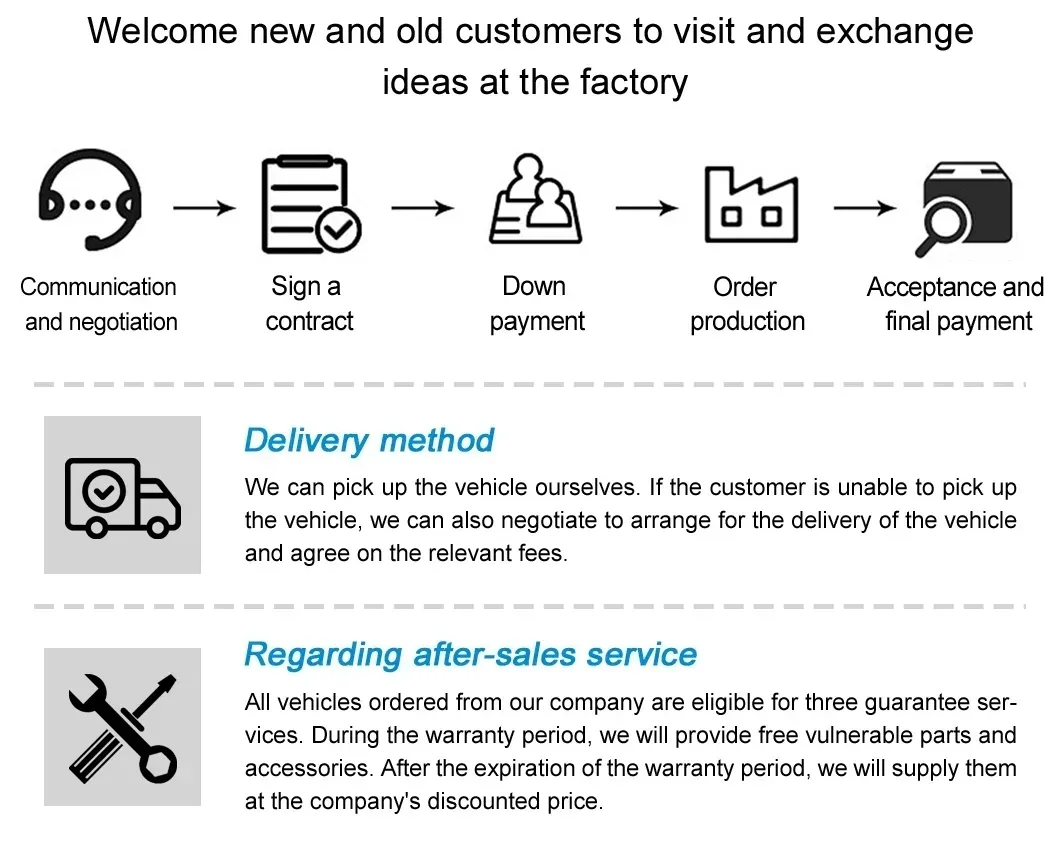

| Shipping Methods | Bulk cargo carrier, RO-RO, 40/45 HQ, or Land Transportation |
