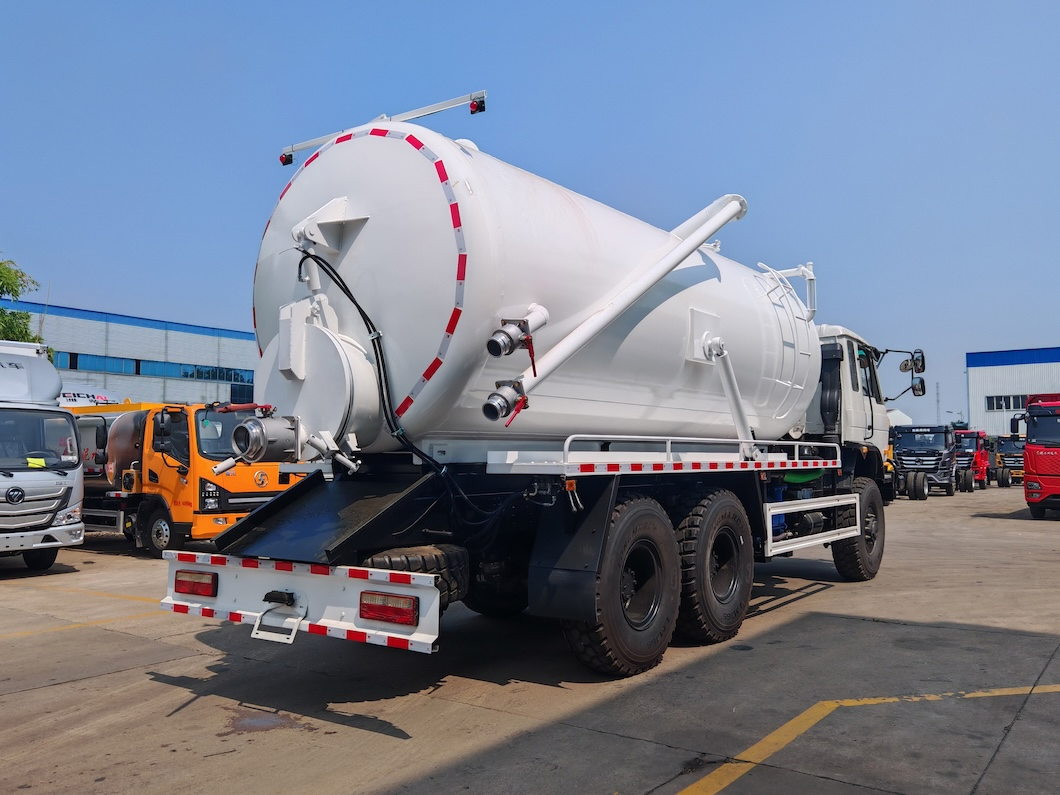

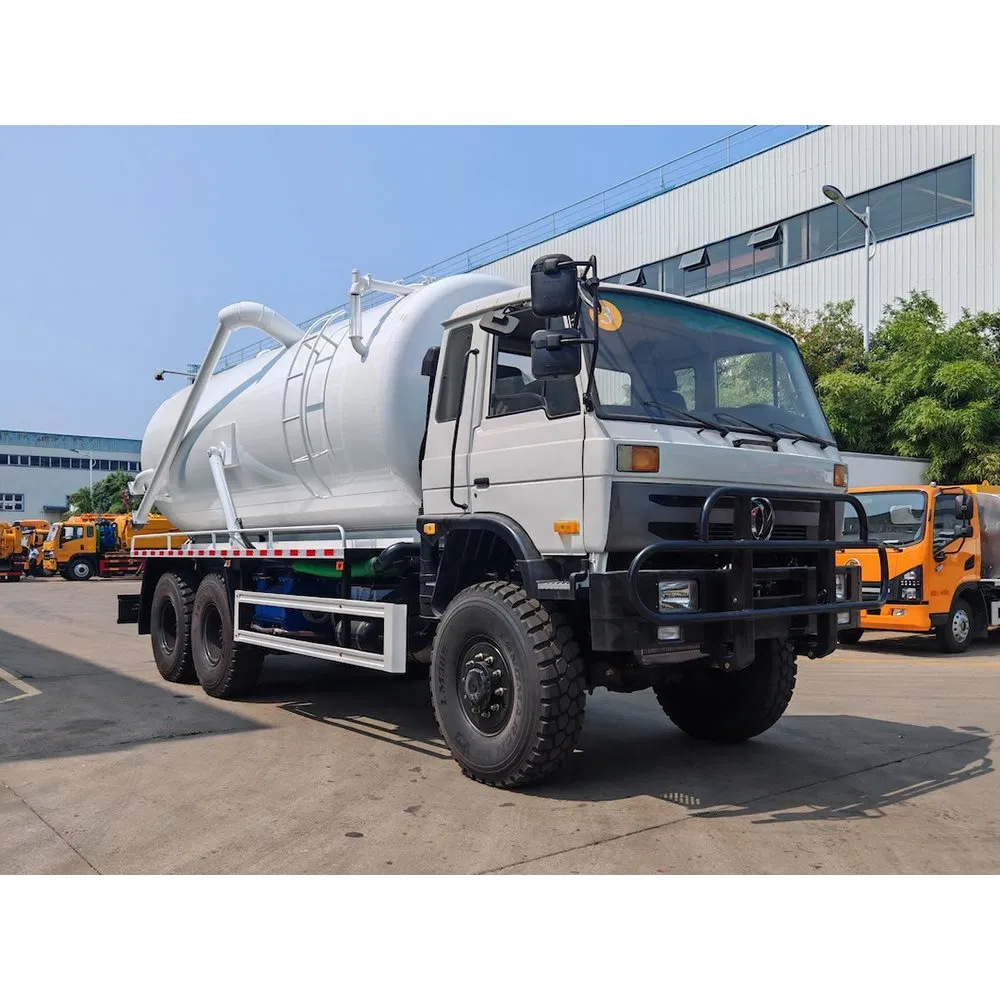

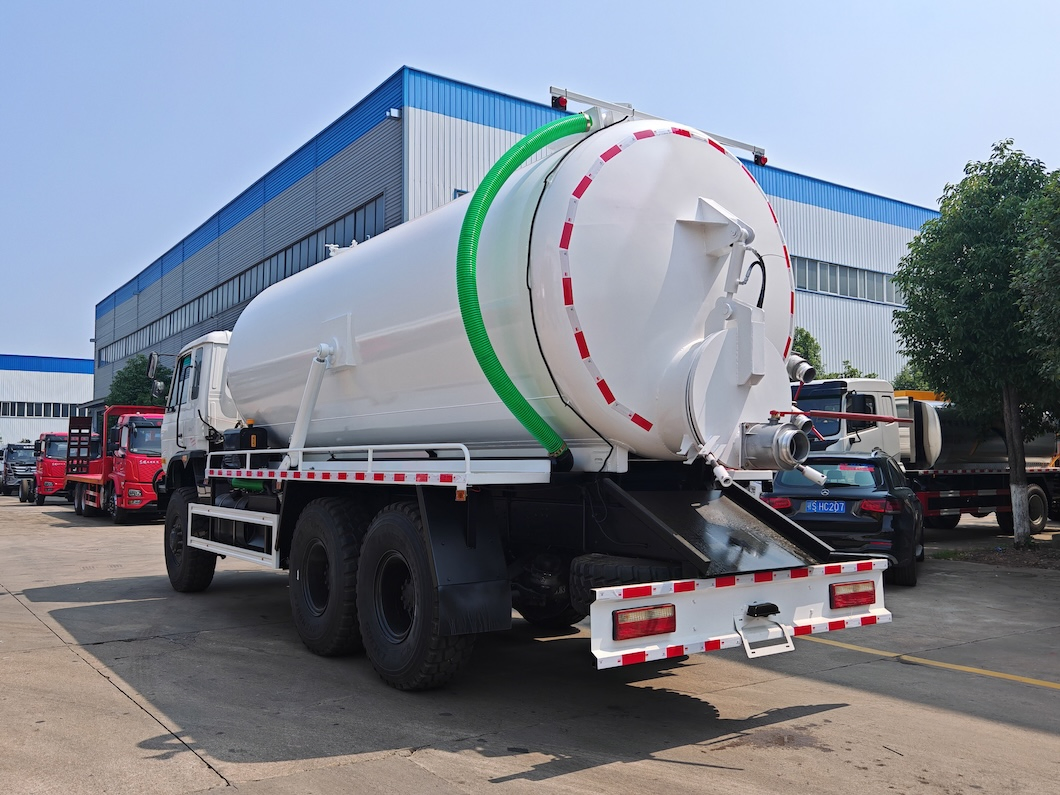

Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
1 / 5
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump
Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump

Reliable Dongfeng 6*6 Awd Chassis 15m3 Vacuum Tank 15000litres Sewage Suction Cleaning Sewer Truck for Sale Option Italy Moro Vacuum Pump

Customization: Available
After-sales Service: Free Spare Parts Will Be Sent for Quality Problems
Warranty: 12months or 20000km
Send Inquiry

Product Description

Basic Information
Model NO.
CLW2250GXWD2
Certification
ISO9000, CCC
Emission Standard
Euro 2
Payload
20T
Transmission Type
Manual
Fuel
Diesel
Tank Volume
15000L
Drive Wheel
6x6
Horsepower
251-350hp
Condition
New
Chassis Brand
Dongfeng
Steering Wheel
Left Hand Drive
Engine
Cummins 260HP
Tire
12.00r20
Specification
9100*2500*3800(mm)
Origin
China
Product Description
Sewage Suction Truck Banner

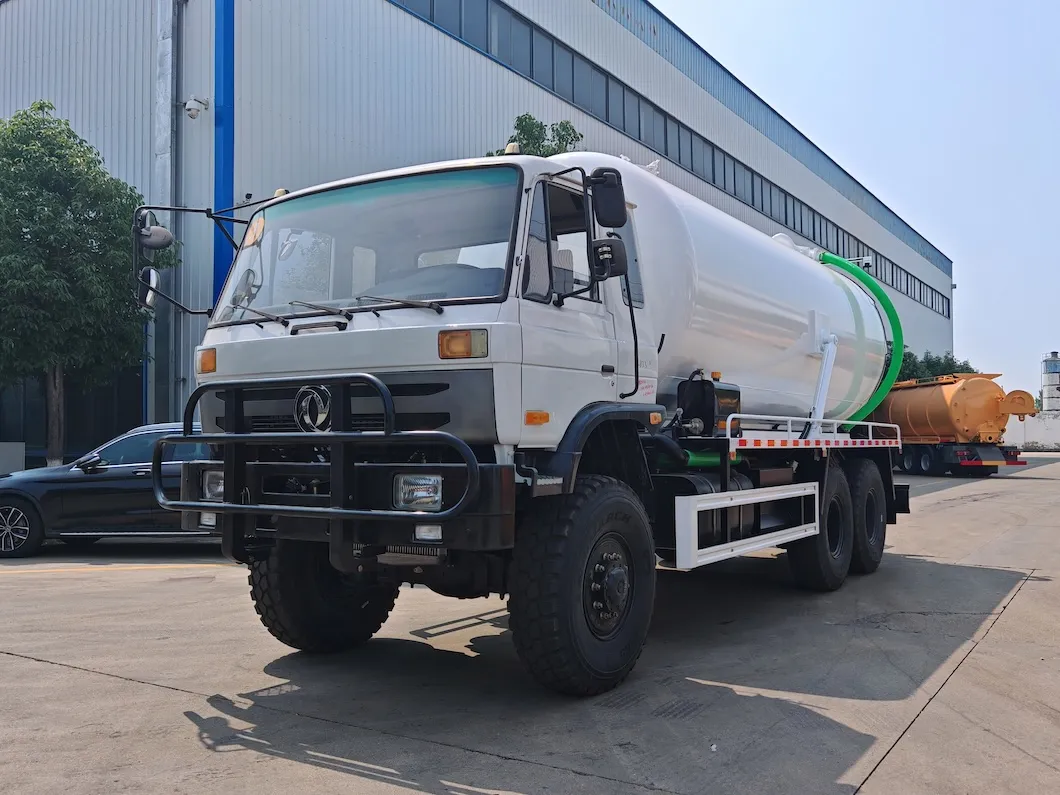

Truck View 1

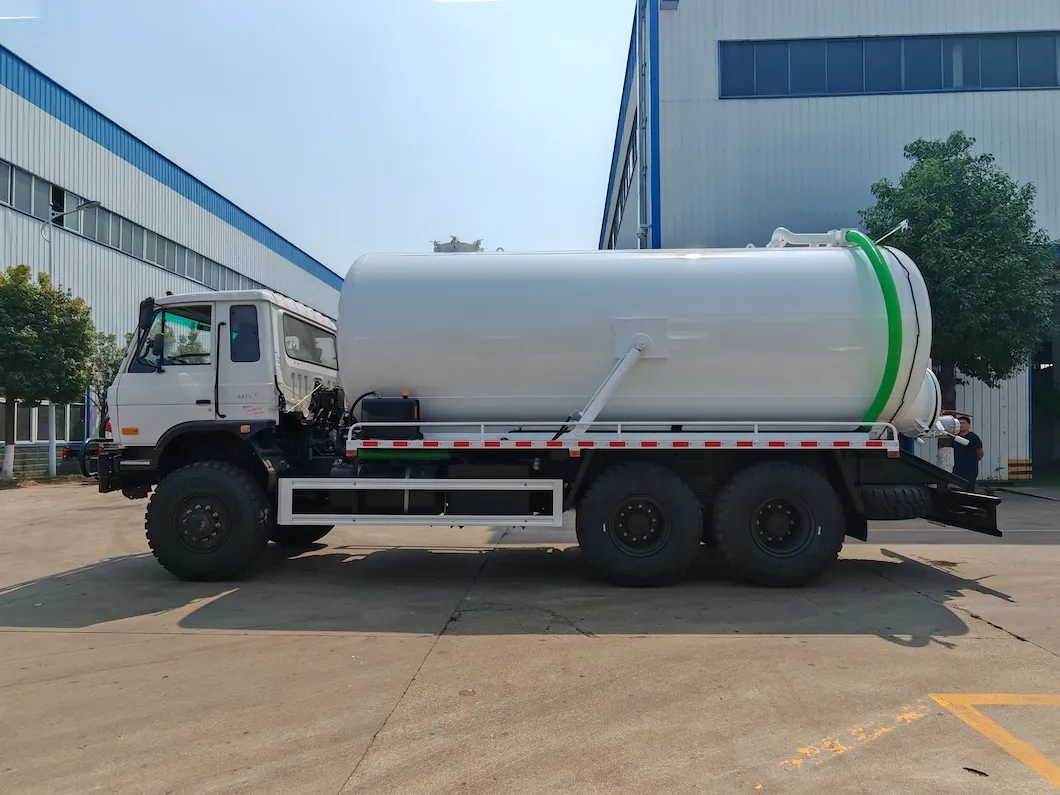

Truck View 2

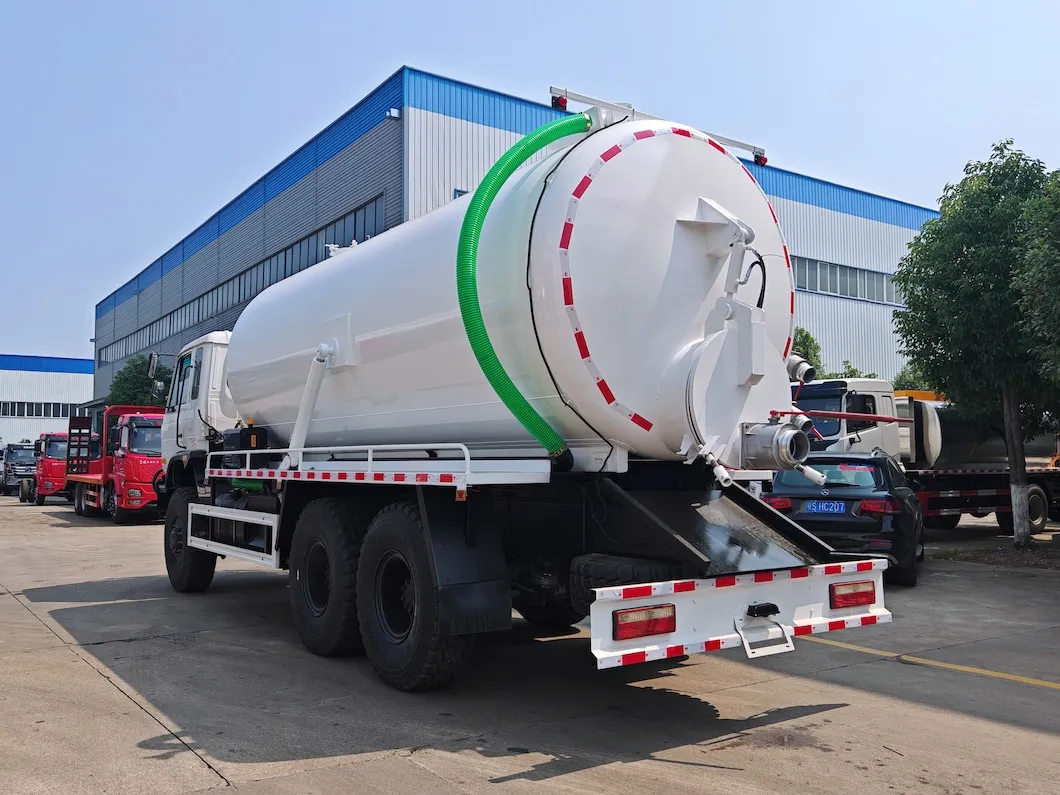

Truck View 3
General Parameters Model CLW2250GXWD2
Overall Dimension Appro: 9100*2500*3800(mm)
GVW 25000kg
Kerb Weight Appro 13000kg
Rated Payload 12000kg
Chassis Details Brand Dongfeng
Cabin Dongfeng 153 cab, single row with bed, AC included
Driving type 6*6 Left Hand Drive
Engine Model C260 33
Rated Power 191kw/260hp
Gear Box 10JSD120A; 10 Forward + 2 Reverse
Axle Load Front 6T / Rear 10T*2
Suspension Leaf Spring; 8/10
Tire 12.00R20; 10+1pcs
Sewage Tank Tank Volume 15-20cbm
Tank Material 6mm Q235 Carbon Steel
Vacuum Pump SK-12
Suction Depth 6m Vertical
Discharge Hydraulic lift for discharge
Suction Pipe 100mm diameter, 8-meter length
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Frequently Asked Questions
What is the total tank capacity of this sewage truck?
The truck features a high-capacity sewage tank ranging from 15,000 liters to 20,000 liters (15-20cbm), suitable for large-scale cleaning operations.
What kind of terrain can this 6x6 truck handle?
Equipped with a Dongfeng 6x6 All-Wheel Drive (AWD) chassis and 12.00R20 tires, this truck is designed for excellent off-road performance and can operate in tough environments.
What are the suction capabilities of the vacuum system?
The truck uses an SK-12 vacuum pump, providing a vertical suction depth of up to 6 meters and the ability to inhale particles up to 100mm in diameter.
Is the tank easy to discharge and clean?
Yes, the tank is equipped with a hydraulic lifting system for efficient discharge. Additionally, the rear cover can be opened hydraulically for thorough cleaning.
What engine power does this model provide?
It is powered by a reliable Cummins 260HP engine (C260 33) with a displacement of 8.3L, providing 191kw of power and 1090N.m of torque.
What safety features are included in the tank design?
The tank includes an anti-overflow valve to prevent spills and an optofecal window for monitoring levels during operation.
