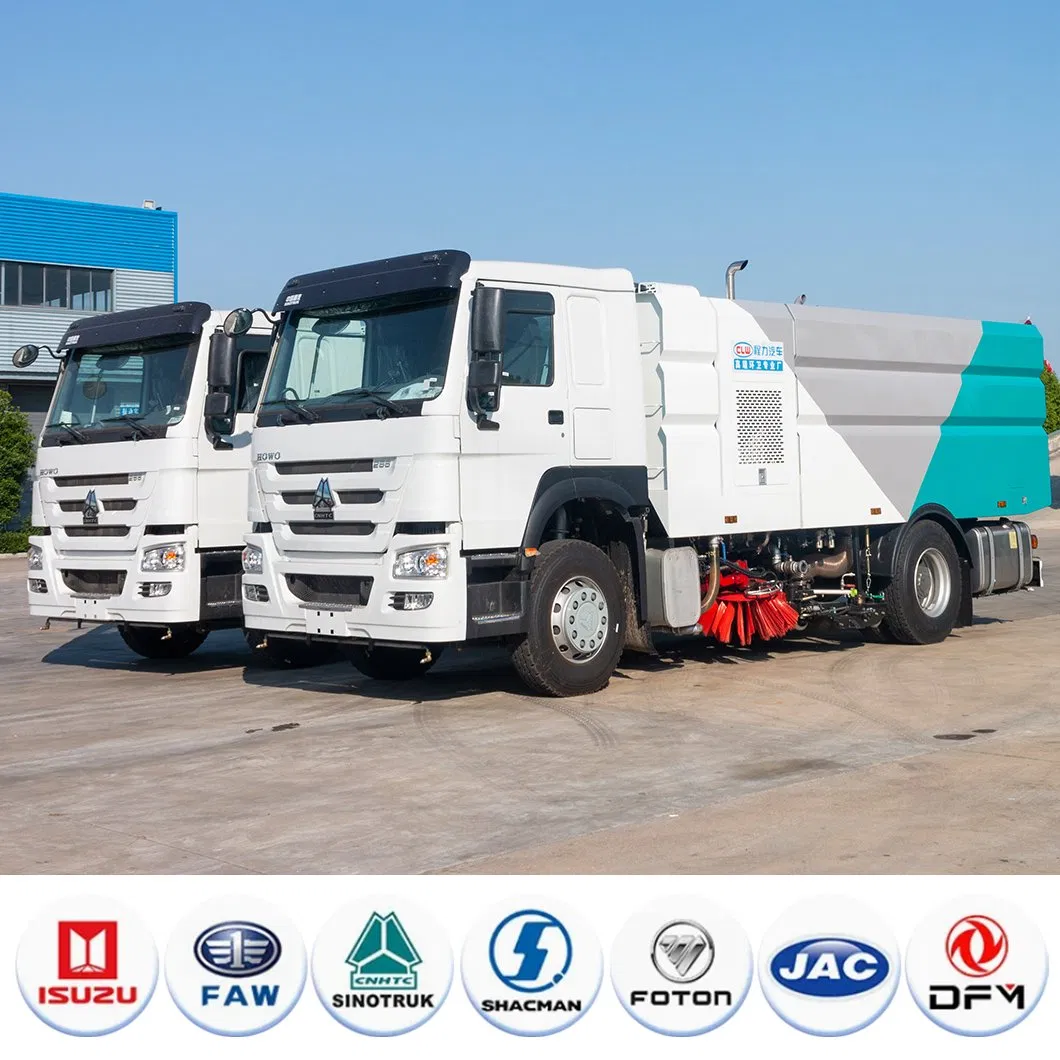

Multifunctional 16 Cubic Metersroad Sweeper and Street Sweeping Washing Vacuum Truck Cleaning and Sweeping Vehicle for Sale

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months

Product Description

📋 Basic Information
Type
Sweep and Suck Type
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Transmission Type
Automatic
Emission Standard
Euro 2, 3, 4
Fuel
Diesel
Payload
16cbm
Cleaning Process
Cold Water Cleaning
Condition
New
Total Mass
18000kg
Maximum Speed
110 Km/H
Production Capacity
500,000 pieces/Year
Origin
China
🚚 Product Description
Road Sweeper Overview
The high-efficiency vacuum street sweeper is a new generation of specialized equipment for pavement, curb cleaning, sweeping, and dust suppression. It combines the functional characteristics of a street cleaning vehicle and a high-pressure cleaning vehicle, addressing the limitation of vacuum trucks that cannot clean curbs on urban roads. This model features characteristics such as being environmentally friendly, fully functional, reasonably designed, low energy consumption, and a large cleaning range.

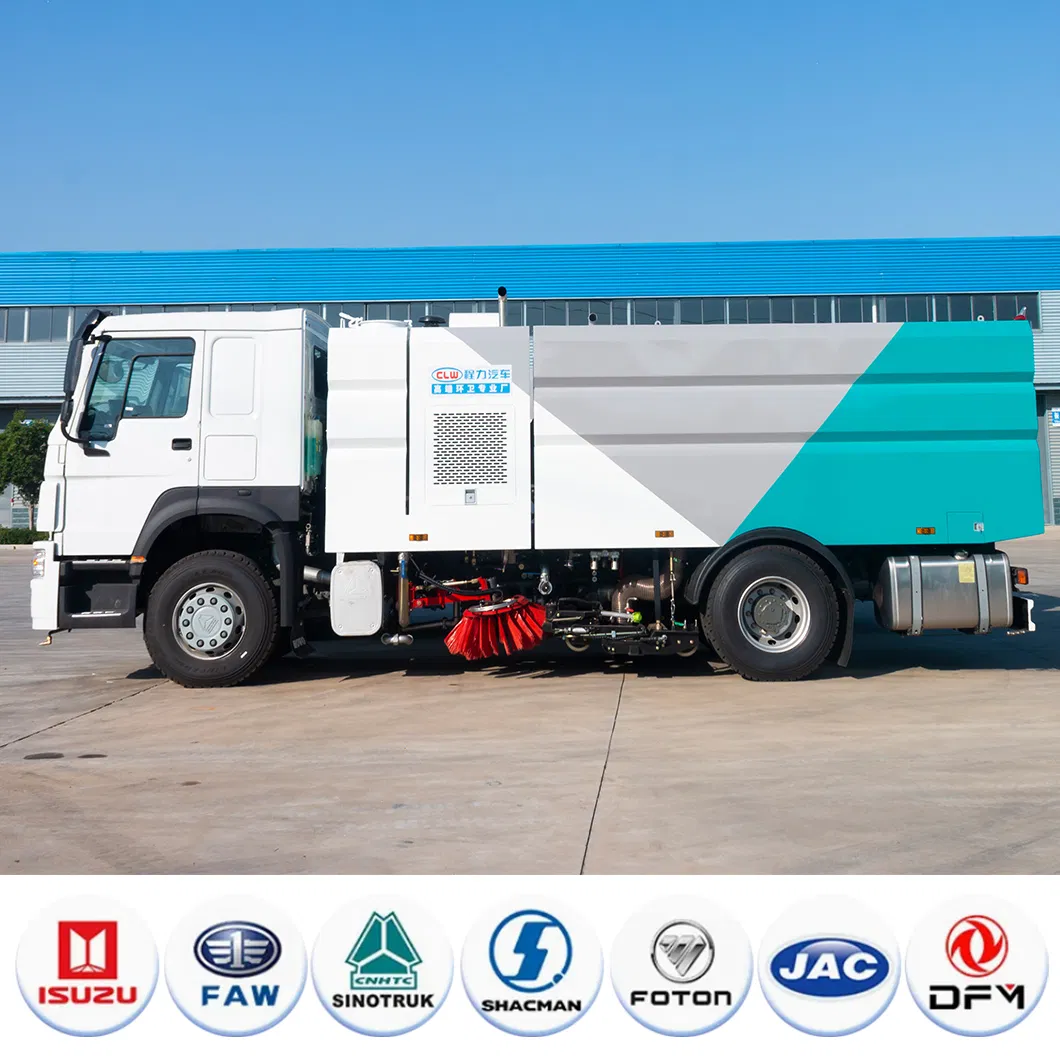

Sweeper Side View
Sweeper Detail
✨ Key Principle: The system adopts the principle of negative pressure pure suction and one-way air intake (no back-blowing airflow), ensuring dust enters but does not exit, achieving zero PM2.5 emissions during mechanized cleaning operations.

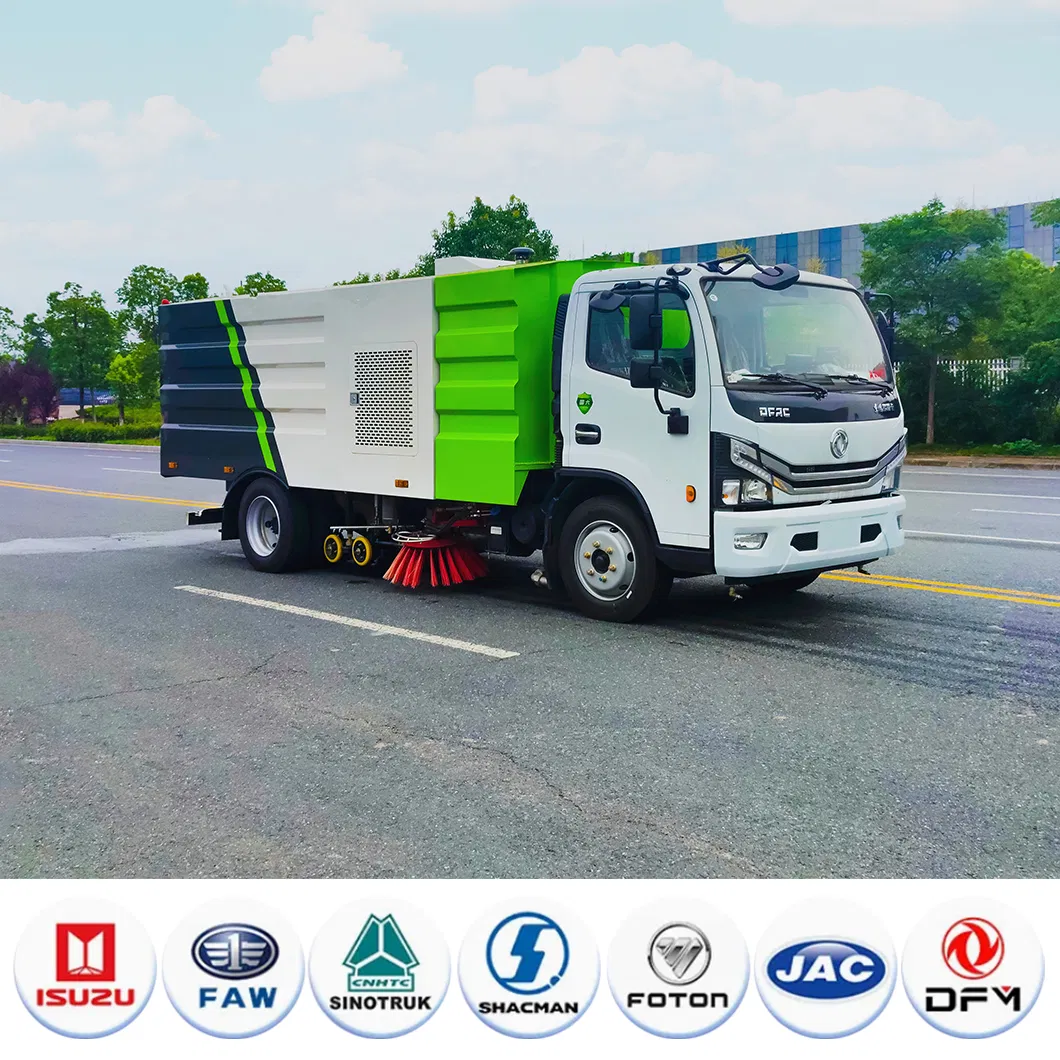

Sweeping Truck

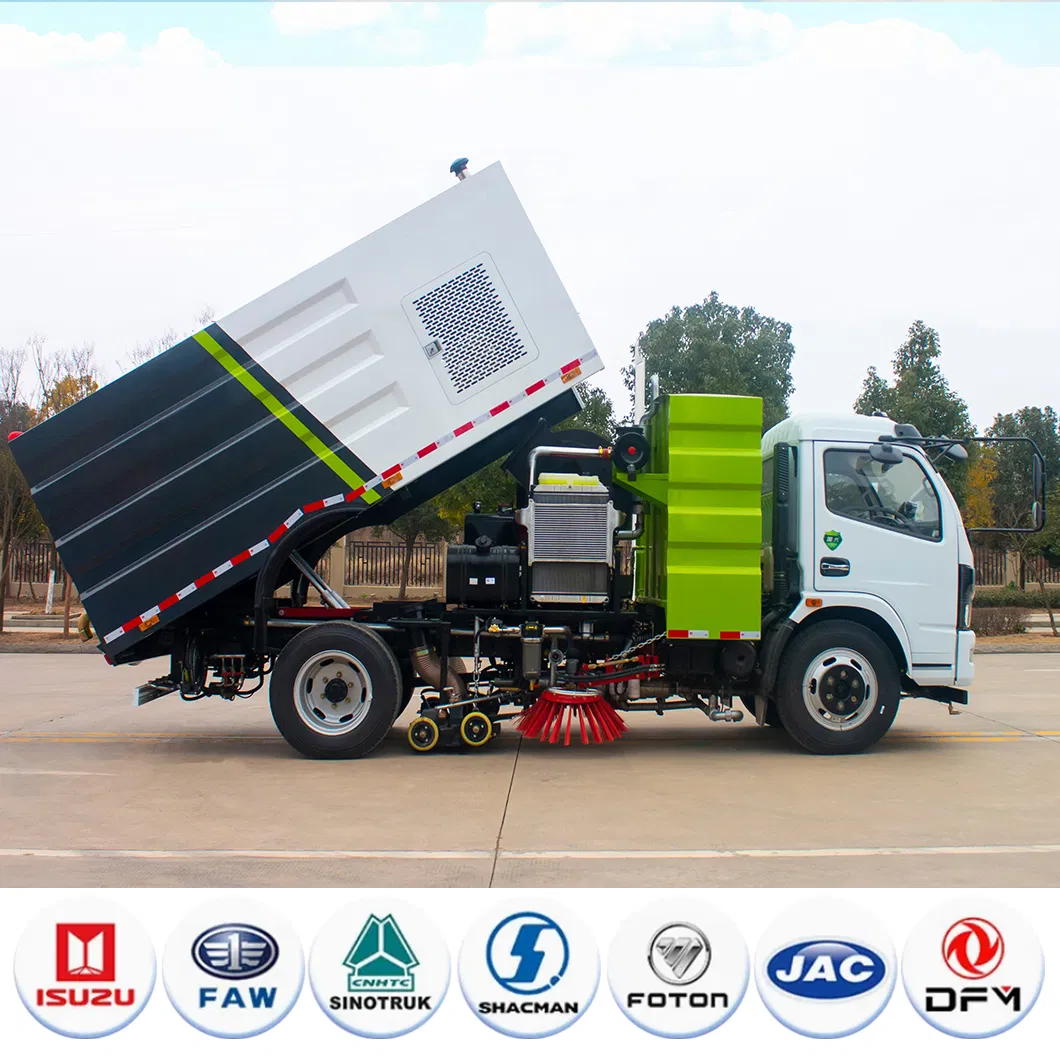

Cleaning Detail 1

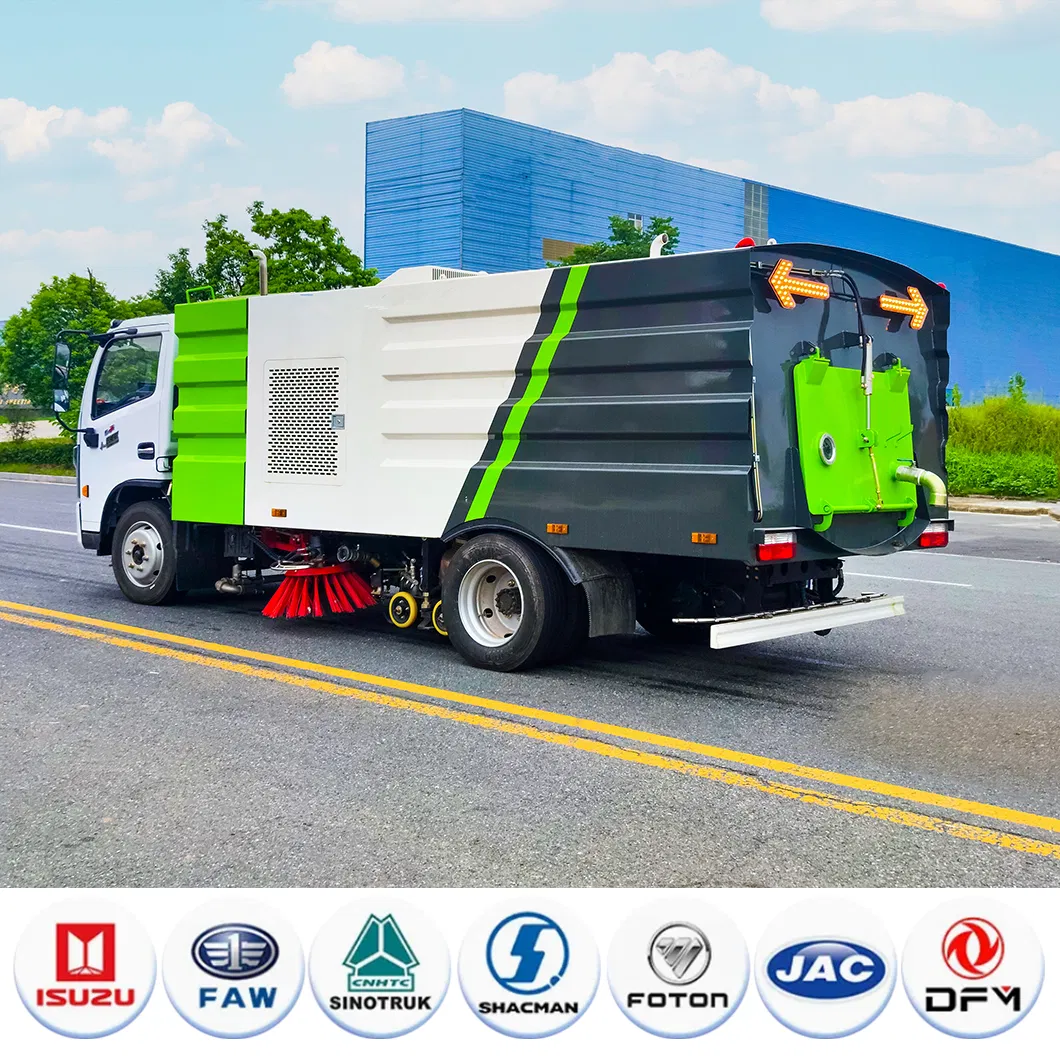

Cleaning Detail 2
⚙️ Technical Specifications
Parameter Item Specification Details
Wheelbase5000 mm
Chassis Engine Power162 kW / 220 horsepower
Auxiliary Engine Power125 kW / 170 horsepower
Maximum Gross Weight18000 kg
Overall Dimensions8550 × 2480 × 3110 mm
Cleaning Water Pressure10 MPa
Sweeping Efficiency≥95%
Maximum Sweeping Width≈3.5 m
Water Tank Capacity9 m³
Garbage Bin Capacity7 m³
Hydraulic System Pressure16 MPa
🌟 Product Functions & Advantages
💧
Washing and Sweeping: The auxiliary engine drives the hydraulic pump and high-pressure water pump. High-pressure nozzles spray a fan-shaped water curtain, forming a U-shaped water knife to dislodge ground attachments.
🧹
Curbstone Washing: During sweeping, high-pressure water is sprayed through side arms to wash sidewalks and vertical walls effectively.
🌫️
Dust Suppression: A rear spray bar mist effectively settles dust on the ground and purifies the air, preventing secondary pollution.
🛡️
Self-cleaning Function: High-pressure nozzles inside the garbage bin flush out waste residues during tipping to prevent corrosion.

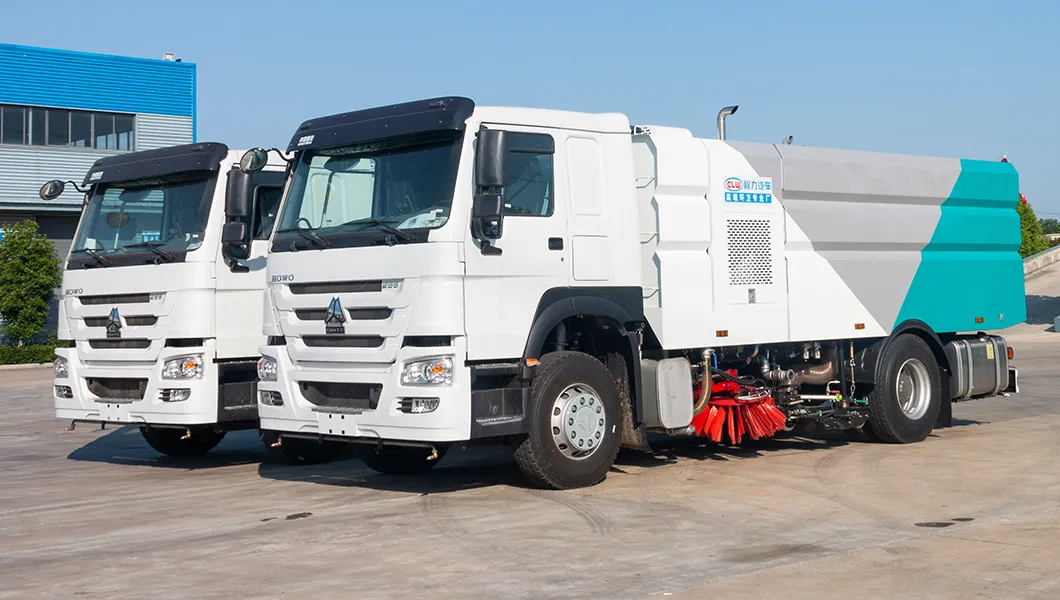

Operation View

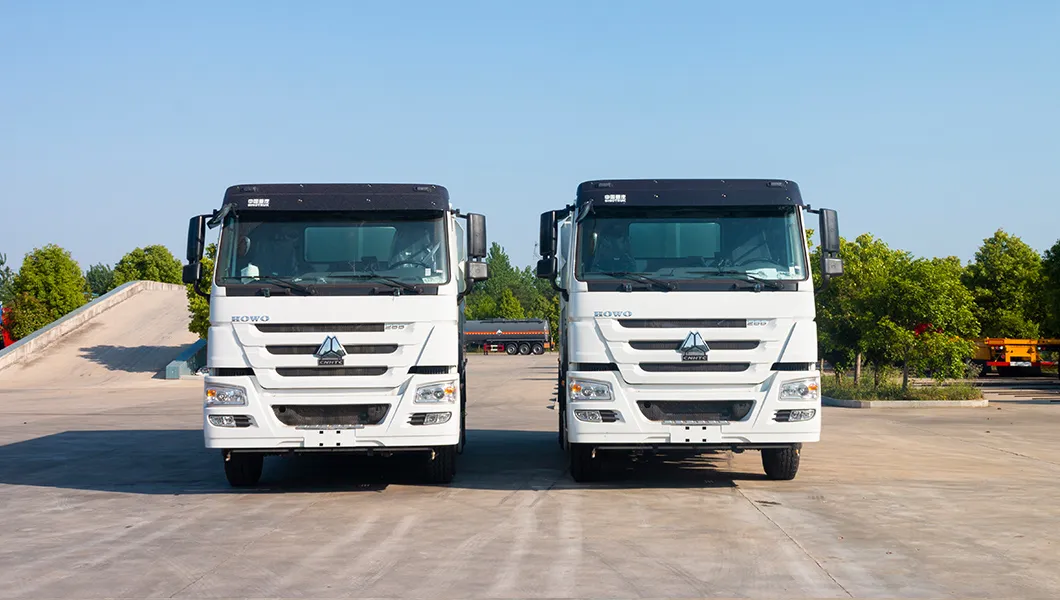

Rear View

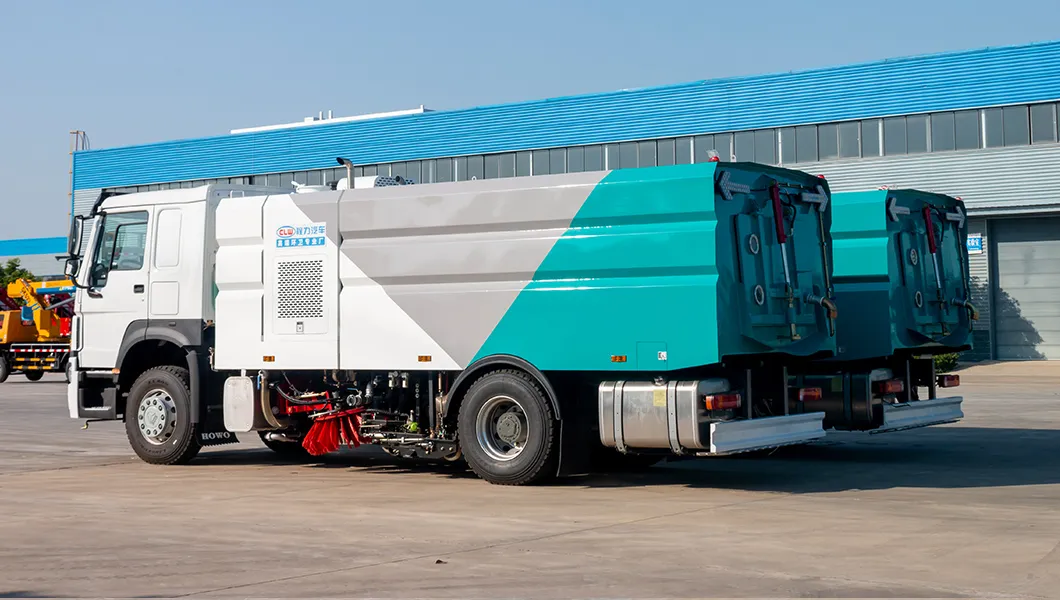

Control System
📸 Detailed Photos

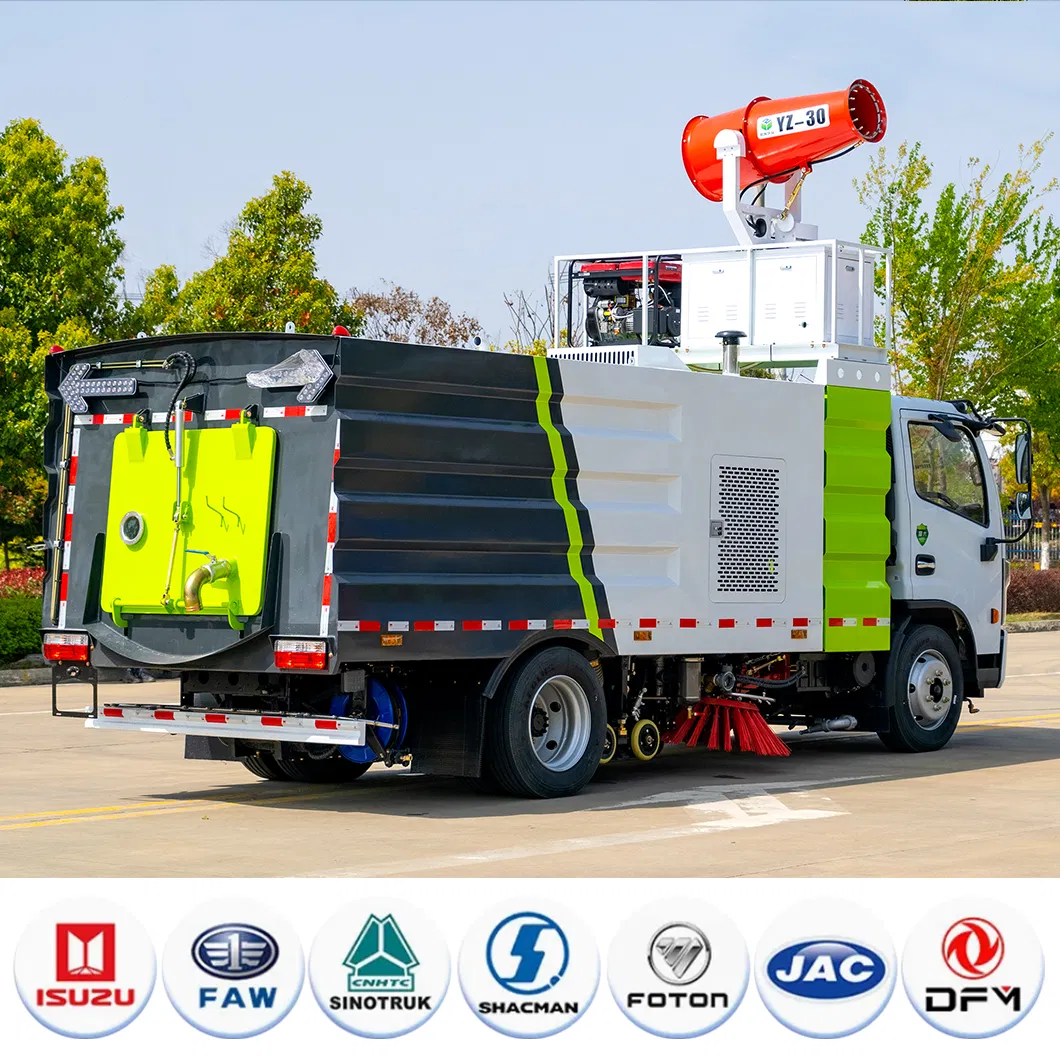

High Efficiency Filter

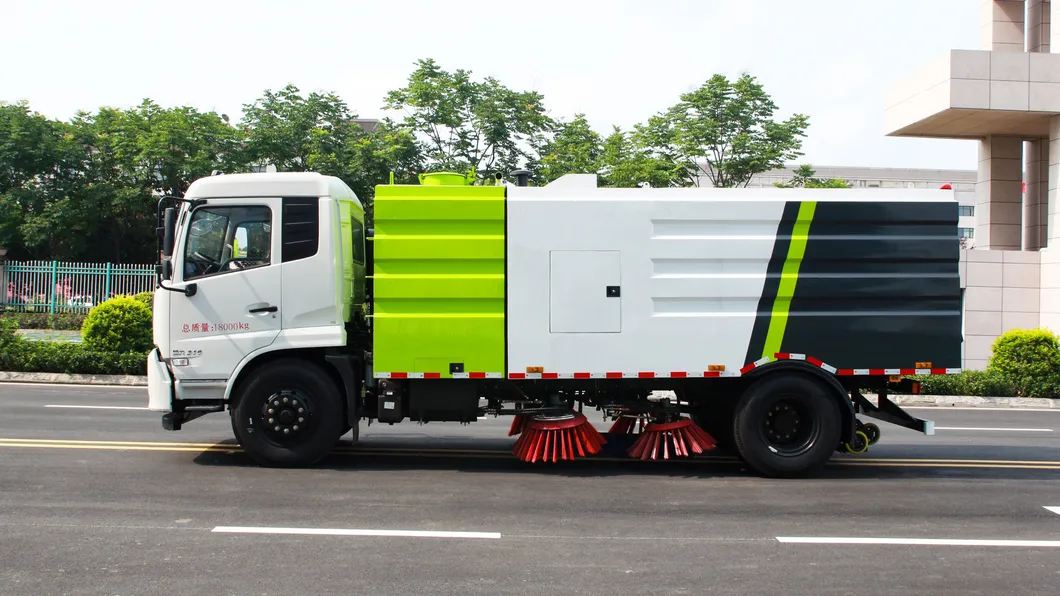

Easy Operation Panel

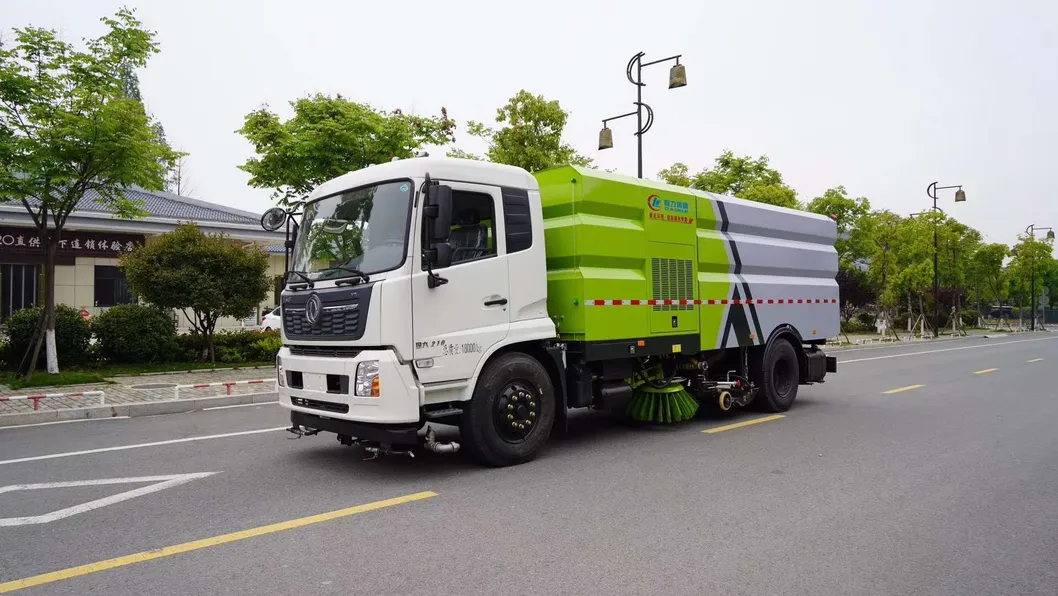

Sealing Structure

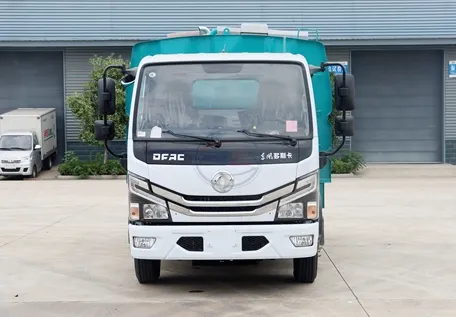

Adjustable Suction Cup

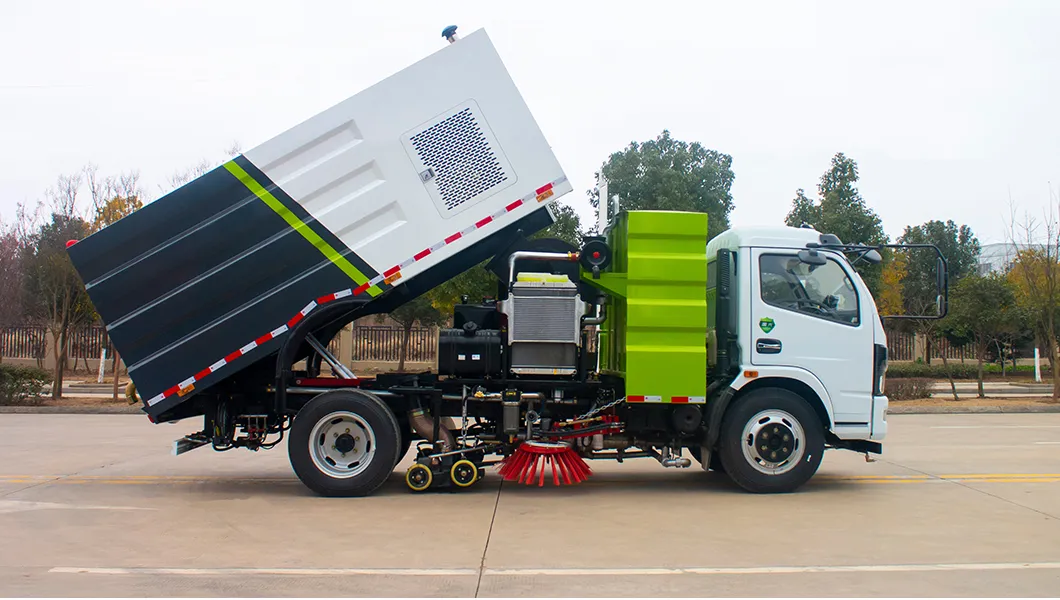

Solenoid Valves
Full Vehicle Layout
❓ Frequently Asked Questions
Q1. Are you a factory or a trading company?
We are the overseas sales department of the factory. You are welcome to visit our production facilities to see our manufacturing process.
Q2. Can you modify the standard product according to my specific request?
Yes. We specialize in researching and designing various special-purpose vehicles and spare parts. We can provide customized solutions based on your operational needs.
Q3. What kind of certifications can you provide for the vehicles?
We can provide various international and local certifications associated with the truck, including ISO, CE, and other required export documentation.
Q4. How long does it take to receive the ordered goods?
The delivery time depends on the specific product and configuration ordered. If the vehicle is in stock, we will arrange delivery as soon as possible. Custom orders typically take longer.
Q5. Is the vehicle suitable for both dry and wet cleaning?
Yes, our vacuum sweepers are designed for dry and wet dual-use, making them suitable for places with large amounts of dust, dry ash, or standard road debris.
Q6. What is the cleaning efficiency of this road sweeper?
The cleaning efficiency reaches over 95% to 98% in a single operation, effectively handling dust, stones, bricks, and leaves.
