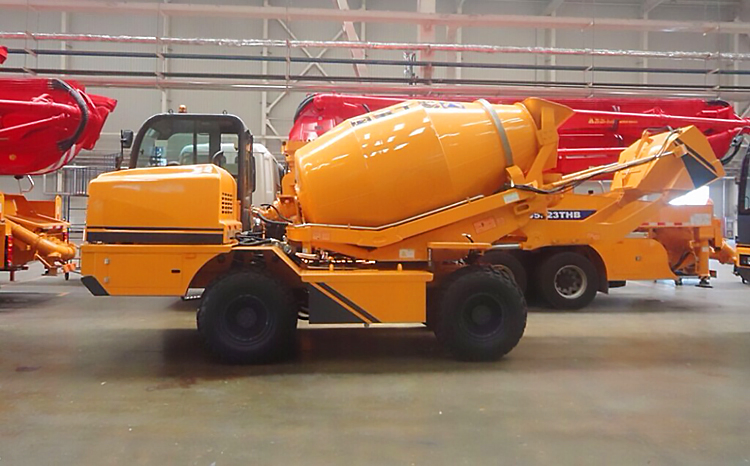

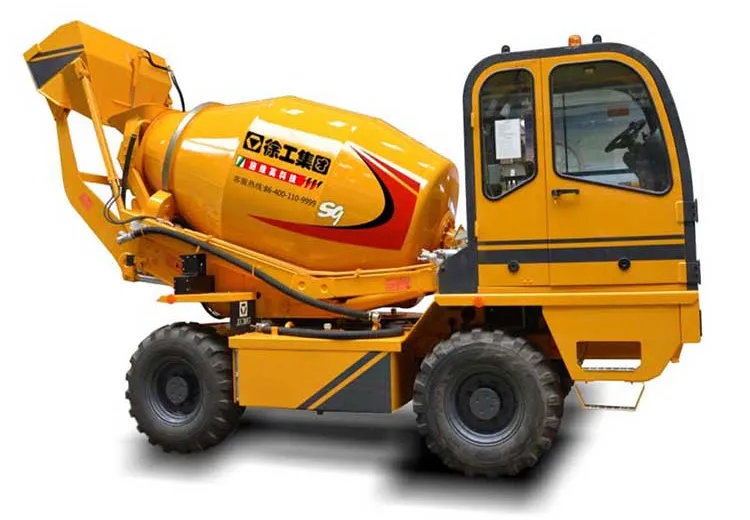

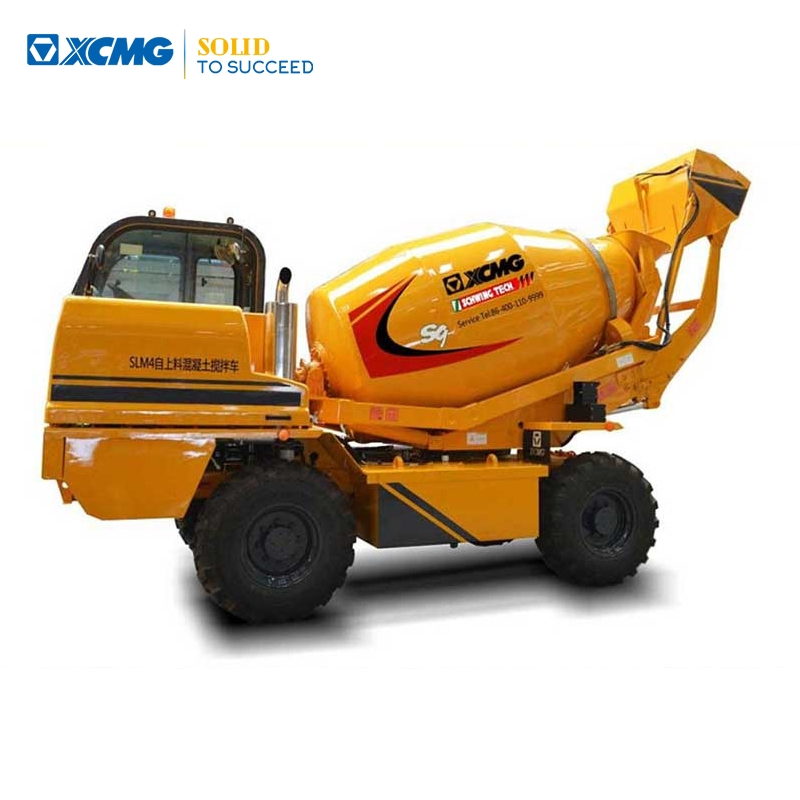

The SLM4 self loading concrete mixer is a high-performance 4-cube concrete mixer with a maximum driving speed of 30km/h and a production efficiency of approximately 12-14m³/h. All bucket actions are conveniently achieved through a pilot handle for precision and ease of use.
Combines the functions of a concrete transport truck and a mixing station. It handles loading, measuring, mixing, and unloading in one unit.
Equipped with four-wheel drive, allowing the mixer to operate efficiently even in challenging working conditions.
Aggregate is weighed during loading to ensure high-quality concrete production with a weighing accuracy within 3%.
| Item | Unit | SLM4 Data |
|---|---|---|
| Engine | - | 82KW @ 2200rpm (China II) |
| Geometrical capacity of drum | m3 | 5.3 |
| Max. output | m3 | 4 |
| Transmission system | - | Hydrostatic; variable pump; 4WD |
| Vehicle speed | Km/h | 0~30 |
| Cab | - | Closed type; Joystick operation |
| Rotation angle of mixing drum | ° | 255 |
| Max. gradeability | % | 44 |
| Bucket Capacity | L | 600 |
| Curb mass | Kg | 8800 |
| Outline dimension | mm | 6100*2425*4008 |
