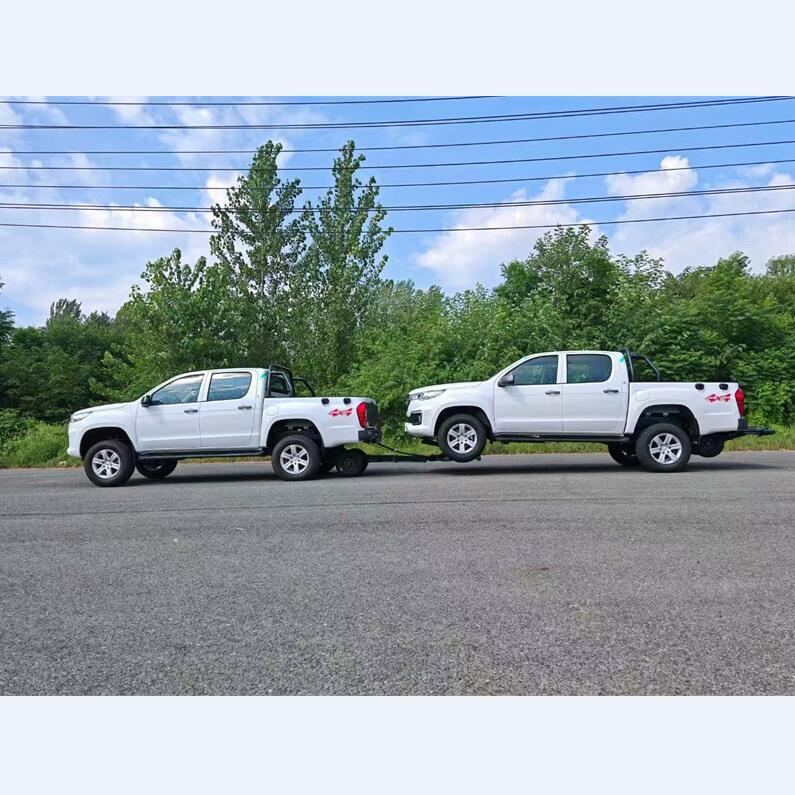

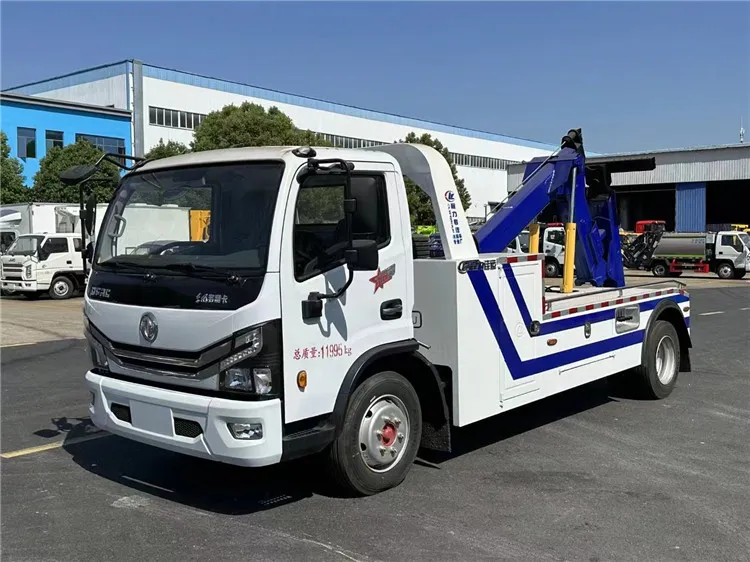

A tow truck is a special vehicle designed to quickly and safely remove accident-involved, faulty, or illegal vehicles from roads to clear traffic. It is essential equipment for traffic management in busy urban areas and on highways.
Key Configurations:

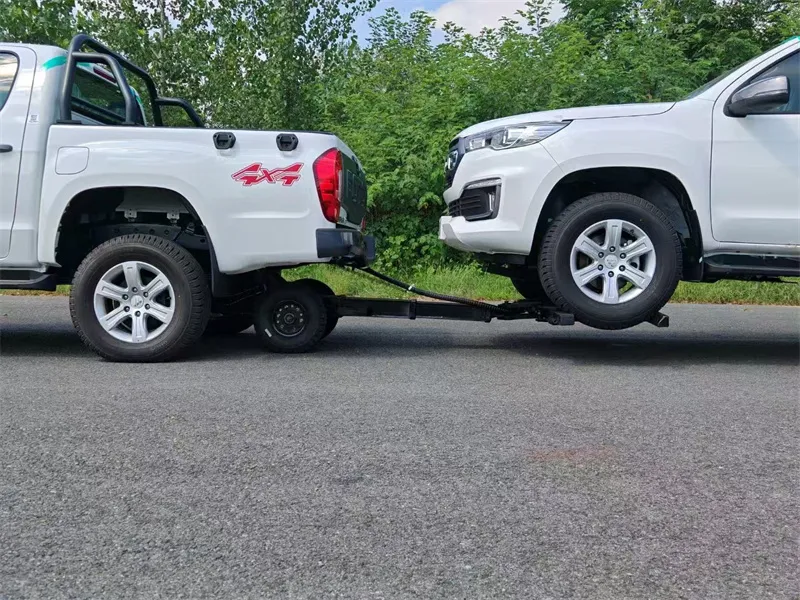

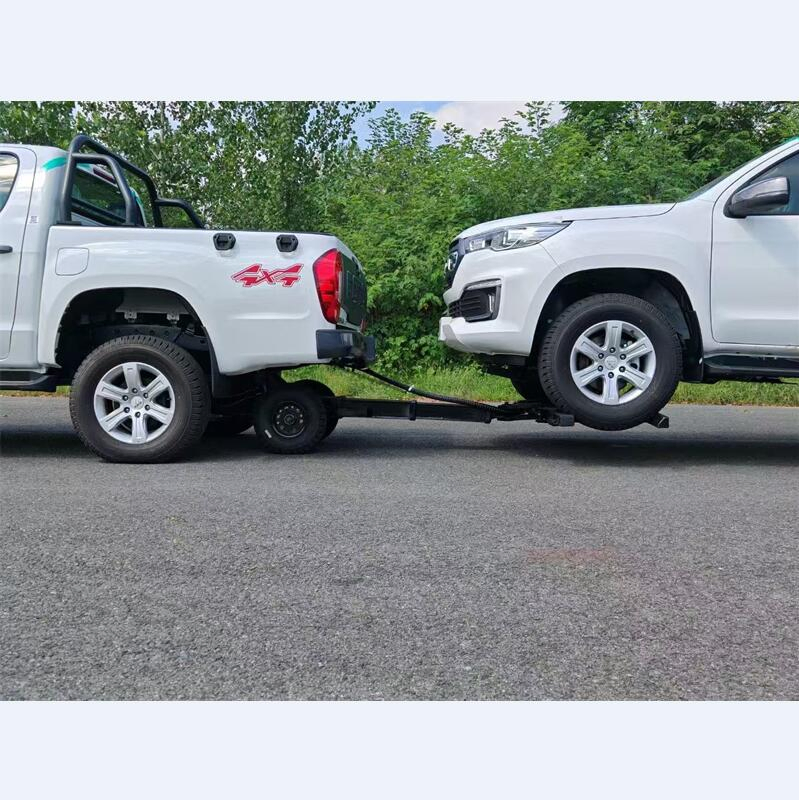

The maximum effective length of the support arm is 1550mm, with an automatic L-arm selection. The support arm lifting capacity is 1000kg, and the winch provides a maximum pulling force of 2268kg.
| Parameter Item | Details | |
|---|---|---|
| Main Dimensions | Dimensions (L x W x H) mm | 5300×1940×1910 |
| Wheel base (mm) | 3110 | |
| Axle load (kg) | 2000/3500 | |
| Approach/Departure angle(°) | 28/21 | |
| Weight | Curb Weight (kg) | 2270 |
| GVW (kg) | 3200 | |
| Engine | Model | 4F20TC12 (Cummins) |
| Horse Power (HP) | 163HP | |
| Emission Standard | Euro II | |
| Transmission | Gearbox | 7 forwards & 1 reverse |
| Tires | Spec | 265/65R17, 4pcs + 1 spare |
| Upper Body | Max Loading Capacity (kg) | 4000 |
| Winch Pulling Capacity (kg) | 4000 | |

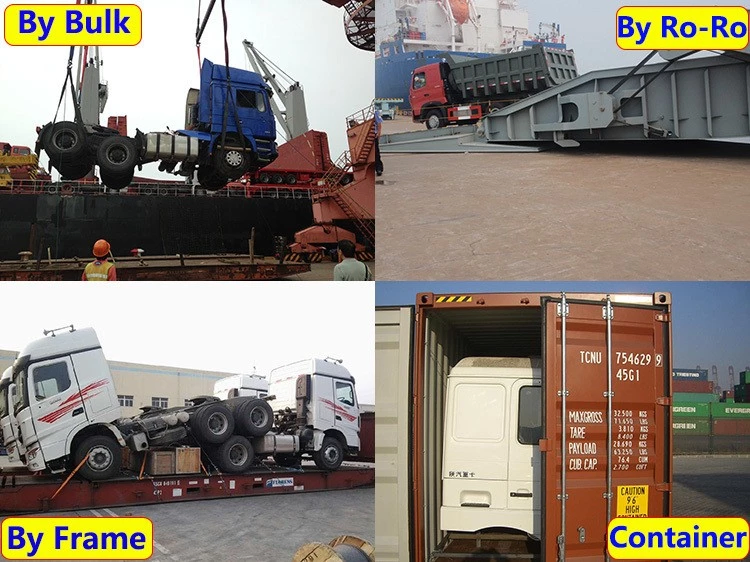

1. Packaging: Vehicles are delivered in nude condition but receive a protective wax coating before shipment at the factory.
2. Shipping Options: Small trucks can be accommodated in 20' or 40' containers. Larger models are shipped via bulk carriers or Ro-Ro ships to ensure safety during transit.
