📋 Basic Information
Certification
ISO/TS16949
Air Brake Type
Air Inflating
Dumping Direction
Backward
📍 Product Description

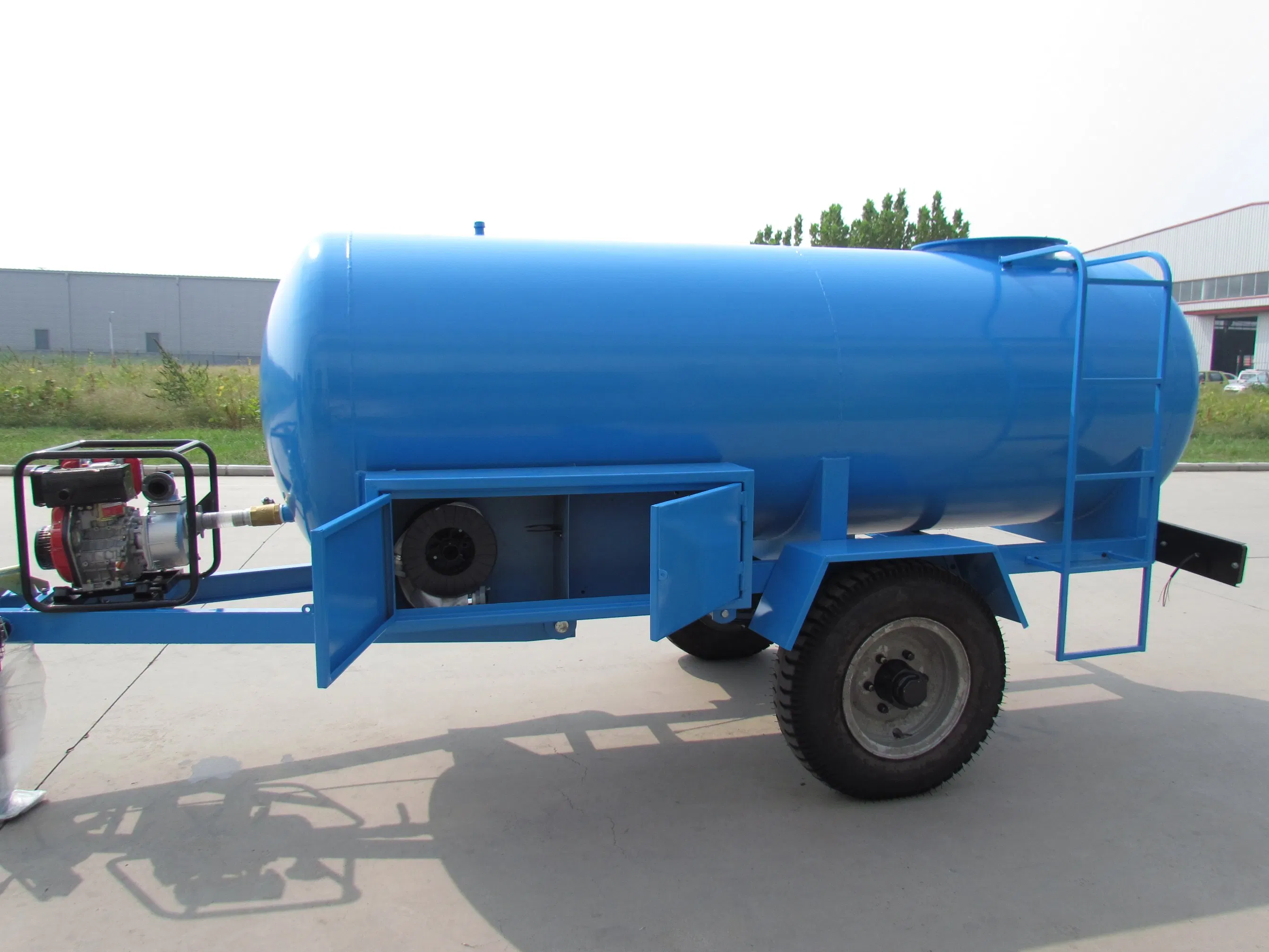

This tanker is connected with the tractor by a pin, which is easy to be removed. It is suitable for agriculture, forestry and animal husbandry. It can be used as a water tank trailer and oil tank trailer. It is convenient for watering the nursery and filling oil to the vehicles in the field.
⚙ Technical Specifications (Model 7CS-2)
| Parameter |
Details |
| Model |
7CS-2 |
| Capacity (kg) |
2000 |
| Overall Size (mm) |
3400 x 1800 x 1900 |
| Tank Size (mm) |
2200 x 1500 x 1800 |
| Tire Model |
650-16 |
| Tire Number |
2 |
| Matched Power (hp) |
30-50 |
| Net Weight (kg) |
680 |
❓ Frequently Asked Questions
What are the primary applications for this tanker trailer?
This trailer is highly versatile and suitable for agriculture, forestry, and animal husbandry. It is commonly used as a water tank for nursery irrigation or as an oil tank for field vehicle refueling.
How is the trailer connected to the tractor?
The tanker is connected via a standard pin mechanism, which allows for quick attachment and easy removal from the tractor.
What is the loading capacity of the 7CS series?
The series covers a range of 3 to 10 tons. Specifically, the 7CS-3 model supports up to 8T, while the 7CS-2 model has a capacity of 2000kg.
What type of braking system does the trailer use?
The trailer is equipped with an air inflating type brake system, ensuring reliable stopping power during transport.
Does the trailer support self-dumping?
Yes, it is designed as a dump trailer with a backward dumping direction for efficient unloading of liquids or materials.
What certifications does this product hold?
The product is manufactured under ISO/TS16949 certification standards, ensuring high quality and international compliance.
