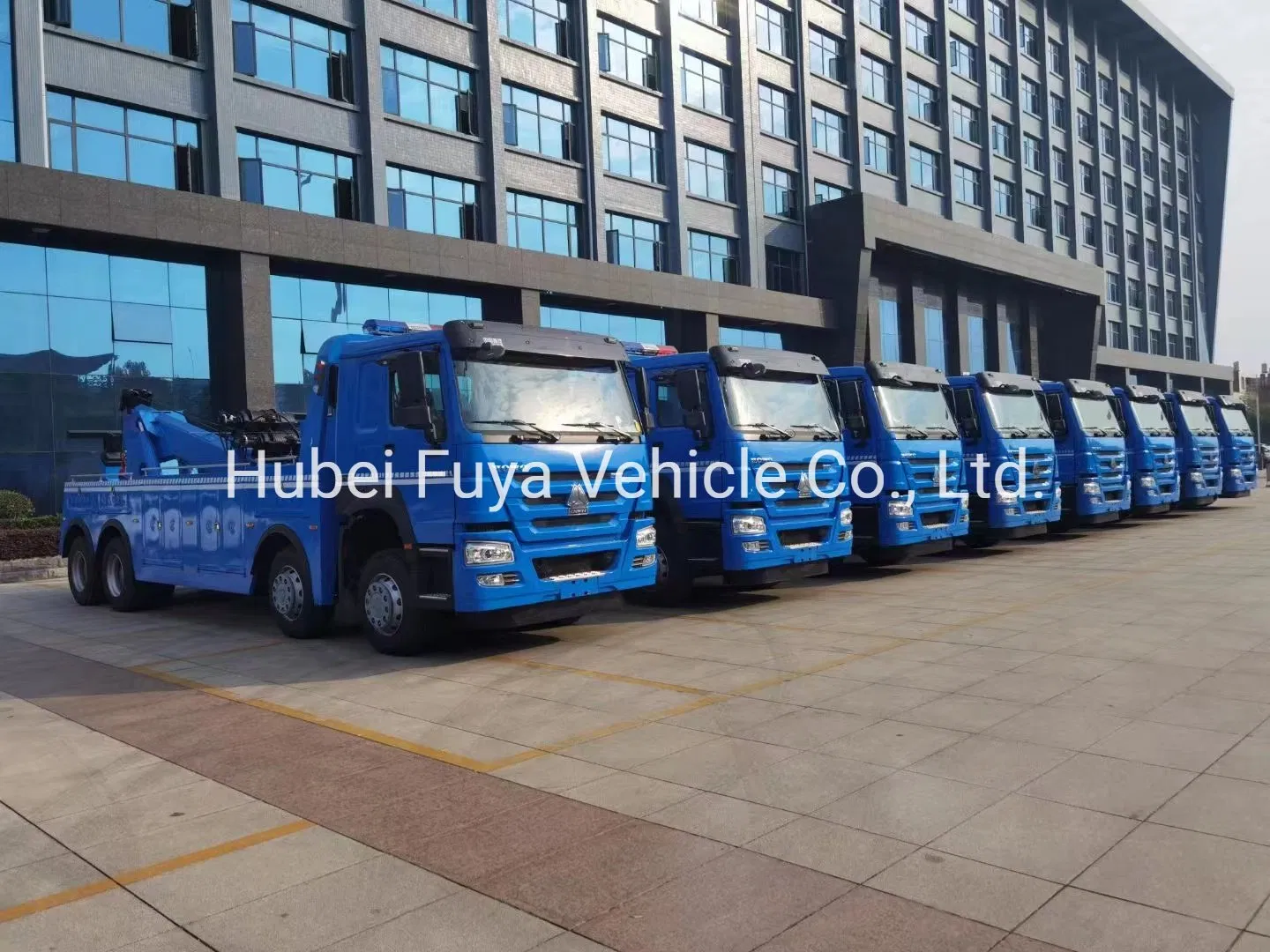

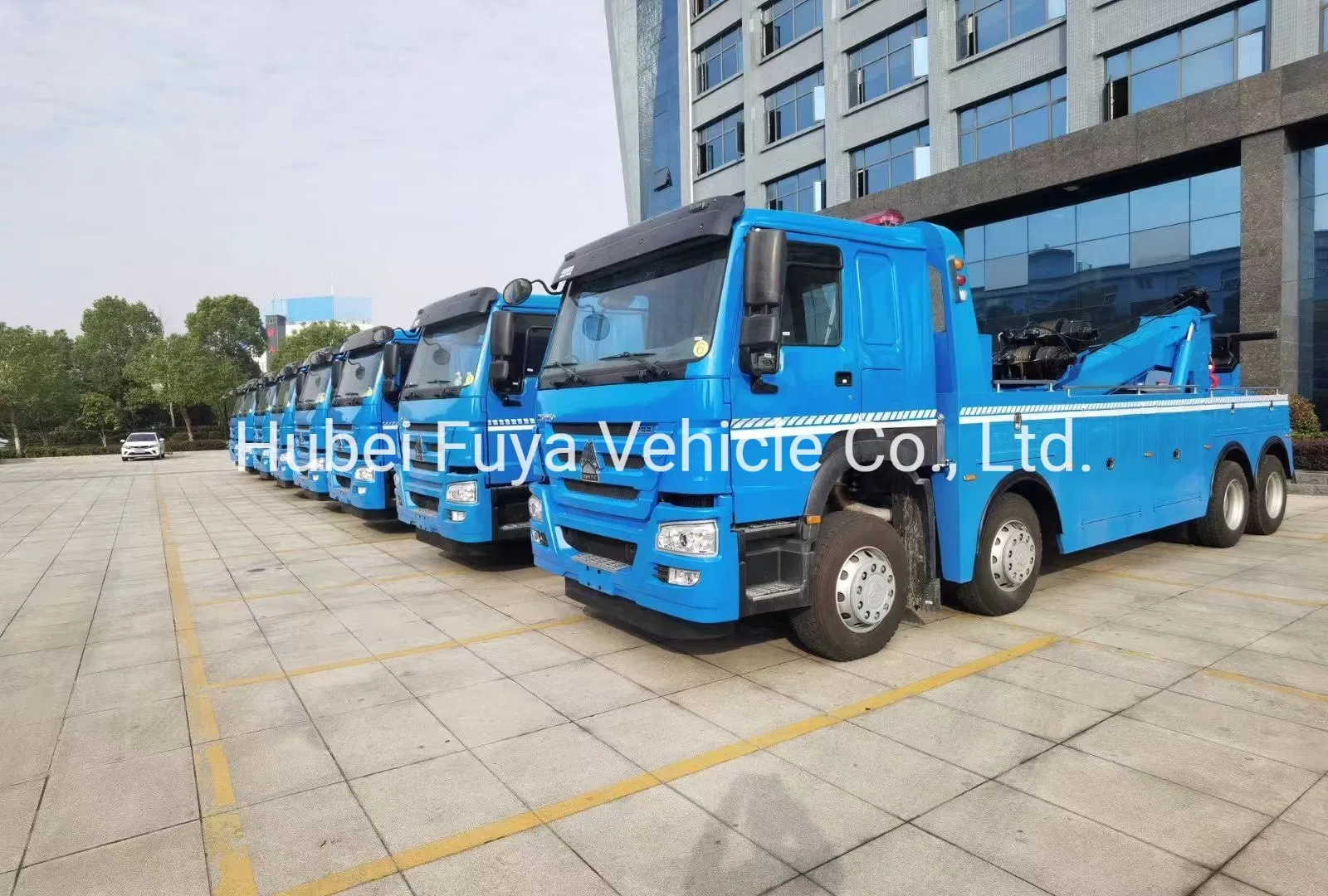

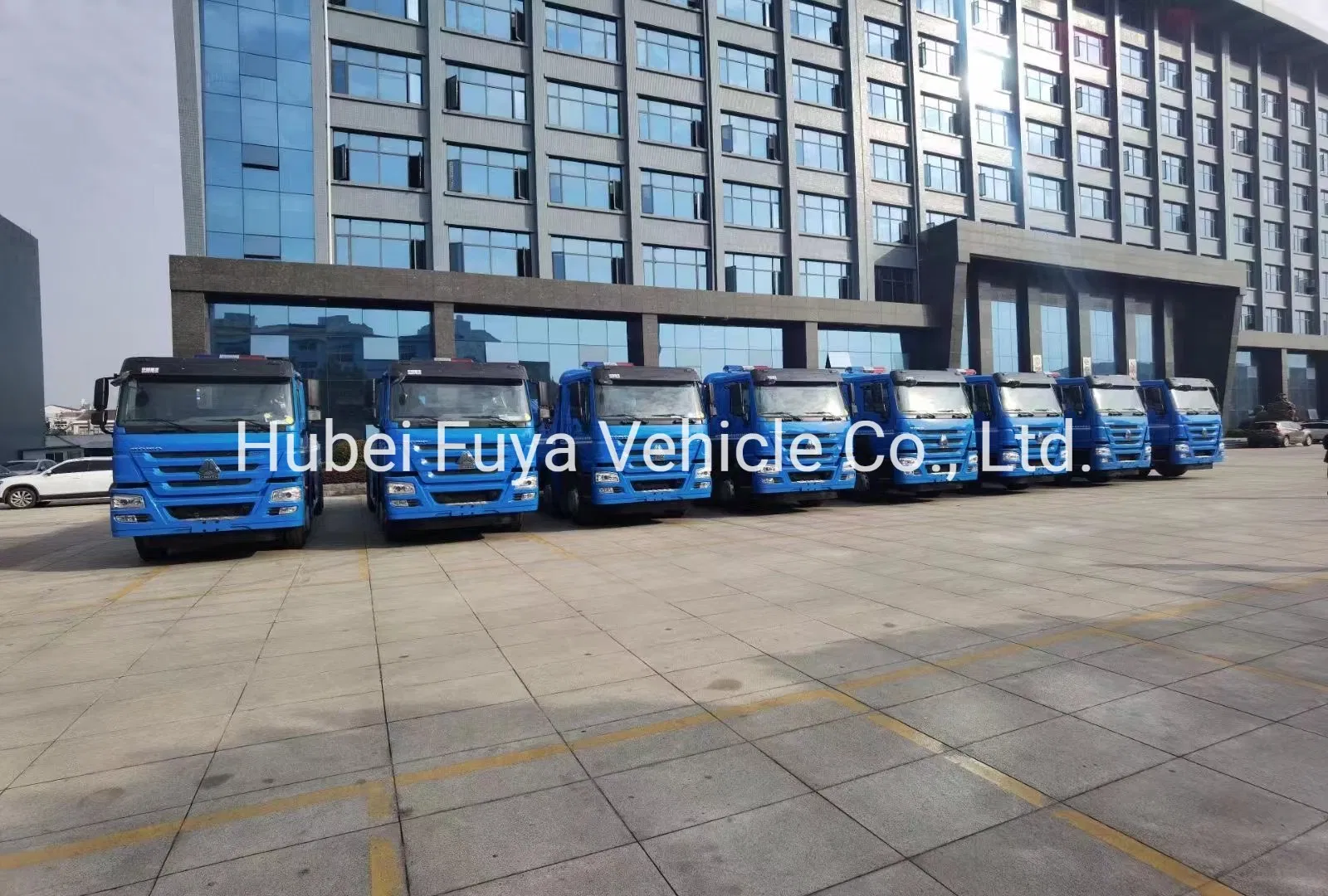

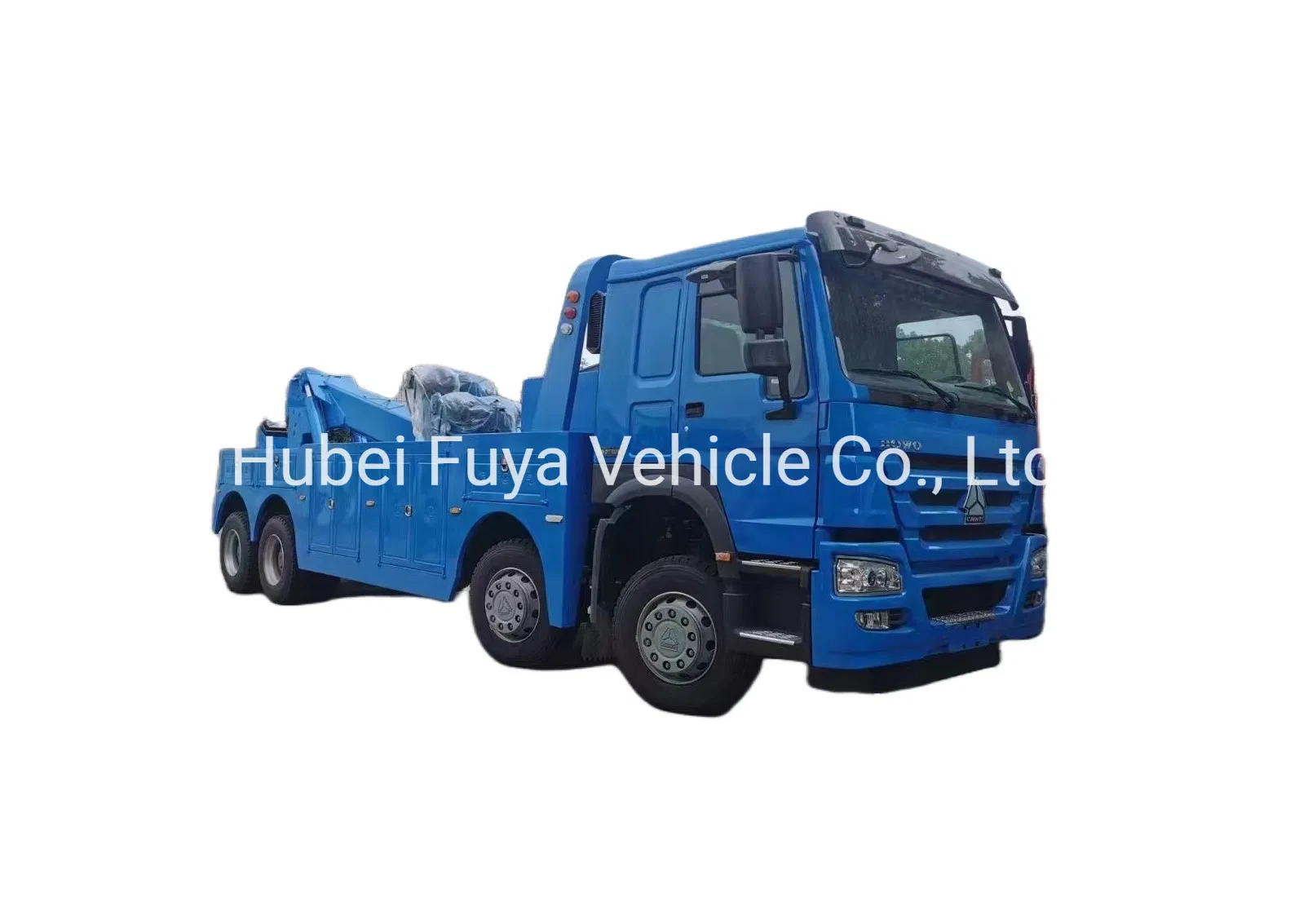

Factory Price Sinotruk HOWO 8X4 25ton 30ton Wrecker Towing Truck for Sale

Customization: Available
After-sales Service: 24hours on-Line Service
Warranty: 12months

Product Description

Basic Specifications
Certification
ISO9000, CCC, CE
Emission Standard
Euro 3
Transmission
Manual
Towing Tonnage
50T
Fuel Type
Diesel
Brand
SINOTRUK
Condition
New
Power
371HP / 420HP / 480HP
Drive Model
8*4
HS Code
8705909990
Product Overview

A wrecker (also called a tow truck, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles.

Wrecker truck types:
  • Flat bed wrecker truck
  • Chassis drive types: 4x2, 6x4, 8x4 and off-road 4x4, 6x6 models
  • Multiple chassis brands available: Dongfeng, FOTON, FAW, SINOTRUK, etc.
  • Optional installation of lift crane booms.

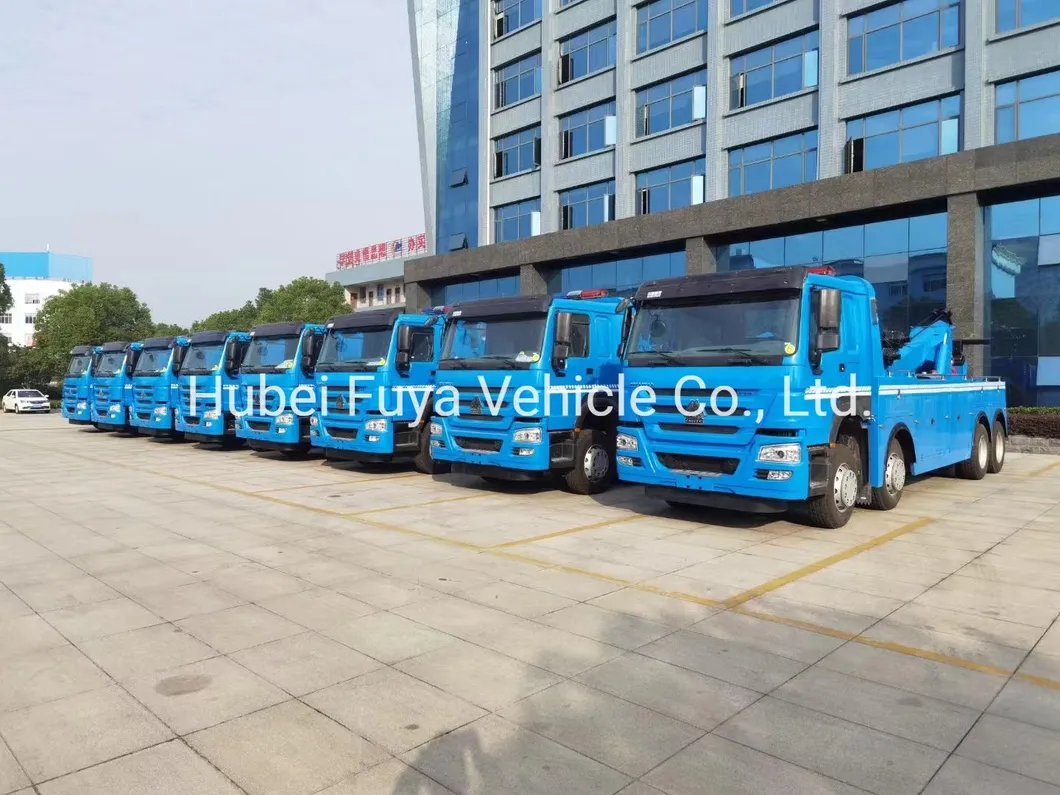

Sinotruk HOWO Wrecker Truck
Technical Configuration

Chassis Configuration: Heavy truck HOWO chassis, half cab, original air conditioner, HOWO 380 HP engine, 10-speed gearbox, wheelbase 1800 + 4600 + 1350mm, 12.00R20 steel tires, original ABS and air brakes.

Upper Configuration: 25-ton conjoined top loading, two-section hexagonal jib, three supporting arms, split carriage, imported hydraulic system, bilateral linkage operation device. Equipped with two 10t electro-hydraulic winches, 45m steel wire rope (18mm diameter), 4 sets of steel forks, tire holding device, and LED engineering alarm lamps.

Working Applications

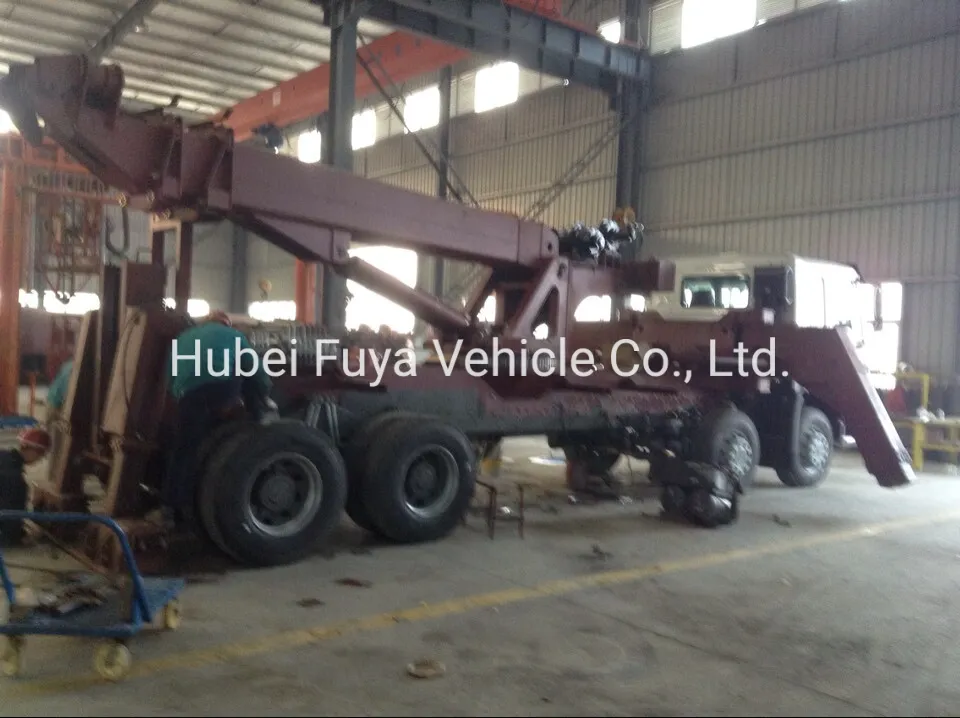

Wrecker Application 1

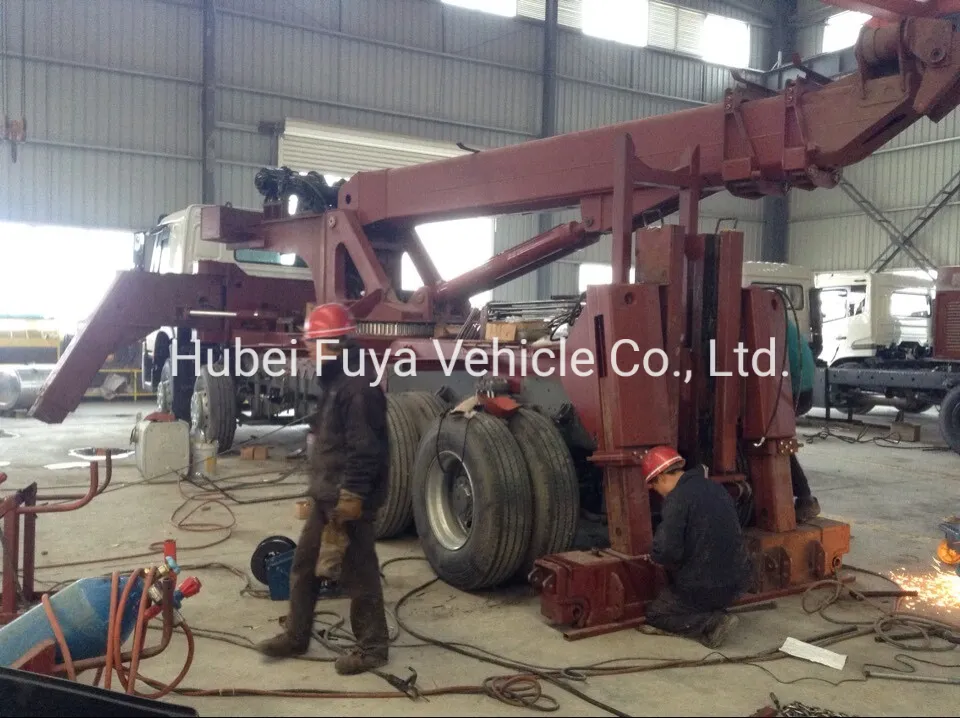

Wrecker Application 2

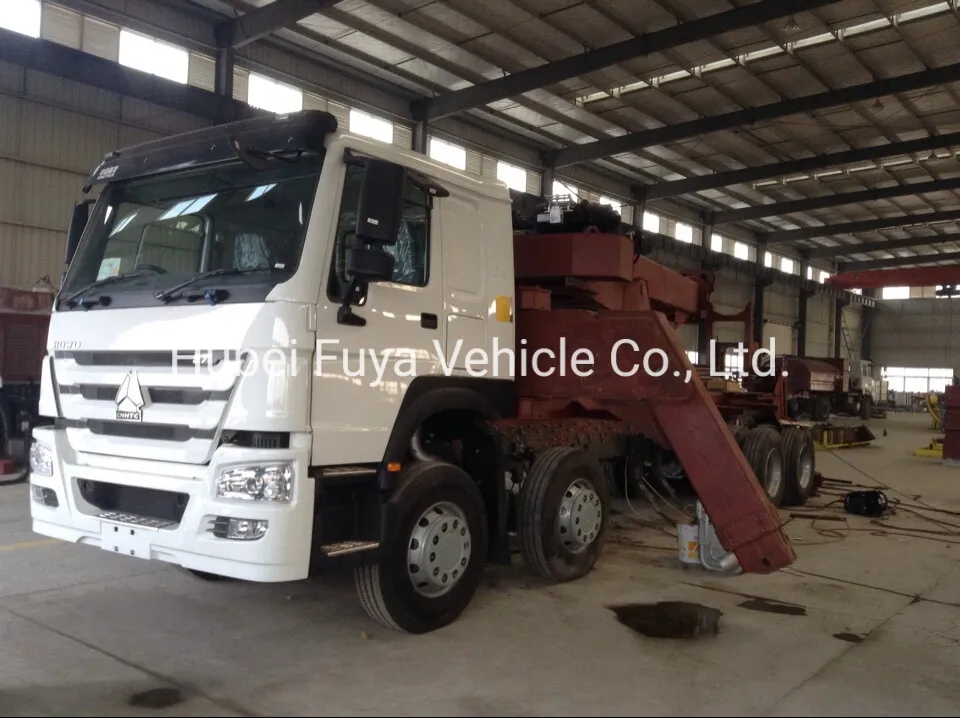

Wrecker Application 3
Detailed Specifications
Item No. Parameters
Overall Dimension11000×2500×3500 mm
Driving ModelLeft hand drive/ Right Hand Drive
Gross Vehicle Weight31000 kg
Loading Weight40000 kg
Wheel Base1900+4600+1400 mm
Engine Horsepower371HP Euro 3
Max Driving Speed105 km/h
Tire12.00R20 (7 pieces)
Lifting Weight40000kg
Steel Rope Length21m
Key Features & Advantages

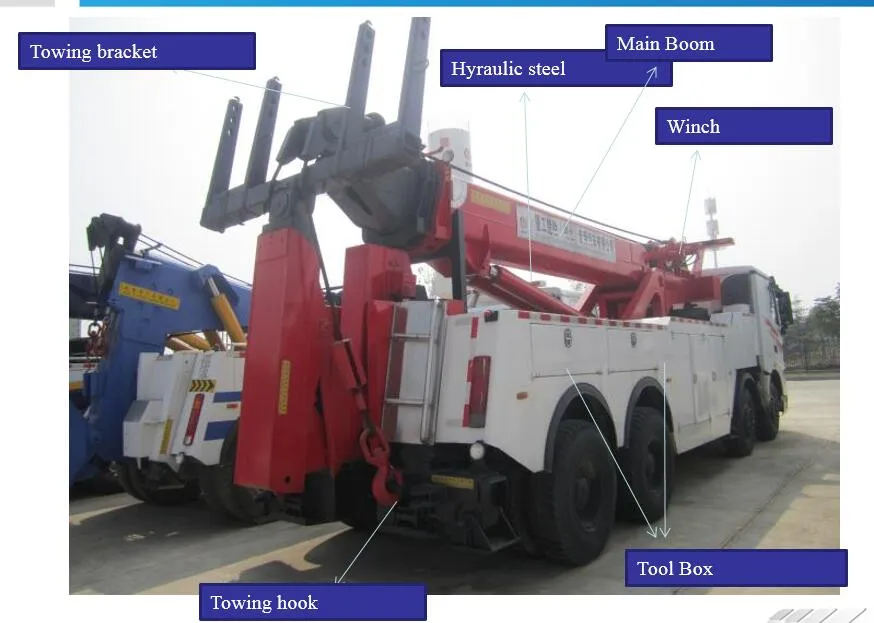

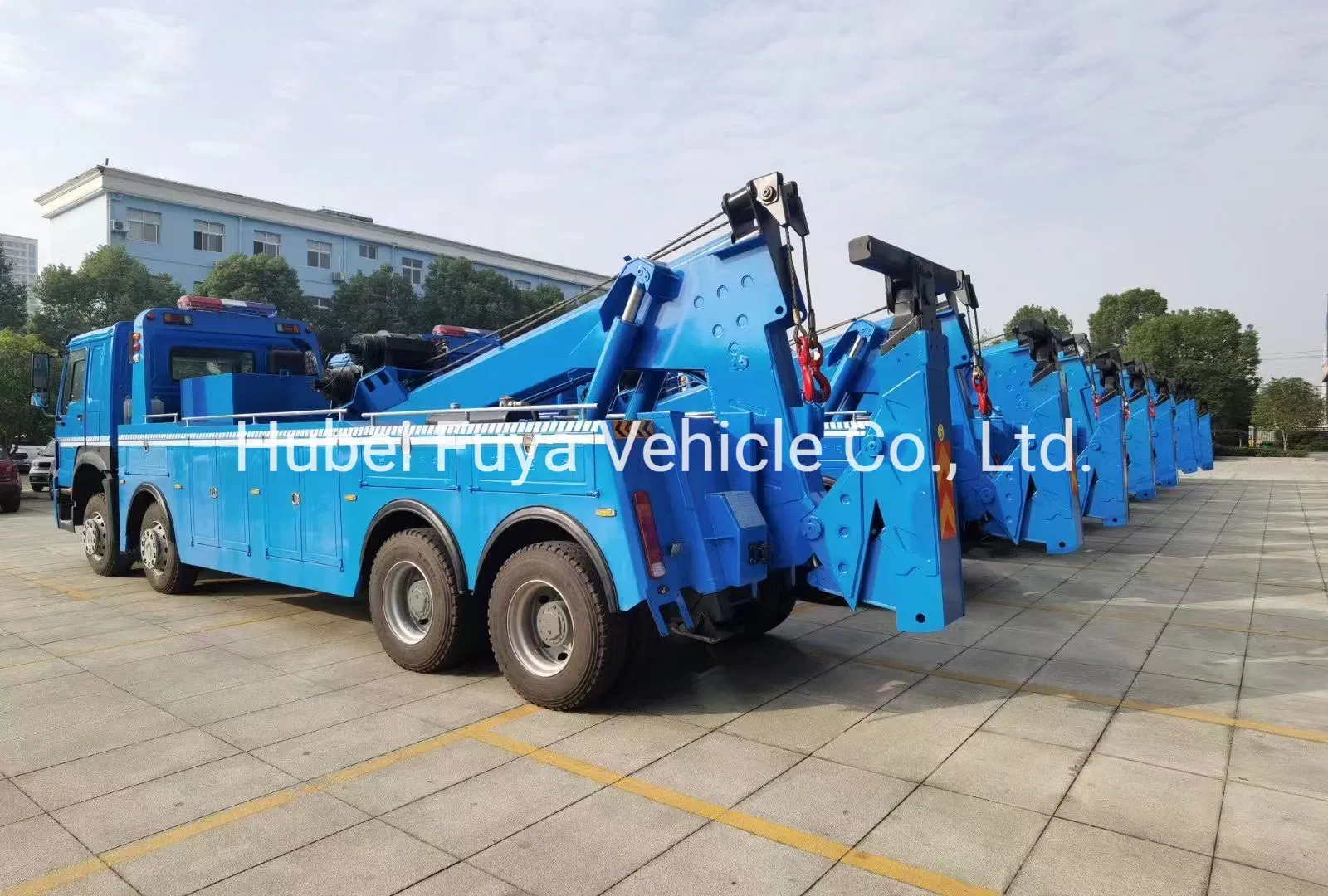

Wrecker Details

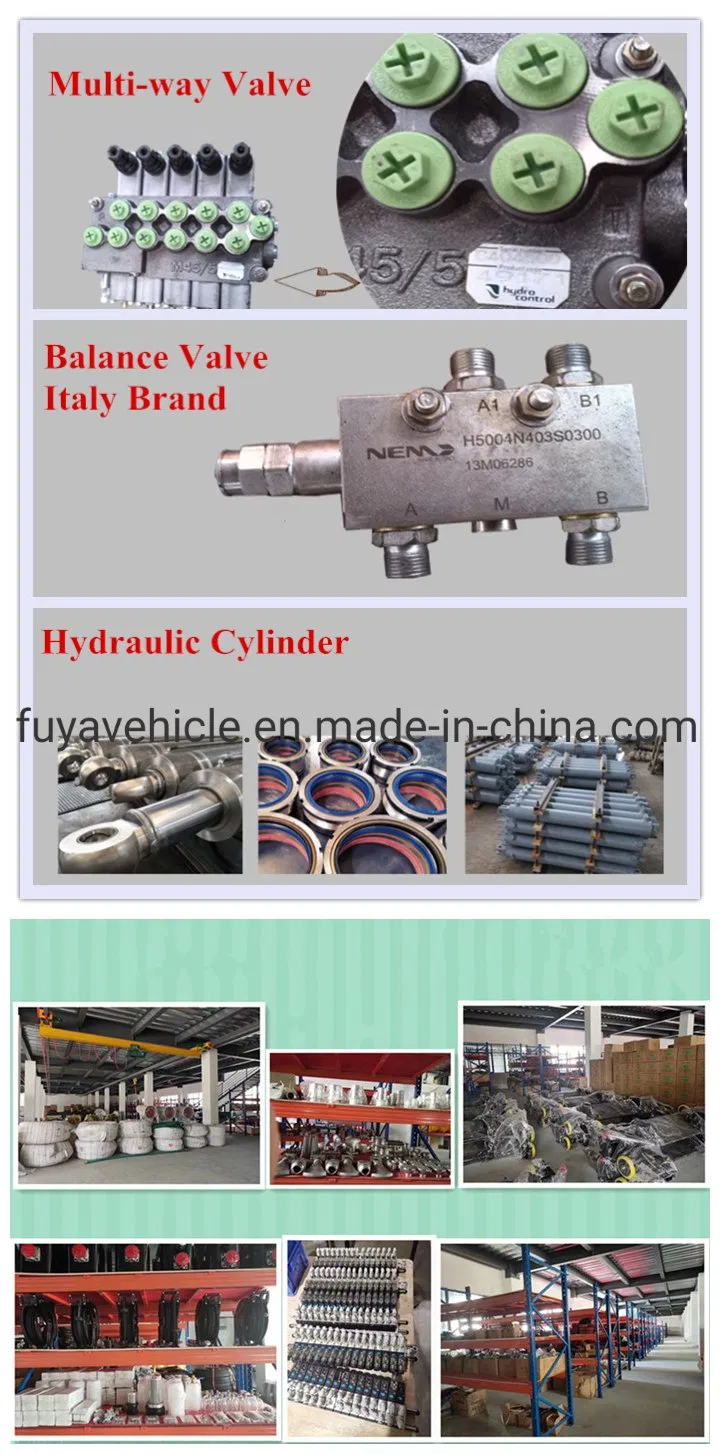

Structure Details
  • High-quality materials with one-time stamping for higher strength and durability.
  • All structural parts treated with cathodic electrophoresis for superior anti-corrosion.
  • Full hydraulic driving operation integrating lifting, back loading, towing, and pulling.
  • Imported directional valves and high-pressure galvanized steel hydraulic pipes.
  • Adjustable mechanical limit devices for accurate and safe plate locking.
Production & Shipment

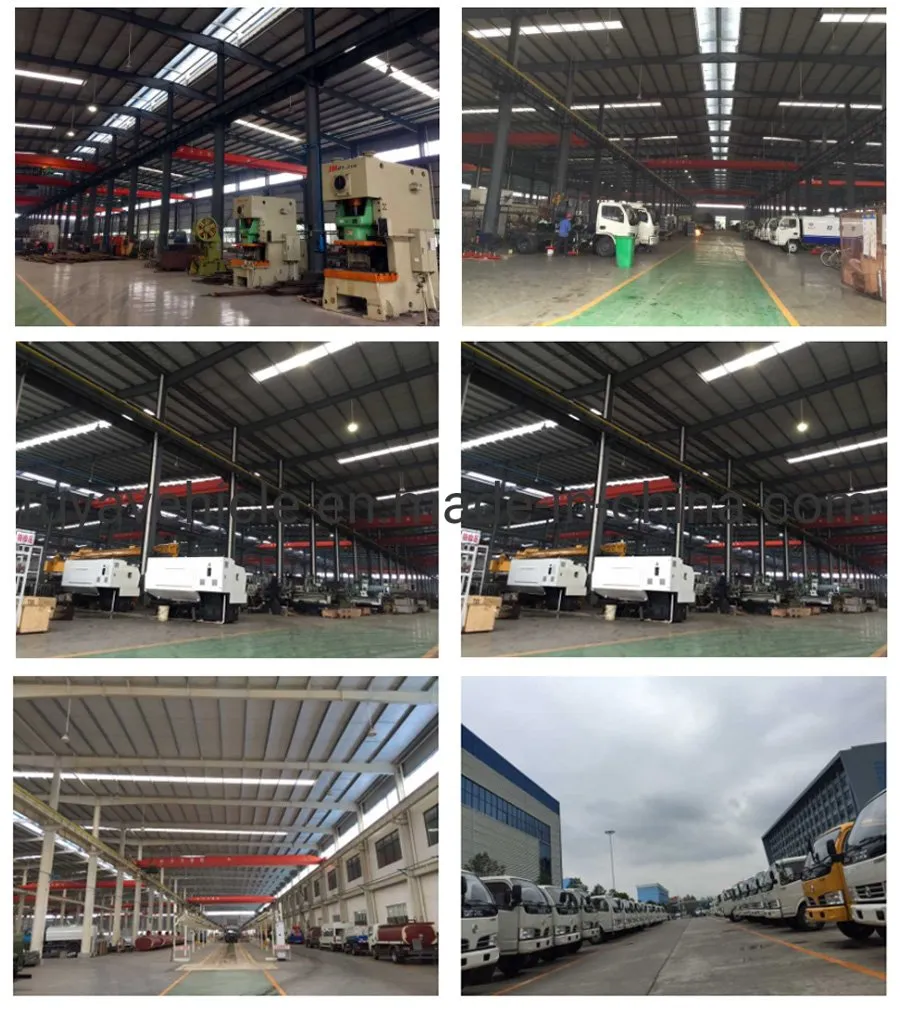

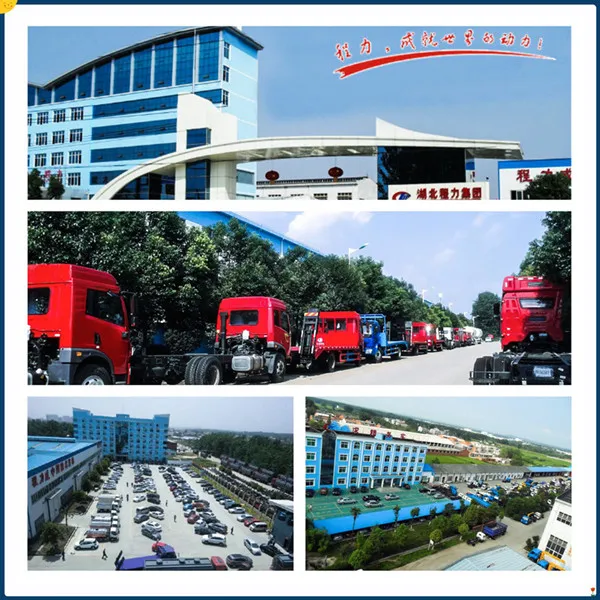

Workshop
Testing

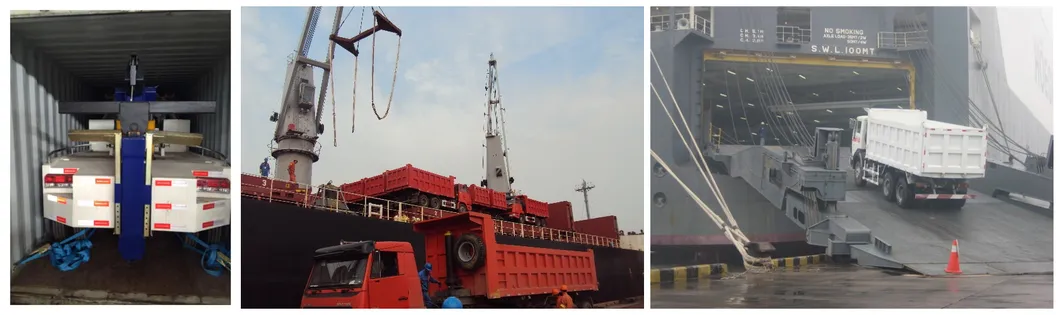

Shipping Methods:

  • RORO: Truck is driven directly into the ship, protecting it from rust and damage.
  • BULK: Truck is lifted by crane onto the vessel deck; a cost-effective option.
  • CONTAINER: Used for smaller truck models.
Shipment
Frequently Asked Questions
Q1: What is the maximum towing capacity of this wrecker truck? A: This heavy-duty model is designed with a towing capacity of up to 40,000kg to 50,000kg, depending on the specific configuration.
Q2: Which chassis brands are compatible with your wrecker bodies? A: We work with major manufacturers including SINOTRUK HOWO, Dongfeng, FOTON, FAW, and ISUZU to provide various drive types.
Q3: How do you ensure the quality of the hydraulic system? A: We use well-known domestic and international brands for all hydraulic components, including imported seals from Germany and Italy to ensure stability and longevity.
Q4: Can the truck be customized with our own logo? A: Yes, any advertisement or logo can be printed on the carriage body according to the customer's design requirements.
Q5: What certifications do your vehicles carry? A: Our trucks have passed ISO9001-2008 and 3C (China Compulsory Certification), and can be provided with SGS or BV certificates upon request.
Q6: What is the typical production capacity for these units? A: We have a production capacity of approximately 5,000 pieces per year, ensuring timely delivery for both standard and custom orders.
