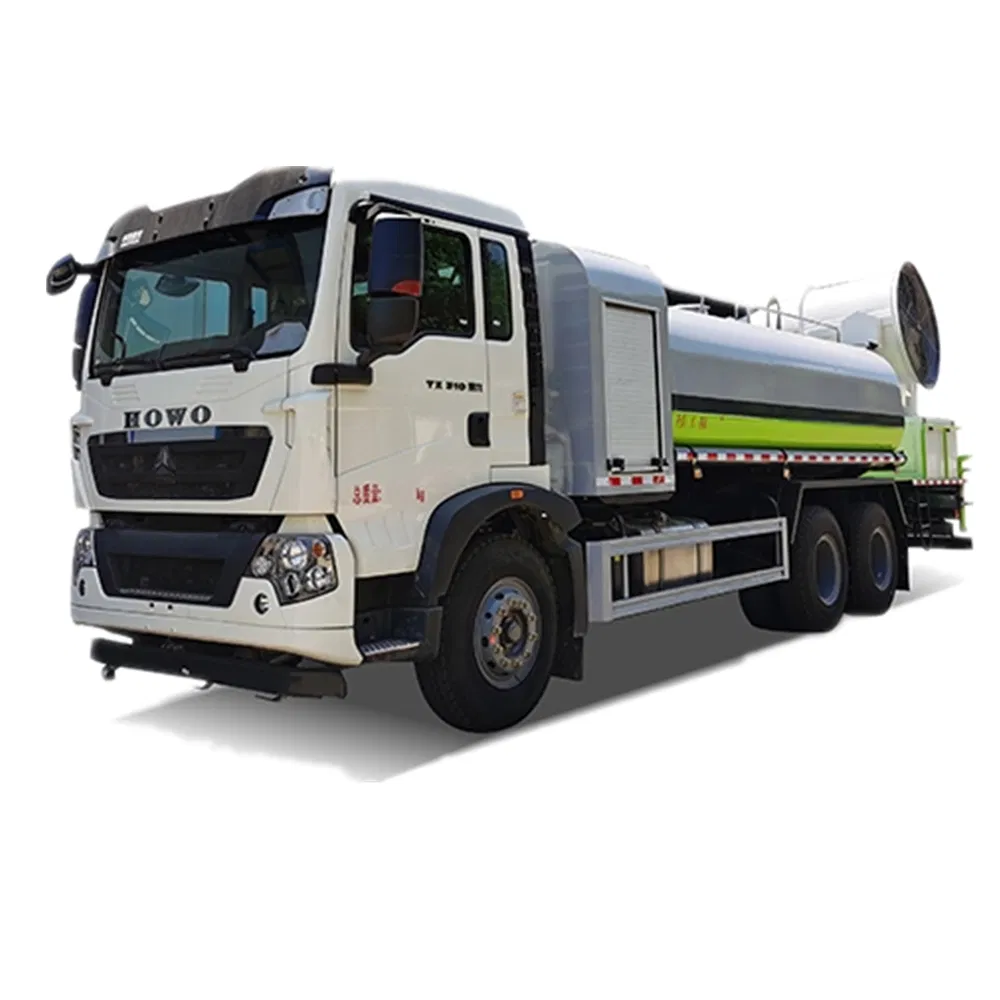

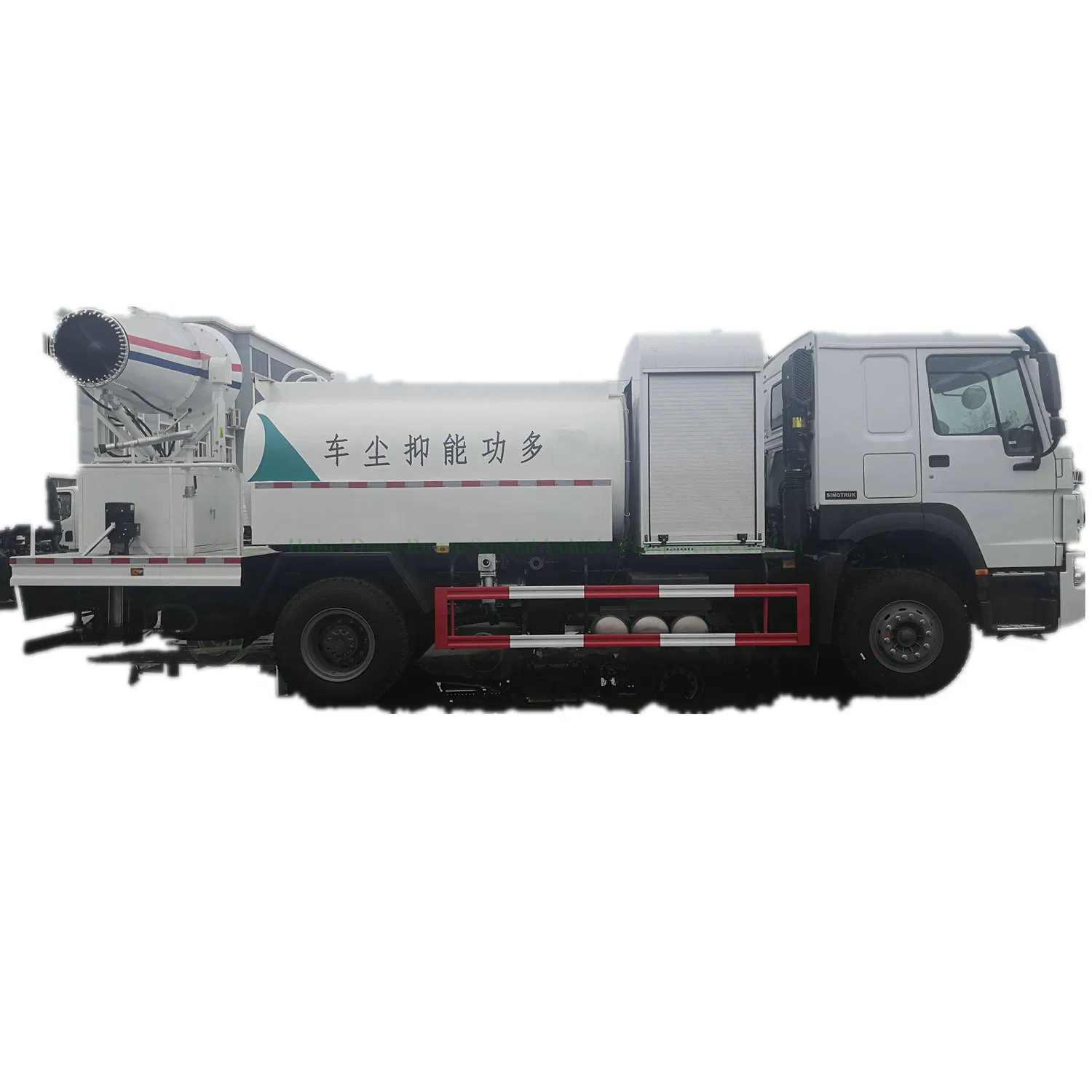

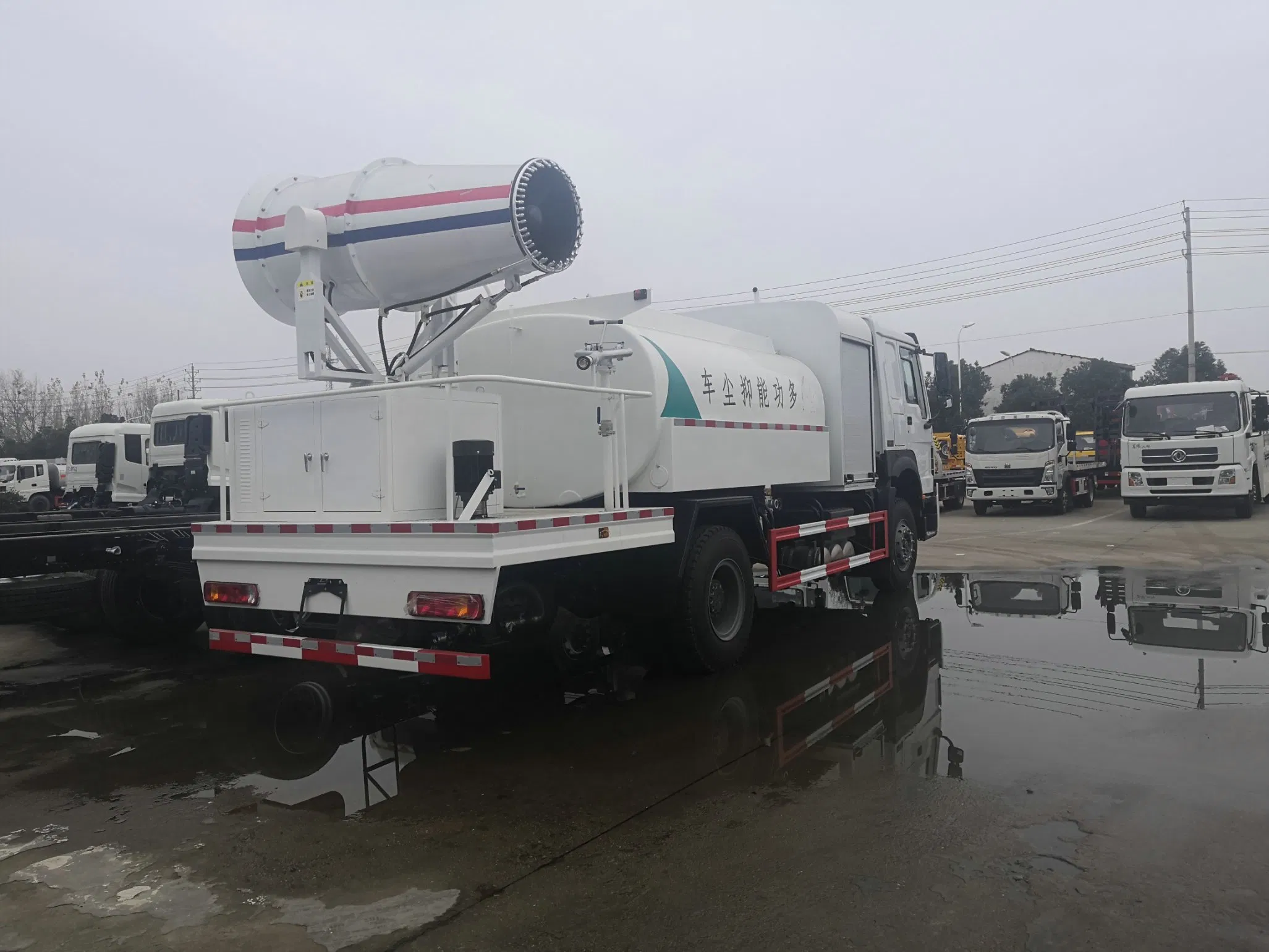

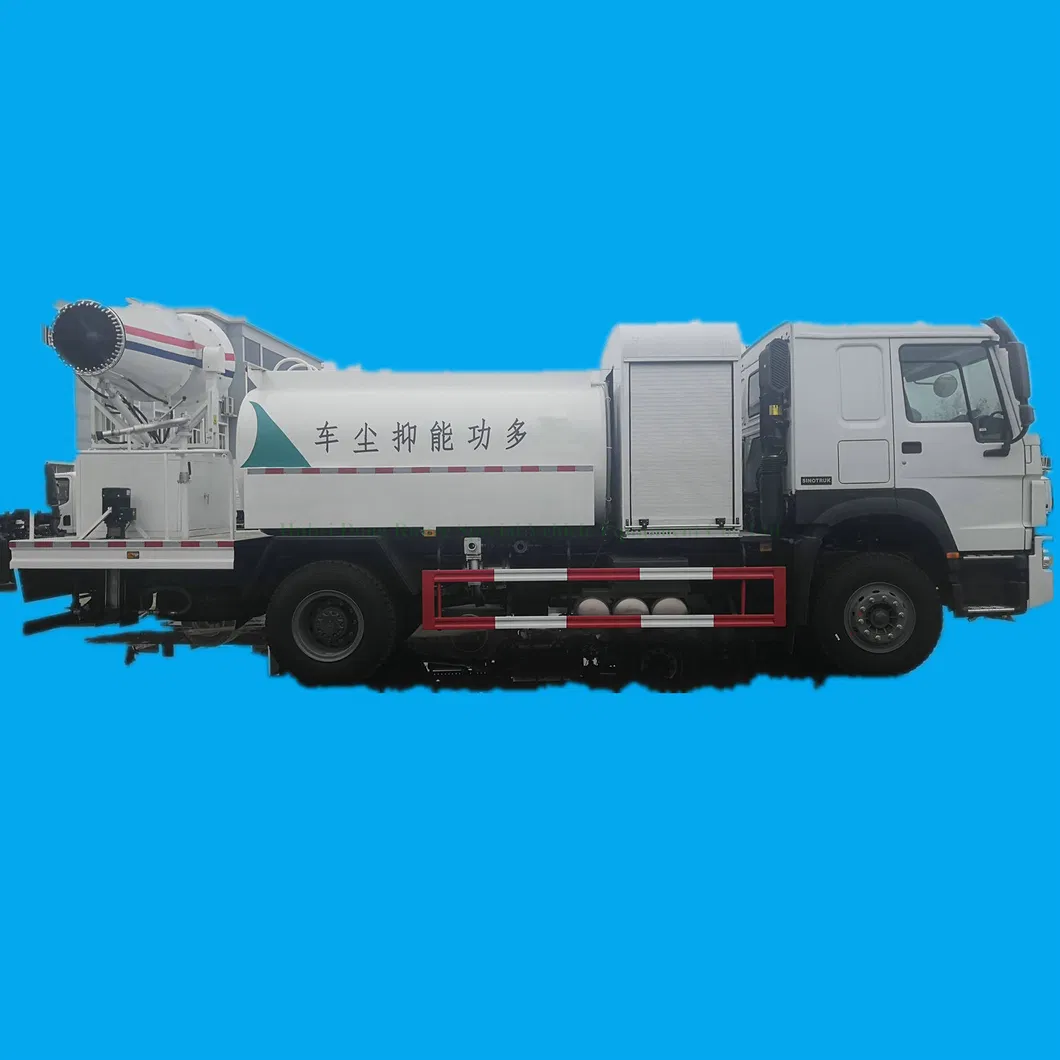

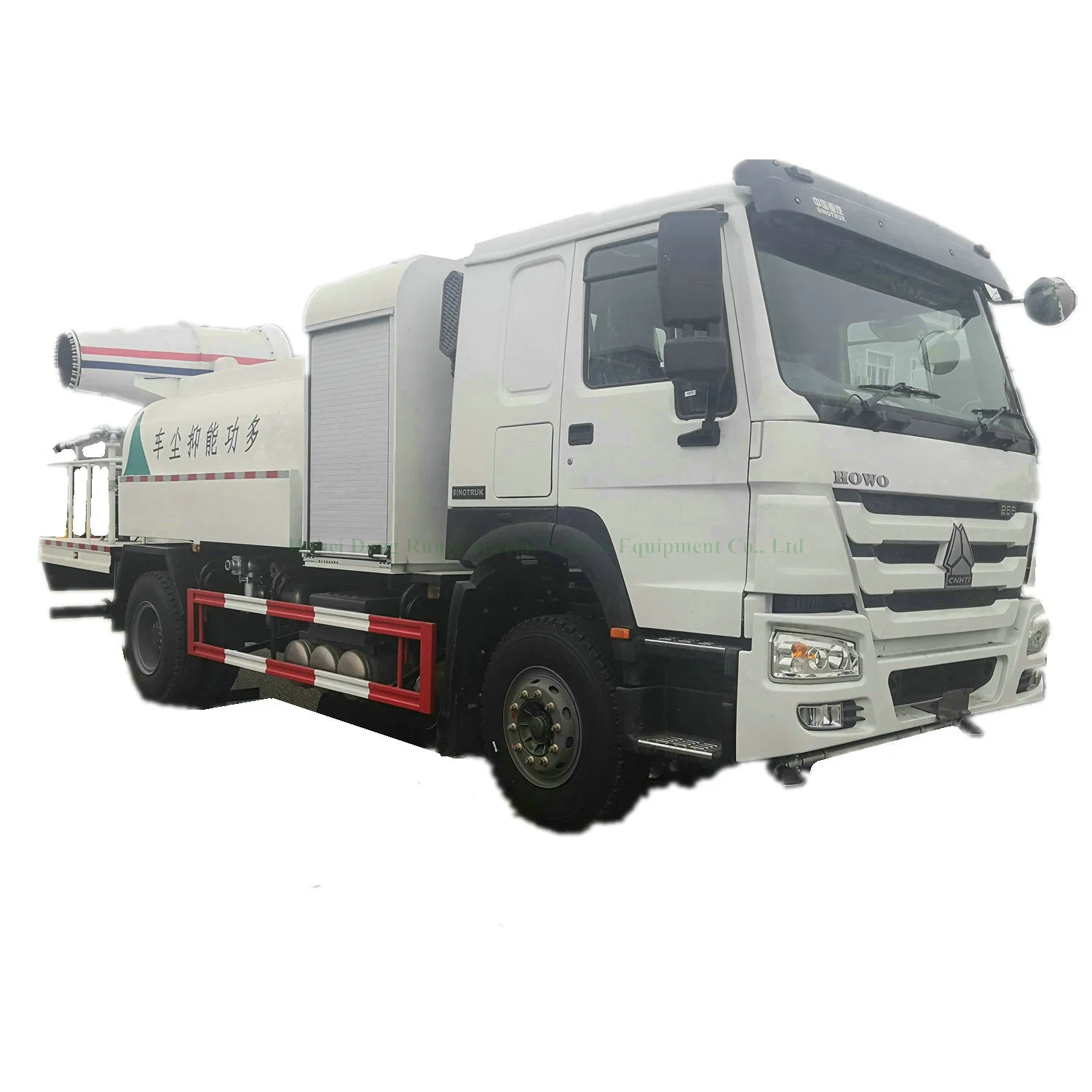

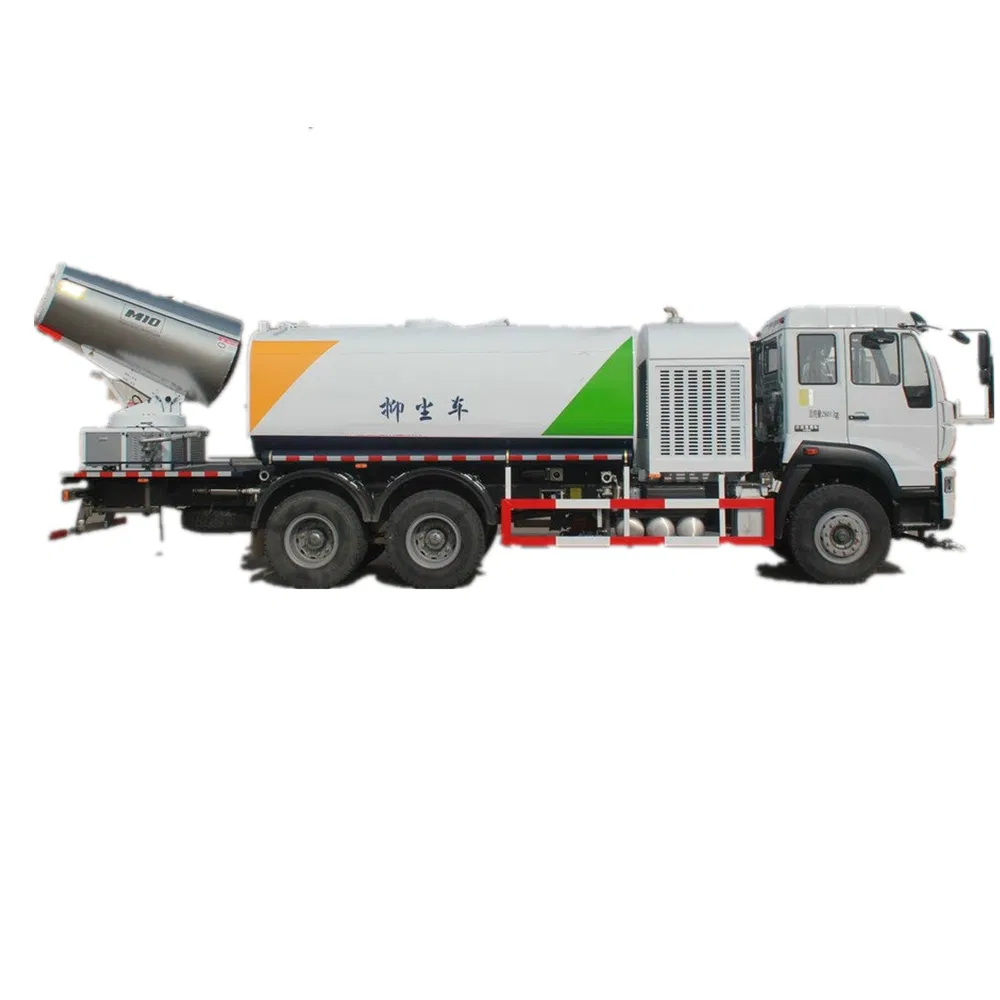

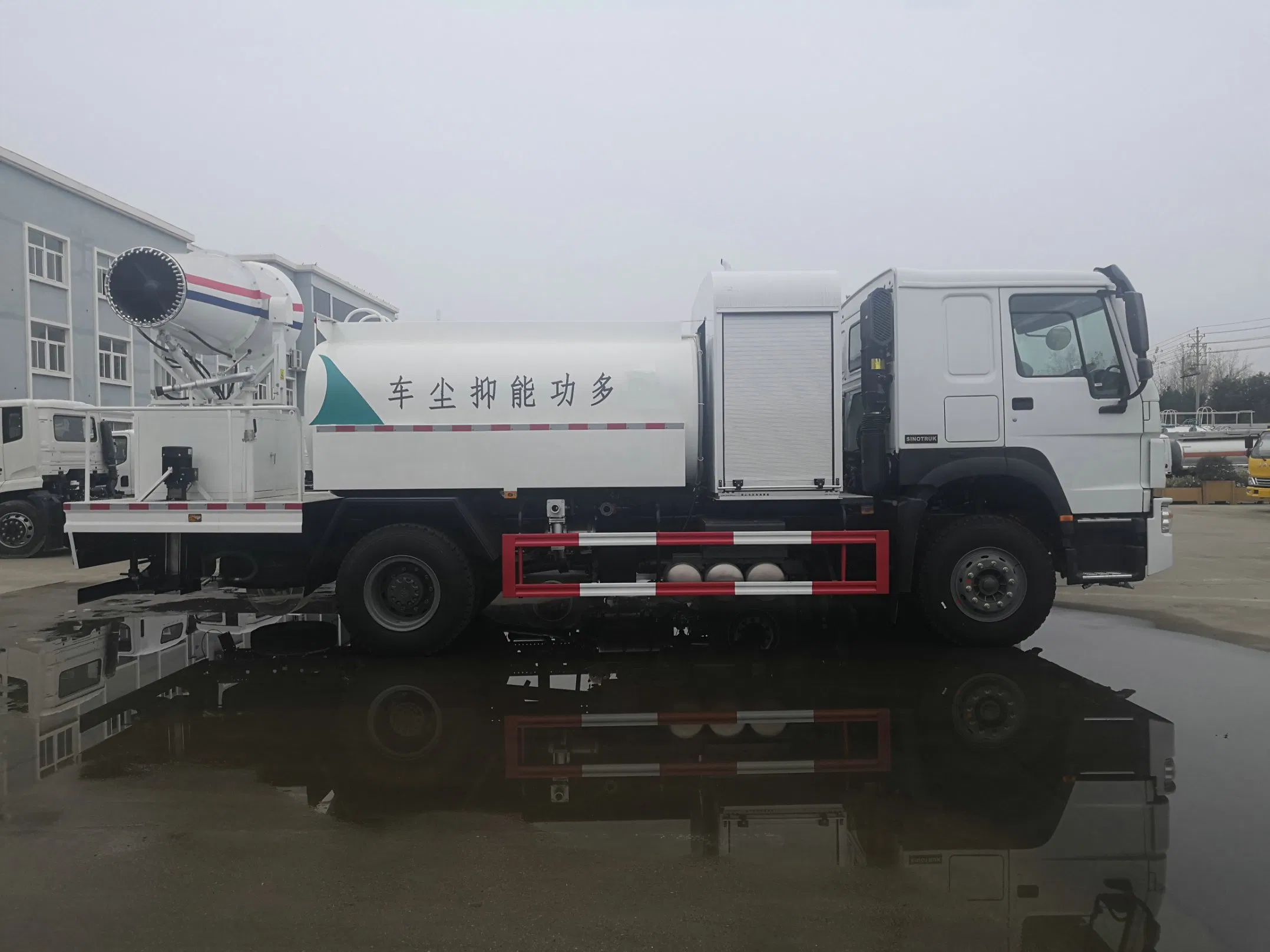

Sinotruck HOWO Water Bowser Mounted with Dust Control Sprayer 50m Fog Cannon (6Wheels 12T Water Tank)

1 / 5

Sinotruck HOWO Water Bowser Mounted with Dust Control Sprayer 50m Fog Cannon (6Wheels 12T Water Tank)

Customization:	Available
After-sales Service:	24hours
Warranty:	12months

Send Inquiry

Product Description

Basic Specifications

Model NO.

HOWO Water Bowser

Volume

15001 - 30000L

Certification

ISO9000, CCC

Emission Standard

Euro 3-5 -6 -7

Sprinkling Area

＞16m

Transmission

Manual

Payload

10-12t

Fuel Type

Diesel

Drive Wheel

4×2

Engine Capacity

＞8L

Condition

New

Tire

11.00r20 / 12.00r20

Product Overview

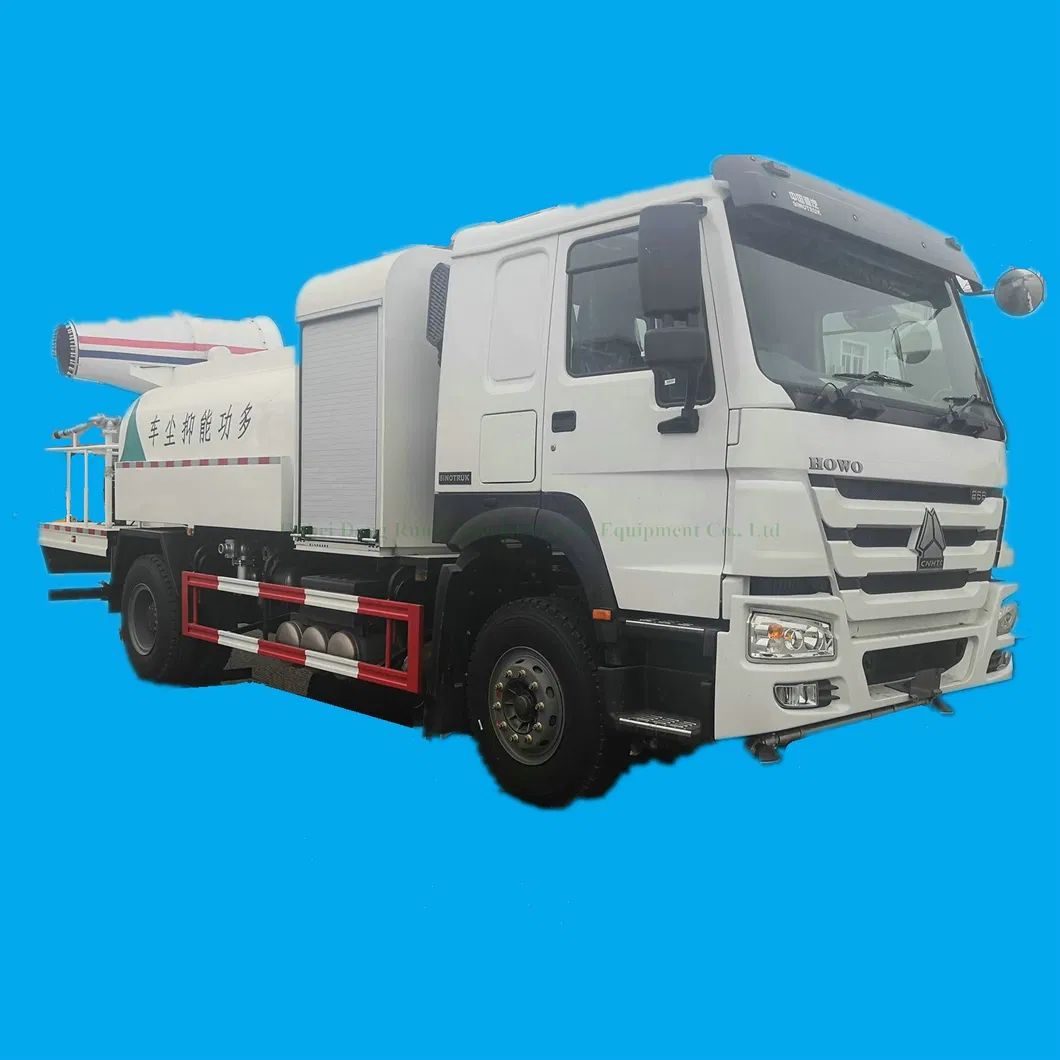

HOWO Water Bowser Mounted With Dust Control Sprayer 50m Fog Cannon (6 Wheels 12T Water Tank). This multi-functional vehicle is designed for high-efficiency dust suppression, sterilization spray, and emergency power supply.

🛡️ Multi-Function Capabilities

Pesticide Spraying & Disinfection
Mine Dust Suppression
Water Transport & Road Washing
Fire Fighting Support
Epidemic Prevention Sterilization
Emergency Electric Power Supply

💧 System Components

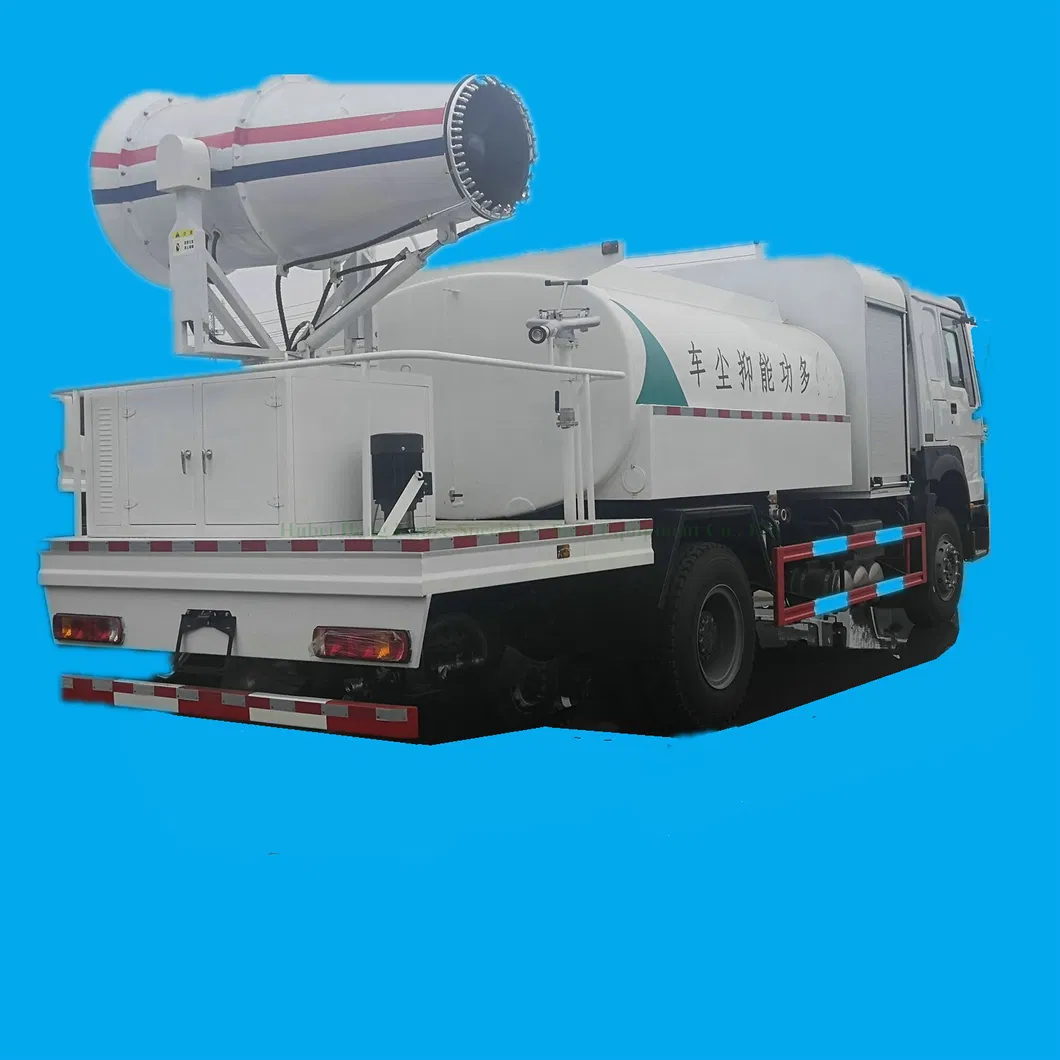

1) Dust Suppression Spray Device: Driven by a closed hydraulic system via chassis PTO. Features high energy efficiency, long spray range, and low noise alloy fan blades with three-level silencers.

2) Low Pressure Flushing Device: Includes front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, and greening irrigation interfaces.

Vehicle Applications

Haze Settlement: Reduces pollutant concentration by over 70% in urban areas. Horizontal spray > 100m, Vertical > 30m.

Industrial Dust Control: Ideal for demolition, mine excavation, and crushing sites to prevent dust diffusion.

Agriculture & Disinfection: 100x more efficient than manual spraying for herbicides or epidemic prevention.

Road Maintenance: Equipped with duck-billed washing and water cannons (range > 38m) for garden watering.

Technical Parameters

Item		Parameter
Working Speed	Low pressure washing	8-20km/h
Working Speed	Fog spray system	8-20km/h
Longest range of water fog spray		>120m
Water flow rate of fog spray		120~260L/min
Low pressure washing width		≥24m
Water cannon range		≥38m
Maximum volume of water tank		15m³
GVW		25000kg
Overall dimension (L×W×H)		11830x2500x3900mm

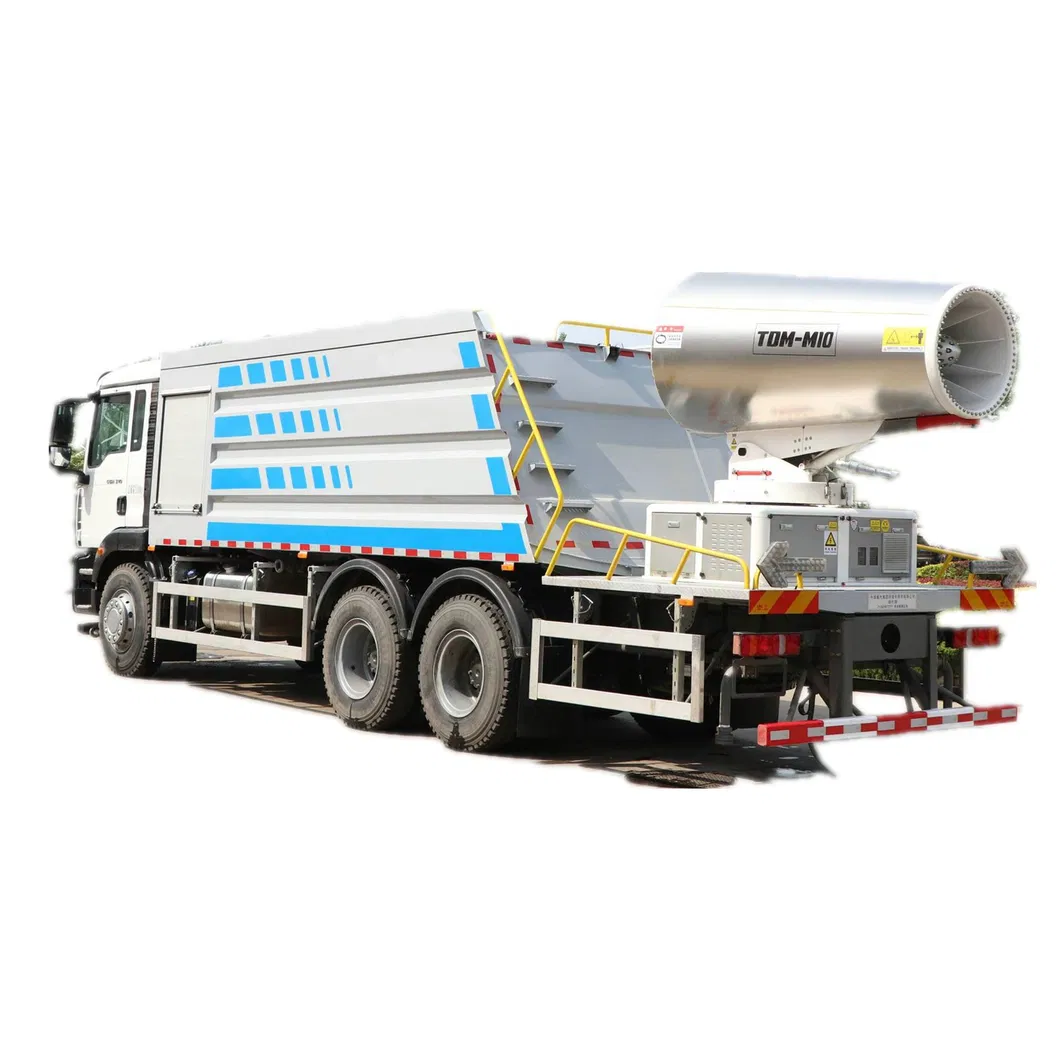

Sprayer Unit Comparison

Parameter	TDM-M04	TDM-M08	TDM-M12
Spray Range (m)	40m	80m	120m
Total Power (Kw)	10.5	31	69
Water Consumption (m³/h)	3.2	7	10
Rotation Angle	±120°	±120°	±120°
Pitch Angle	0°~ 50°	-10°~ 60°	-10°~ 60°
Control Mode	Wireless remote / Touch screen / Cloud Services

Frequently Asked Questions

Q: What is the maximum spray range of the fog cannon? A: Depending on the model selected, the static wind spray range can reach between 40 meters and up to 120 meters.

Q: Can this vehicle be used for fire fighting? A: Yes, the vehicle is equipped with a stainless steel long-range water cannon that can be used for auxiliary fire fighting.

Q: What are the primary power sources for the spray system? A: The system can be powered via the chassis full power take-off (PTO) device or an optional diesel generator set (20KW to 100KW).

Q: How does the dust suppression system improve air quality? A: It creates fine atomized droplets that absorb floating particles (PM2.5/PM10), causing them to settle on the ground, reducing pollutants by over 70%.

Q: Is the water tank protected against corrosion? A: The vehicle features high-quality tank construction suitable for water transport, disinfection, and pesticide spraying.

Q: What control options are available for the operator? A: Operators can use local controls, wireless remote controls, or integrated touch screens for adjusting rotation and pitch angles.
