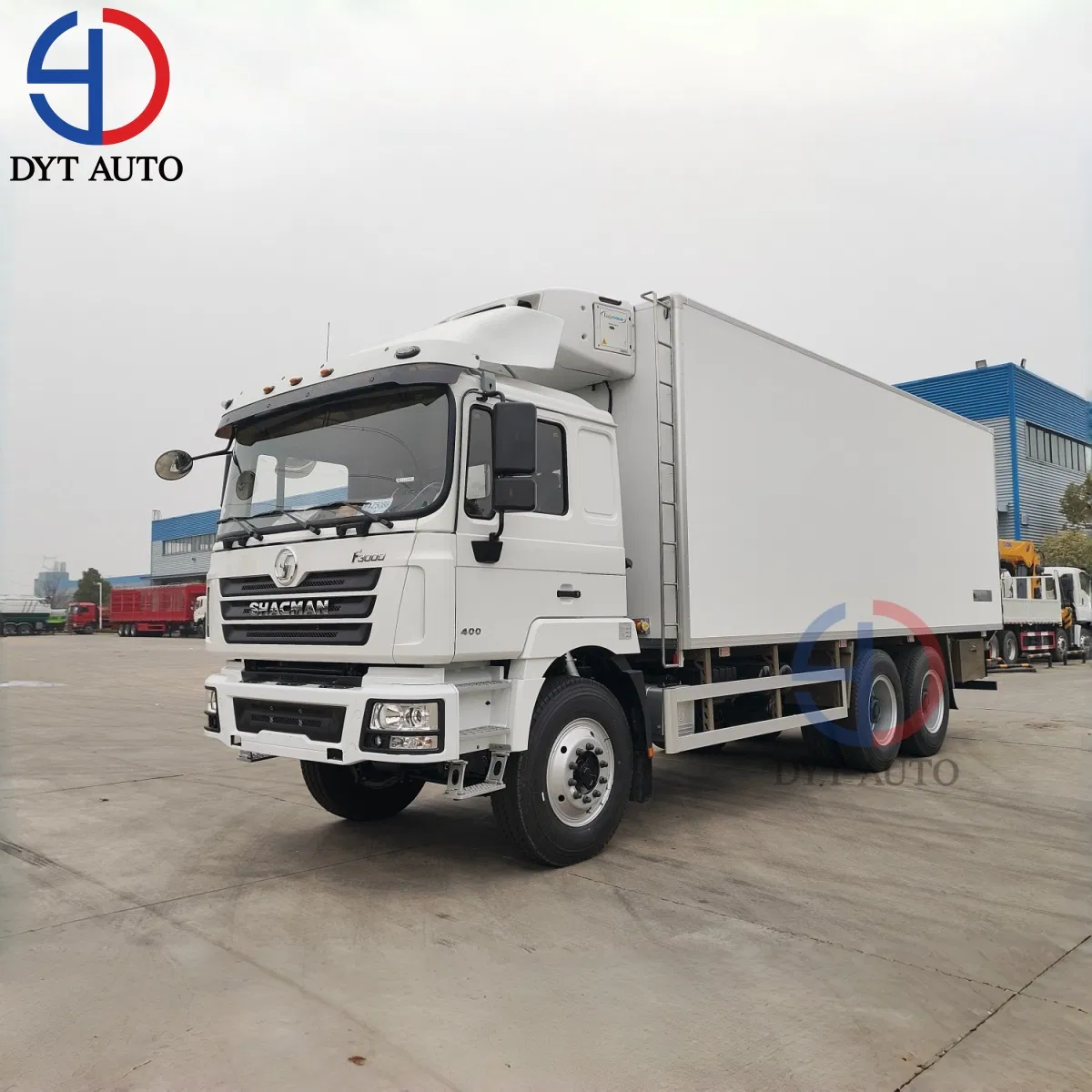

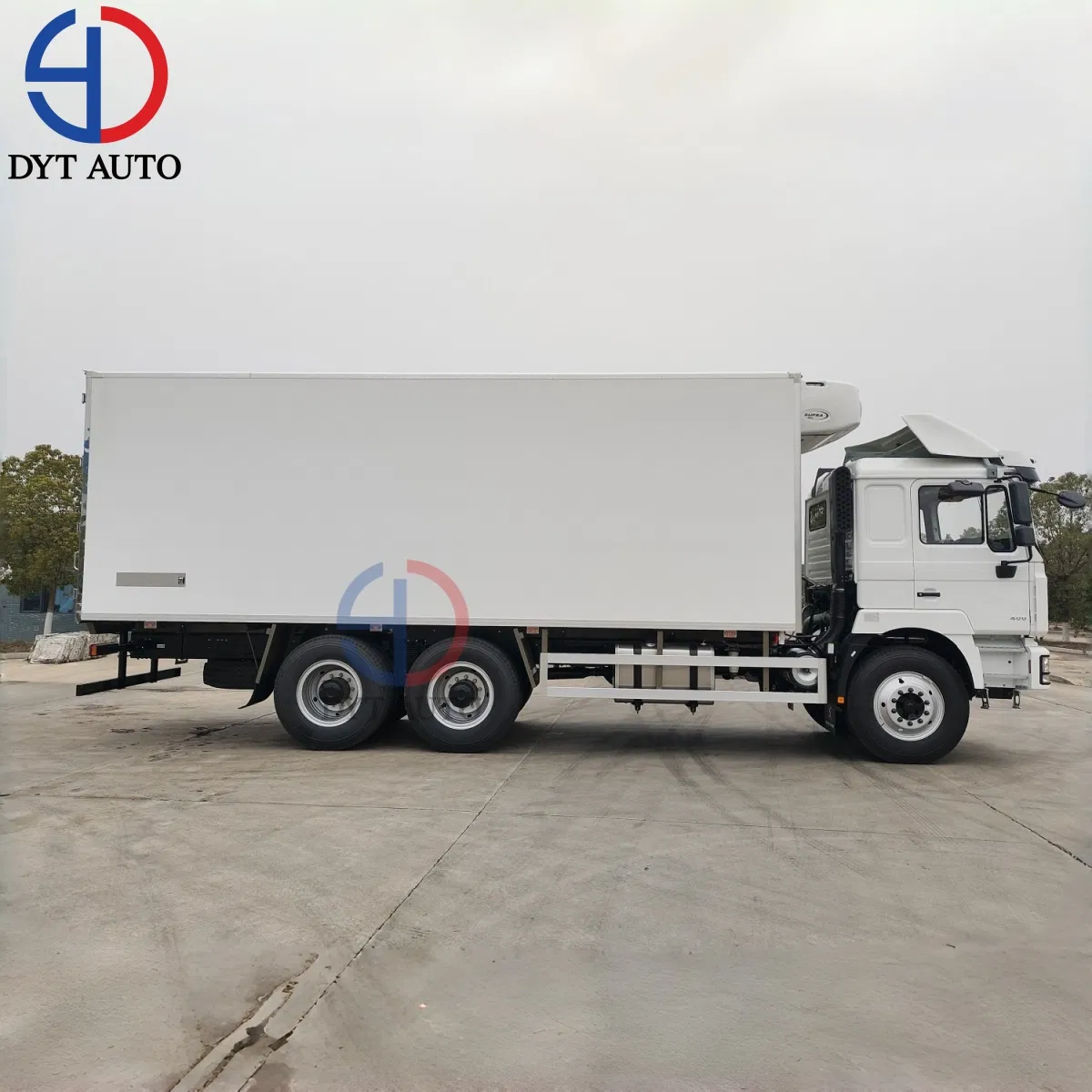

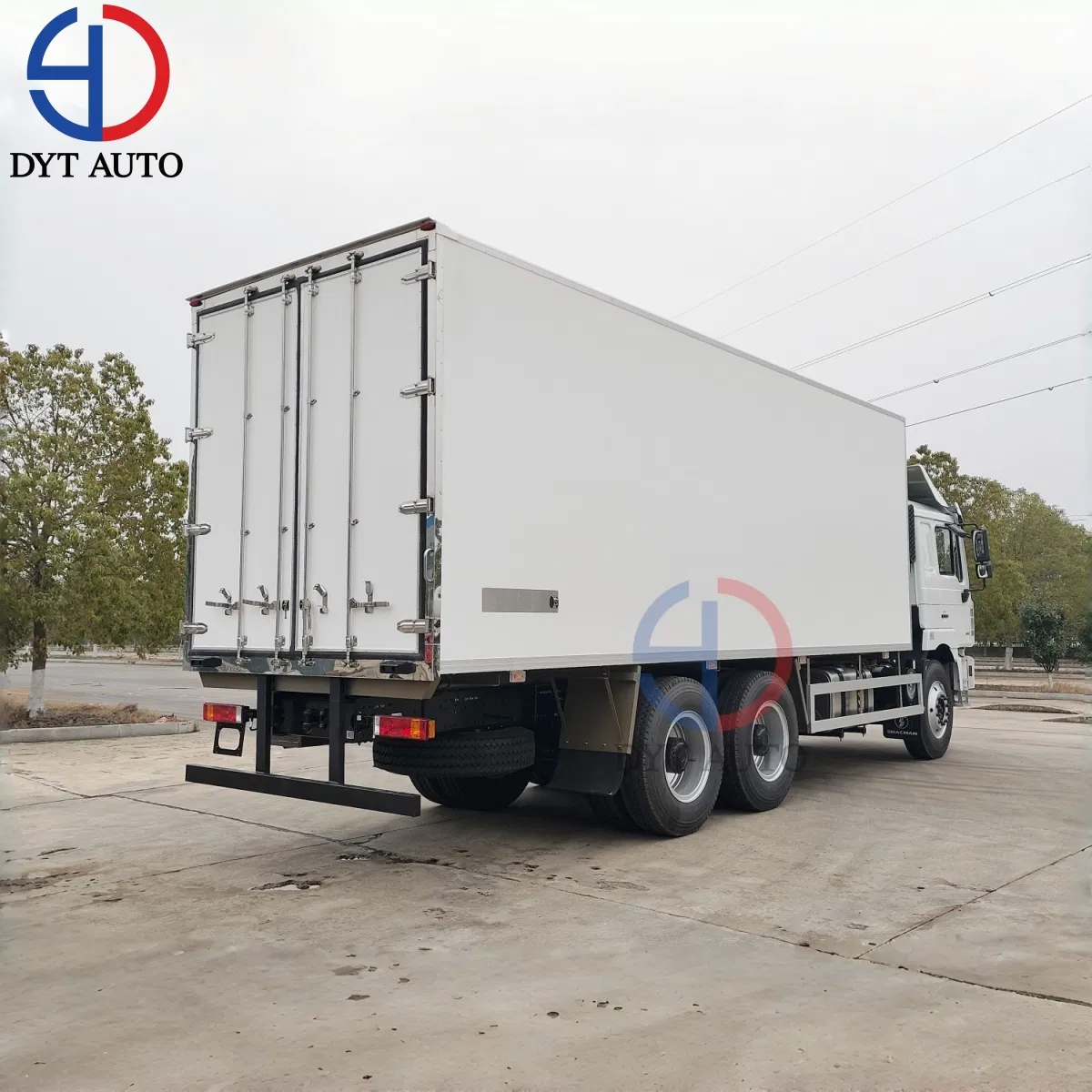

This refrigerated truck adopts the famous SHACMAN F3000 6x4 chassis with a diesel engine, which is strong enough for tough roads and heavy loading. It is designed for cold chain transportation such as vegetables, meat, medical supplies, ice cream, etc.

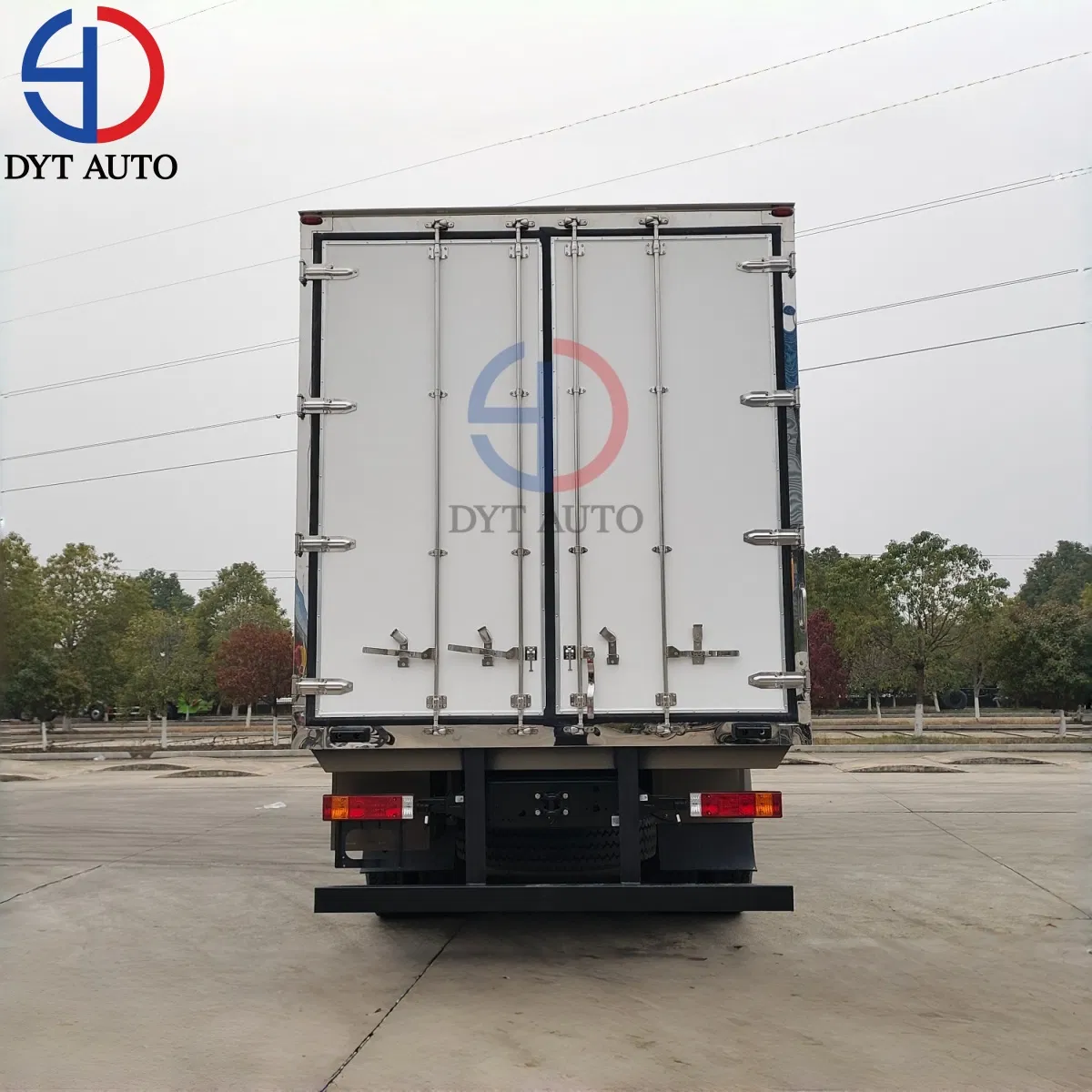

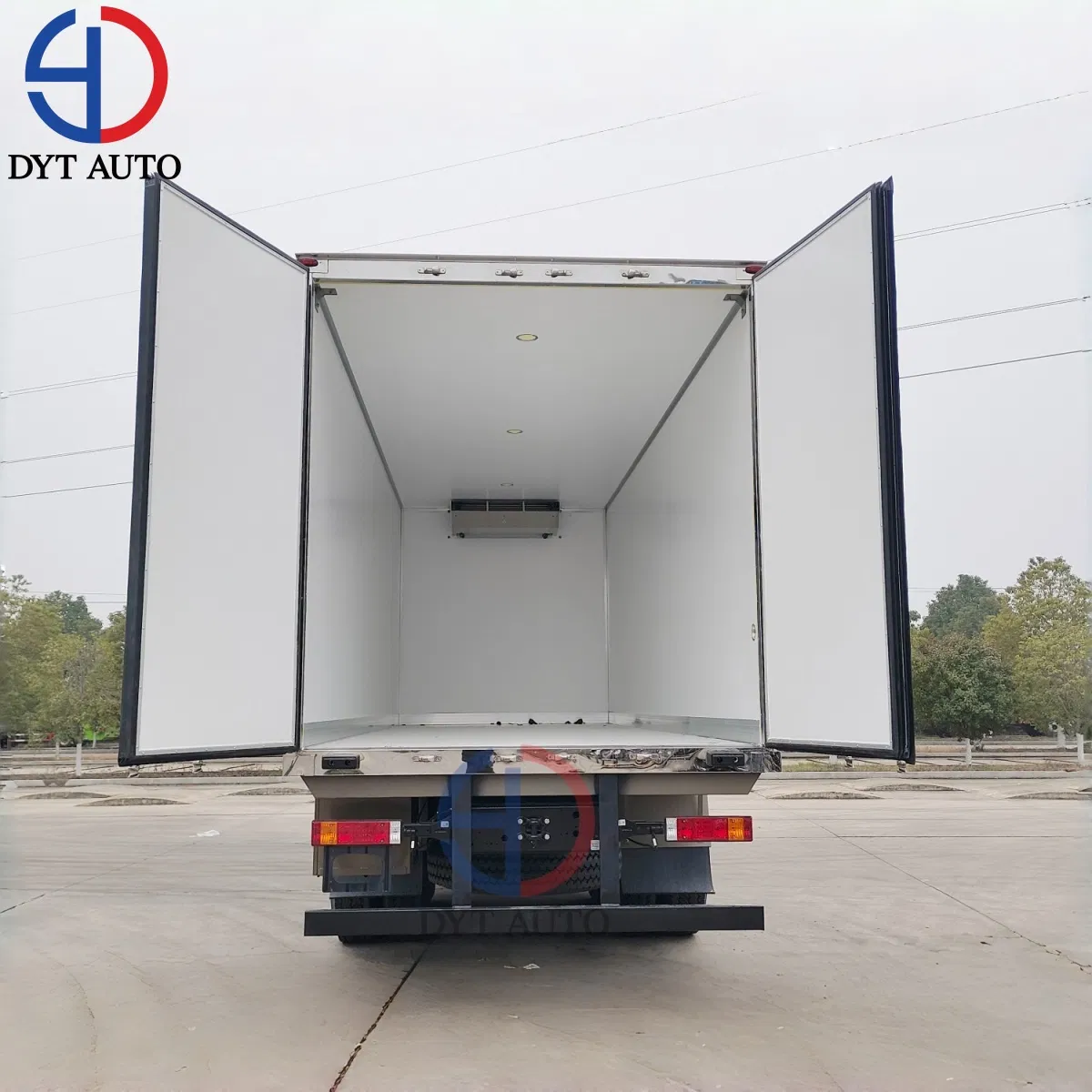

High-strength van body is made of PU foam or polystyrene thermal insulation board and has a built-in metal frame. The van body length is 7.5 meters, featuring precise temperature control and excellent sealing performance. Adopting the world-class refrigerator unit brand CARRIER, independent of the truck engine.
| Vehicle Description | |
|---|---|
| Overall Dimensions | 10290 x 2560 x 4050 mm |
| Payload | 20 Ton |
| Application | Cold chain transportation (Vegetables, Meat, Medical, etc.) |
| Truck Chassis | |
| Chassis Brand | SHACMAN |
| Cabin | F3000, 3 seats with a sleeper, with A/C |
| Drive Type | 6x4 |
| Engine Model | WEICHAI WP12.400E201 (400HP) |
| Transmission | FAST 12JSD200T-B (12 Forward + 2 Reverse) |
| Tire | 12.00R24 (10+1 units) |
| Van Body | |
| Material | Polypropylene(XPS) 80mm thickness, Fiberglass(FRP) surfaces |

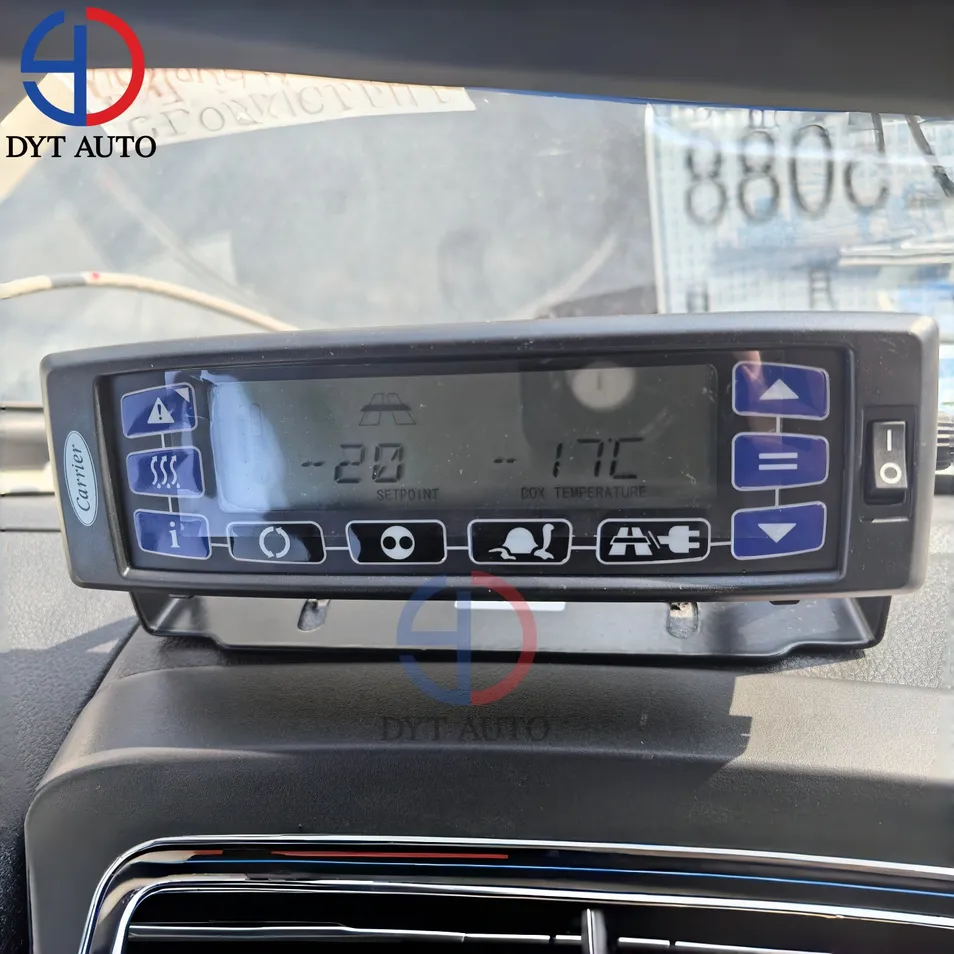

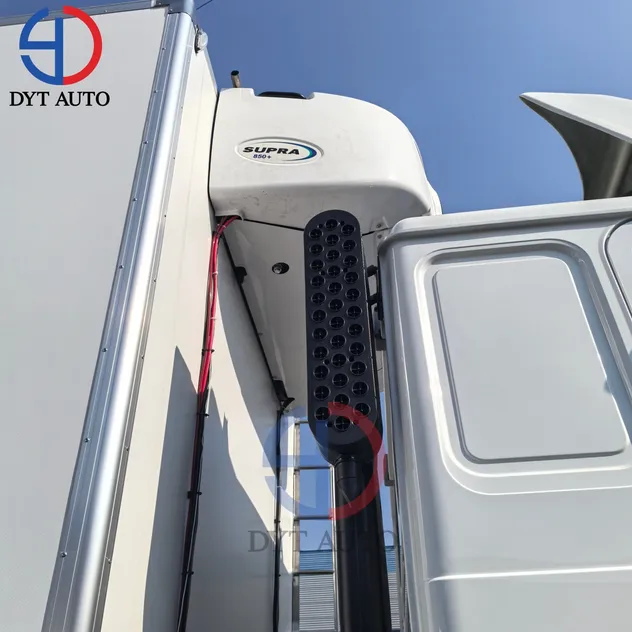

| Refrigerator Unit | CARRIER (Independent diesel engine driven) |
| Temperature Range | -25℃ ~ +10℃ |
