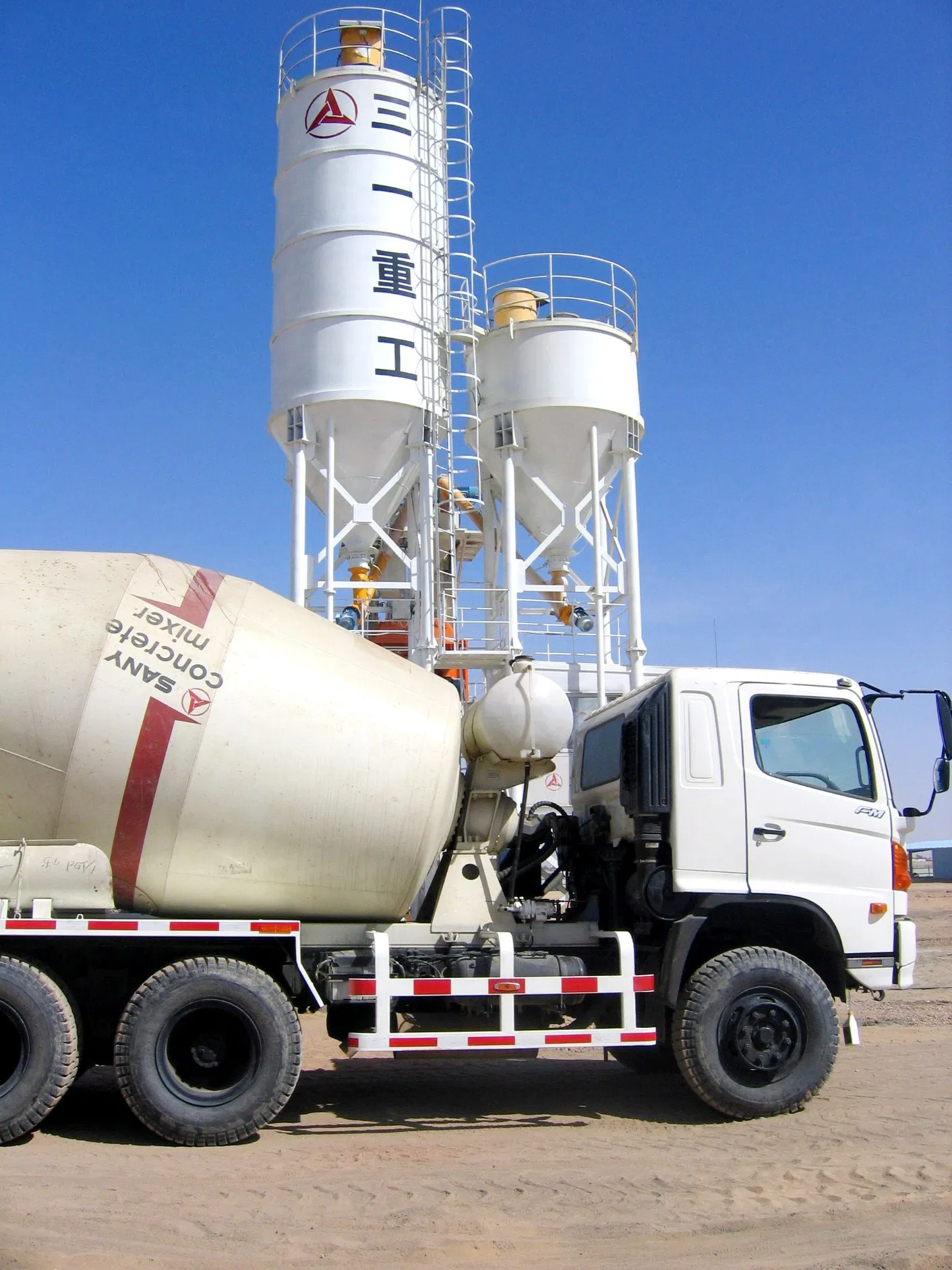

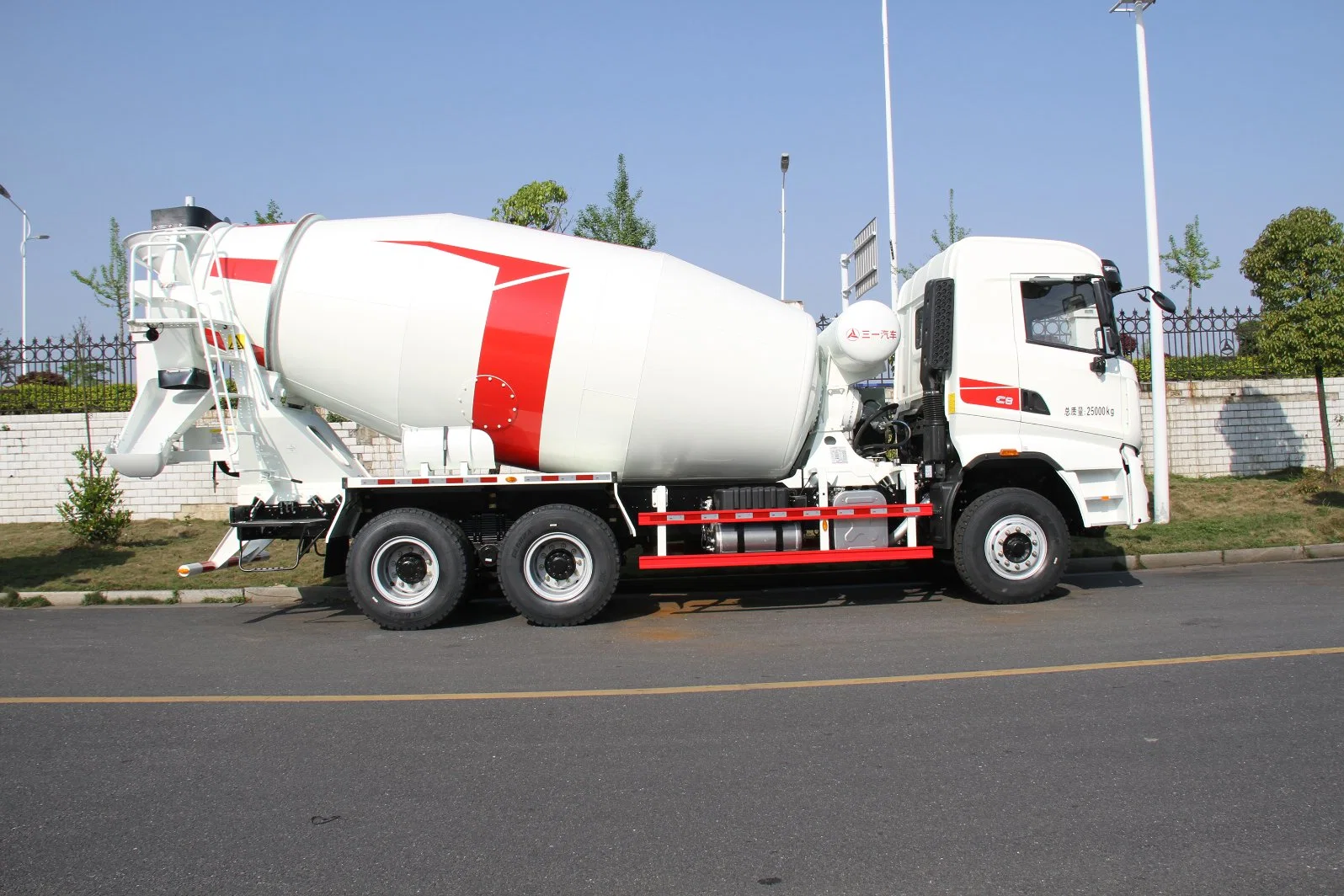

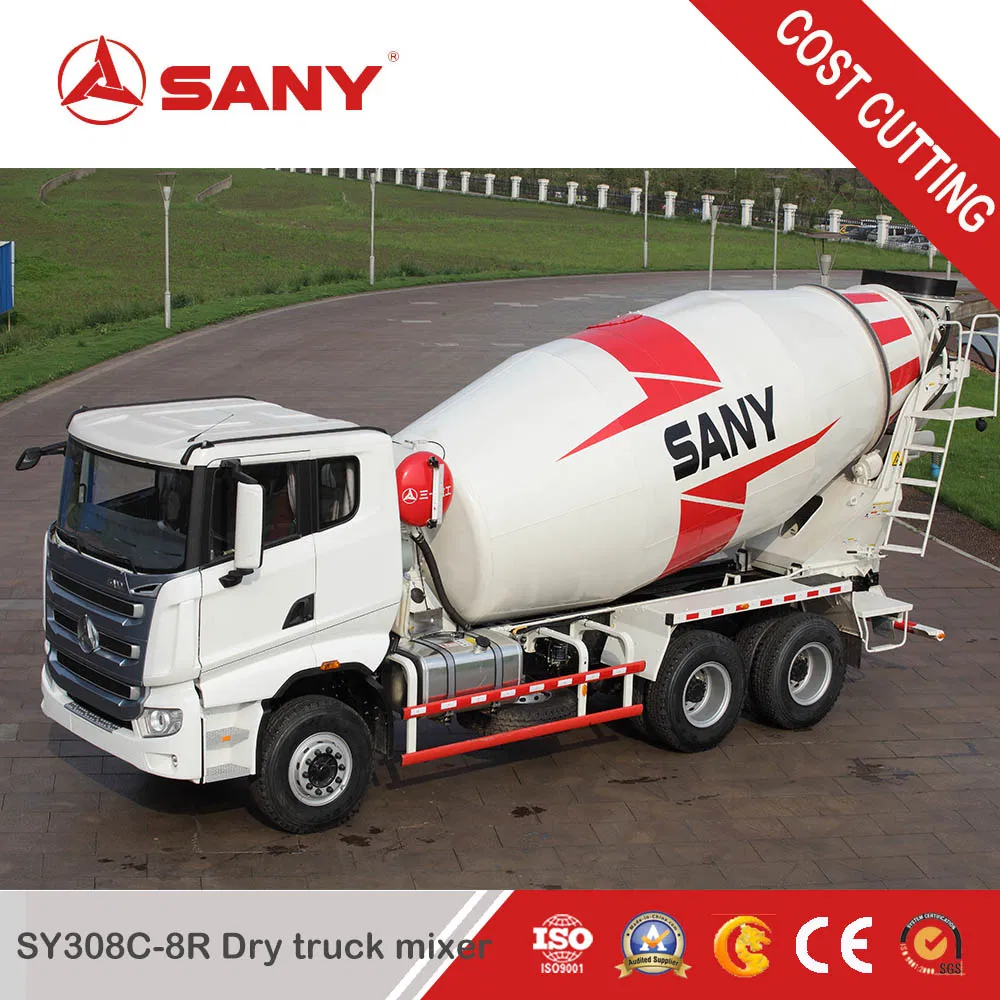

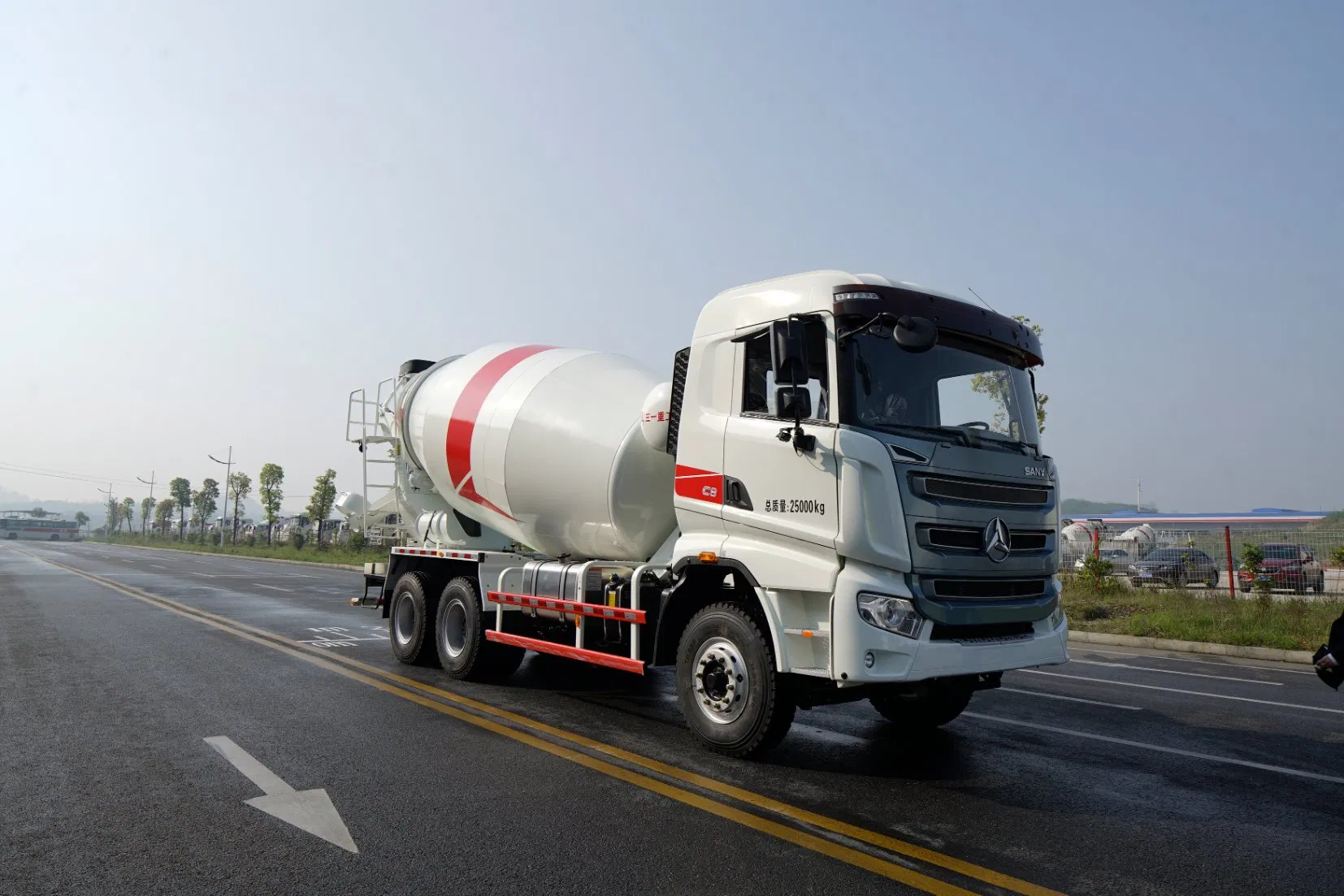

The SY308C-8(R Dry) mixer truck with 8 cubic meter mixing capacity is equipped with an ultra-high strength integrated auxiliary frame, ensuring stability and high strength. This mixer truck can adapt to varied harsh conditions and improves its service life.

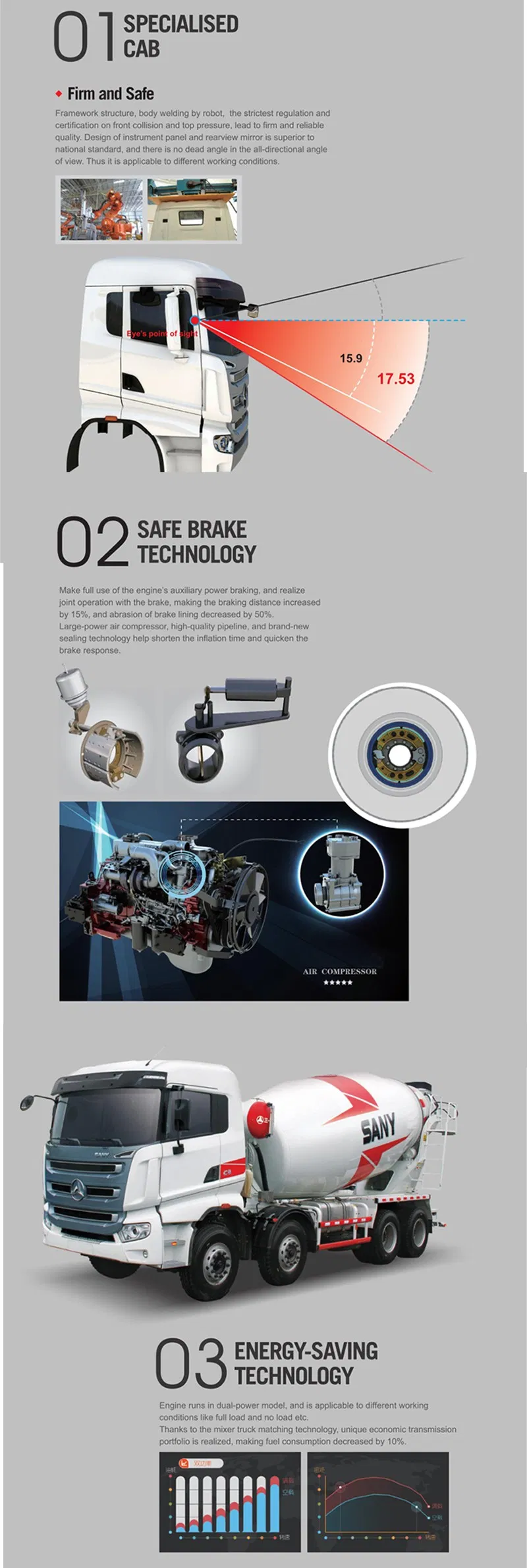

The framework structure and body welding are done by robot, offering the strictest regulation and certification on front collision and top pressure. The instrument panel and rearview mirror design is superior to the national standard, ensuring no dead angles in the all-directional range of view.
Featuring a four-point full-suspension shock absorption cab and double-layer door sealing with noise reduction technology. The cab mitigates fatigue from bumpy drives, allowing for easier and longer work hours. The steering wheel is equipped with the latest Bluetooth technologies.
The cab tilts at a large angle, allowing the engine and gearbox to be lifted out for maintenance. The front-mounted air conditioner is easily accessible by opening the front panel.
The engine runs in dual-power mode to adapt to different conditions. Fuel consumption decreases by 10% through optimized matching technology.

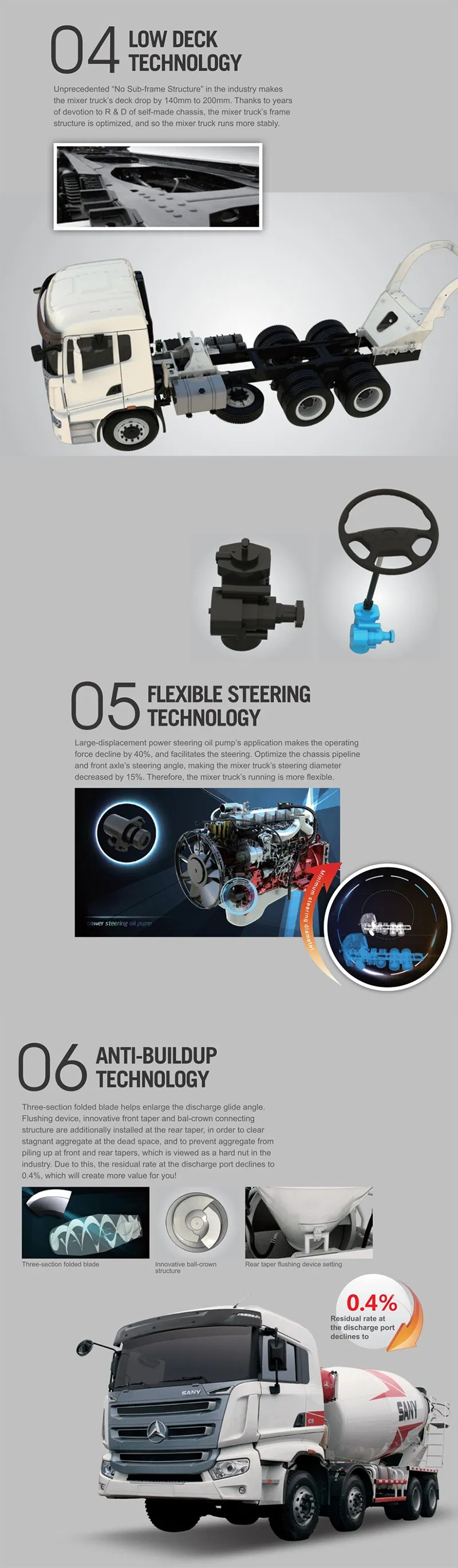

The "no sub-frame structure" drops the truck's deck by 140mm to 200mm, yielding optimal stability and reliability.
Large-displacement power steering oil pump decreases operating force by 40%. The steering diameter is reduced by 15% for better control.
Three-section folded blades increase discharge glide angle. A flushing device and innovative taper structure reduce the residual rate at the discharge port to 0.4%.

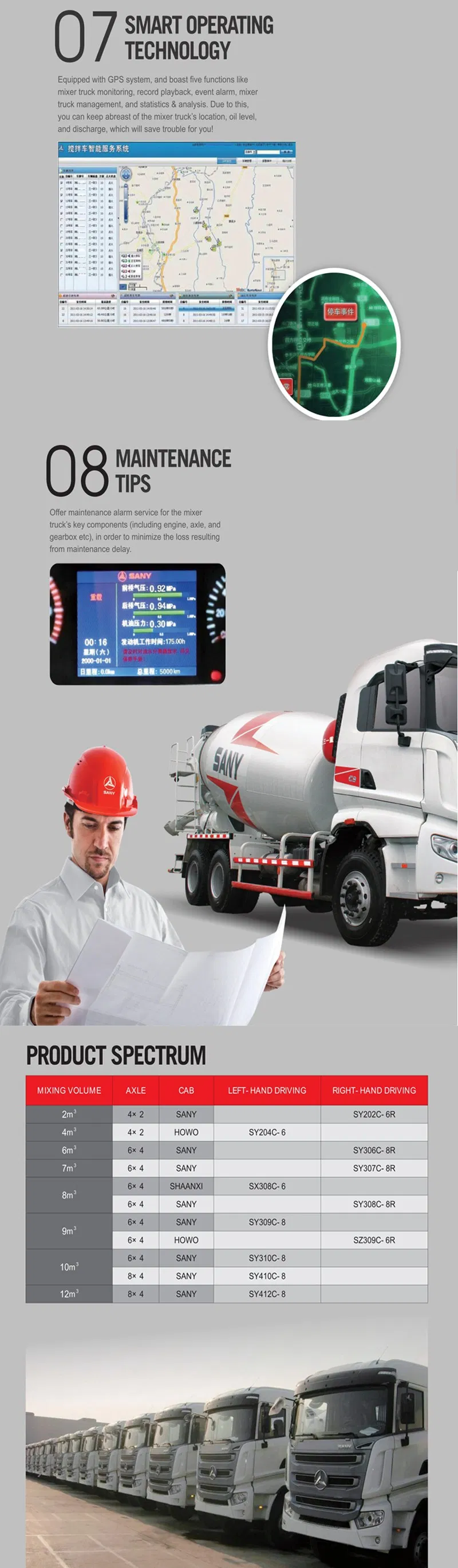

Equipped with a GPS system for monitoring location, oil level, and discharge. The system includes record playback, event alarms, and truck management statistics. Maintenance alarms for key components (engine, axles, gearbox) help minimize potential damages.
| Model | Capacity | Model | Capacity |
|---|---|---|---|
| SY204C-6 | 4m3 | SY306C-6 | 6m3 |
| SY308C-8 | 8m3 | SY308C-8(R) | 8m3 |
| SY308C-8(R Dry) | 8m3 | SY309C-8 | 9m3 |
| SY310C-8 | 10m3 | SY310C-8(R) | 10m3 |
| SY310C-8(R Dry) | 10m3 | SY412C-8 | 12m3 |
