| No. | Item | Technical Parameters |
|---|---|---|
| 1 | Wheelbase (mm) | 3050 |
| 2 | Overall dimensions (mm) | 5320×1695×2405 |
| 3 | Patient compartment (mm) | 3300×1540×1580 |
| 4 | GVW (kg) | 2860 |
| 5 | Min. Ground clearance (mm) | 170 |
| 6 | Engine Model | BJ491QEQ4 |
| 7 | Fuel type | Petrol |
| 8 | Displacement (ml) | 2324 |
| 9 | Emission standard | EURO 2 |
| 10 | Maximum power | 76kw/ 103hp |
| 11 | Transmission | Mechanical, 5F+1R |
| 12 | Brake system | Front disc rear drum, ABS+EBD |
| 13 | Max. speed (Km/h) | 150 |
| 14 | Tire | 195R15C, Aluminum wheel hub |
| Category | Project Details | Qty | Remark |
|---|---|---|---|
| A. Warning System | |||
| 1 | Front long row LED blue alarm lamp | 1 | 100W loudspeaker, adjustable sound |
| 2 | LED flash lamps (Sides & Rear) | 3 | Waterproof high-brightness |

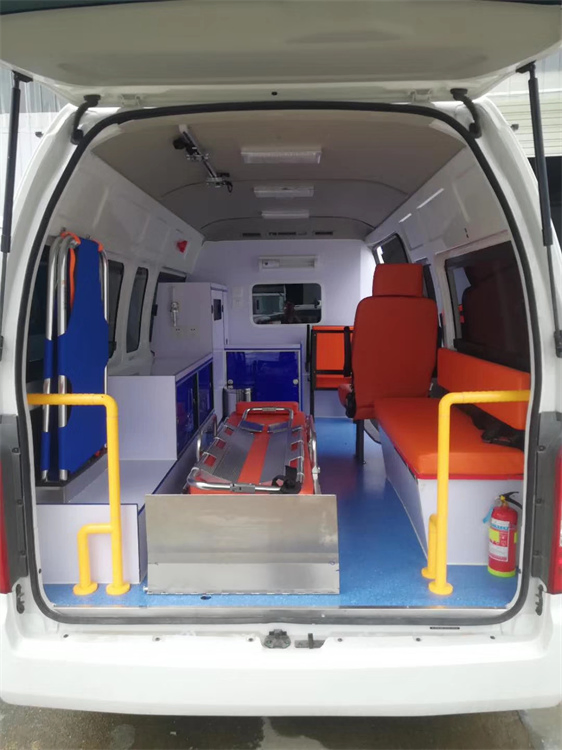

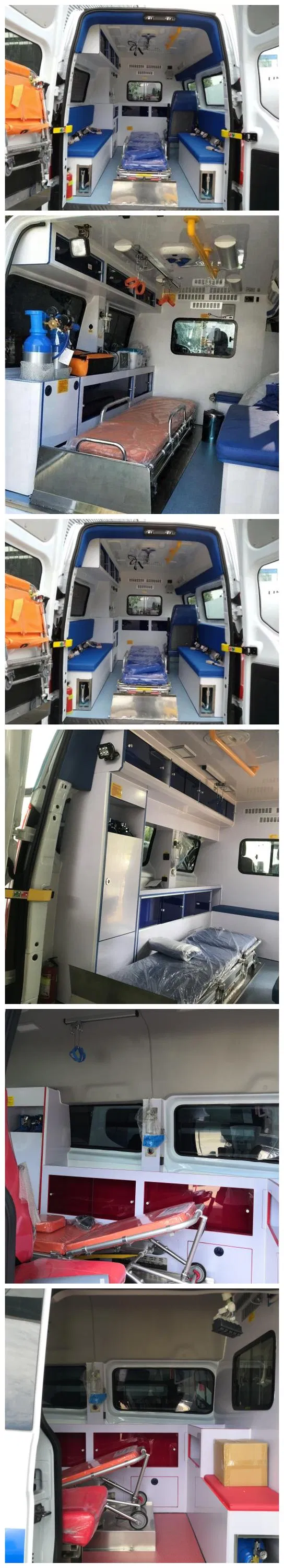

| B. Interior Trim System | |||
| 1 | Sealing partition with sliding window | 1 | Wider field of vision |
| 2 | Medical PVC flooring | 1 | Anti-skid, acid-resistant, easy to clean |
| 3 | Medical equipment cabinet | 1 | Flame retardant, integrated storage |
| C. Power & Lighting | |||
| 1 | Intelligent power management | 1 | Key ignition control, safe protection |
| 2 | 1000W Inverter power supply | 1 | Pure sine-wave |
| 3 | UV Disinfection lamp | 1 | 12V vehicle ultraviolet sterilization |
| D. Oxygen & Assistance System | |||
| 1 | 10L Oxygen cylinders | 2 | With fixed holders and relief valves |
| 2 | Automatic boarding stretcher | 1 | Stainless steel guide rail base |
| 3 | Doctor care seat | 1 | Leather with seat belt |
The truck is driven directly into the ship and secured. Best protection against rust and damage.
Lifted by crane onto the vessel deck. A cost-effective solution for larger units.
Truck is safely loaded into a standard container. Ideal for smaller models.
