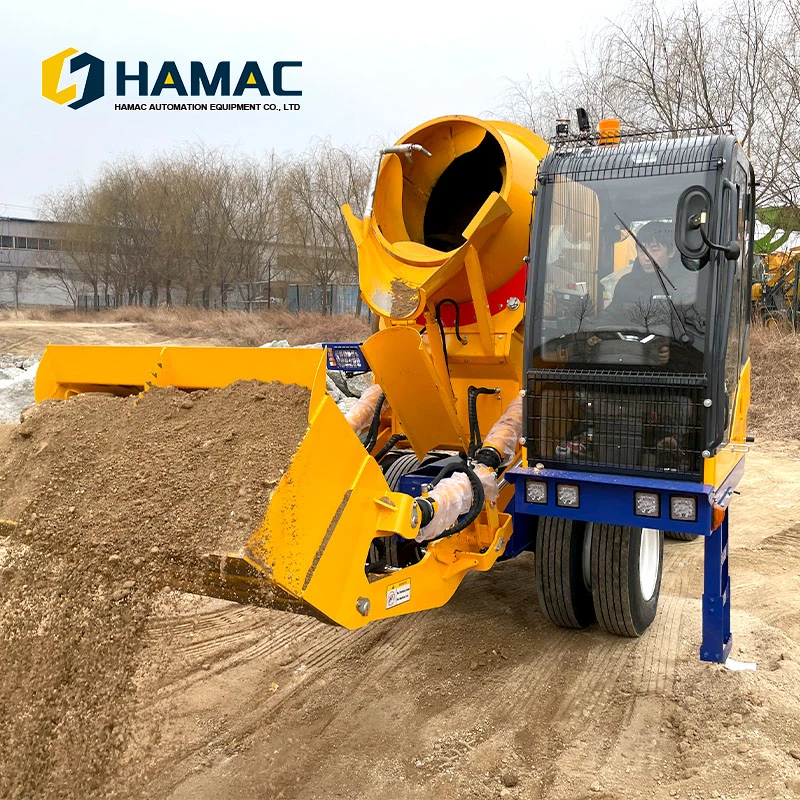

Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
1 / 5
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer

Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer

Customization: Available
After-sales Service: Online Support, video Technical Support
Application Area: Building Construction
Send Inquiry

Product Description

Basic Specifications

Model NO.
HMC350
Capacity
10-14m³/h
Certification
CE, ISO
Condition
New
Main Material
Alloy Steel, Carbon Steel
Mixing Capacity
5.6m3
Power Source
Diesel
Weight
8800 Kg
Rated Power
85kw/2200rpm
Discharge Capacity
3500L
Transmission
Full Hydraulic, 4 Wheel Drive
Dimensions
7600x2800x4180 mm

Product Description

Self Loading Concrete Mixer

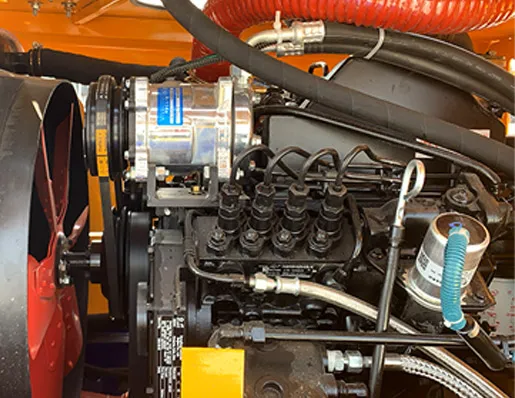

✓High-Performance Engine Famous brand engine YUCHAI and CUMMINS as options for reliable power delivery.
Engine System

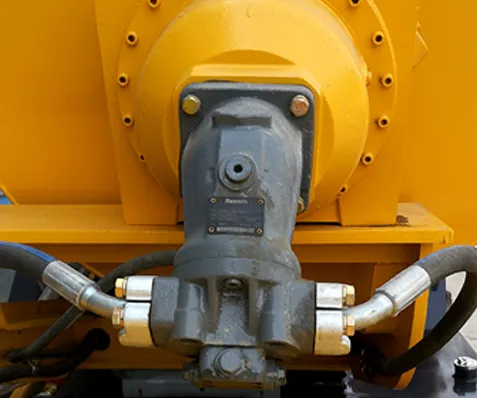

Hydraulic System
✓Stable Hydraulic System Equipped with a famous brand hydraulic system to ensure stable and efficient work performance.

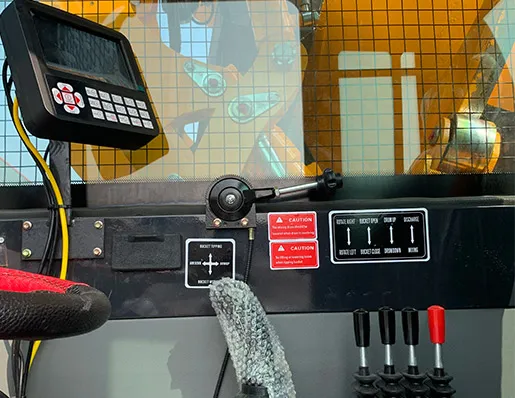

✓Precision Control & Weighting All functions controlled by joystick and buttons. Includes an electronic weighting system and printer to certify 100% quality concrete production.
Control System

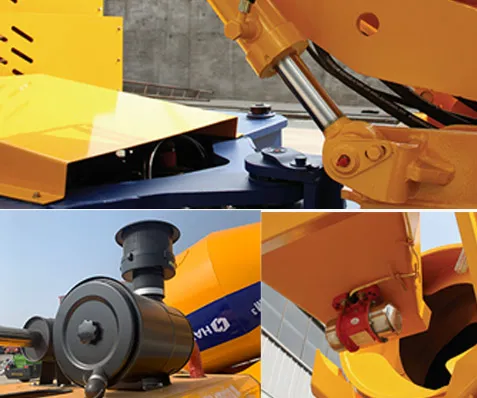

Mixing Drum
✓Advanced Drum Design Hydraulic cylinder lifts the rear part of the drum to increase discharging speed. Vibrator on the hopper prevents sand sticking.

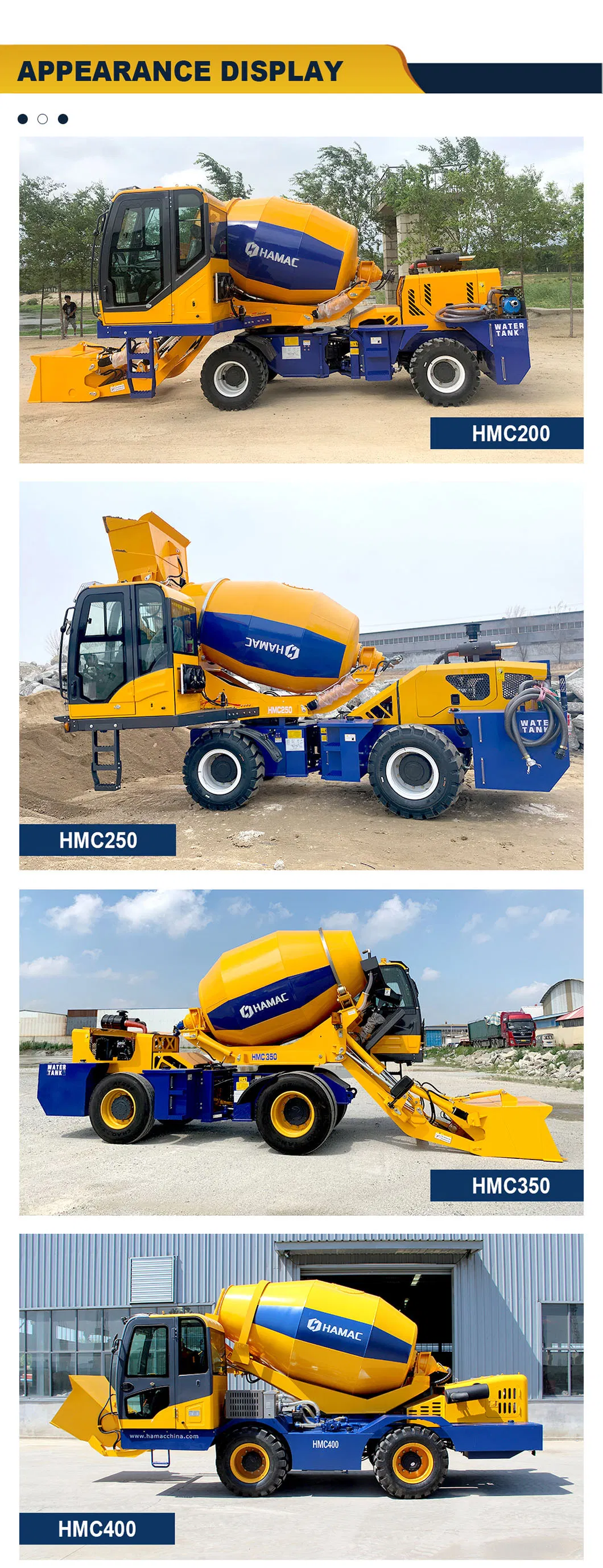

Technical Details

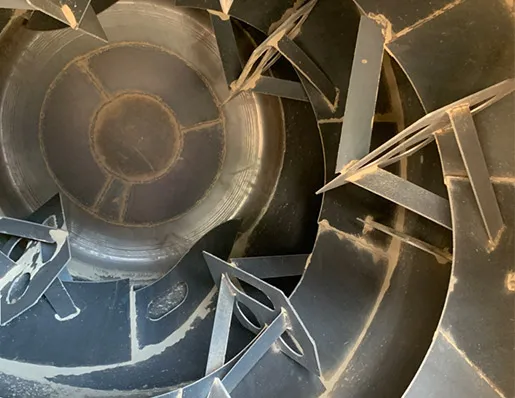

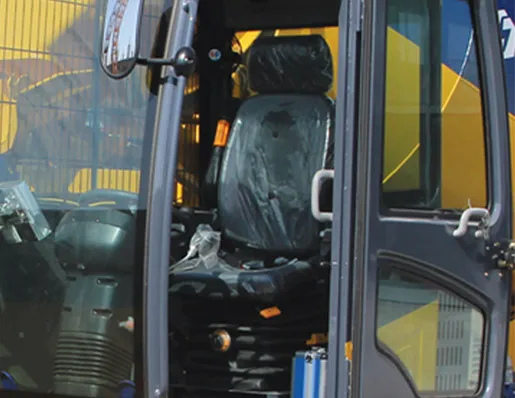

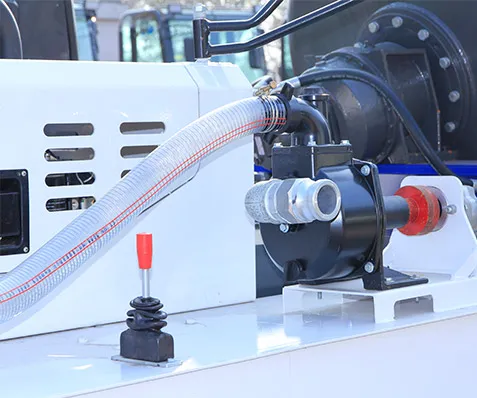

Mixing Paddle Water System Cabin Interior

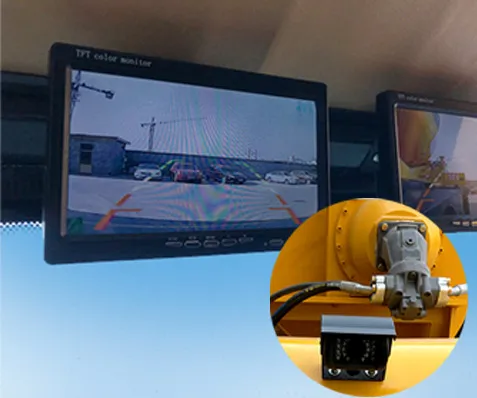

✓Safety & Comfort Well-decorated cabin with air conditioner for operator comfort. Real-time cameras monitor the surrounding area for maximum safety.
Safety Cameras

Technical Specifications

Item Specification
Net Weight8800 KG
TransmissionFull Hydraulic, 4 wheel drive
Brake TypeAir Brake
ChassisOff-road, double tyres of front axle, with AC
Loader Bucket Capacity0.6 m3
Tilt Angle20%
High Speed0-30 KM/H
Low Speed0-9 KM/H
Mini Turning Radius5300 mm
Engine TypeYUCHAI (Diesel)
Rated Power/RPM85 KW / 2200 RPM
Max Torque/RPM410 N.M / 2400 RPM
Geometric Capacity4740 L
Discharge Capacity3500 L
Drum Rotation Angle270°
Overall Dimension7600x2800x4180 mm

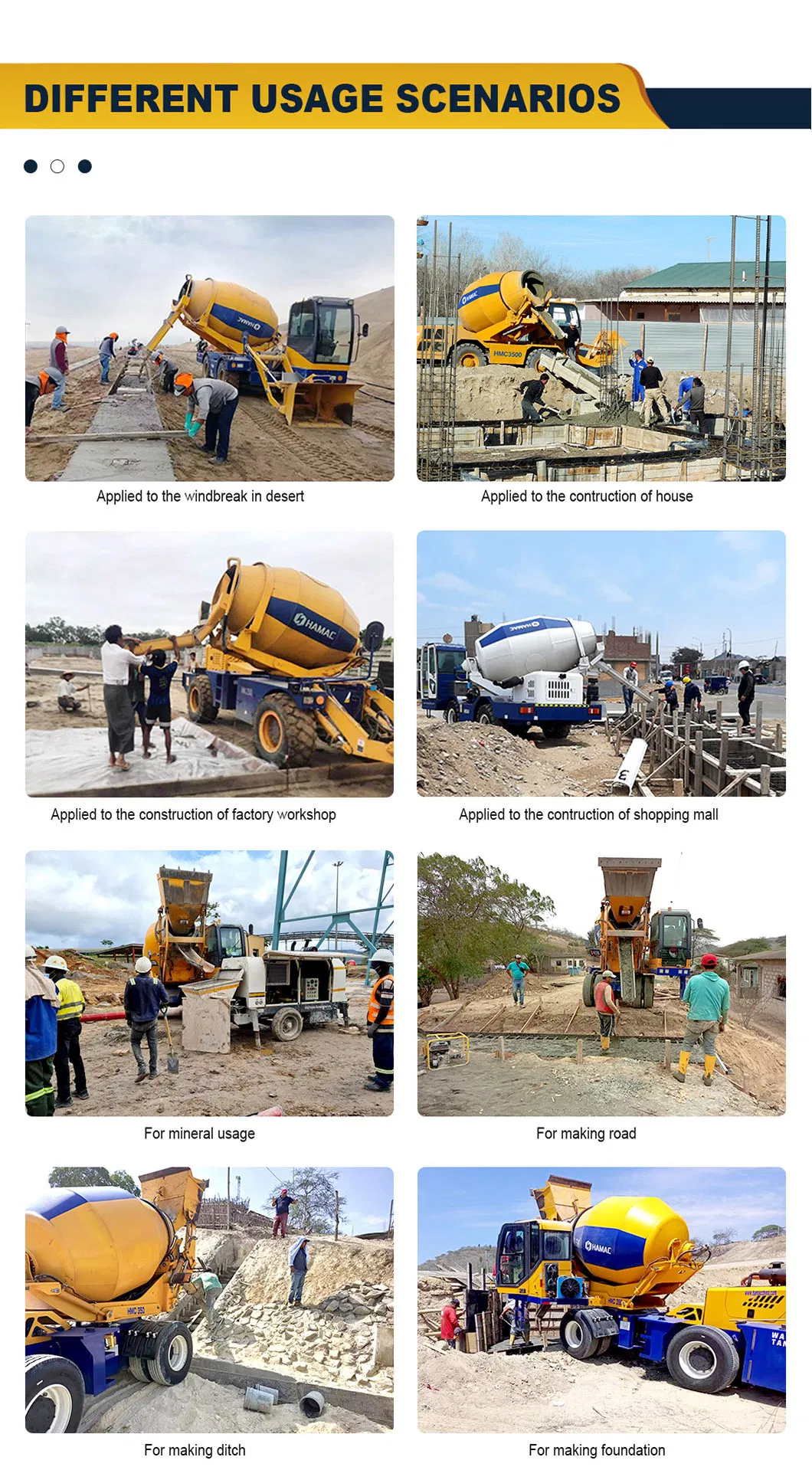

Full View
Operational View

Frequently Asked Questions

Q1: What is the production capacity of the HMC350?
The HMC350 has a production capacity of 10-14m³/h with a discharge capacity of 3500L per batch.
Q2: What engine options are available for this mixer?
It comes equipped with a YUCHAI engine as standard, with CUMMINS available as an option to meet different power requirements.
Q3: Does the machine include a weighing system?
Yes, it features an electronic weighting system and a printer, allowing the operator to monitor and certify the quality of the concrete produced.
Q4: How does the 4-wheel drive system benefit operation?
The full hydraulic 4-wheel drive and off-road chassis allow the vehicle to operate efficiently on rough construction sites and handle tilt angles up to 20%.
Q5: Can the mixing drum rotate for multi-directional discharge?
Yes, the mixing drum features a 270° rotation angle, providing great flexibility for discharging concrete in different directions.
Q6: What comfort features are provided for the driver?
The vehicle includes a well-decorated cabin equipped with air conditioning and real-time cameras for safety and visibility.
