5 CBM Isuzu Nkr Fuel Tanker with Best Price for Sale

1 / 5

5 CBM Isuzu Nkr Fuel Tanker with Best Price for Sale

Customization:	Available
Transmission Type:	Manual
Power:	Diesel

Send Inquiry

Product Description

📋

Basic Specifications

Load Capacity

1-10t

Emission Standard

Euro 5

Tank Volume

5001-10000L

Drive Wheel

4×2

Seats

≤5

Horsepower

＜150hp

Engine Capacity

＜4L

Storage

Oil

Tire Certification

ECE, GCC, ISO, DOT

Condition

New

Brand

Isuzu Fuel Tanker

Engine

4kh1

🚛

Product Overview

CHINA ISUZU fuel tanker truck, 5000L tank volume, tank body is made of carbon steel Q235B. The head and the wave plate are all of expansion type and whirling edge structure. The tank top is equipped with aluminum alloy European standard manhole covered with breathing valve; the tank bottom is equipped with manual bottom valve. The pipeline system is equipped with three independent and series closing devices. Each control ball valve adopts aluminum alloy shell and stainless steel ball core. Other equipments: rear ladder, rear left and right fire extinguisher, 2 units 3" 4M by length oil unloading hose on both sides. Side protection, rear protection, etc.

📸

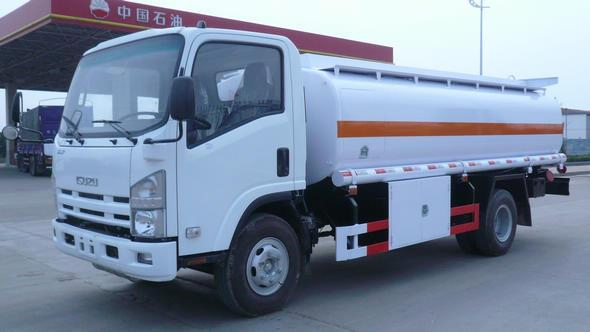

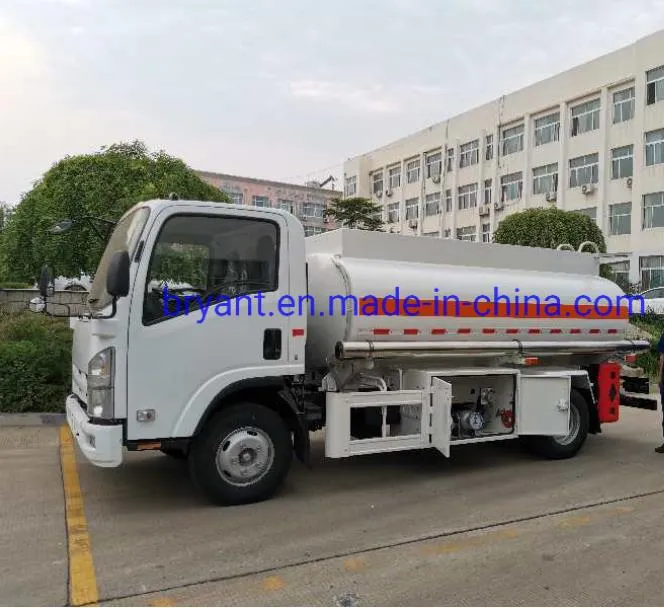

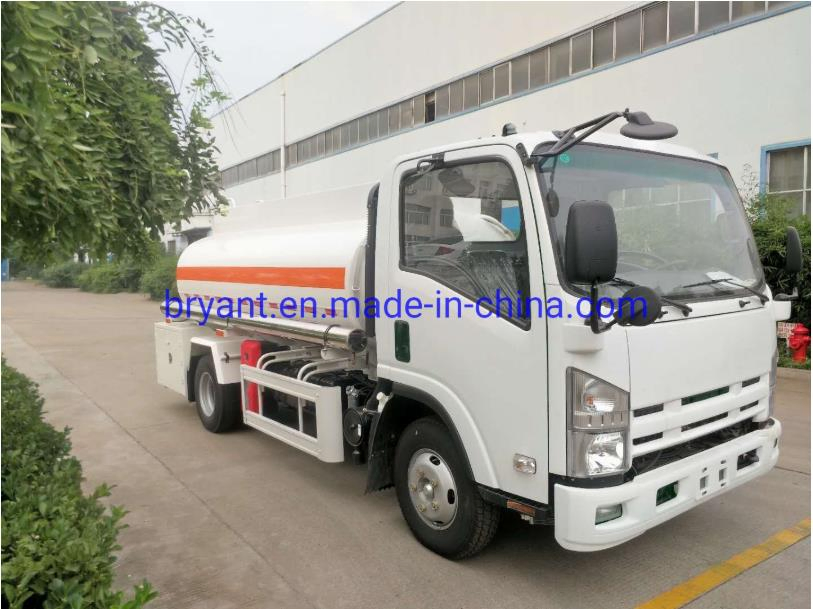

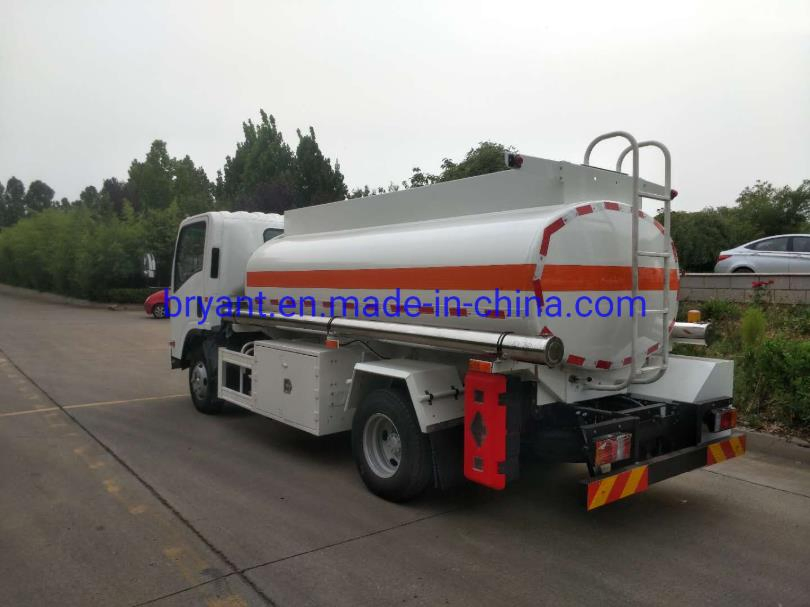

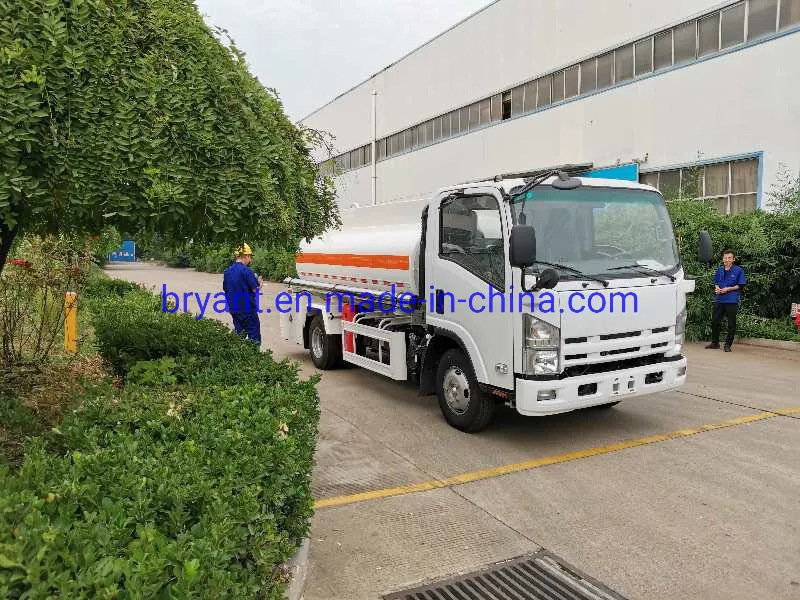

1. Truck Display

💺

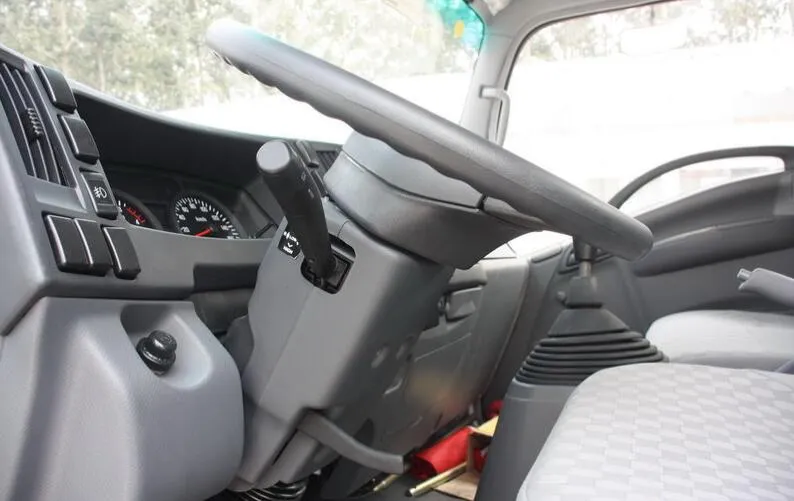

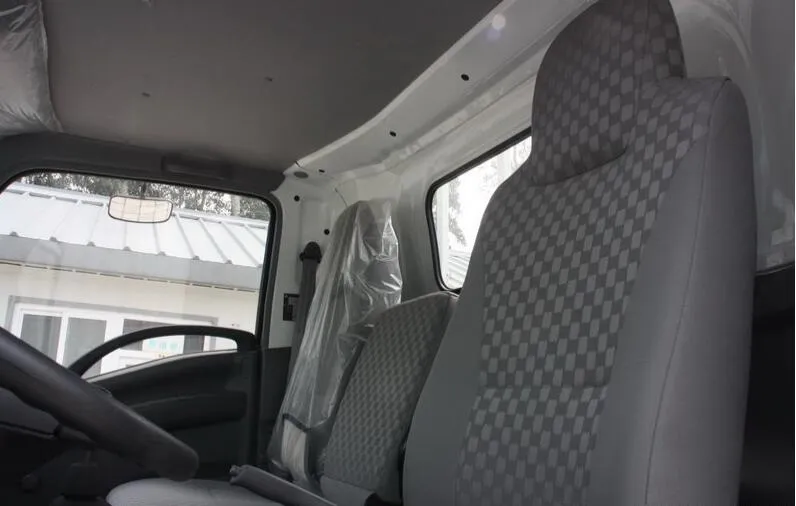

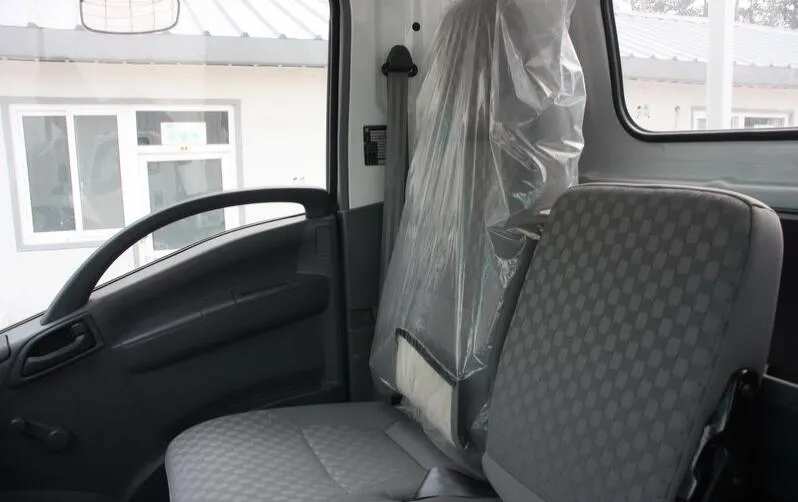

2. ISUZU Cabin Interior

⚙️

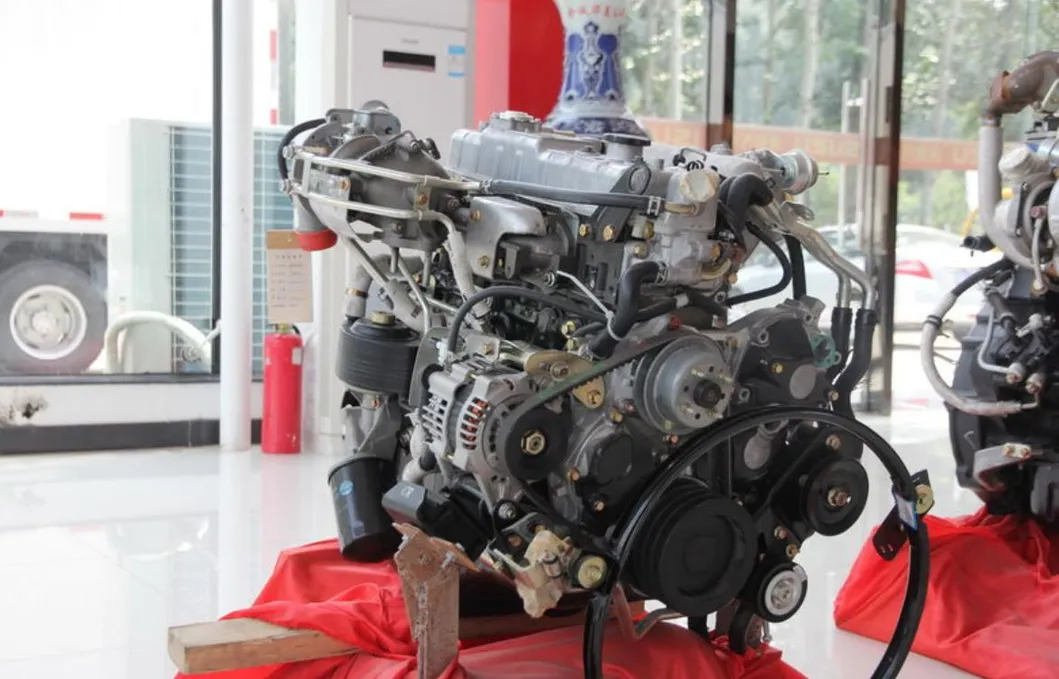

3. 4KH1 Engine Assembly

🛠️

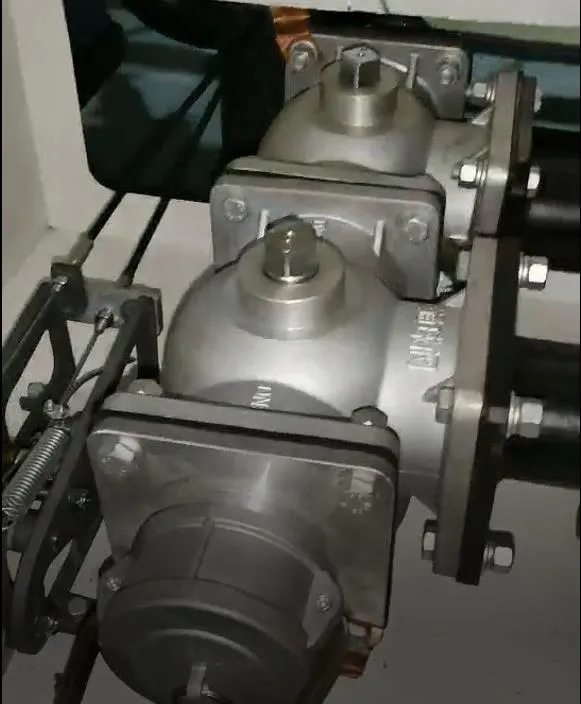

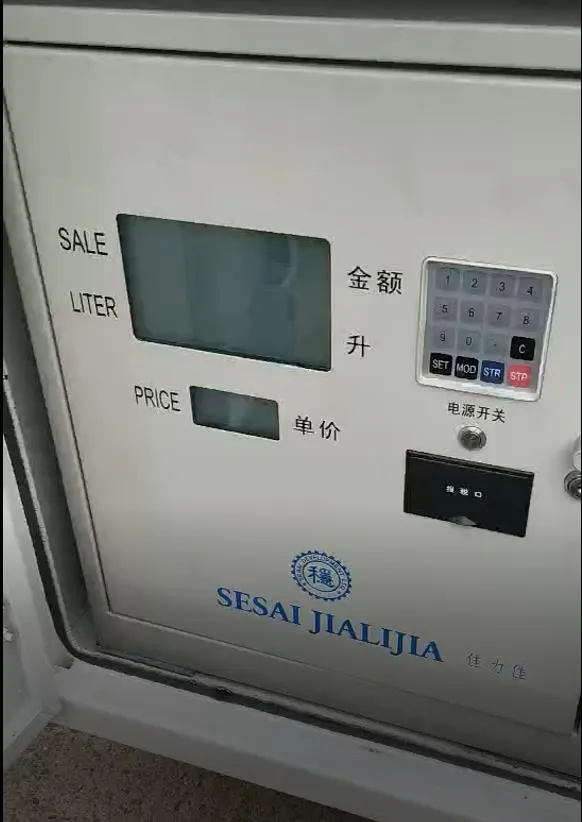

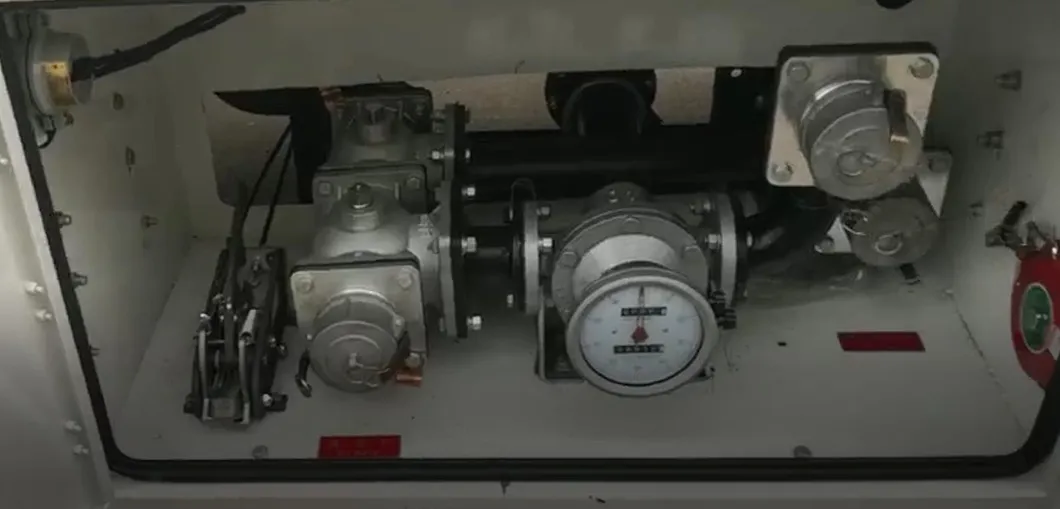

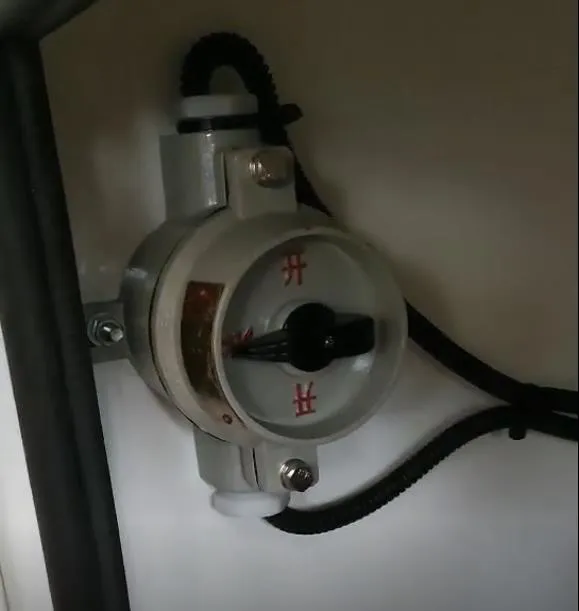

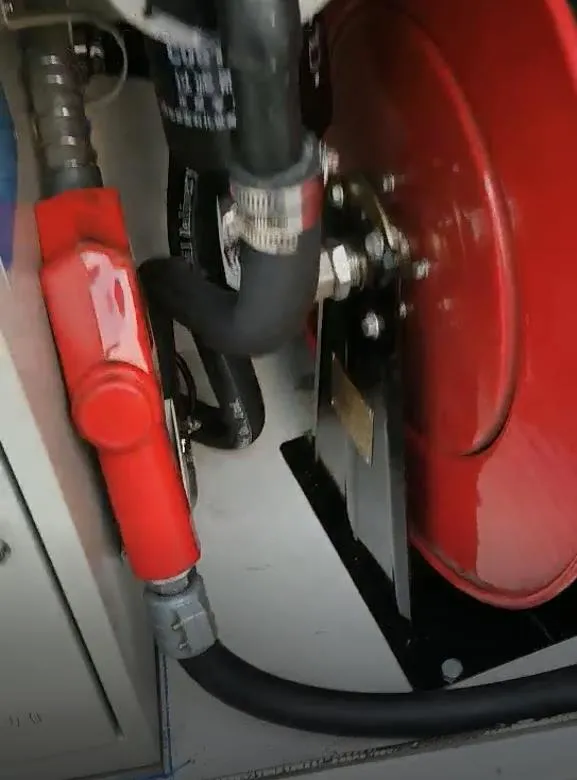

4. Key Parts for Fuel Tanker

📊

5. Technical Parameters

Model: QL1075A1HAY (5,000L Fuel Tanker)
Dimensions & Weight
Length / Width / Height (mm)	5900 / 2020 / 2420
Wheel Base (mm)	3360
Vehicle Curb Weight (kg)	3160
GVW (kg)	7300
Max Loading Capacity (kg)	4140
Performance
Max. Speed (km/h)	105
Approaching / Departure Angle (°)	20 / 21
Engine & Transmission
Engine Model	4KH1, 3.0 L, Euro IV
Rated Power	130HP / 96KW
Transmission	MSB-5, Manual, 5F & 1R
Chassis & Equipment
Axle Load (Front/Rear)	2500kg / 4800kg
Tire Size	7.00R16 Radial Tire
Fuel Tank System	5000L, Fuel dispenser, Flow meter, Gas nozzle, PTO
Cabin	ISUZU Widen cabin, 3 Seats, with A/C & ABS

❓

Frequently Asked Questions

What is the material and capacity of the fuel tank?

The tank has a 5,000L volume and is constructed from high-quality carbon steel Q235B for durability and safety.

What engine is used in this Isuzu tanker truck?

It is powered by the reliable Isuzu 4KH1 3.0L diesel engine, delivering 130HP and meeting Euro emission standards.

Does the truck come with refueling equipment?

Yes, it is equipped with a fuel dispenser, pump in/out system, flow meter, and a gas nozzle for professional refueling operations.

What safety features are included?

The truck includes an aluminum alloy European standard manhole with a breathing valve, manual bottom valves, fire extinguishers, and ABS in the cabin.

Can the truck color be customized?

Yes, the exterior color of the truck can be finished according to the specific request of the client.

What are the tire specifications?

The truck uses 7.00R16 radial tires, which are certified by ECE, GCC, ISO, and DOT standards.
