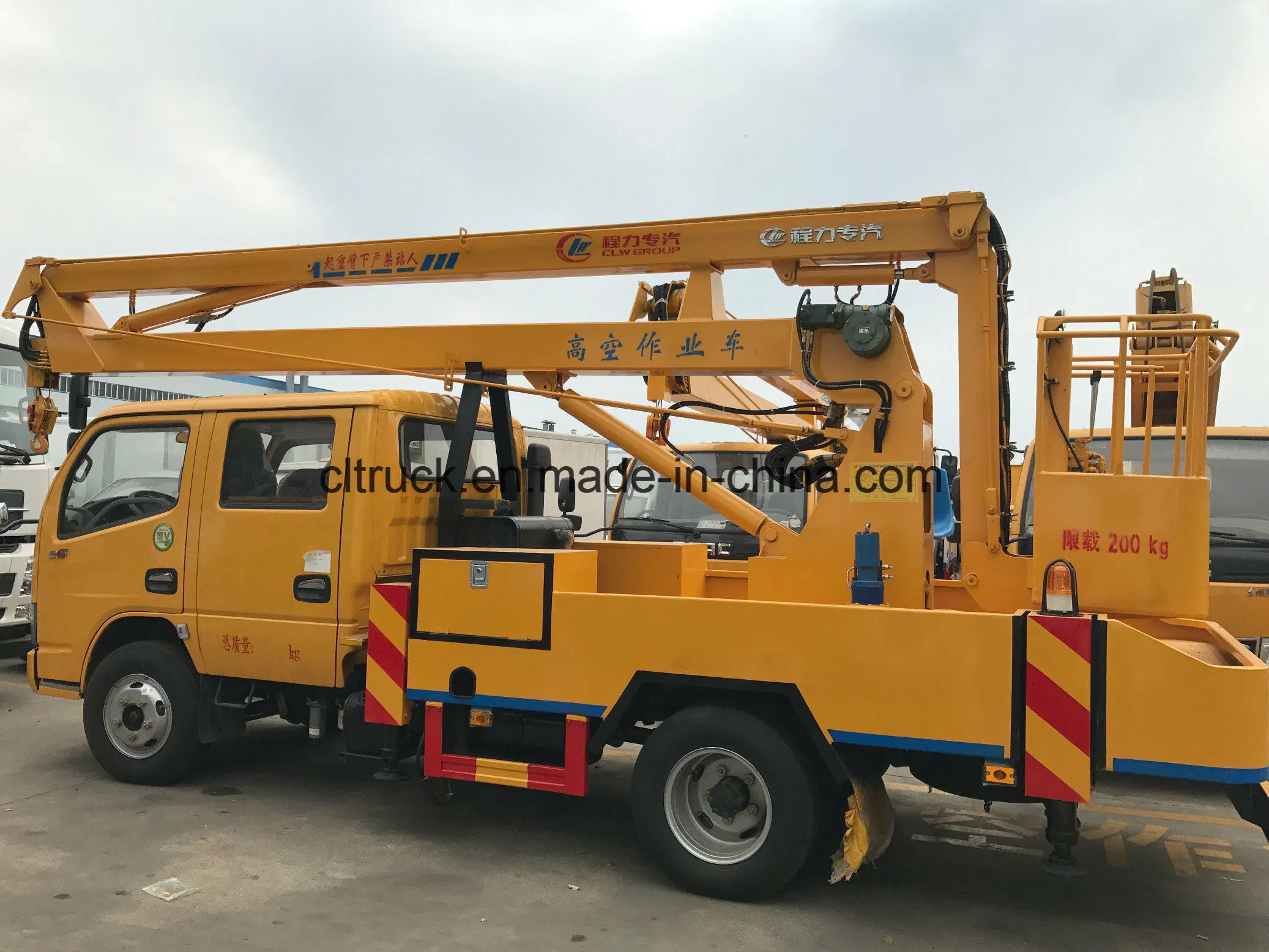

High Platform Working Height 12-16m Aerial Work Platform High Altitude Working Truck
1 / 1
High Platform Working Height 12-16m Aerial Work Platform High Altitude Working Truck

High Platform Working Height 12-16m Aerial Work Platform High Altitude Working Truck

Customization: Available
After-sales Service: Lifetime Technical Support, Parts Supply etc
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Type:Self-propelled
Certification:ISO9000, CCC, RoHS
Emission Standard:Euro 3
Horsepower:251-350hp / 95hp
Payload:20T
Fuel:Diesel
Transmission:Manual (5 Forwards & 1 Reverse)
Drive Wheel:4x2
Working Height:12m, 13m, 14m, 15m, 16m
Chassis Options:Isuzu, Dongfeng, Sinotruk, FAW, Foton, JAC, Shacman
Weight:5500kg - 10000kg
Rotation Angle:360 Degree
★

Product Overview

High platform working height 12-16M aerial work platform high altitude working truck designed for efficiency and safety.

Aerial Work Platform Truck

Quick Information:

  • High platform working height 12-16M
  • Working bucket rated loading 200KG
  • Full 360 degree rotation
  • Optional hook configuration
  • Key components are imported for reliability

Product Advantages:

  • Direct factory export with over 12 years of experience
  • Competitive pricing with professional high-quality service
  • Fully certified with CCC, ISO, and BV approvals
  • Rational design focused on operational heart of service
  • Global export reach covering more than 50 countries
⚙

Technical Parameters

Parameter Category Feature Details
Drive Model 4x2
Vehicle Dimensions (L x W x H)mm 7300*2000*3100
Wheel base (mm) 3360
Wheel track (front/rear) 1960/1847
Weight (KGS) Curb Weight 5165
G.V.W. 5490
Performance Max. driving speed 90 km/h
Cabin Type & Capacity Double row (2+3 seats)
Engine Details Model CY4102-C3F
Type 4-stroke direct injection, 4-cylinder in-line, water cooling, turbo-charging
Horse Power 95 HP
Emission Euro III
Superstructure Four rotational alert lamps on platform deck
Four hydraulic outriggers (independent or simultaneous operation)
Insulated bucket for worker safety and lifting hook
Three section Folded Arms, 360° rotation
Imported electro-hydraulic ratio control valve
📷

Working & Packing Display

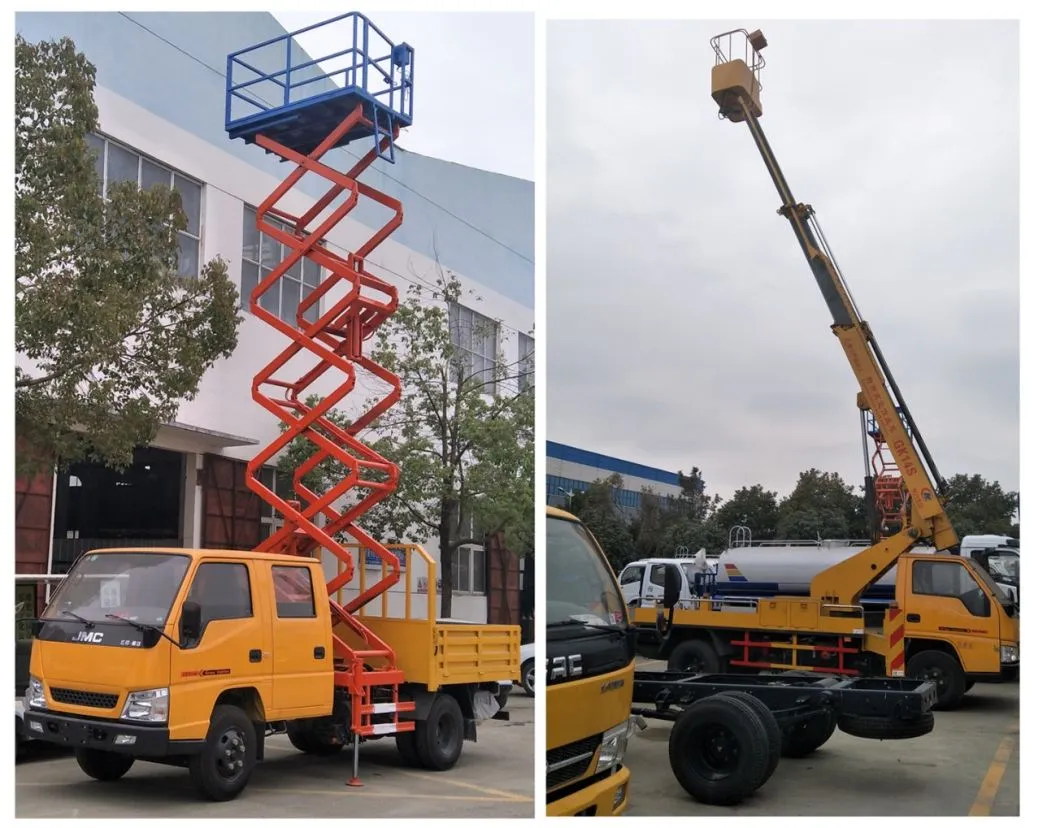

Working Display
Packing and Shipping

Shipping Info: Naked or waxed treatment. Delivery typically within 30 days via RORO or Bulk ship.

🛡

Warranty & Support

Warranty Policy
  • One year quality guarantee for three key parts: Axles, engine, transmission.
  • OEM spare parts supplied at cost prices.
  • Regular callbacks to monitor vehicle working status.
  • Overseas engineers available for unexpected technical needs.
  • CKD and SKD options available for customization.
📋

Available Product Range

1. LPG/Fuel Tanker Trucks
2. Water Sprinkler/Tanker Trucks
3. Truck Mounted Cranes
4. Dump/Tipper Trucks
5. Fire Fighting Vehicles
6. Concrete Mixer Trucks
7. Refrigerated/Van Trucks
8. Sewage Suction Trucks
9. Bulk Cement Trucks
10. High-altitude Operation Trucks
11. Garbage Compactor Trucks
12. Semi Trailers (Flatbed/Lowbed)

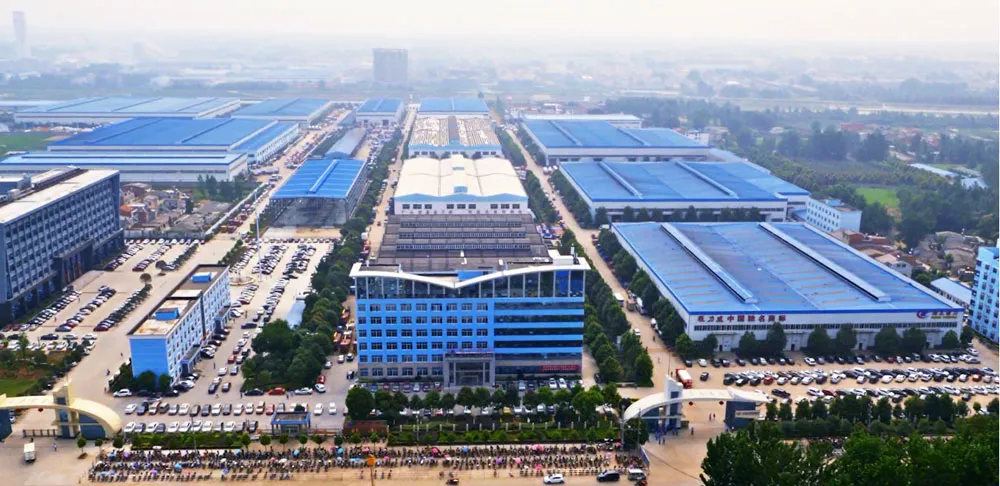

Product Range Overview
?

Frequently Asked Questions

Q1: What is the maximum working height of this aerial truck? A: The truck offers various models with working heights ranging from 12m to 16m.
Q2: What is the load capacity of the working bucket? A: The standard working bucket is rated for a loading capacity of 200kg to 250kg, suitable for two persons.
Q3: Does the aerial platform support full rotation? A: Yes, the superstructure features a three-section folded arm system with a full 360° continuous rotation.
Q4: What chassis brands can be used for this truck? A: We cooperate with famous manufacturers including Isuzu, Dongfeng, Sinotruk, FAW, Foton, JAC, and Shacman.
Q5: What is the warranty policy for international buyers? A: We provide a one-year quality guarantee for the three key parts: axles, engine, and transmission, along with overseas engineering support.
Q6: What are the payment and delivery terms? A: We accept T/T and L/C. Delivery time is typically around 30 days after receiving the advance payment.
