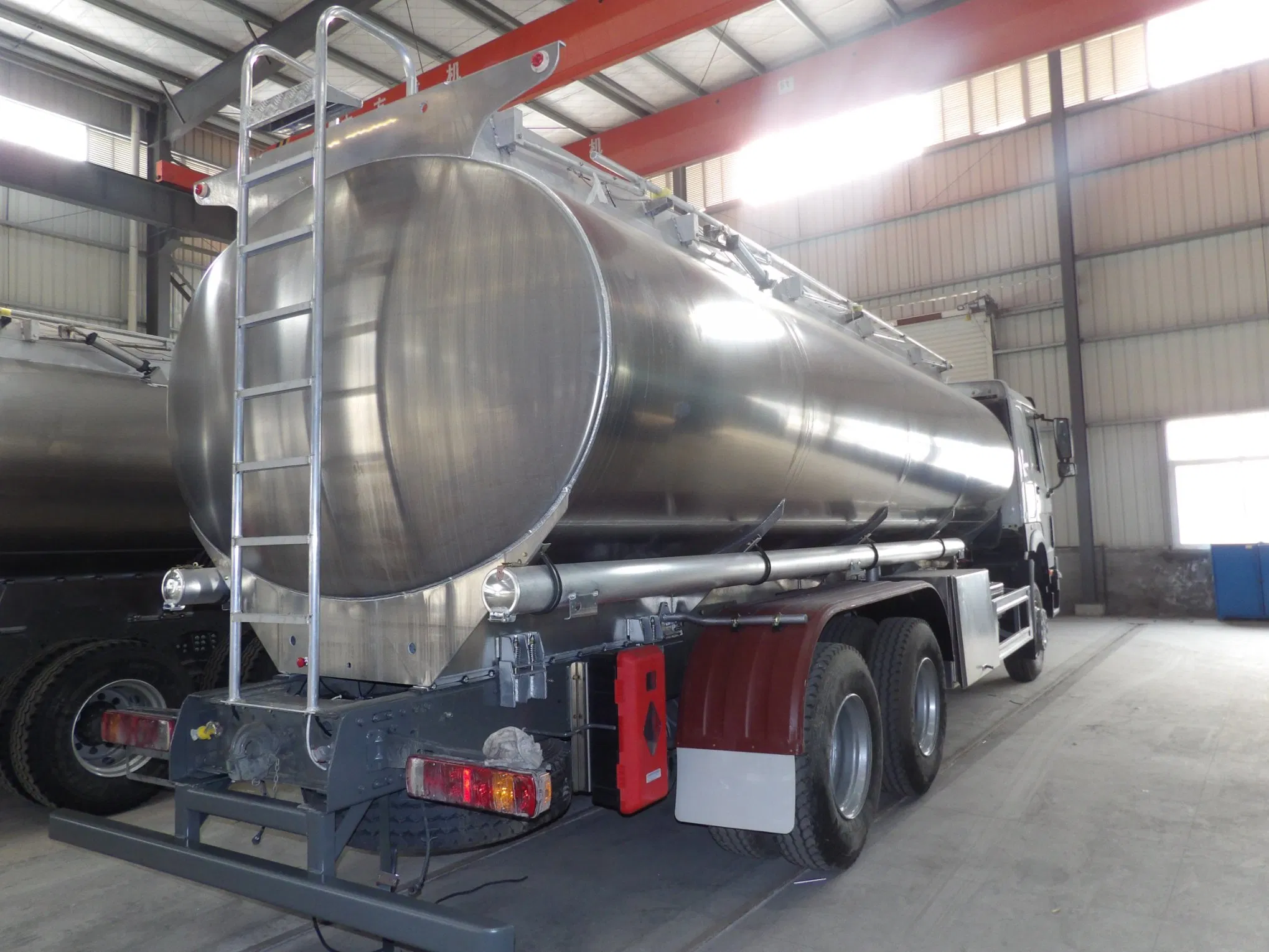

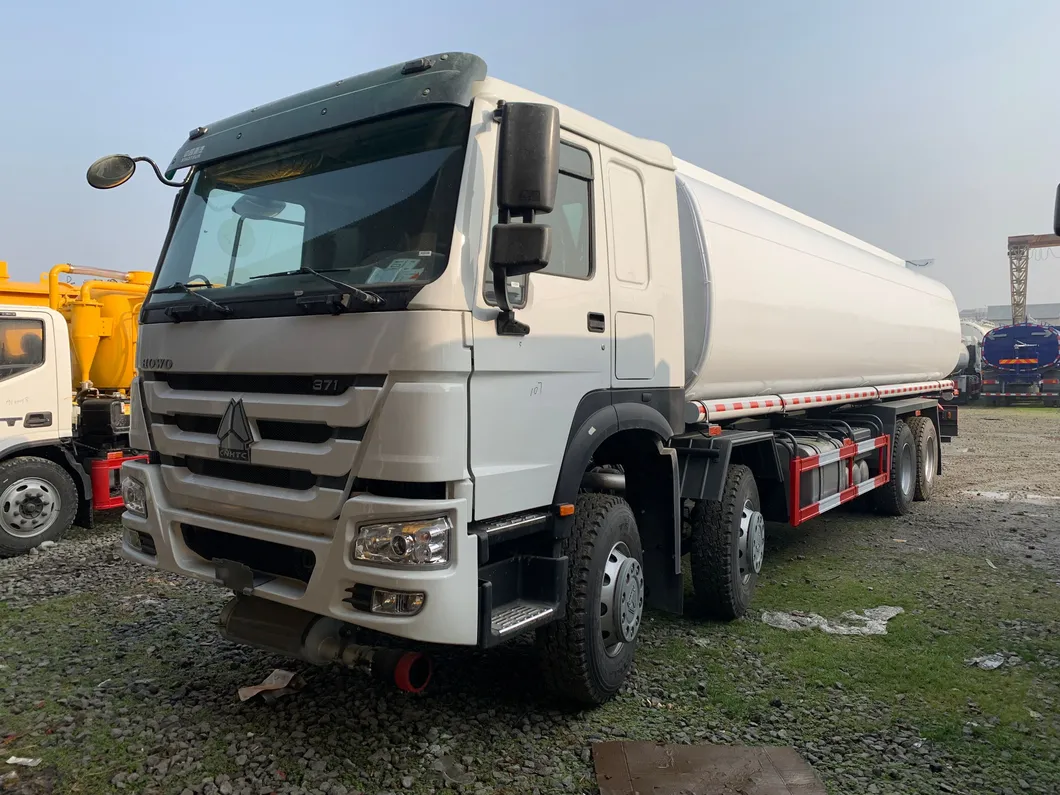

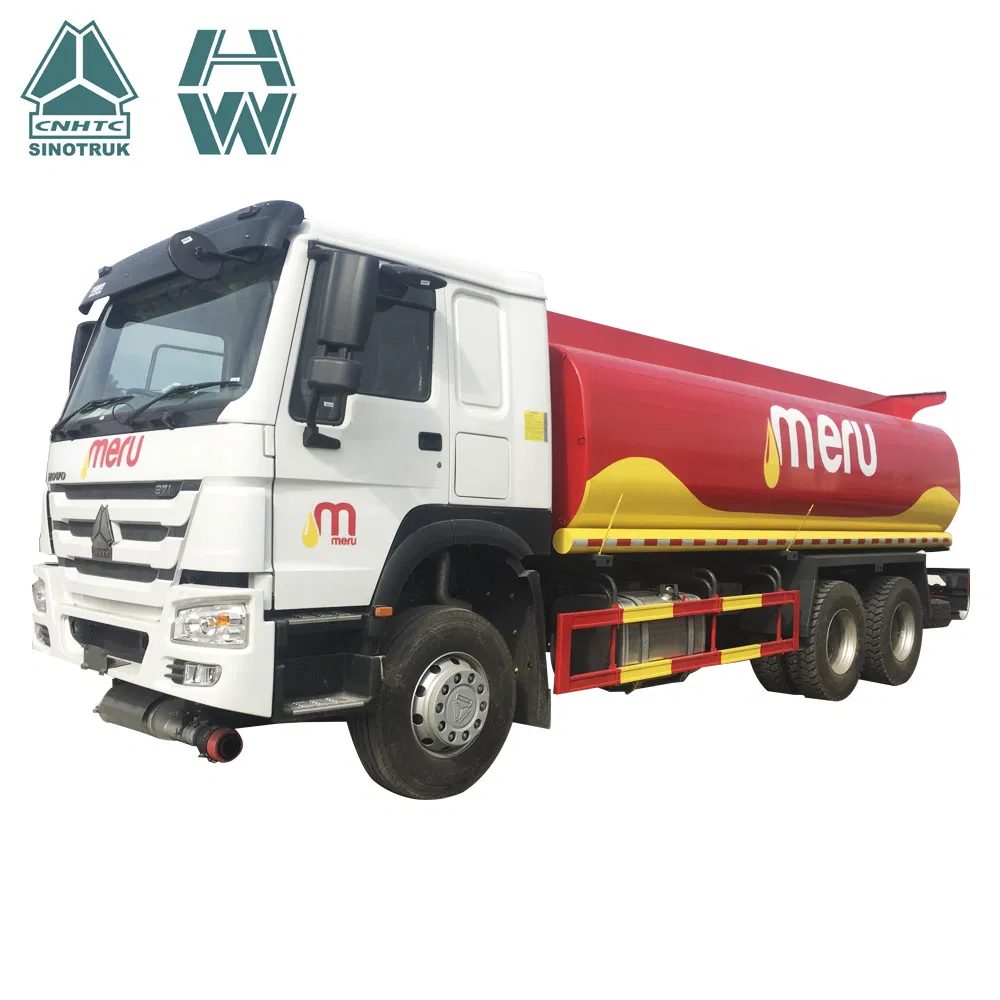

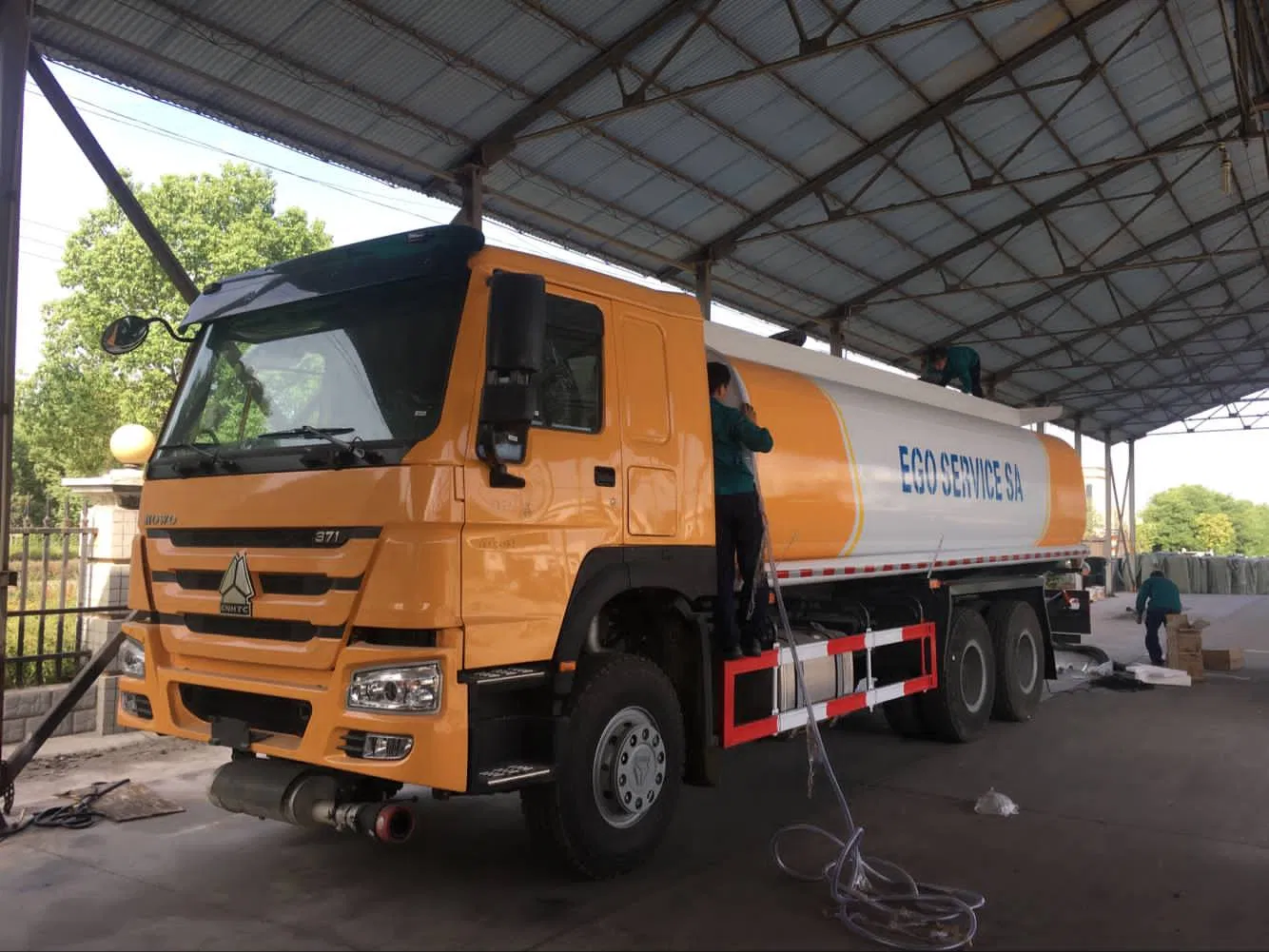

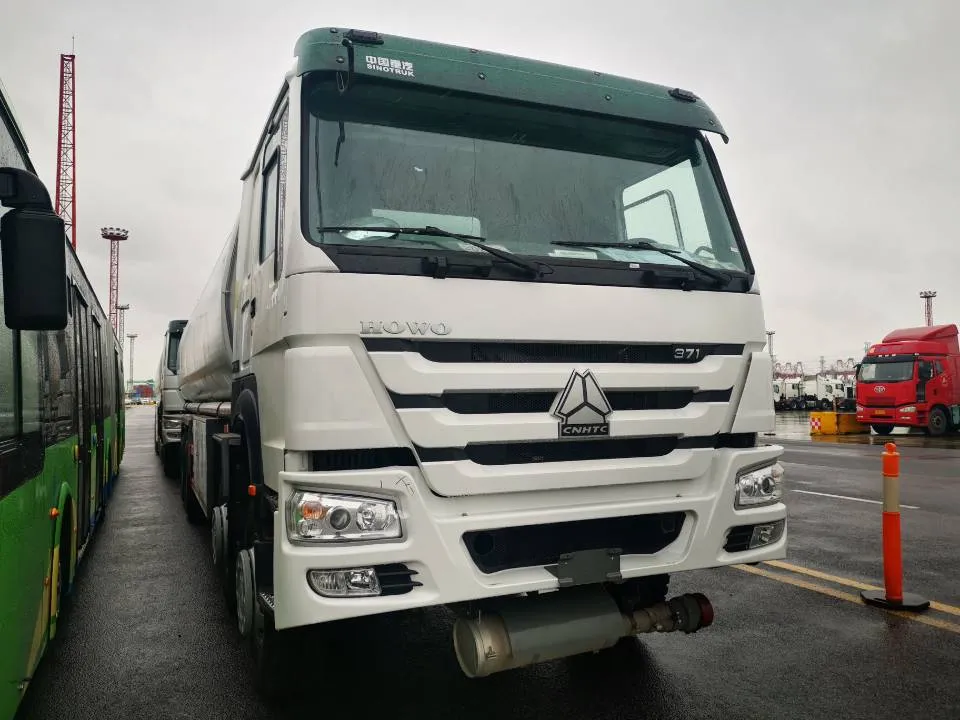

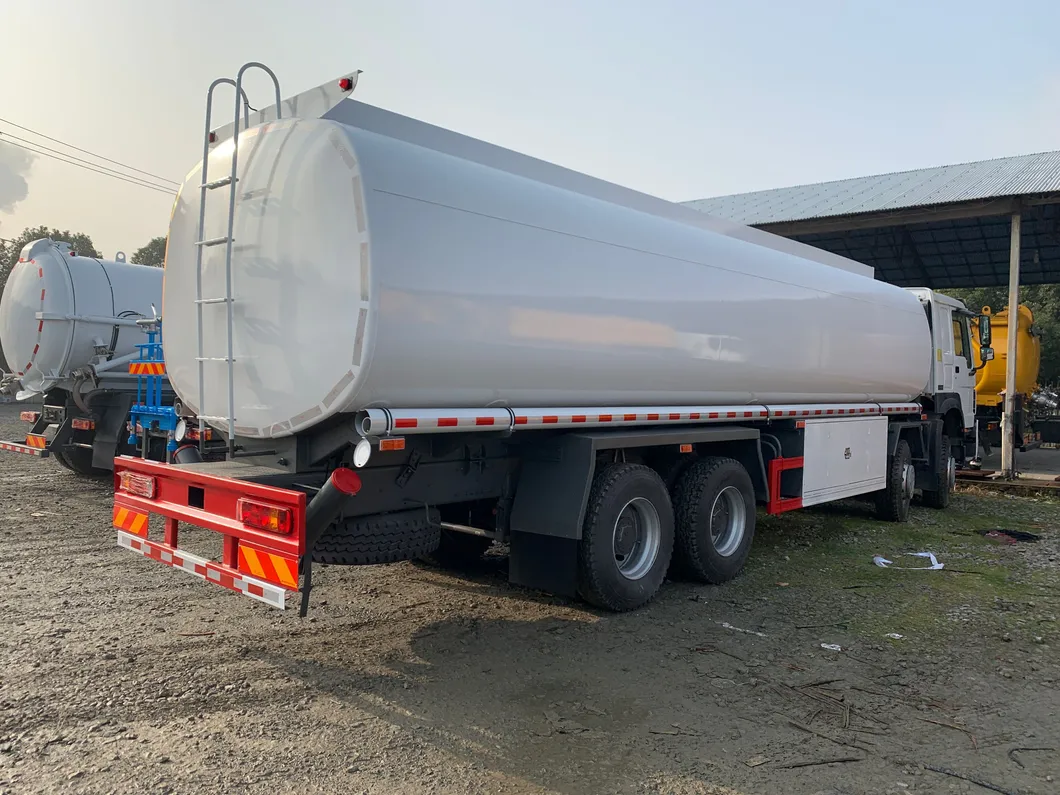

SINOTRUK HOWO 8X4 Fuel truck-35,000L
| Cabin | Driving type 8x4 LHD | |
| HW76 cab, with one bed and air condition, 70°hydraulically tillable to the front | ||
| Main Dimensions | Overall dimensions (L x W x H): 11980×2500×3500 mm | |
| Wheel base: 1950+4600+1400 mm | ||
| Wheel track (front/rear): 2020/1830 mm | ||
| Weight (KGS) | Tare Weight: 11700 | |
| Payload: 40000 | ||
| Front axles loading capacity: 2x9500 | ||
| Rear axles loading capacity: 2x16000 | ||
| Max Speed | 90 km/h | |
| Engine | Brand: WEICHAI | Model: WP10.380E22 | |
| Type: 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | ||
| Horse Power: 380 HP | ||
| Emission standard: Euro 2 | ||
| Gearbox | Hw19710, 10-speed forward and 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering | BOSH, power steering, hydraulic steering with power assistance | |
| Oil Tank | 400 liters | |
| Tire | 12.00R20 radial tube tyre 13 PCS including one spare tire | |
| Tank Specs | Volume: 35,000 liters | |
| Material | Q235. End plate thickness: 6mm, tanker body thickness: 5mm | |
