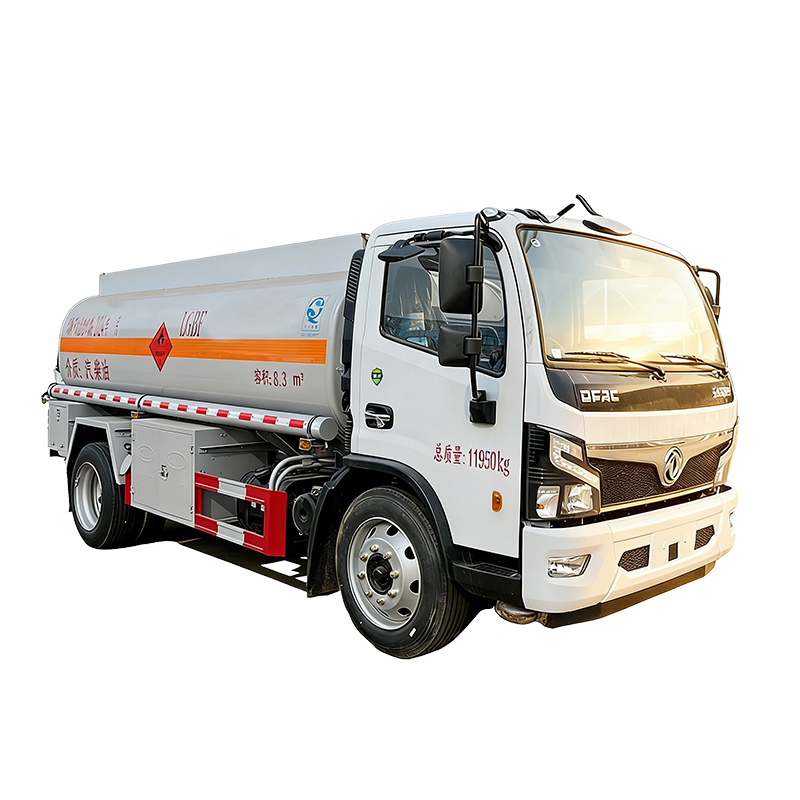

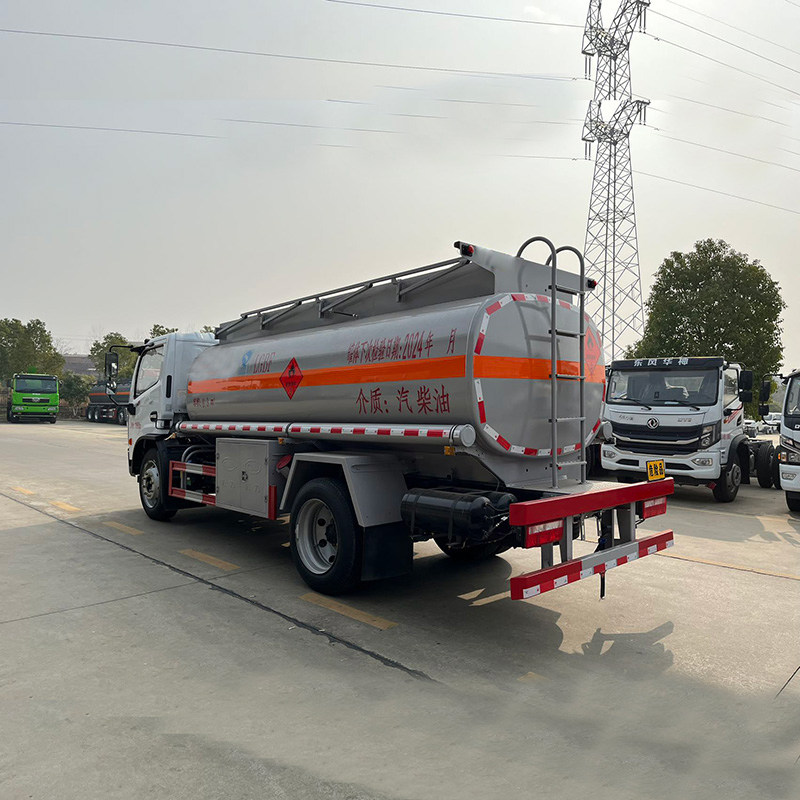

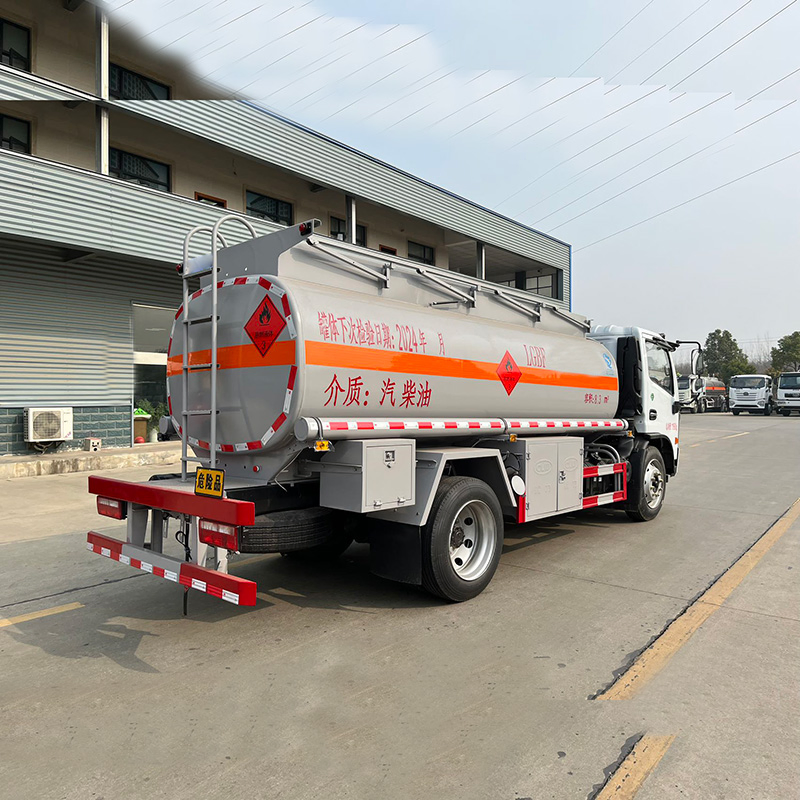

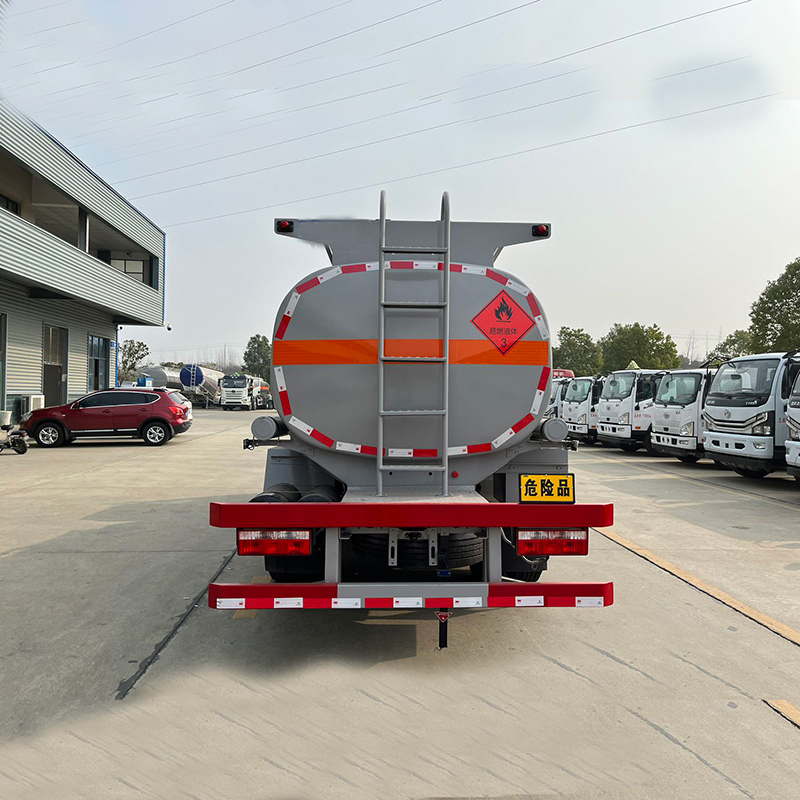

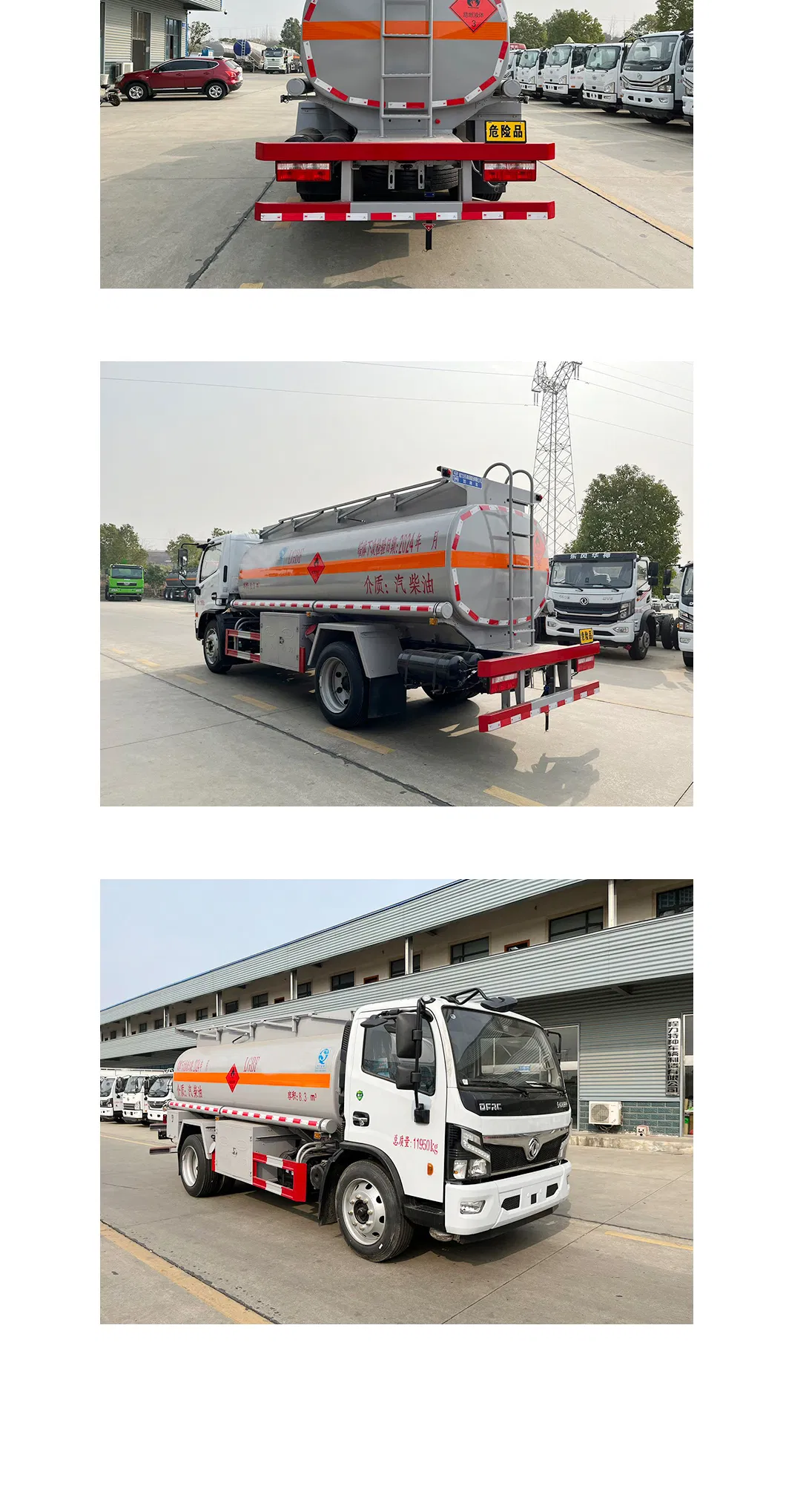

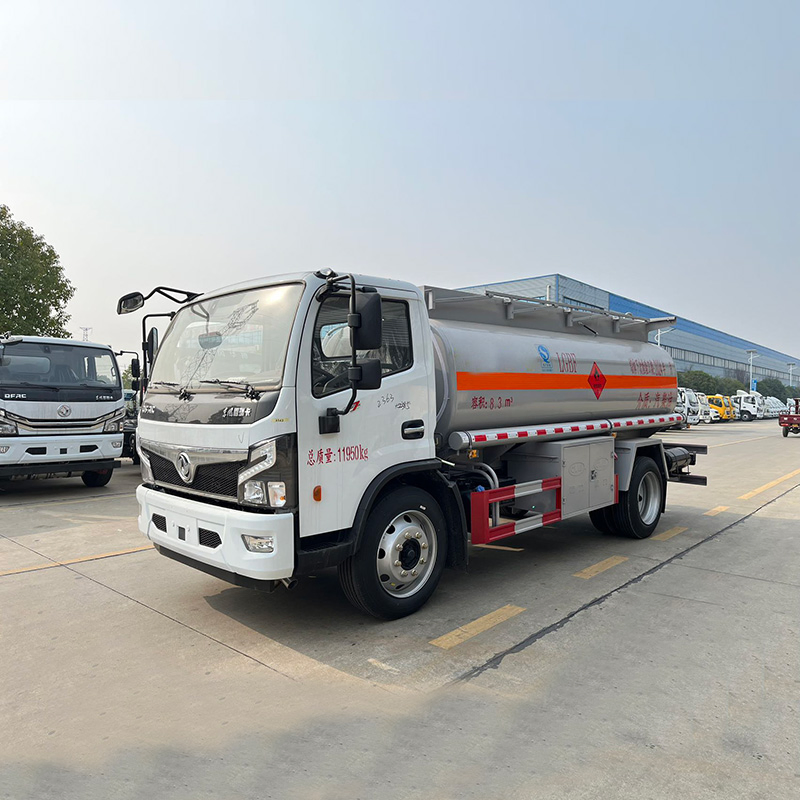

Oil Tanker Truck: Specialised vehicles designed for the transportation of liquid cargoes such as petrol, diesel, crude oil, and edible oils. Primarily comprising a tank body, power take-off unit, gear oil pump, and piping network system, they feature compartmentalised storage and transportation capabilities alongside pump-in and pump-out functionality.
Transport Medium: Suitable for conveying liquid substances such as petrol, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar, and non-petroleum products including alcohols, aldehydes, benzene, and ethers.
Vehicle Specifications
Name
Oil Tanker
Volume
8 m³
Total Mass
8280 (kg)
Gearbox
6-Speed Manual
Maximum Speed
105 km/h
Material
Carbon Steel / Aluminum
Overall Dimensions
7500*2350*2650 (mm)
Power
170 Horsepower
Wheelbase
3800 (mm)
Tires
255/70R22.5 Tubeless (6 units)
Tank configurations include square, round, and elliptical shapes. Features independent compartments for segregated storage of different petroleum products. Internal multi-wave baffles enhance structural rigidity, stabilise the centre of gravity, and ensure safe, steady vehicle transport. High-pressure gas leak testing guarantees superior tank strength and secure transport performance.

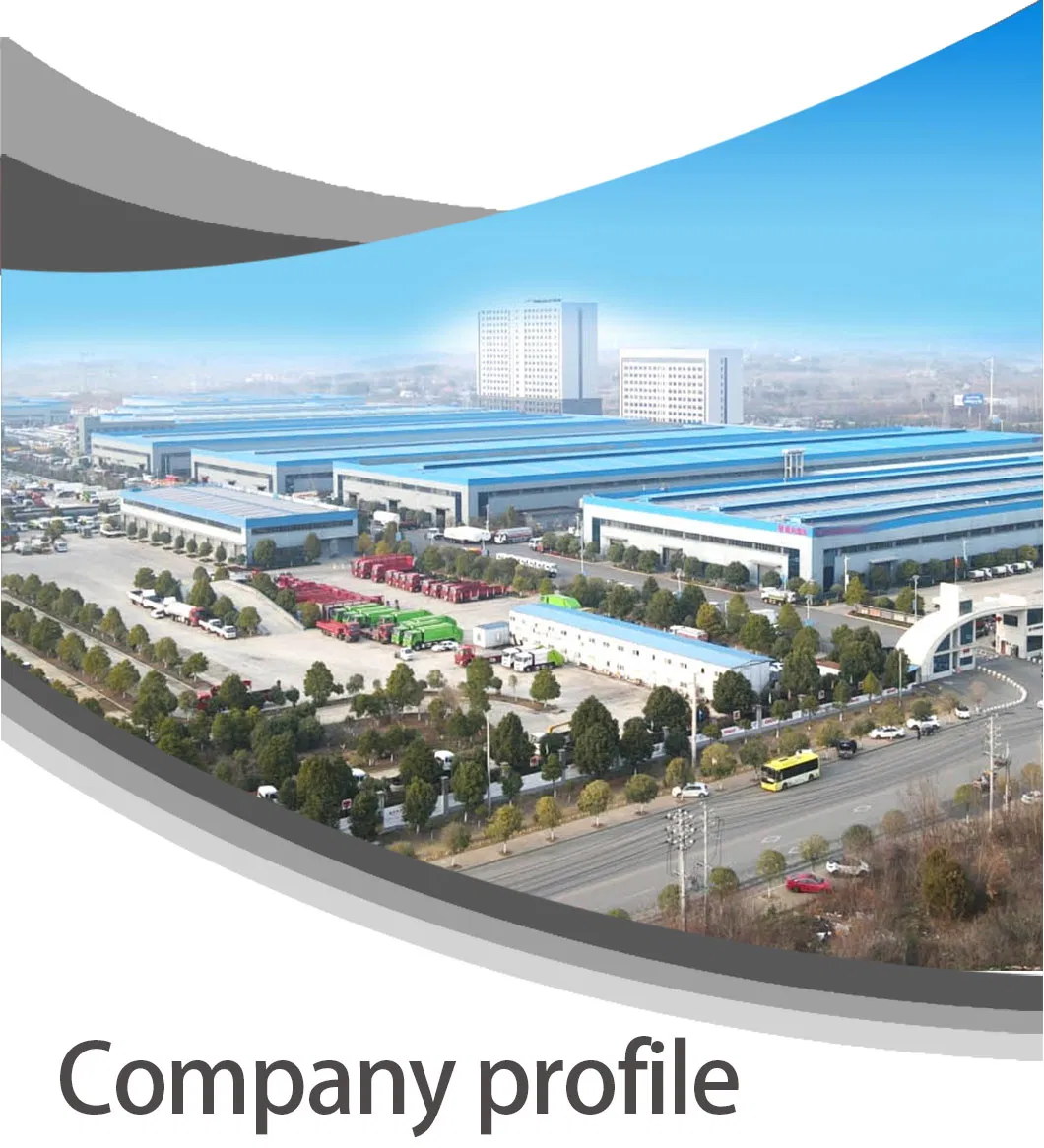

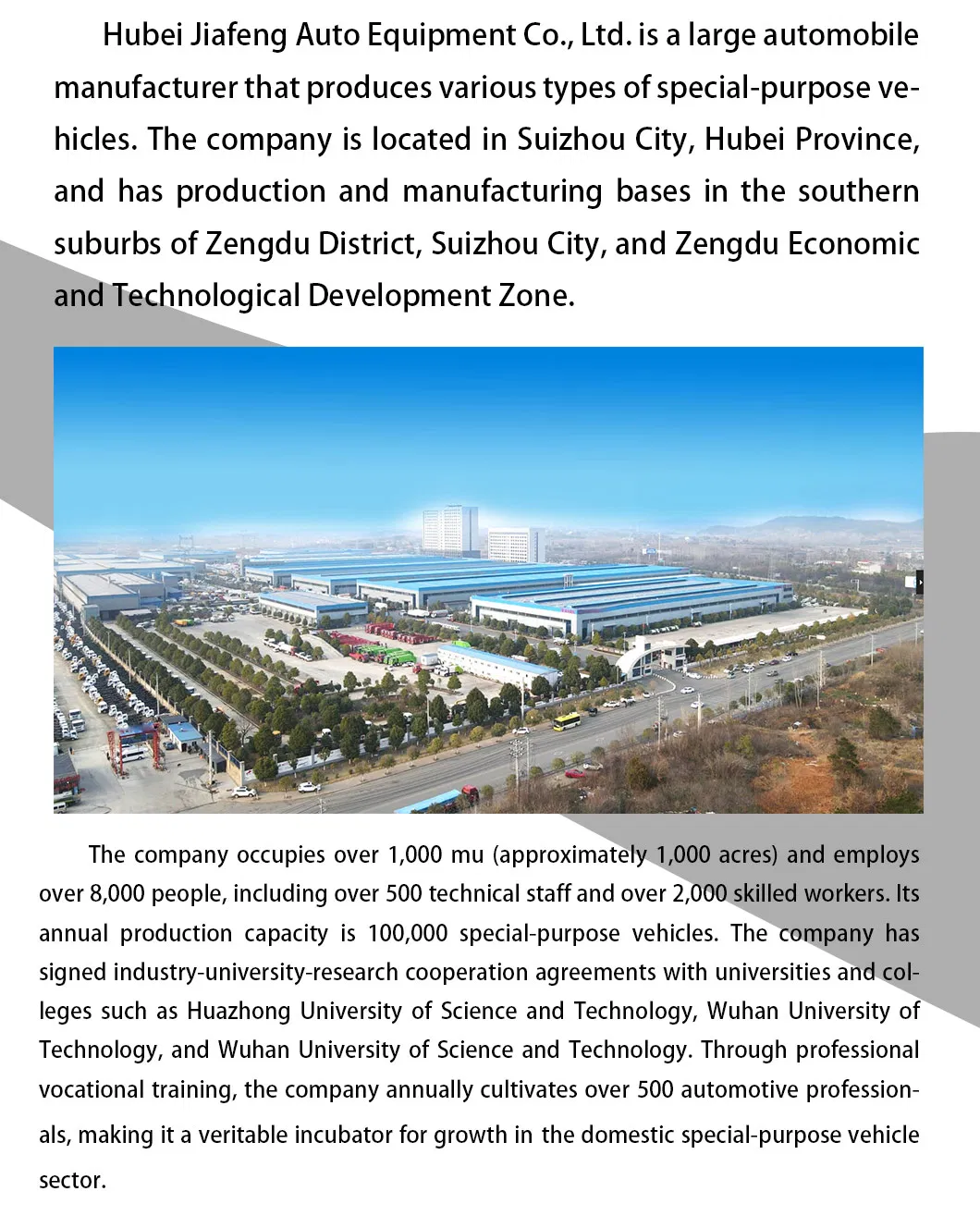

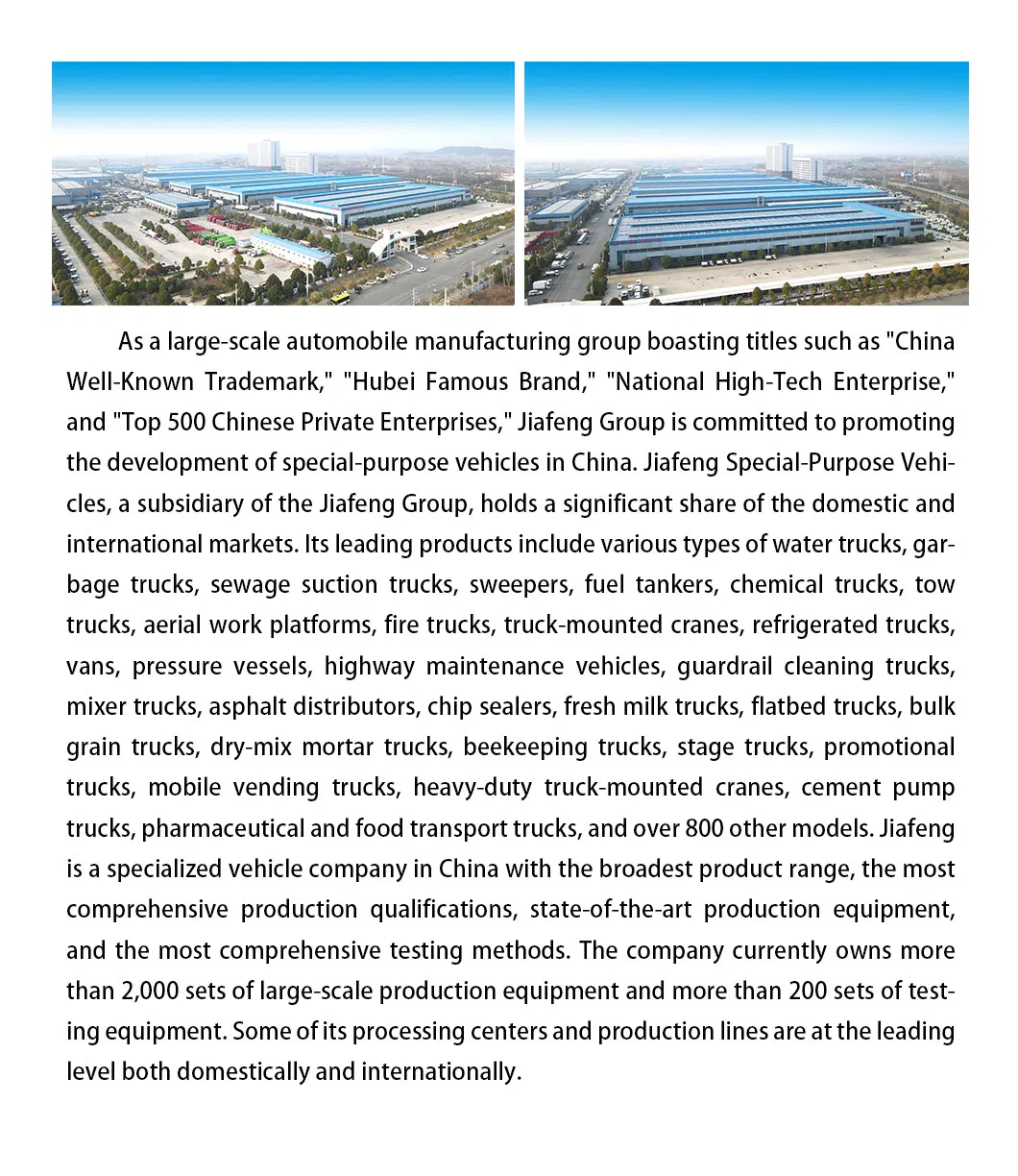

Manufacturing & Quality
Frequently Asked Questions
What types of liquids can this tanker truck transport?
It is suitable for petrol, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar, and non-petroleum products like alcohols, aldehydes, and ethers.
What materials are used for the tank construction?
The tanks are constructed from high-quality carbon steel plates (4-6mm thickness). Options for stainless steel, aluminium alloy, and specialized lined tanks are also available.
How does the truck ensure safety during transport?
The tank features internal multi-wave baffles to reduce liquid surge, stabilize the center of gravity, and enhance structural rigidity. All tanks undergo high-pressure gas leak testing.
Can the tanker carry different types of fuel at once?
Yes, the tank can be engineered with independent compartments to allow for the segregated storage and transport of different petroleum products simultaneously.
What are the refueling capabilities of this vehicle?

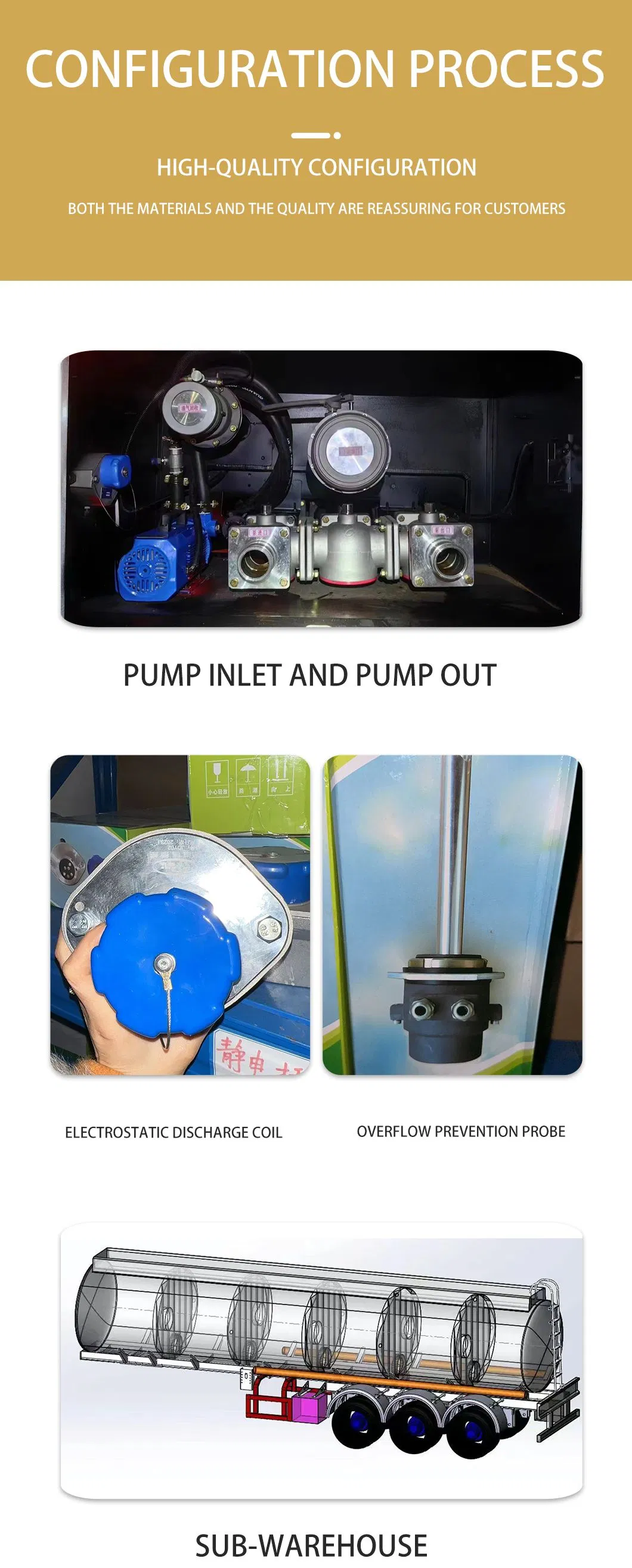

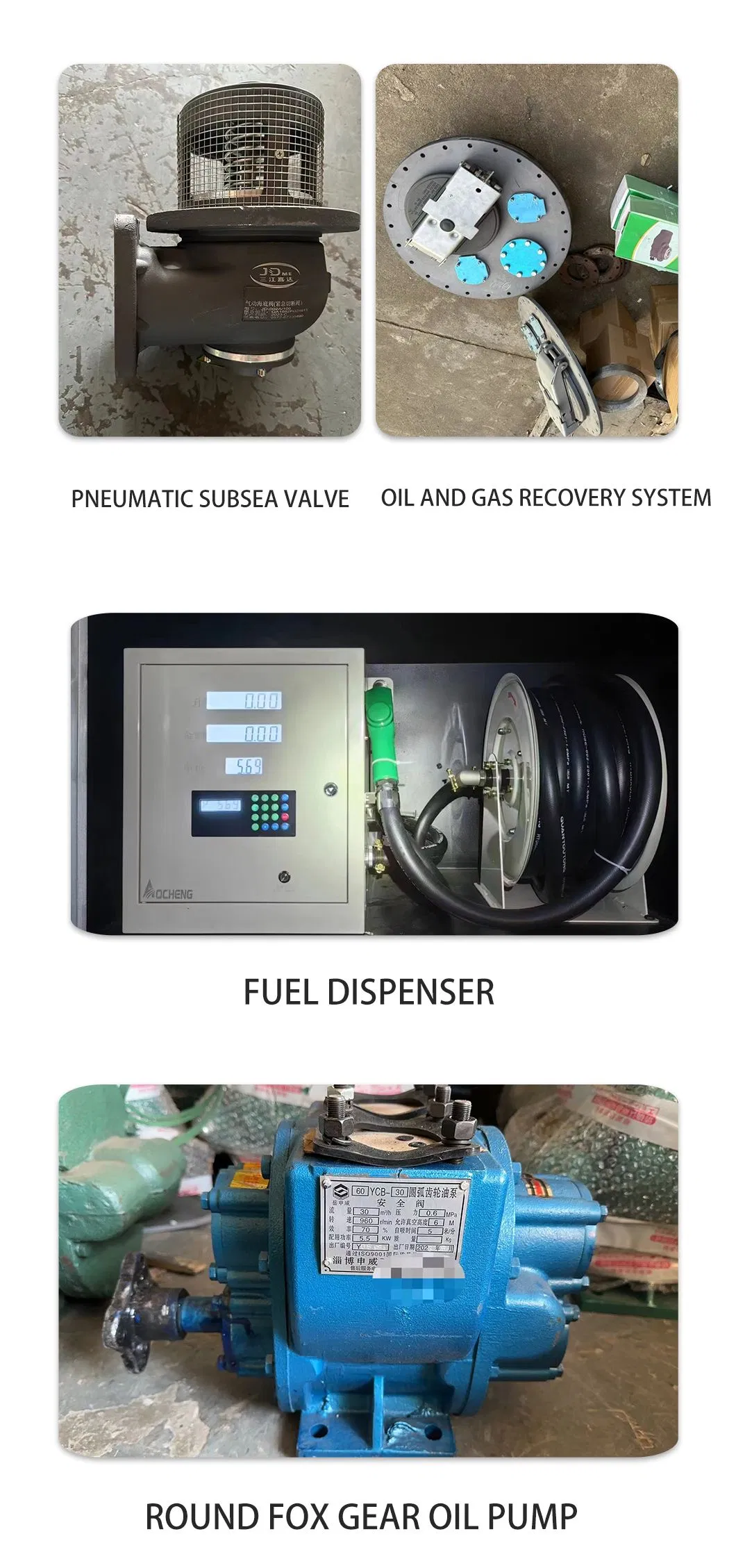

It can be equipped with computerised tax-controlled dispensers, self-priming pumps, and 15-metre refuelling reels with automatic retraction for efficient mobile refueling.
What is the maximum speed and load capacity?
The truck has a maximum speed of 105 km/h and a load capacity ranging from 1 to 10 tons, depending on the specific configuration.
