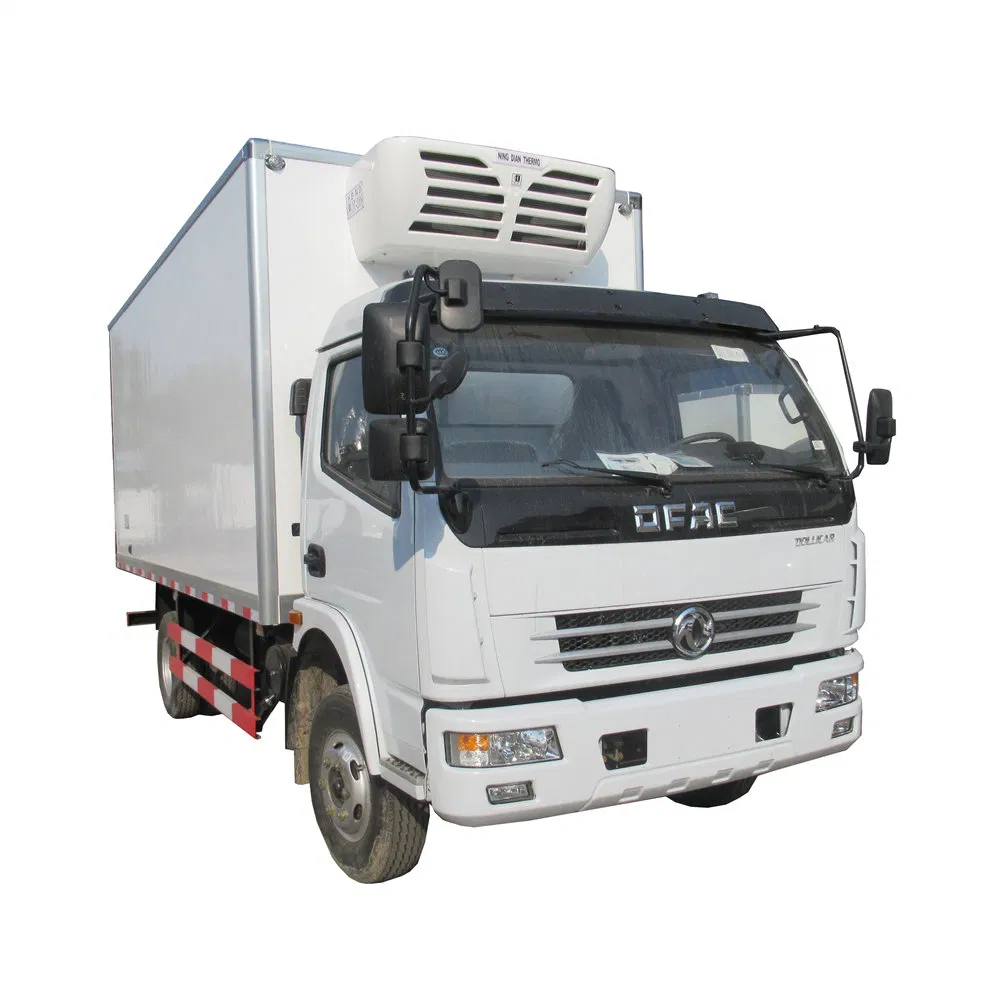

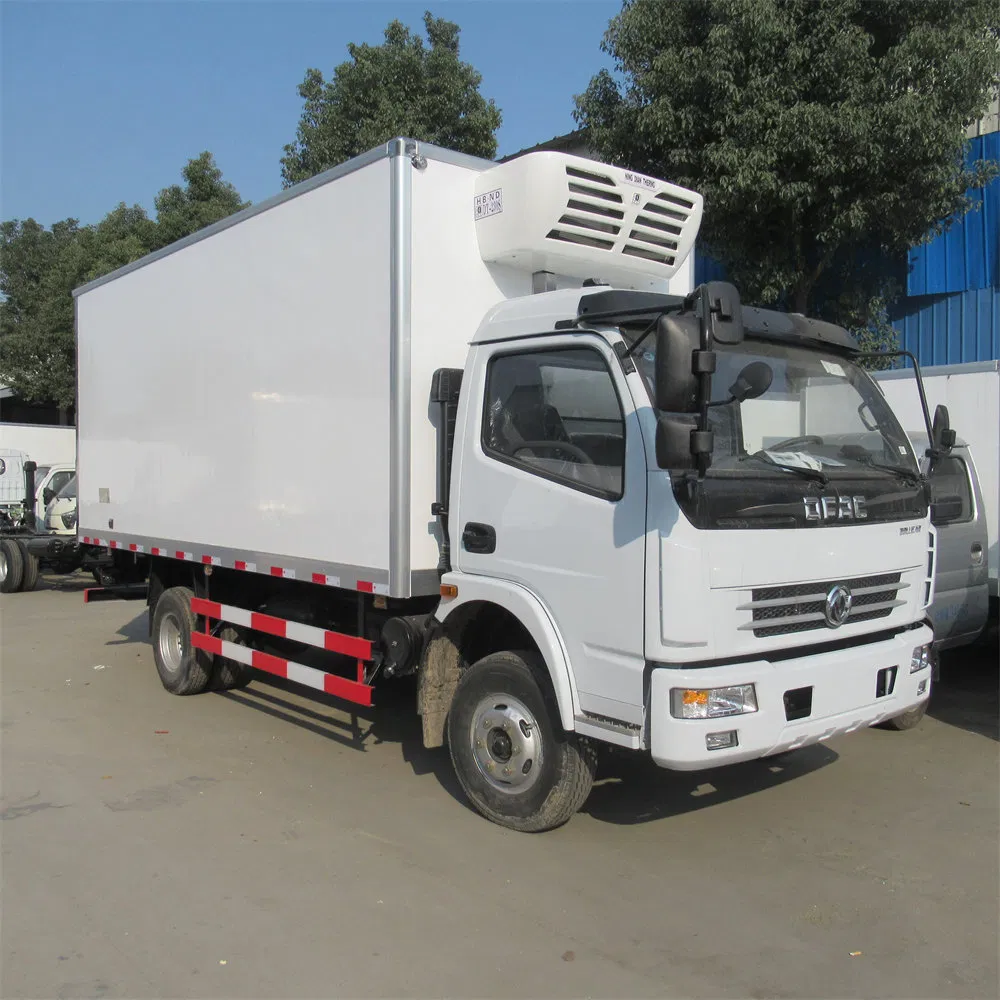

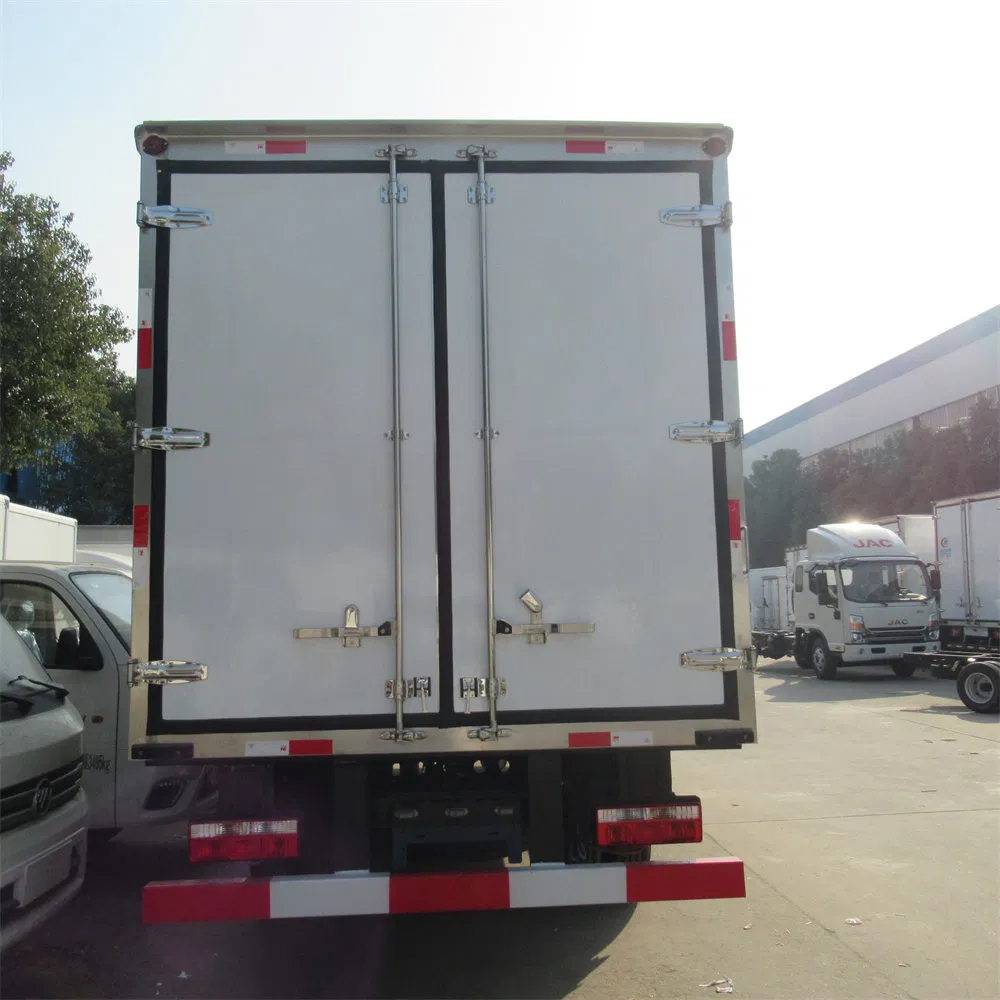

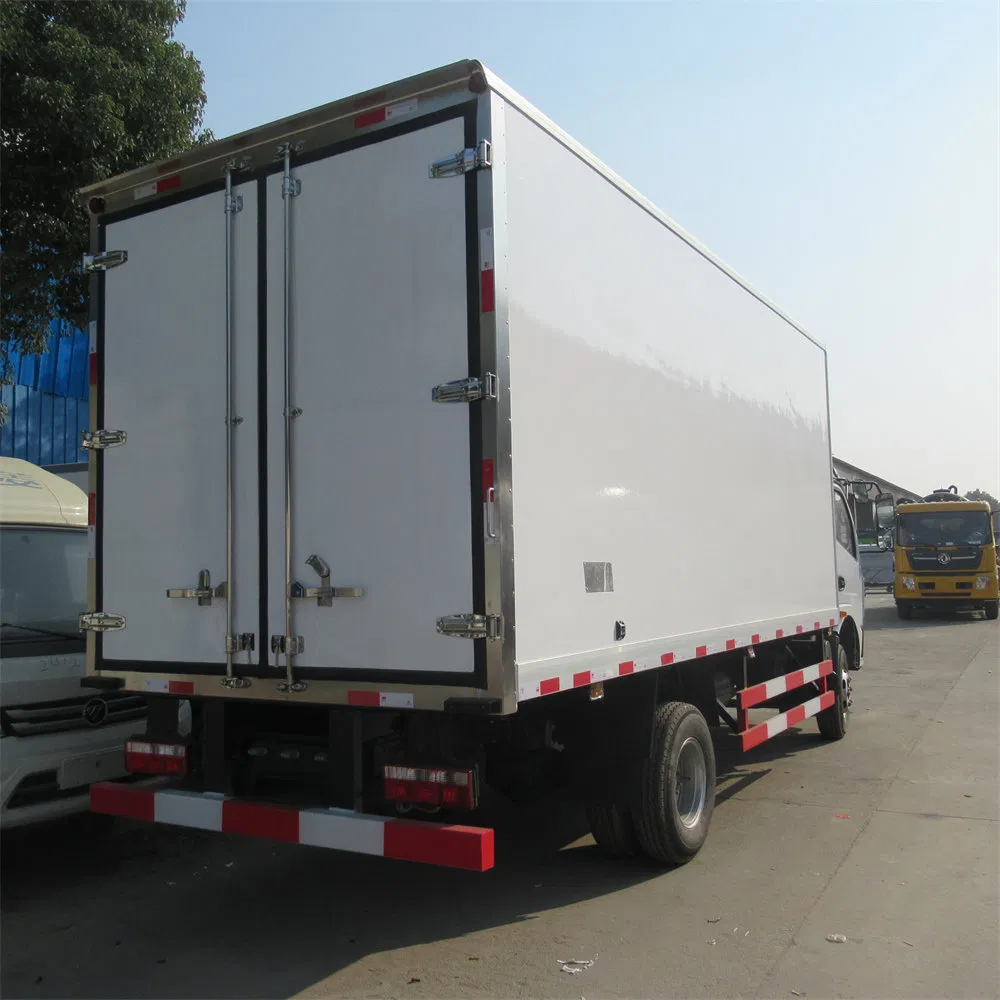

4x2 8 Ton Refrigerated Truck

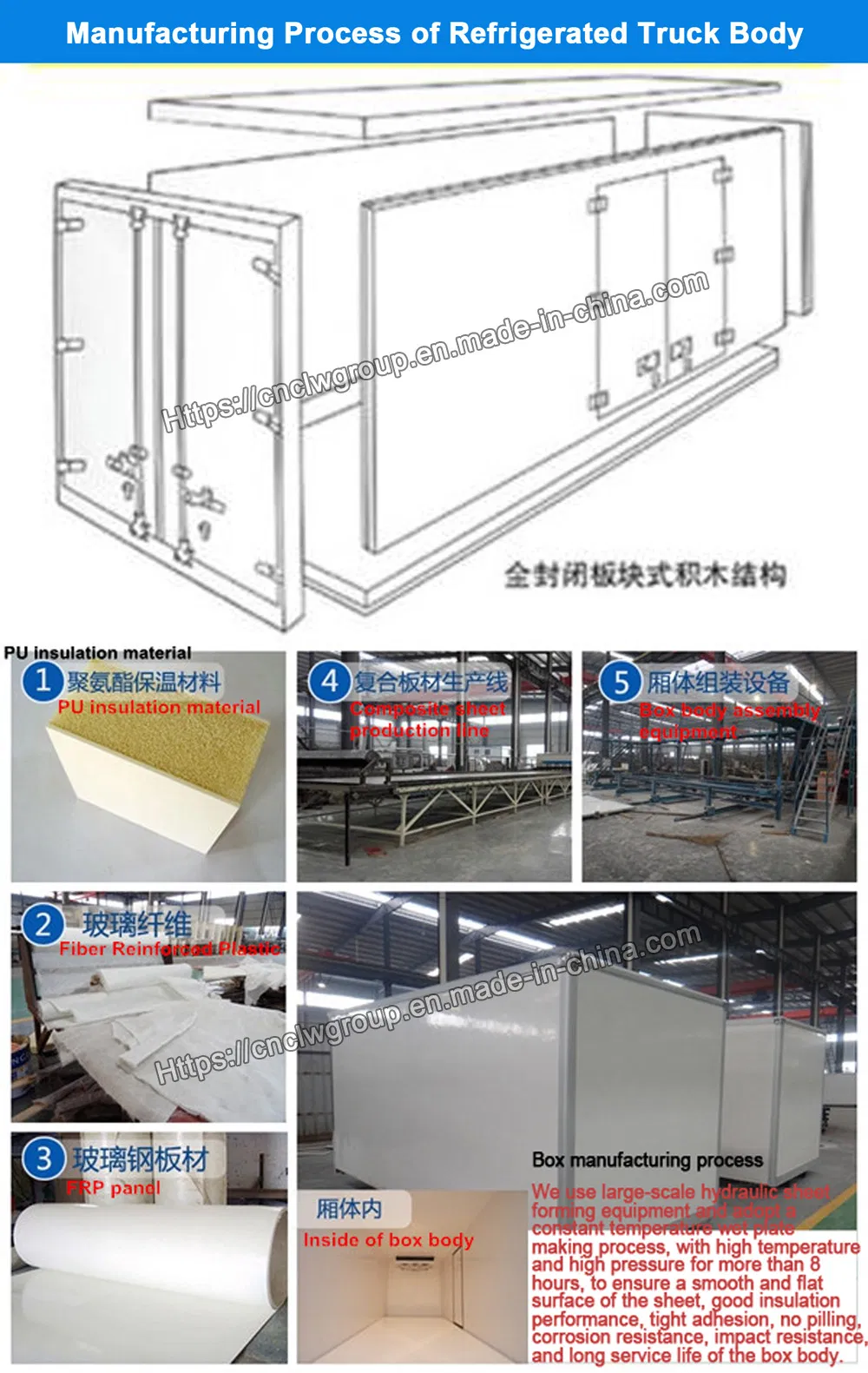

This refrigerated truck series ranges from 3 to 30 tons, designed for high-efficiency cold chain logistics. The body is constructed using 2.2mm inner and outer high-strength glass steel plates with an 80mm polyurethane insulation layer. Aluminum alloy profiles wrap the box body, featuring stainless steel angles, door frames, and locking mechanisms for maximum durability.
| Vehicle Parameters | |
|---|---|
| Engine Horsepower | 130 hp |
| Overall Dimension | 8450x2500x3050 mm |
| Gross Weight | 9850 kg |
| Max Speed | 90 km/h |
| Box Parameters | |
| Box Material | FRP panel + 80mm PU foam + FRP panel |
| Door Configuration | 2 Rear doors, 1 Side door |
| Cooling Range | -16℃ to 0℃ |

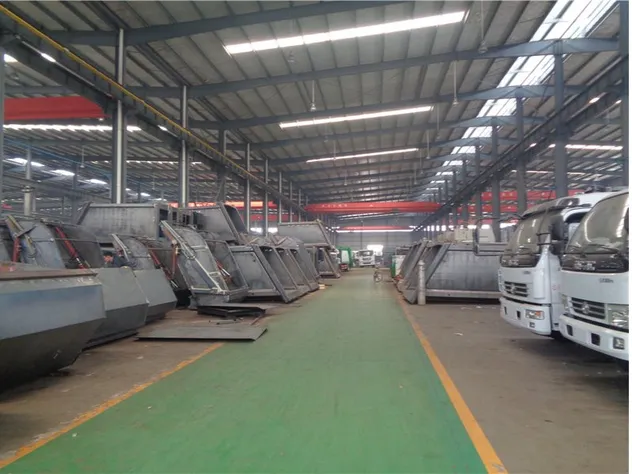

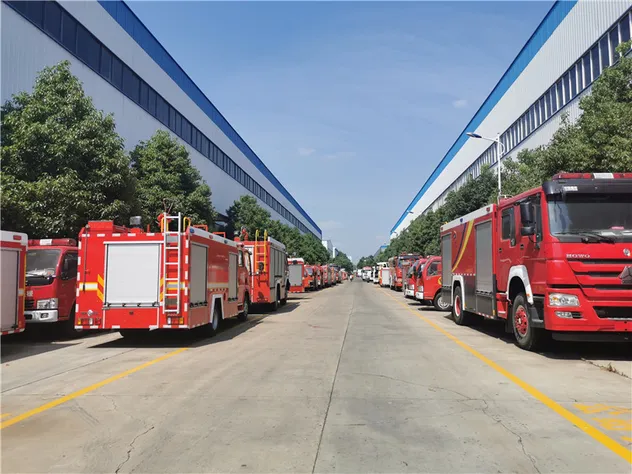

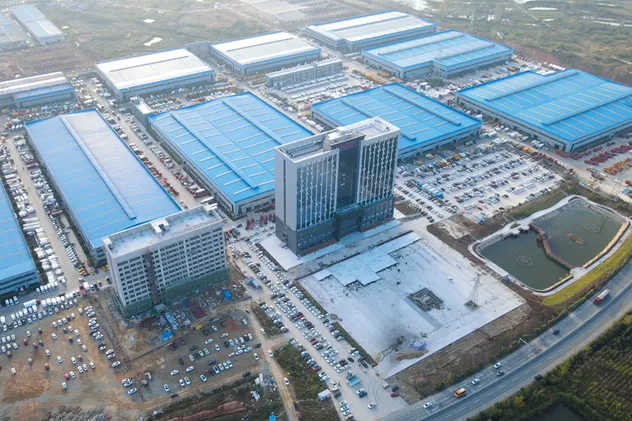

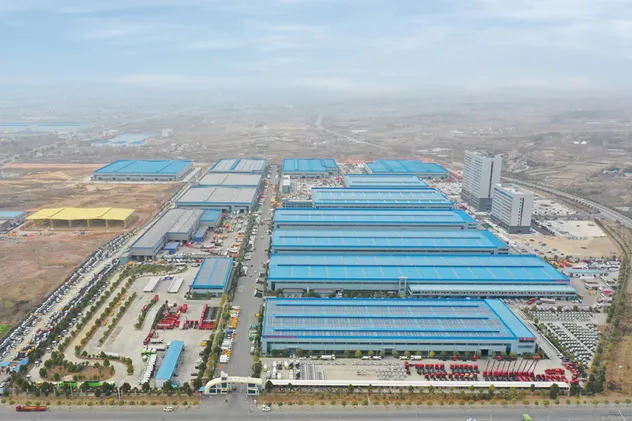

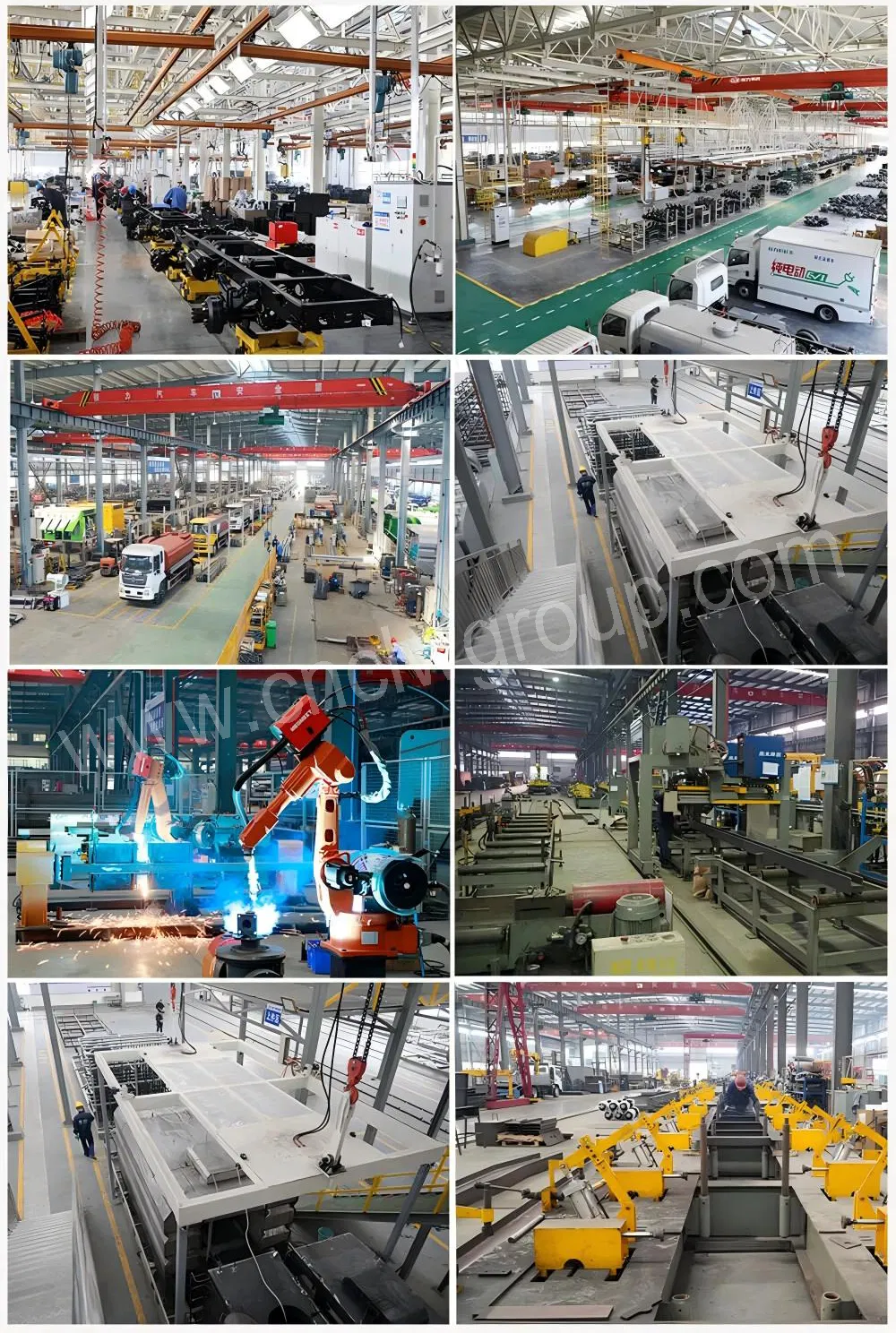

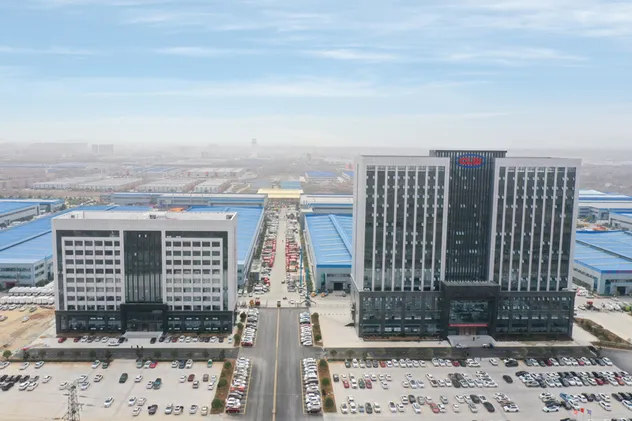

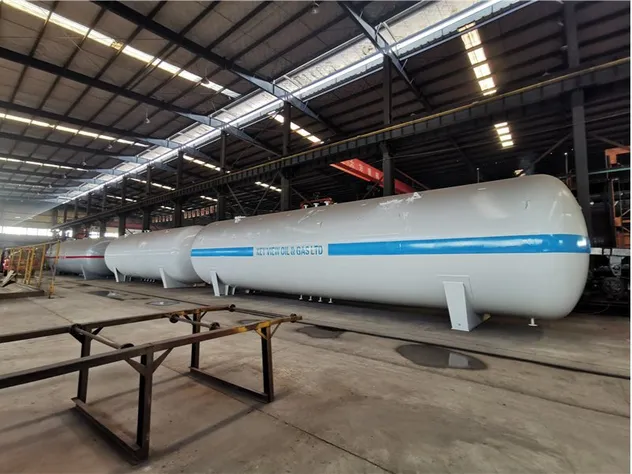

Our manufacturing facility specializes in technology research, development, and production of special-purpose vehicles. We maintain strict quality management systems including ISO9001, ISO14001, and 3C mandatory certification. Products are exported to over 50 countries including Mongolia, Australia, Peru, and various regions in Africa and Southeast Asia.
