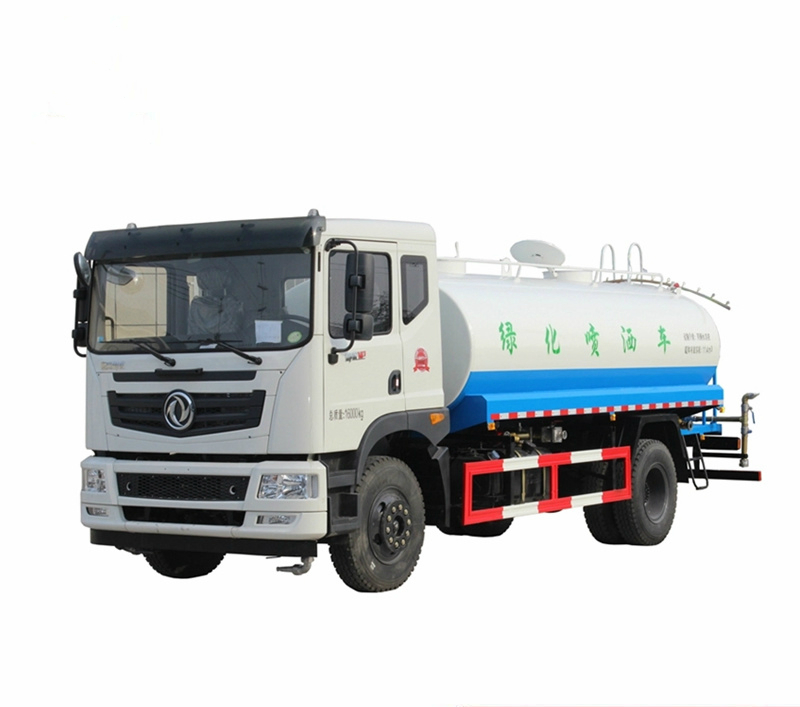

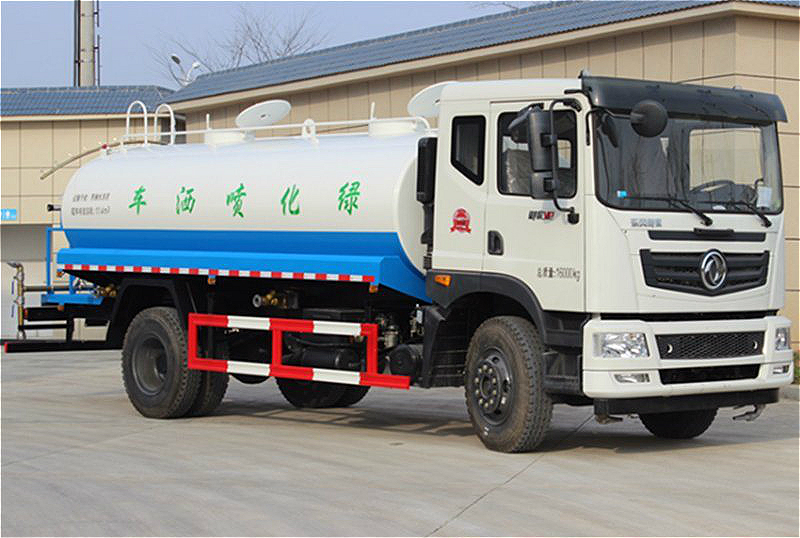

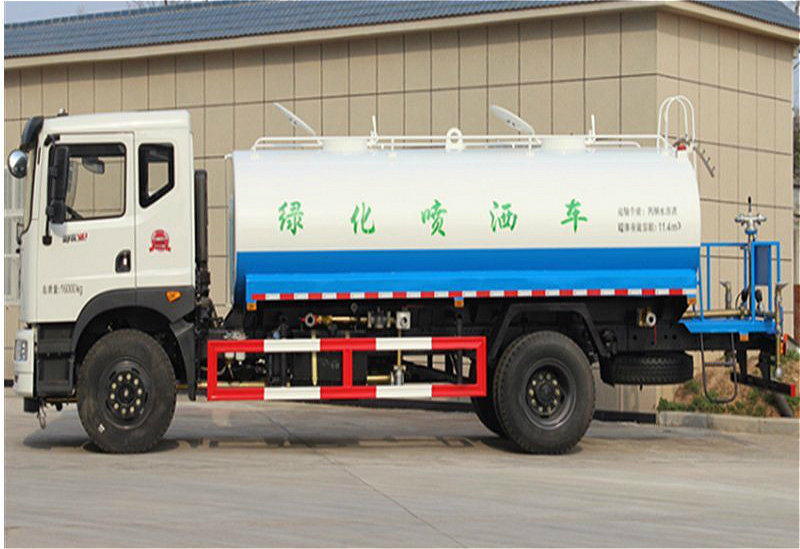

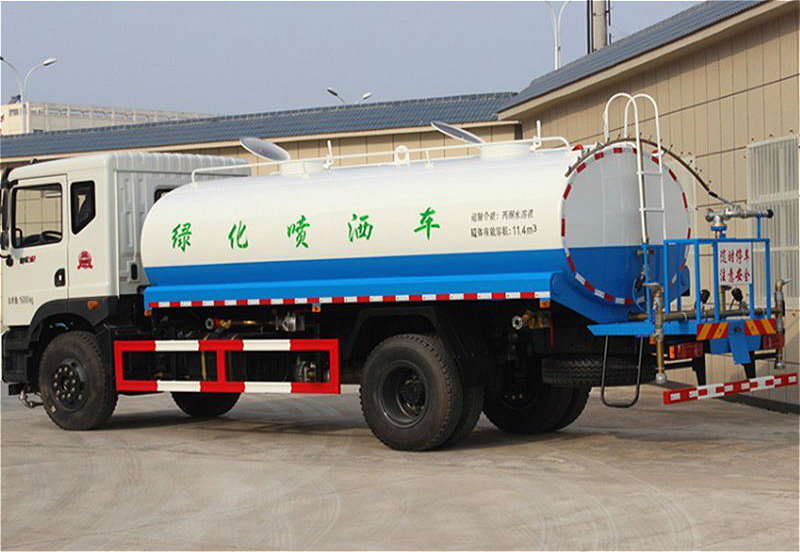

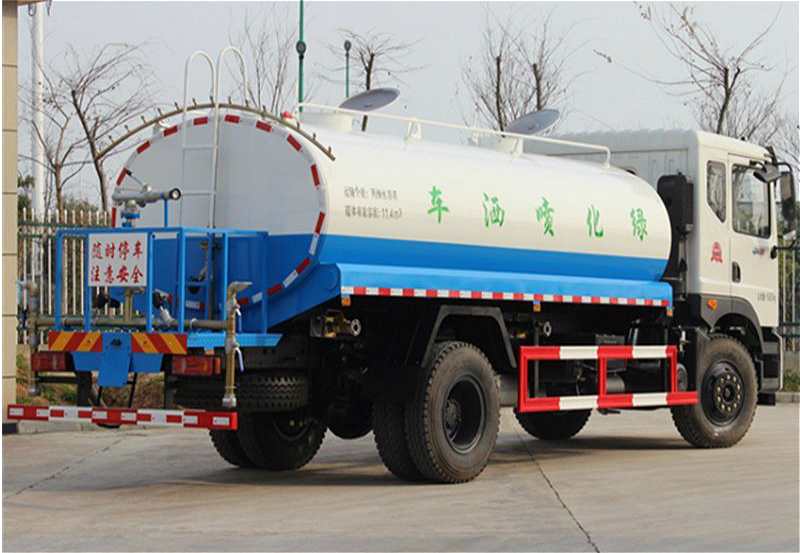

Dongfeng 10000L 10cbm 4X4 Offroad Water Bowser

Customization: Available
Volume: 10001 - 15000L
Certification: ISO9000, CCC, CE

Product Description

ℹ️

Basic Specifications

Model NO.
MTW1002
Emission Standard
Euro 2/3/4/5/6
Sprinkling Area
12 - 16m
Transmission Type
Manual
Payload
10-15t
Fuel
Diesel
Drive Wheel
4X4
Engine Capacity
4 - 6L
Condition
New
Truck Chassis
Dongfeng (or Other Brand)
Water Pump
Wloong/Yixin Pump or Customized
Origin
China
📋

Product Description

  • High pressure, wide range of spraying and good flushing effect.
  • Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation.
  • Pneumatic control and manual control system can realize two functions.
  • External sandblasting processing of tank, internal anti-corrosion treatment, outside surface adopts advanced polyurethane paint.
  • Compatible with all kinds of truck models to fulfill specific requirements.
  • Key parts adopt world-class technology products for high reliability.
  • Front and back high spray is optional, 360 degrees rotation, 150 degree tilt up and down.
  • Optional small flow pump and spraying reel for insecticidal garden operations.
  • Competitive price and highly cost-effective performance.
  • Quick and efficient spare parts supply for maintenance convenience.
  • Fast delivery time with production arranged according to exact needs.
  • Professional import and export handling for high-efficiency customs clearance.

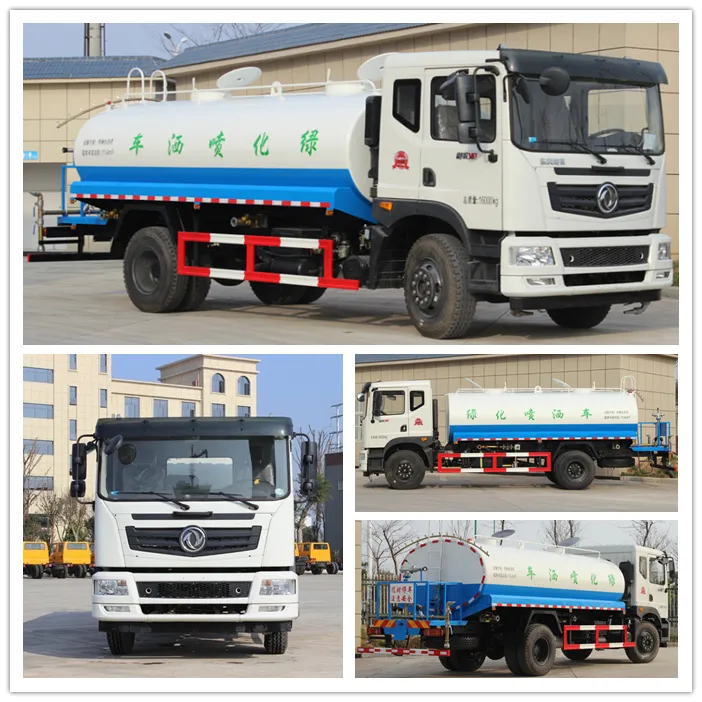

Water Tank Spray Truck
📊

Technical Parameters

Main Parameters
Product NameChina New 4x4 Sprinkling 10000 liter Water Tank Spray Truck
Overall Dimensions8500X2480X3000 mm
Wheel Base4700 mm
GVW / Payload12490 kg / 7530 kg
Max. Speed90 km/h
Engine ModelYC6J180 (180HP)
Displacement6500ml
Emission StandardEuro III
Tire Specification9.00-20, 6+1 spare tire
Water Tank Details
Tank Volume10,000L
MaterialCarbon Steel (5mm thickness)
PaintAutomatic metallic paint
Working PerformanceFront/rear/side sprinkler, greening water cannon, 360° rotatable
⚙️

Working Performance

  • Self-absorption and self-discharge function, vertical suction ≤ 7 meters.
  • Sprinkler width ≥ 14 meters after the sprint.
  • Side spray and rear work platform with range ≥ 28 meters.
  • High-pressure gun adjustable into columnar, foggy, heavy rain, or drizzle modes.
  • Equipped with high-power dedicated sprinkler pump and fire connector.
  • Optional fire pump with a range ≤ 50 meters.

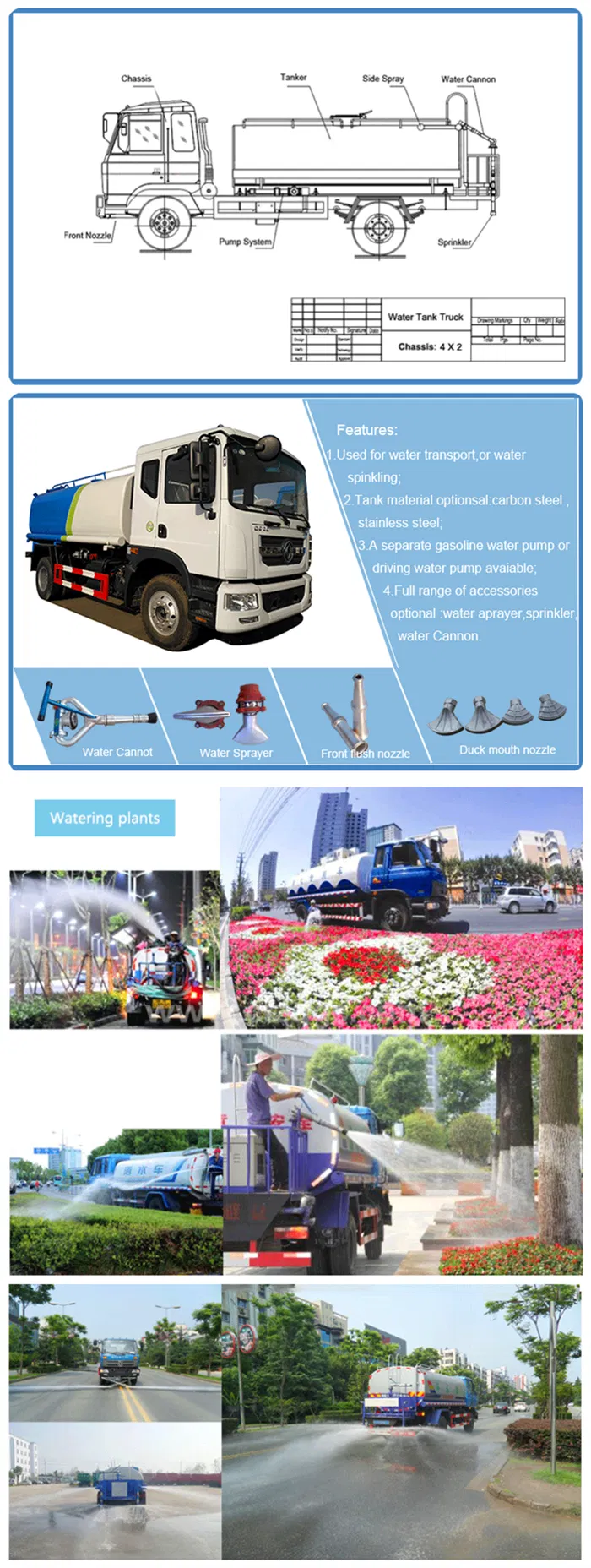

Working State
🚢

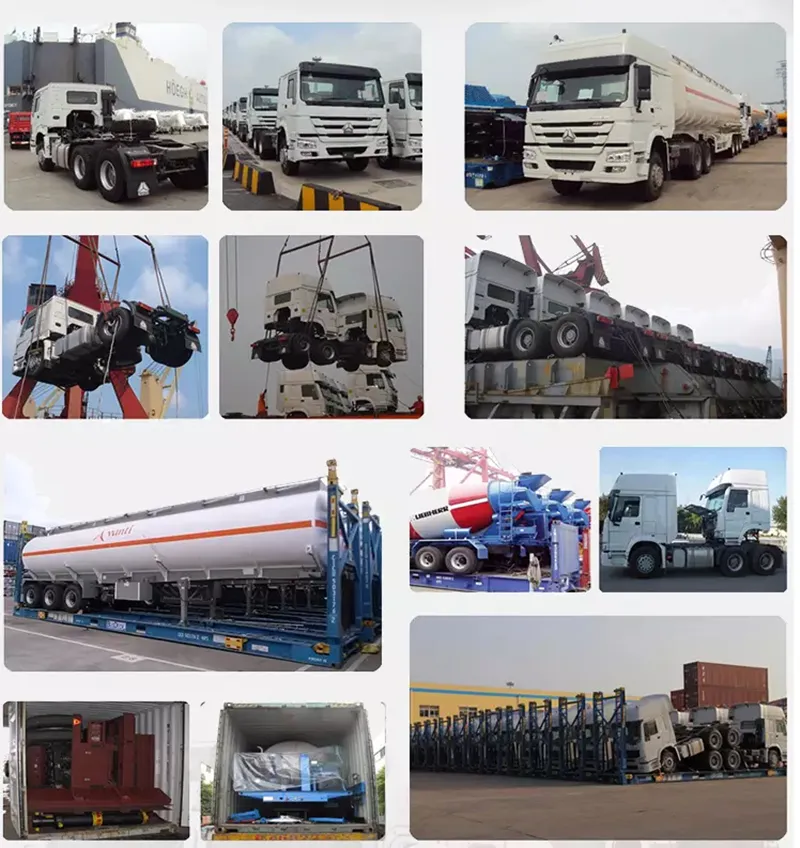

Shipping & Delivery

The water tank truck can be delivered via nude packing, RORO ship, bulk ship, or container. Options for waxing are available to protect the vehicle during transit.

Shipping Delivery
Production Process

Frequently Asked Questions

What is the total capacity of the water tank?
The truck features a high-capacity tank that can hold up to 10,000 liters (10cbm) of water.
Does this truck support off-road driving?
Yes, this model is equipped with a 4x4 drive system, making it suitable for off-road conditions and tough terrains.
What are the main functions of the sprinkling system?
It includes front, rear, and side spraying, a greening water cannon with 360° rotation, and self-priming capabilities.
What material is the tank made of?
The tank is constructed from 4-6mm high-quality carbon steel with internal anti-corrosion treatment for a long service life.
Can the water spray mode be adjusted?
Yes, the high-pressure water gun can be adjusted to various modes including columnar, foggy, heavy rain, and light drizzle.
What emission standards does the engine meet?
The engine is designed to meet Euro 2, 3, 4, 5, or 6 standards depending on the specific configuration chosen.
