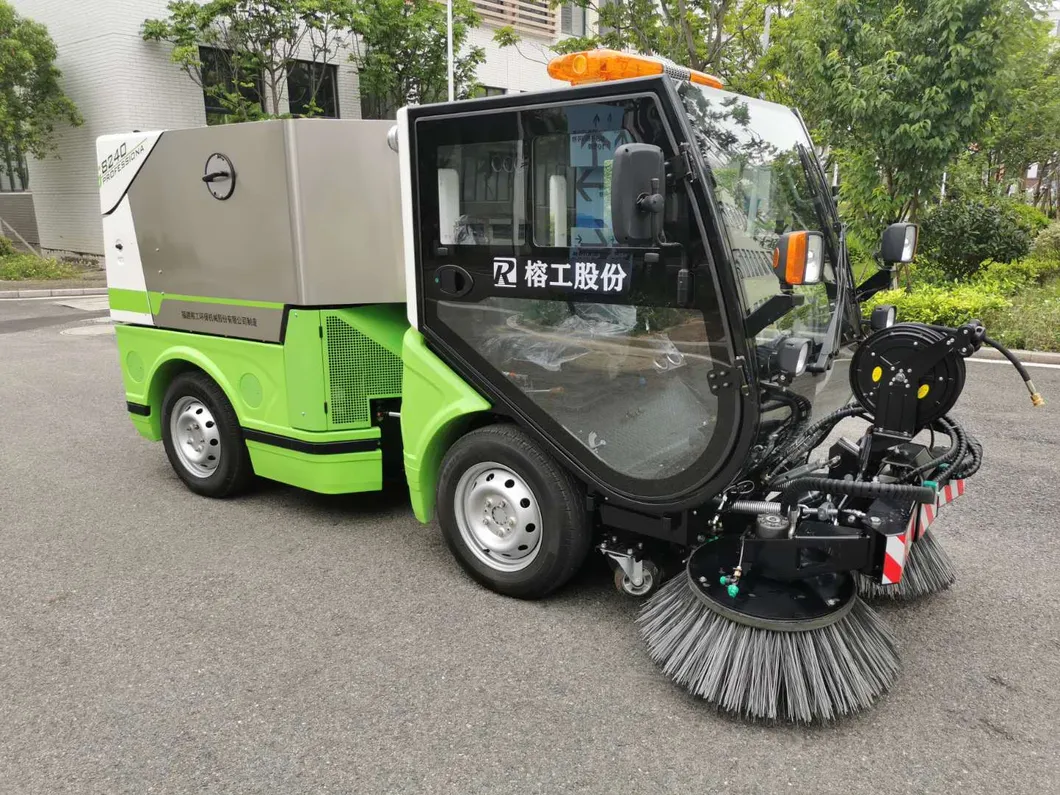

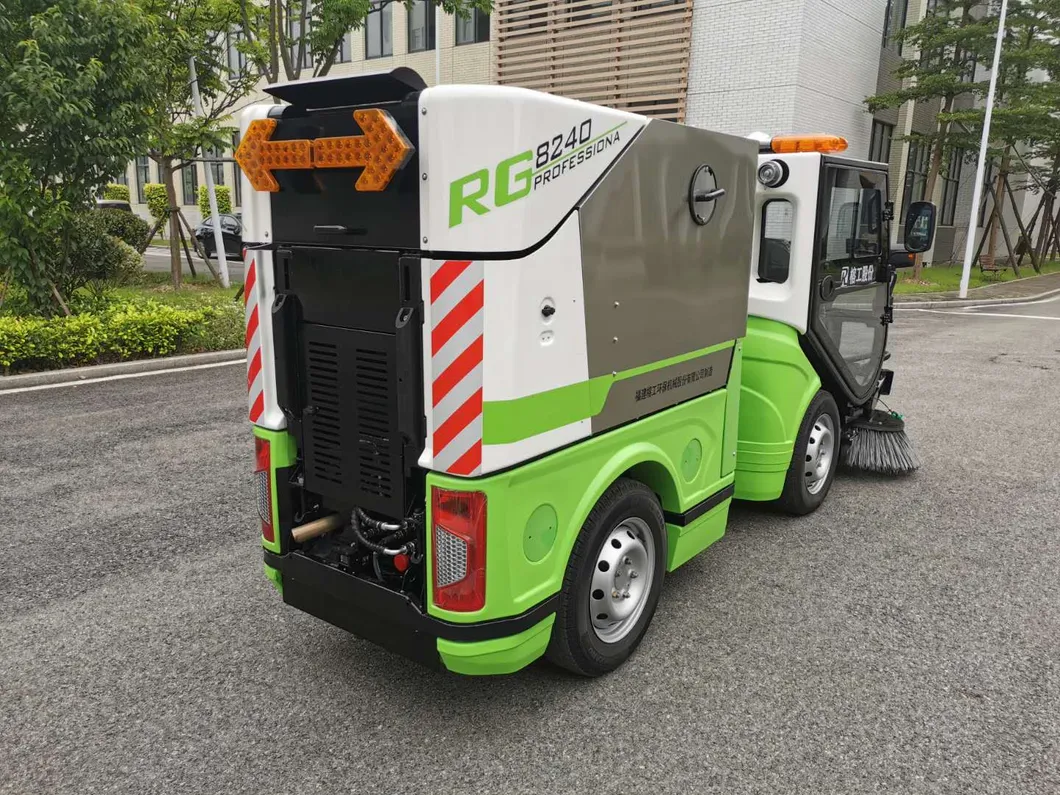

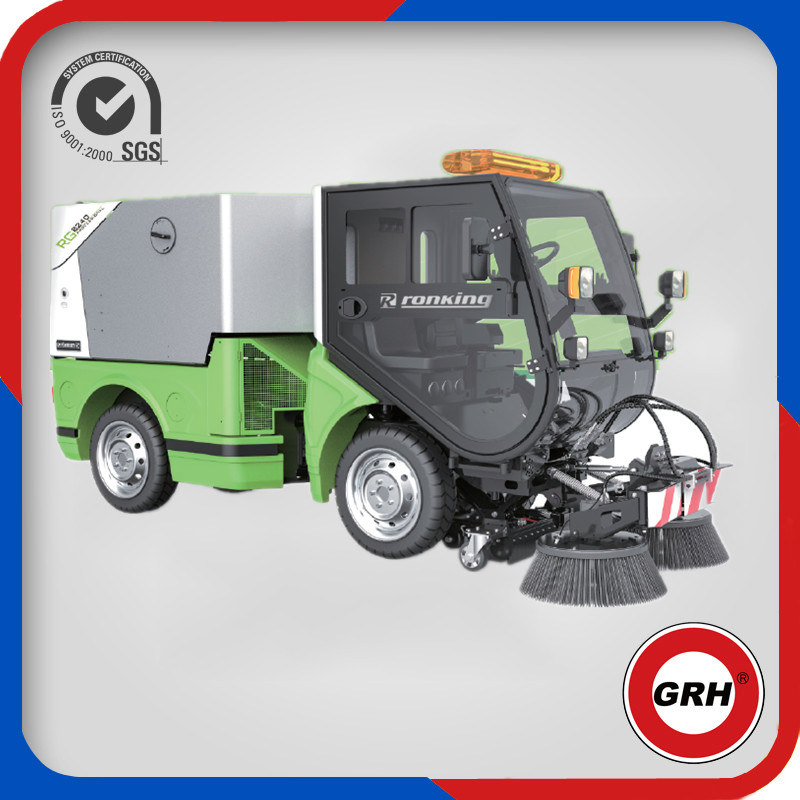

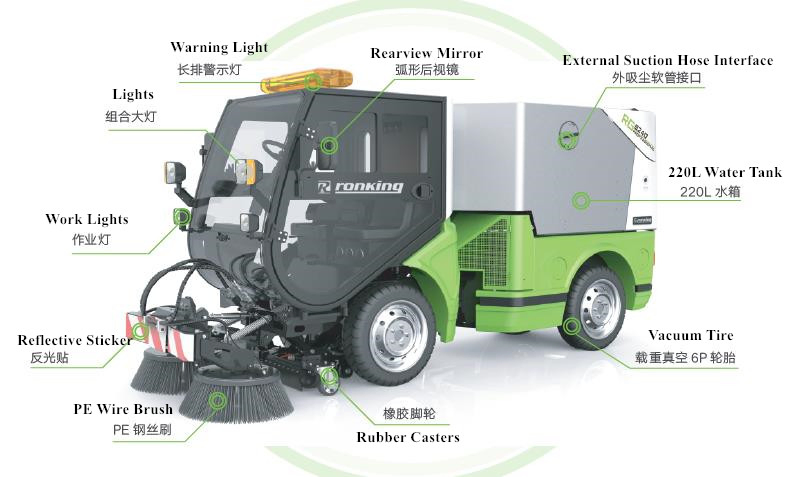

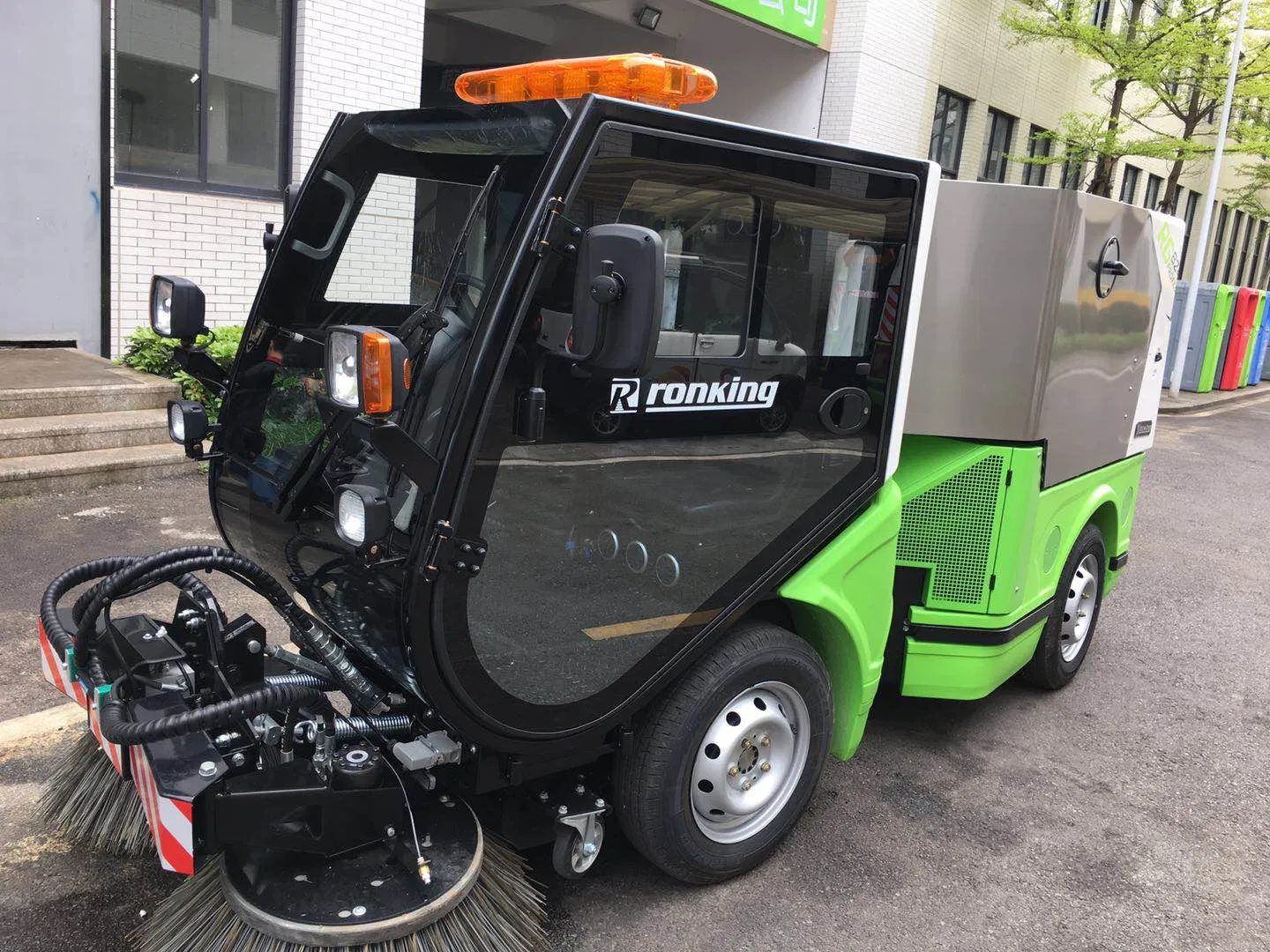

The RG-8240 road sweeper is an articulated chassis, multi-function road sweeper. The machine adopts panoramic glass structure cab, stainless steel trash can, equipped with air conditioning, the cleaning method is suction sweep; Platinum 404D-22 diesel engine is optional.
Walking drive, steering system, fan drive, brush drive and dustbin lift are all based on current hydraulic technology; Hinged steering, brush speed using throttle valve single output control, according to the actual road cleaning conditions control knob non-polar debugging; The suction system adopts the double-circulation air back blowing mechanism, which can improve the cleaning efficiency of the sweeper.
Water spray device is used in the position of cleaning brush and in the pipe of suction outlet to ensure that dust will not be generated during cleaning operation and cause secondary pollution; The sweeping width of the machine is 2.4 meters, widely used in urban non-motorized lanes, urban squares, parks, sports venues, exhibition centers and other places of cleaning operations.
In addition to the cleaning function, the machine is also designed to push snow shovel, snow rolling brush rapid replacement device, in order to achieve the road snow quickly clear, clean the function; The design has a high pressure flushing system to realize self-cleaning, sewage high pressure flushing and landscaping spraying function; Equipped with handheld suction hose device, green belt, under the puddles and other areas not easy to clean cleaning operations.
?
Frequently Asked Questions
What is the sweeping width of the RG8240 road sweeper?
The machine features a sweeping width of 2.4 meters, making it ideal for urban lanes, squares, and parks.
What type of engine and fuel does this model use?
It is equipped with a Platinum 404D-22 diesel engine and meets Euro 4 emission standards.
Can the RG8240 be used for snow removal?
Yes, the machine is designed for multi-functionality and can be equipped with a snow shovel or snow rolling brush for quick snow clearing.
How does the dust suppression system work?
It utilizes a water spray device at the cleaning brush and suction outlet to prevent secondary dust pollution during operation.
What are the capacities for waste and water?

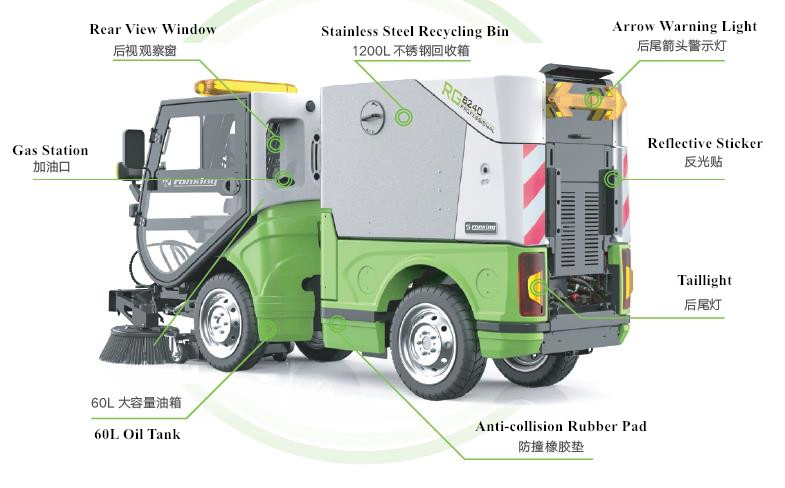

The sweeper includes a 1.2m³ stainless steel trash can and a water tank with a capacity ranging from 220L to 300L.
Is the operator cabin comfortable for long hours?
Yes, the machine features a panoramic glass structure cab equipped with air conditioning for operator comfort.
