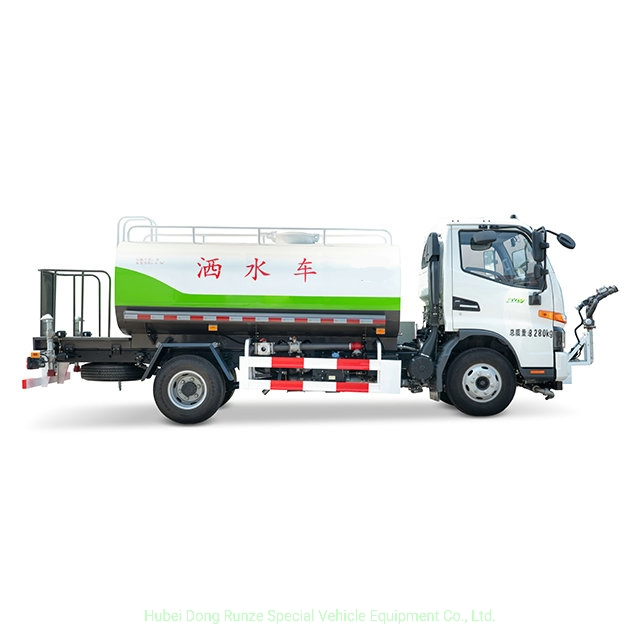

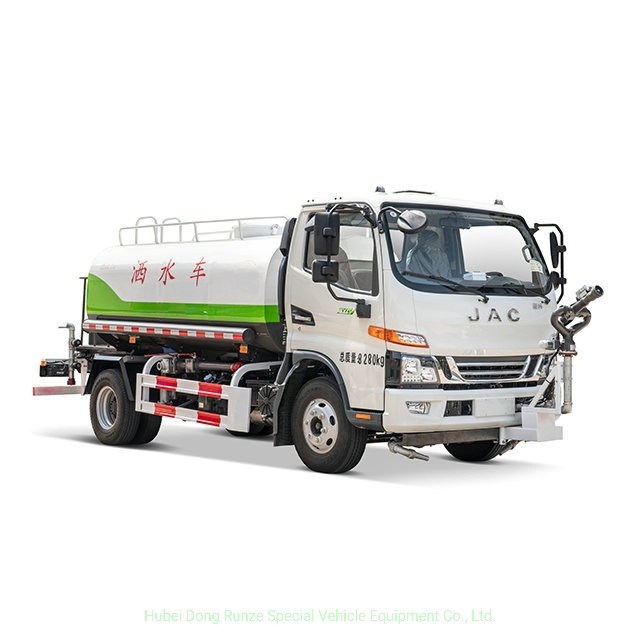

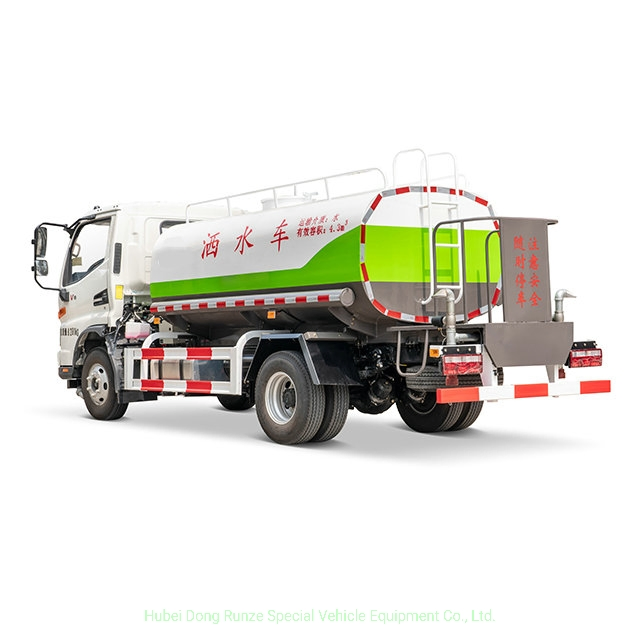

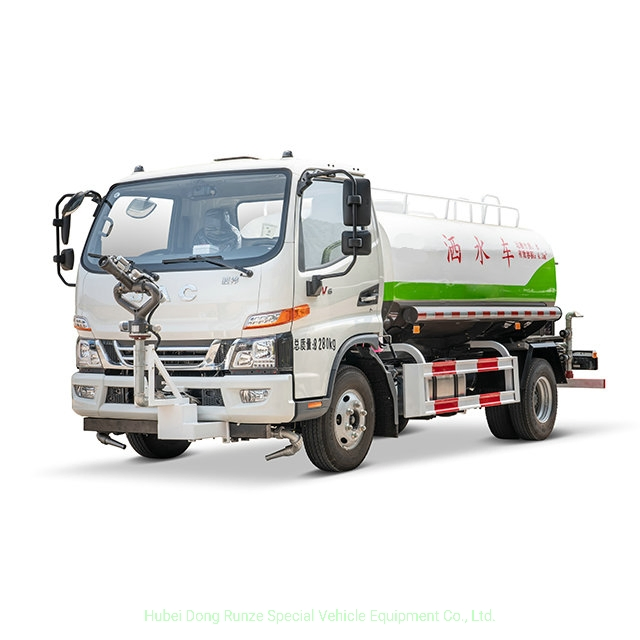

Customized JAC Warter Bowser 5t Cabin Remote Contral Electric Automatic Water Cannon

Customization:	Available
Volume:	5001 - 10000L
Certification:	ISO9000, CCC

Basic Specifications

Model NO.

Automatic Water Cannon

Emission Standard

Euro 3-5-6-7

Sprinkling Area

＞16m

Transmission Type

Manual

Payload

5000kg

Fuel

Diesel

Drive Wheel

4×2

Engine Capacity

6 - 8L

Condition

New

Tire

7.00-16lt 14pr

Fuel Tank

400L

Origin

China

Product Description

Customized JAC Water Bowser 5T - Remote Control Electric Automatic Water Cannon

This Sprayer Truck is designed for dust control and water transport with a 3000 to 10000 Litres tanker capacity. It features a cabin-mounted remote control system for the electric automatic water cannon.

Multi-Function Vehicle Spray Applications

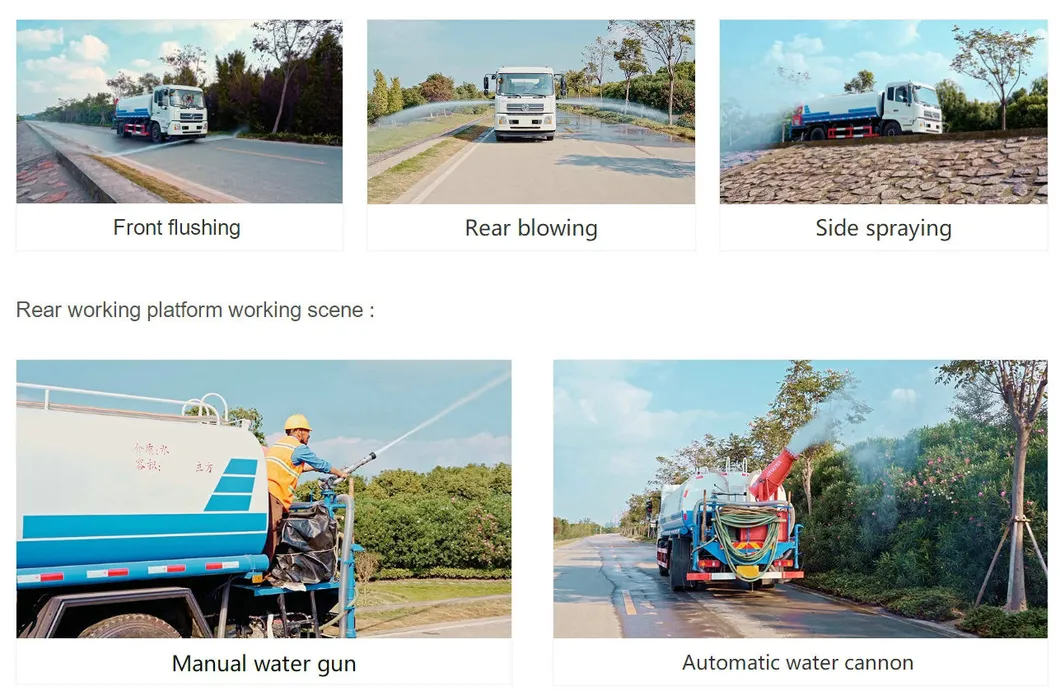

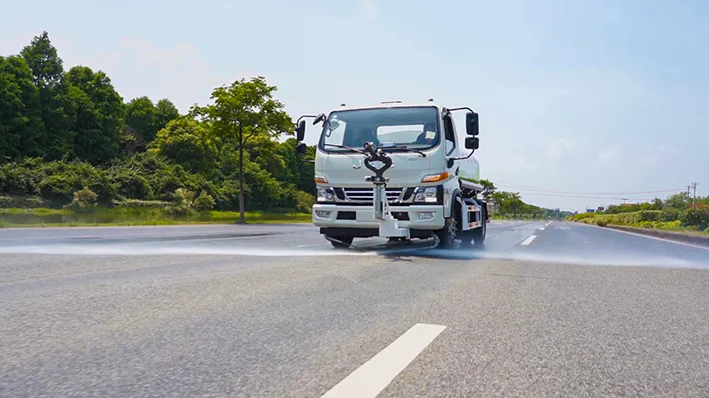

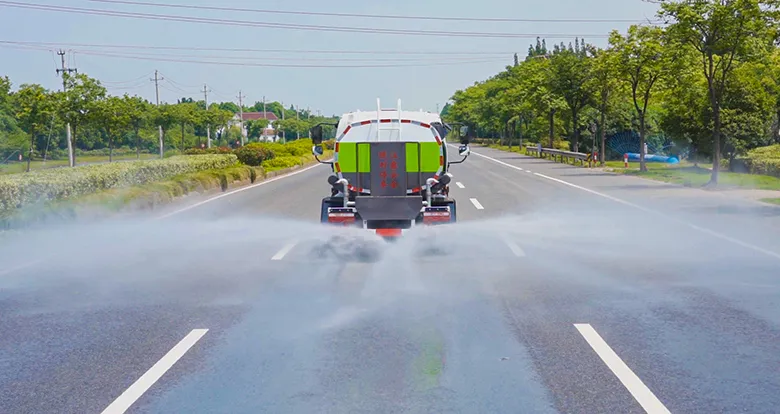

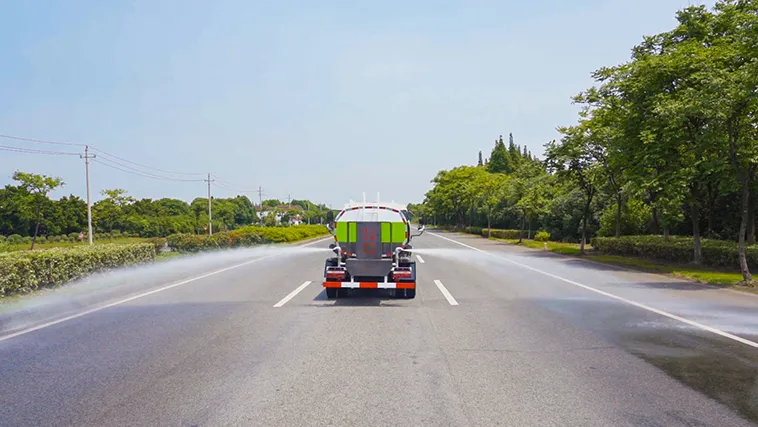

Water Spray & Road Washing
Mine Dust Suppression
Water Sprinkle / Water Transport
Fire Fighting Capabilities

Main Advantages

I. Intelligent Operation: Automatically adjusts angle, direction, and spray mode via intelligent program control.

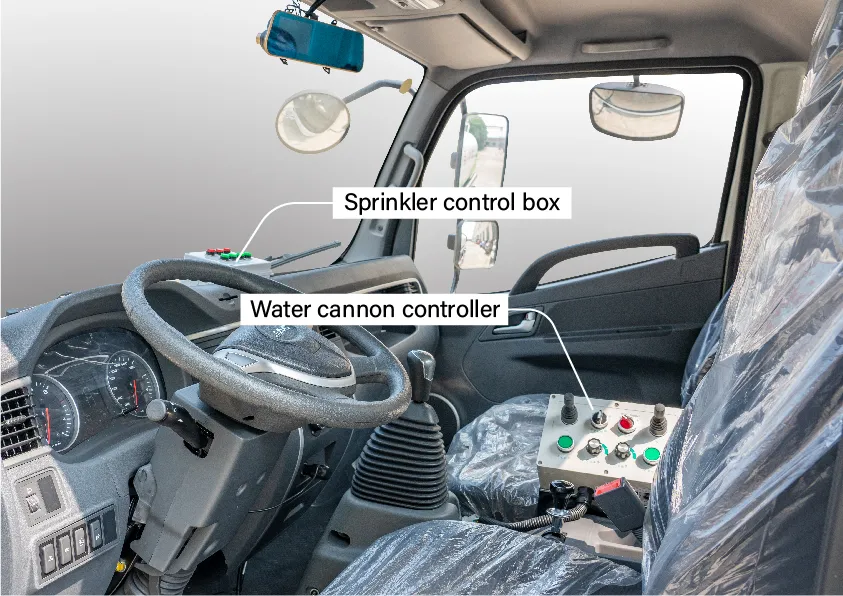

II. Cabin Control: All operations are performed inside the cab, enhancing safety and reducing labor costs.

III. High Efficiency: Fluid dynamics design ensures maximum water output and injection range, saving time and energy.

Technical Parameters

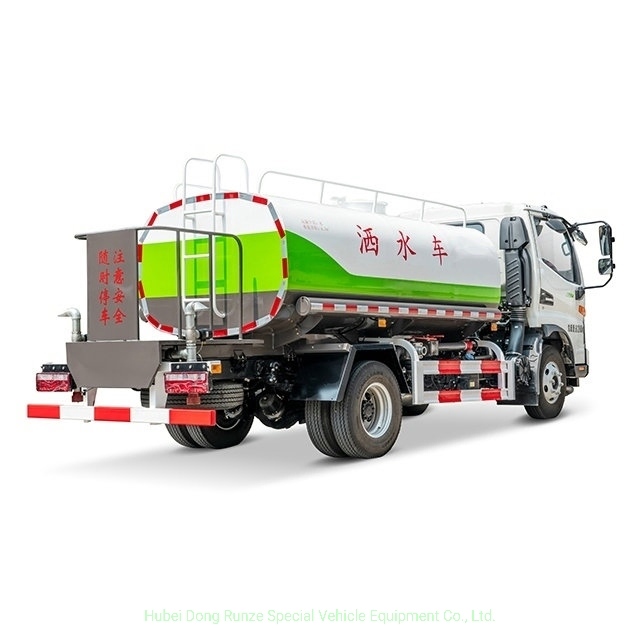

JAC 5 Tons Water Bowser Tank Truck
Total Mass (kg)	7360	Curb Weight (kg)	3275
Rated Quality (kg)	3955	Chassis Model	HFC1070P9
Dimensions (mm)	5900 x 1900 x 2300	Max Speed (km/h)	90
Tire Size	7.00-16LT 14PR	Fuel Type	Diesel
Engine Model	WP3Q130E50	Engine Power (kw)	96
Chassis Description	JAC 4x2 chassis, flat cab with LHD/RHD options; Weichai 130 HP engine, Euro III/IV, 6-speed gearbox, ABS.

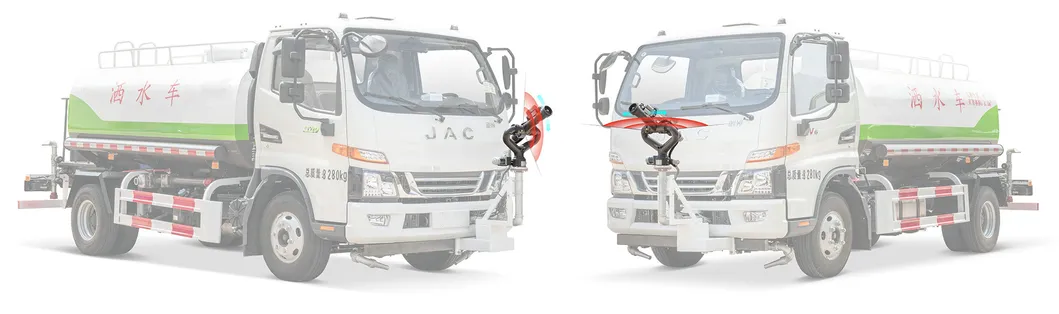

Tank Description	4mm carbon steel, 5000L volume. Equipped with front/rear/side sprinklers and 360° rotatable water cannon.

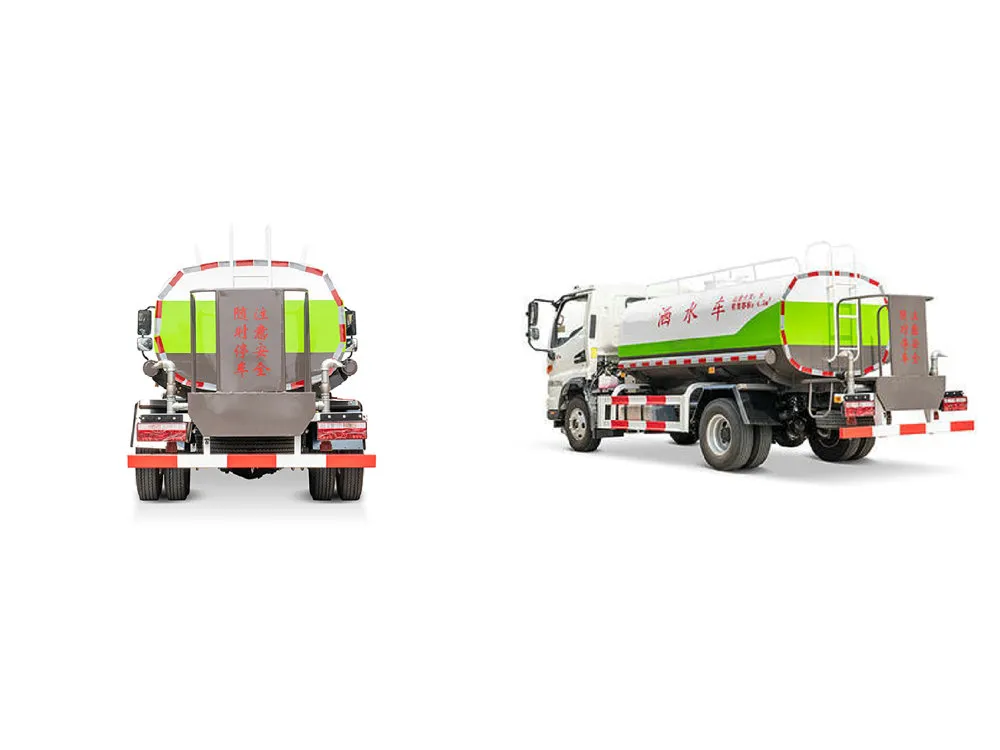

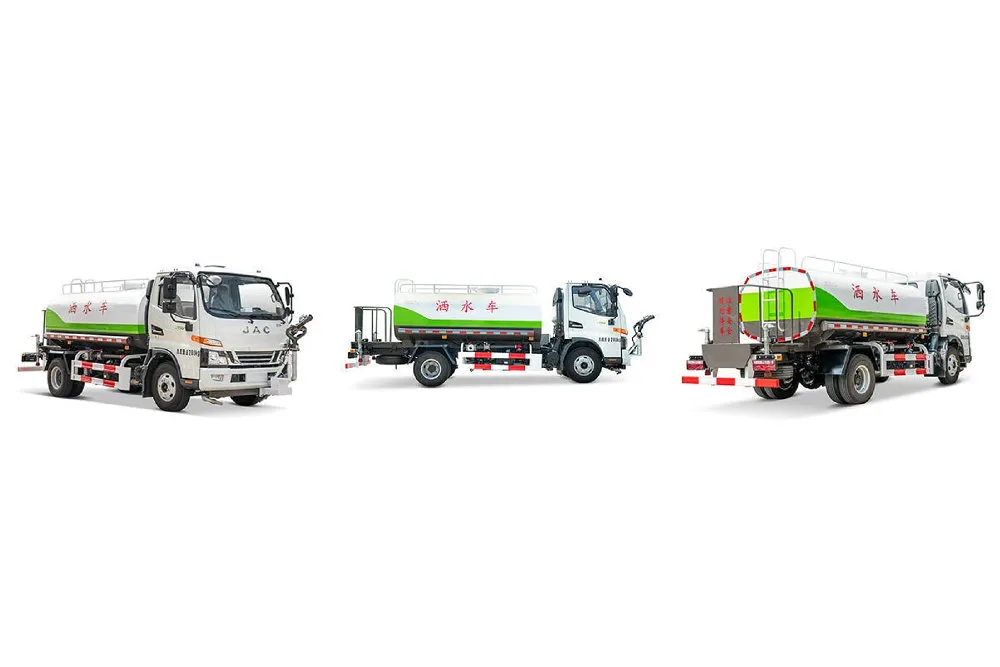

Product Gallery

Frequently Asked Questions

Q1: What is the maximum sprinkling range of the water cannon?

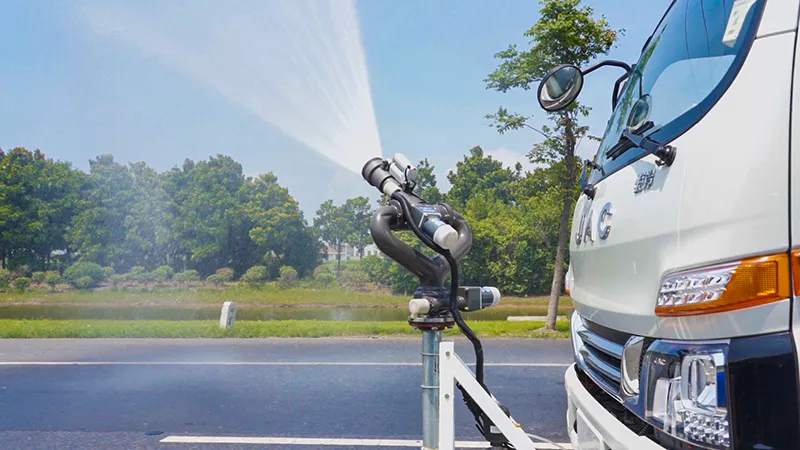

The automatic water cannon has a sprinkling area and injection range of more than 16 meters.

Q2: Can the water cannon be operated while the truck is moving?

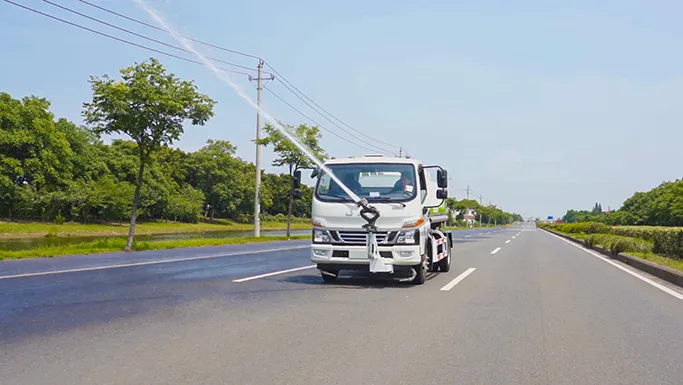

Yes, the intelligent water cannon is controlled via a remote system inside the cabin, allowing for safe operation during transit.

Q3: What are the main applications for this sprayer truck?

It is ideal for urban greening, road washing, mine dust suppression, water transport, and emergency fire fighting.

Q4: What is the tank material and durability?

The tank is made of 4mm carbon steel or corrosion-resistant plates, featuring internal wave barriers to ensure stability and durability during transport.

Q5: Is the tank capacity customizable?

Yes, the capacity and material (such as stainless steel) can be customized according to specific customer needs.

Q6: What emission standards does the engine meet?

The vehicle supports various emission standards ranging from Euro 3 to Euro 7, depending on the specific configuration chosen.
