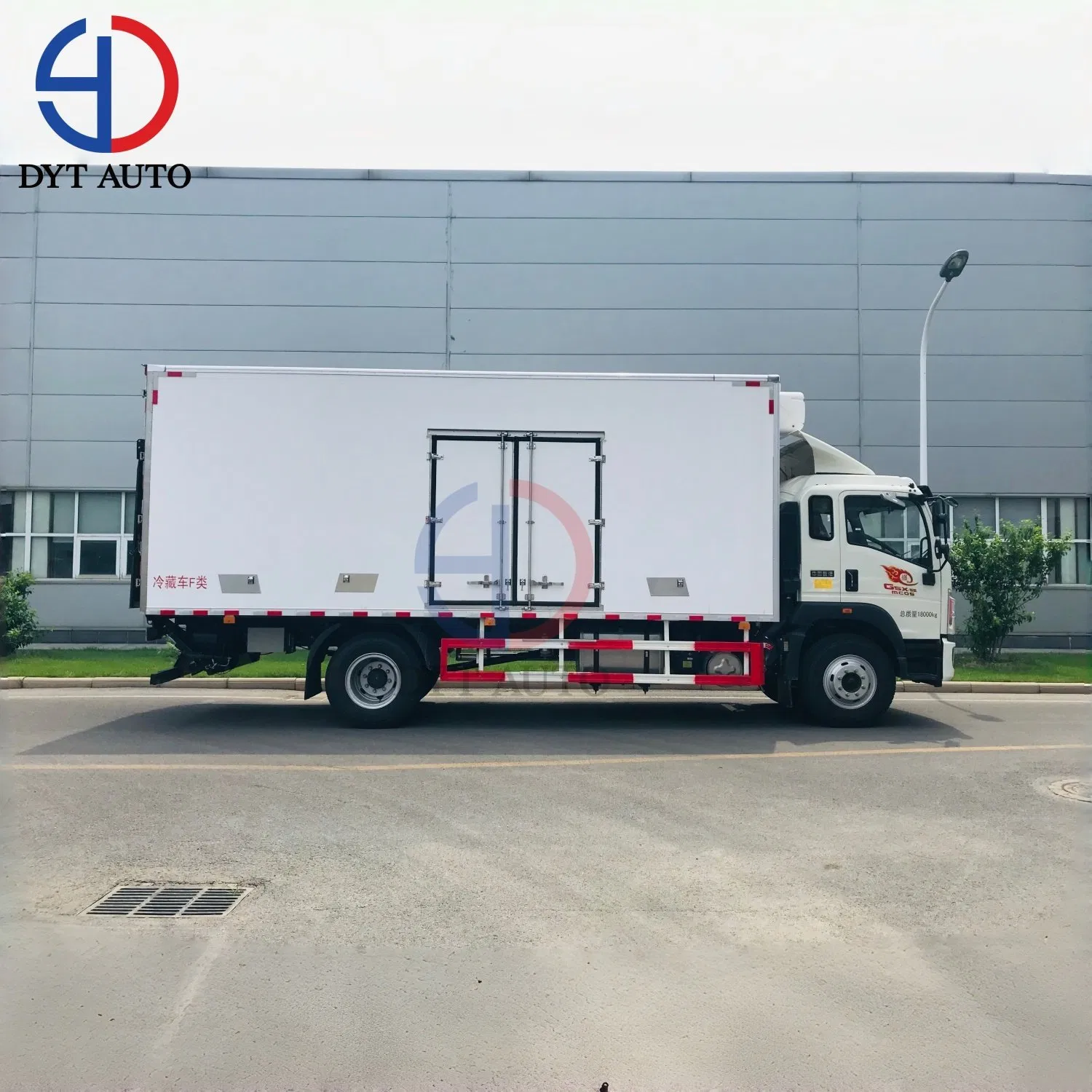

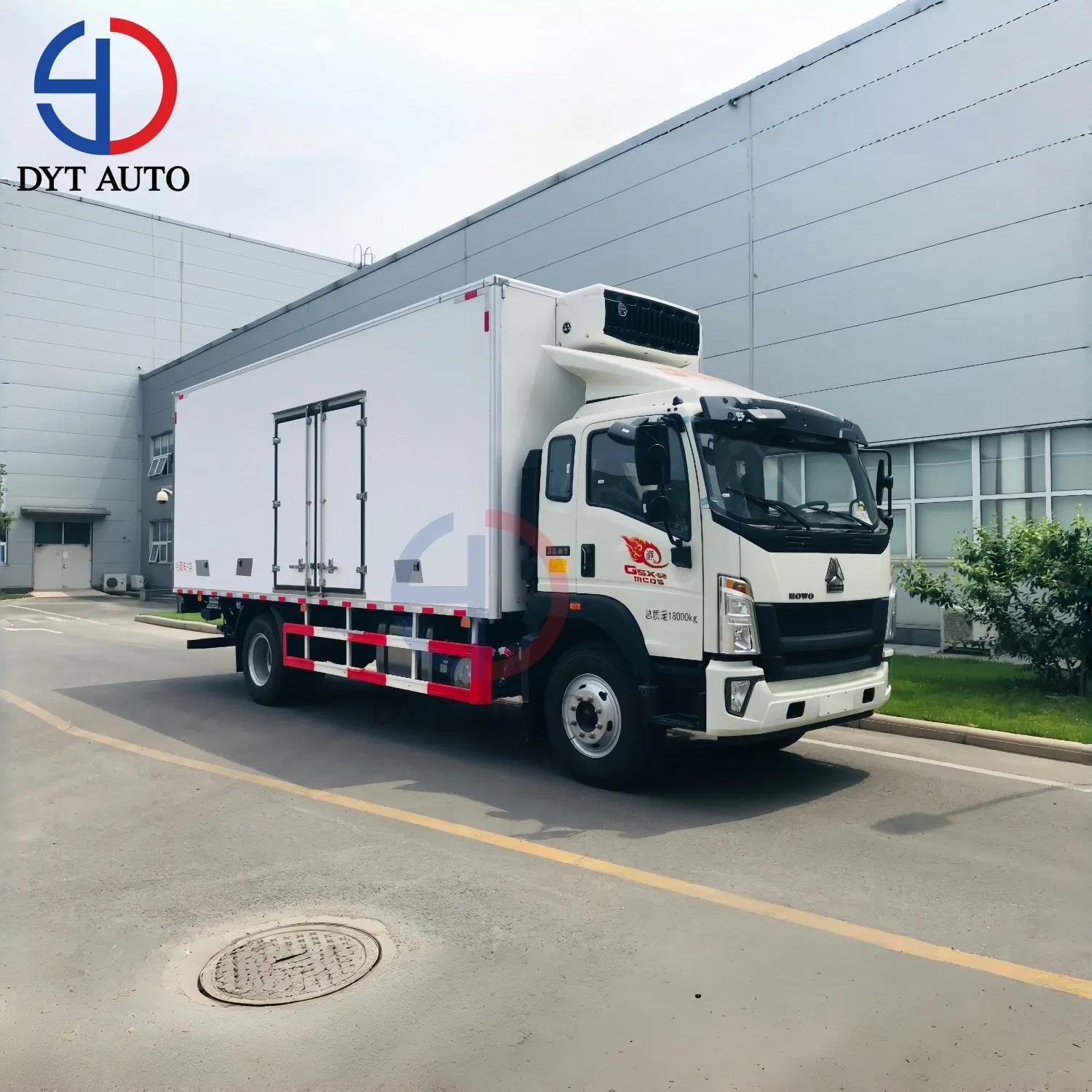

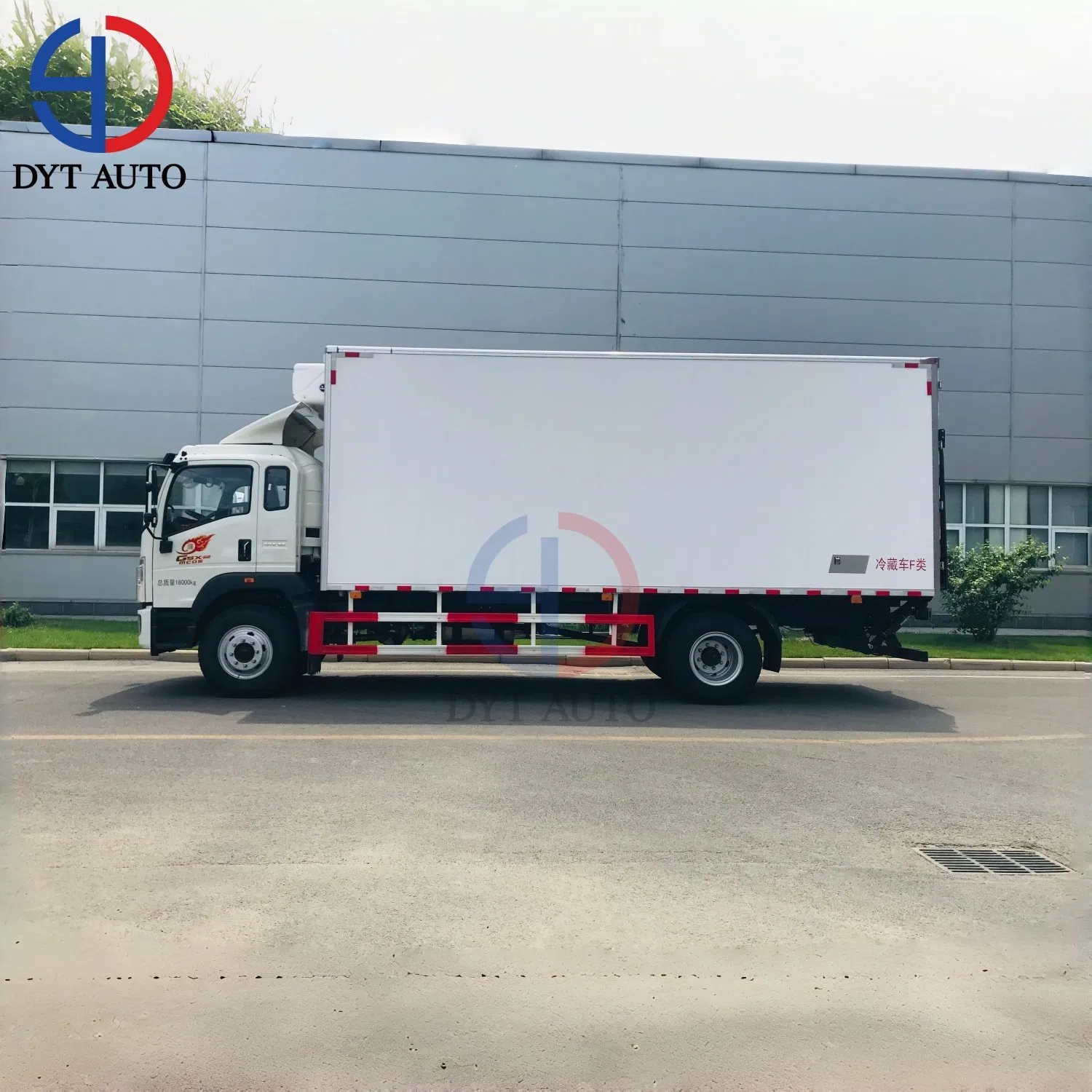

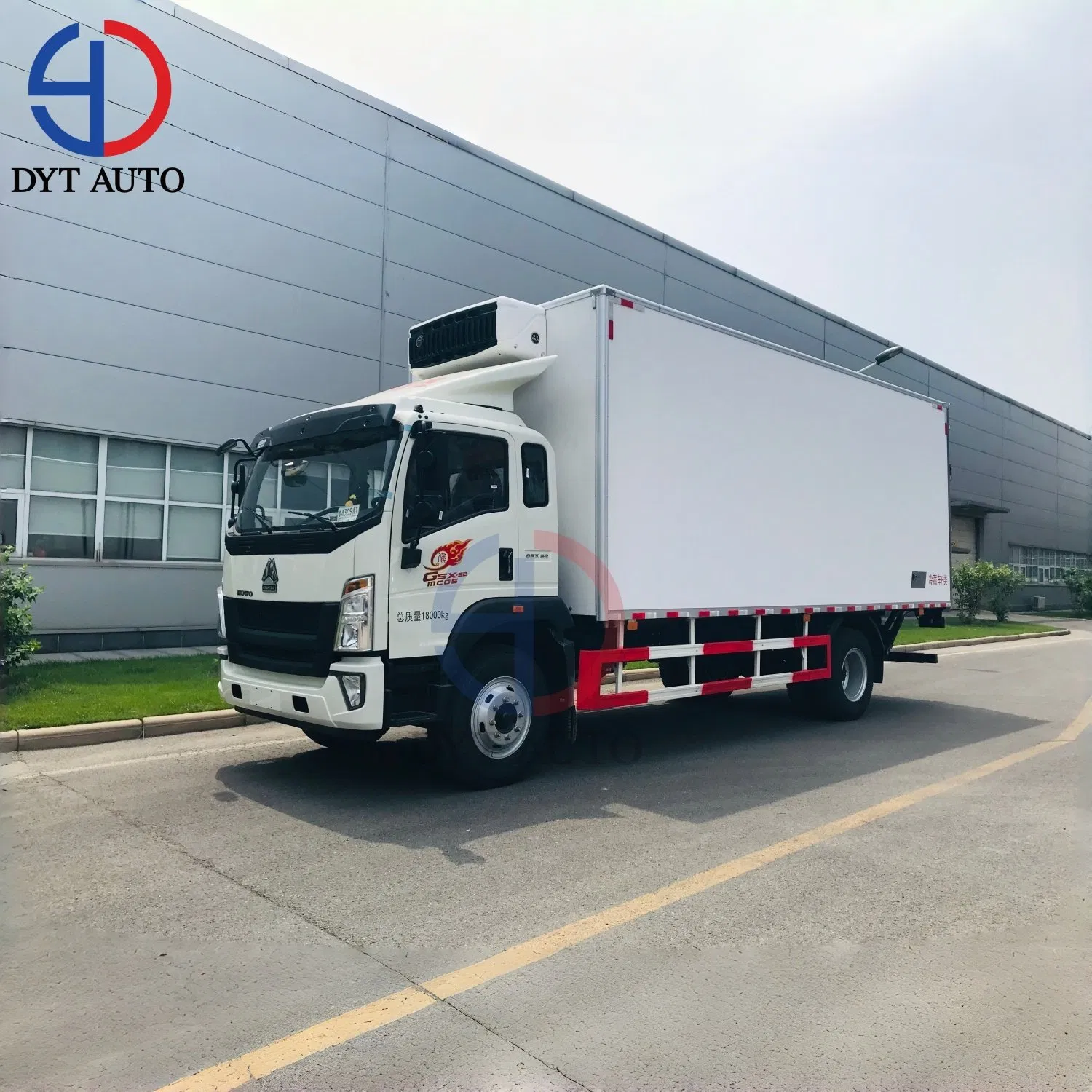

HOWO 10TON REFRIGERATED TRUCK
This refrigerated truck adopts the famous HOWO chassis with a diesel YUCHAI 160HP engine. It is designed for cold chain transportation of vegetables, meat, medical supplies, ice cream, and more.
• High-strength van body: Made of PU foam or polystyrene thermal insulation board with a built-in metal frame.

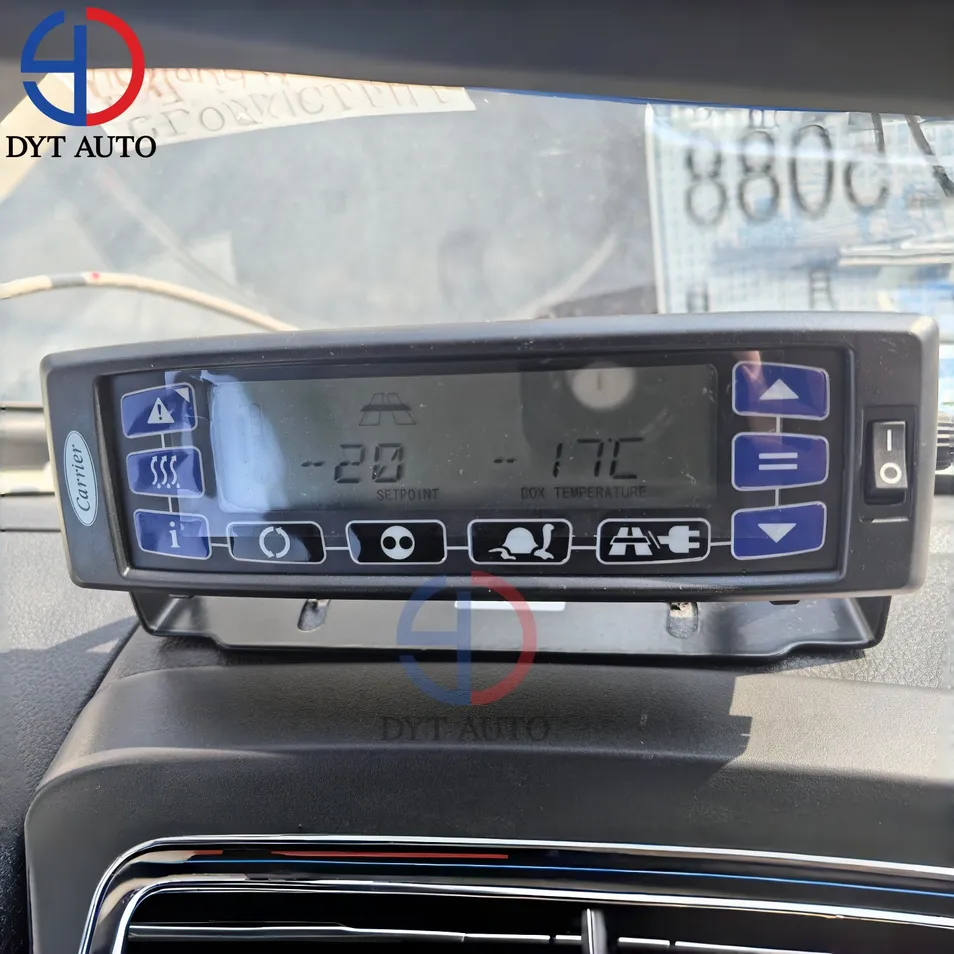

• Precise Control: Features excellent sealing performance and precise temperature management.

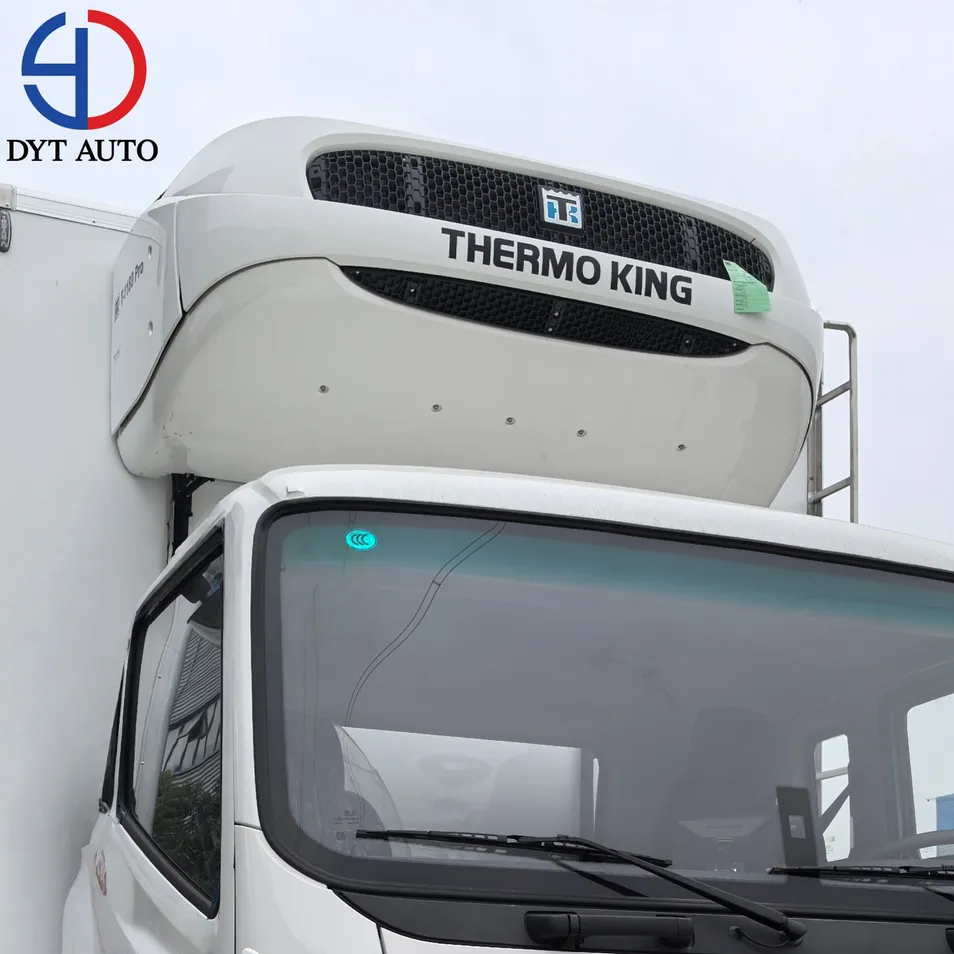

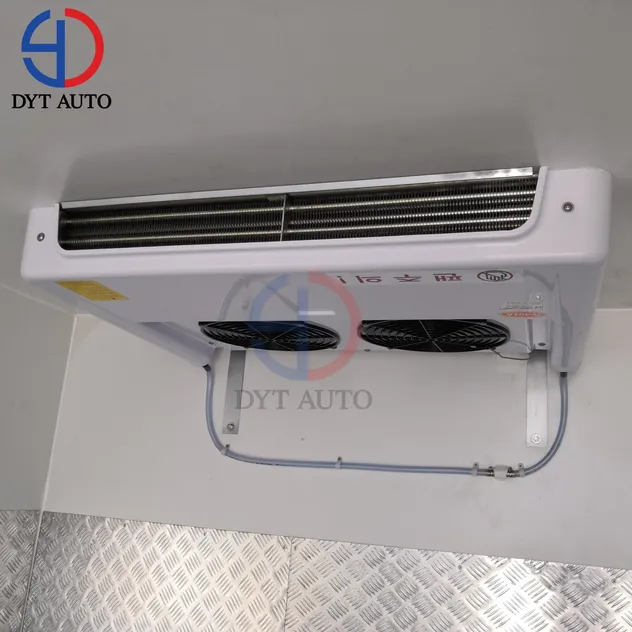

• Refrigeration Units: Equipped with Karea brand DONGIN THERMO, with optional Thermo King or Carrier units available.
| Vehicle Parameters | |
|---|---|
| Overall Dimensions | 8900*2500*3900mm |
| Payload | 10 Ton |
| Engine Model | YUCHAI / YC4E160-33 (160HP) |
| Displacement | 4.257L |
| Transmission | 10 forward gears & 2 reverse |
| Wheelbase | 4500mm |
| Tire Specification | 9.00R20 (6+1 units) |
| Van Body Size | 5500x2200x2000mm |
| Insulation Thickness | 80mm PU/XPS |
| Temperature Range | -25℃ ~ +10℃ |

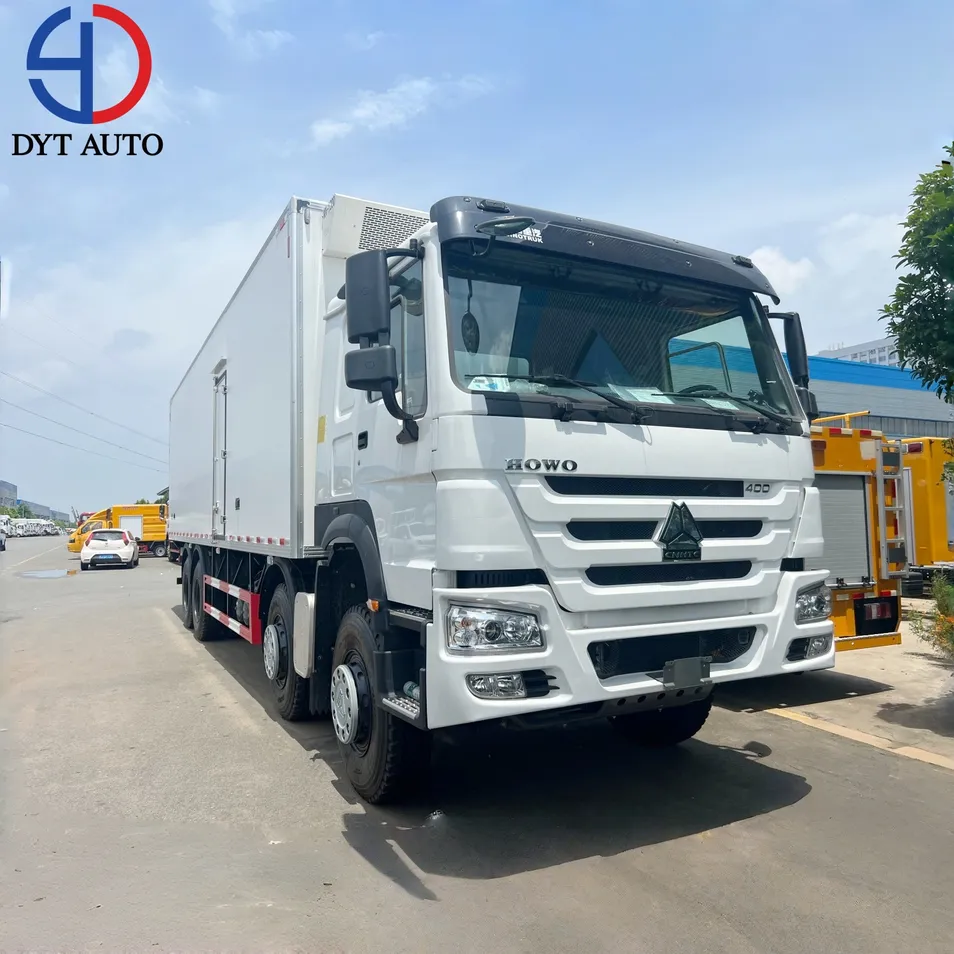

Optional Chassis: Available with HOWO, Shacman, FAW, FOTON, JMC, JAC, and I-SUZU brands. Emissions range from Euro II to Euro VI.

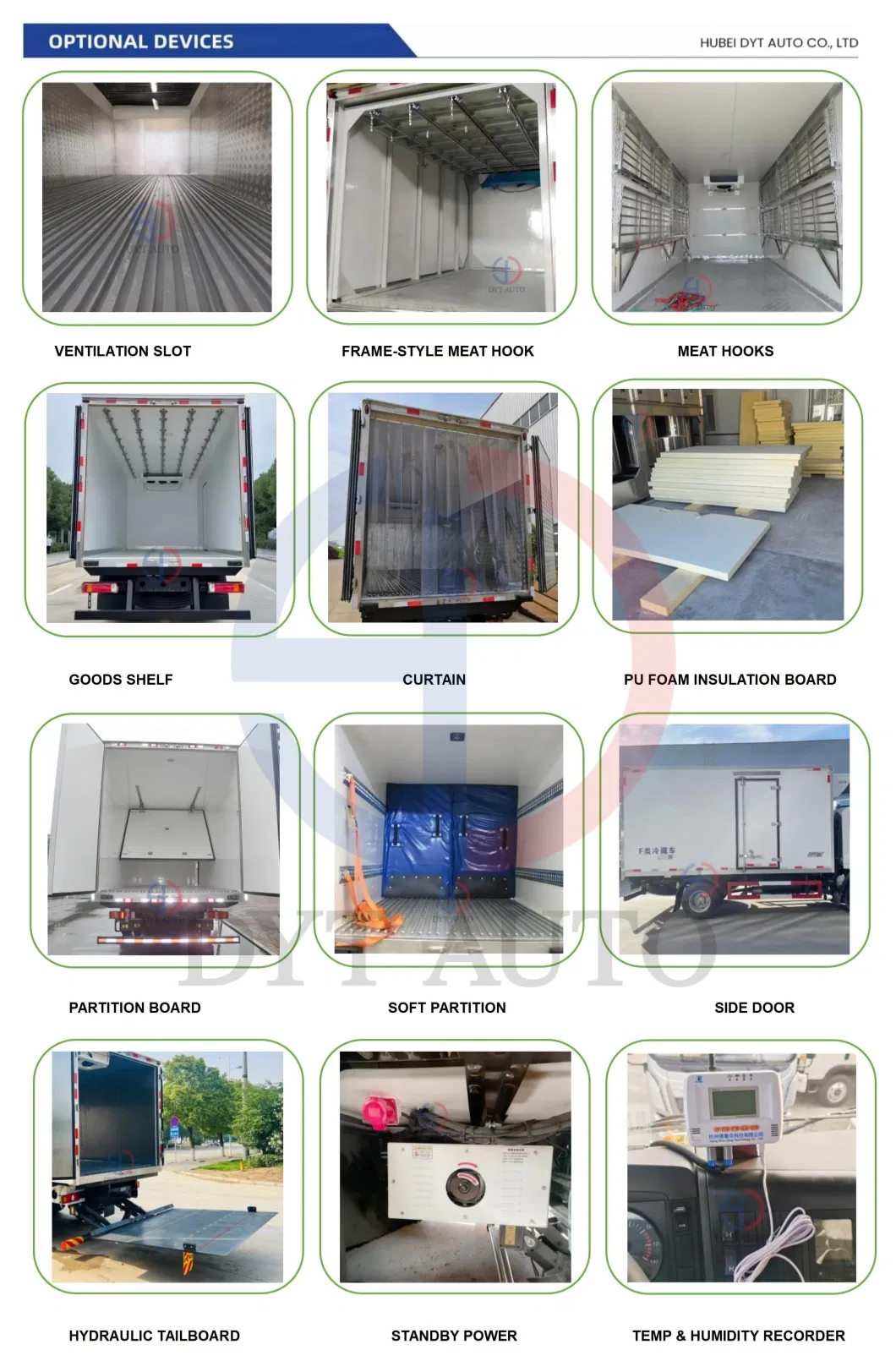

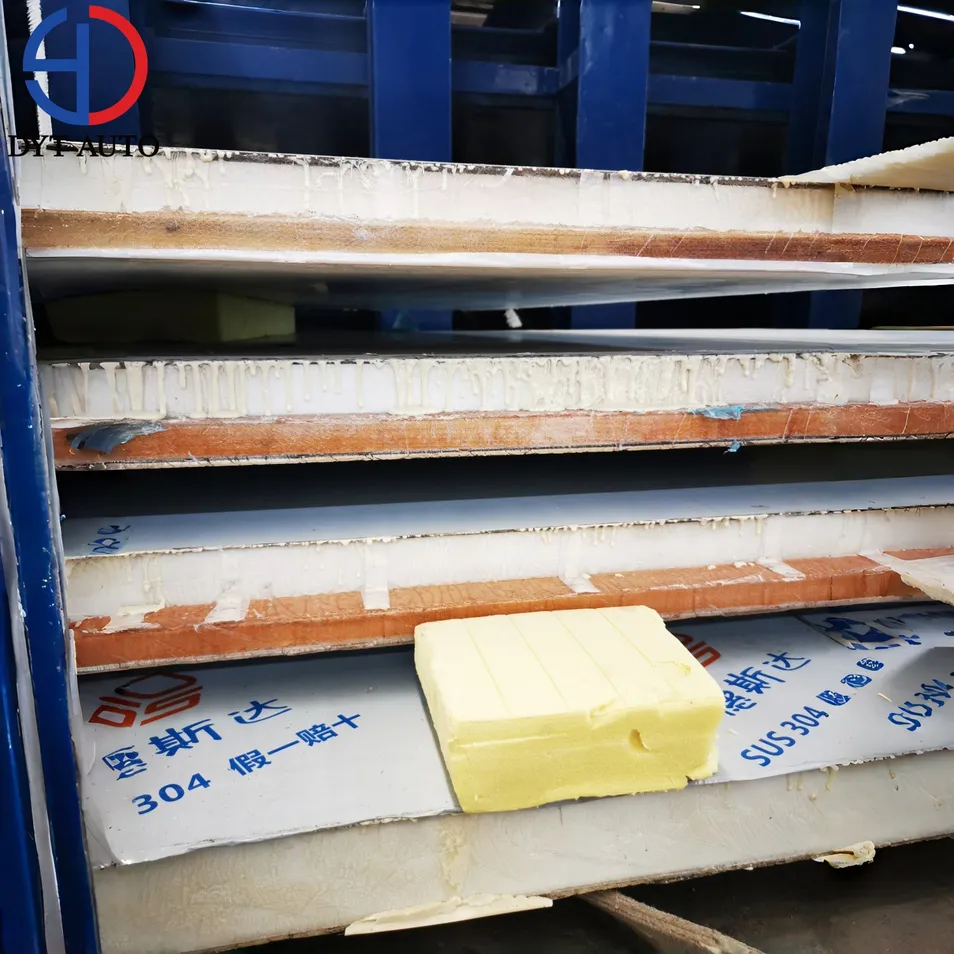

Excellent Van Material: High-density PU Foam or XPS (80mm) ensures superior thermal insulation. Interior surfaces can be finished in Fiberglass (FRP) or Stainless Steel (SS304).
As a professional enterprise focused on specialized vehicles, we provide a wide range of products including garbage trucks, water tankers, fuel trucks, and freezer trucks. With over 10 years of development, our vehicles are delivered to over 30 countries worldwide, supported by lifetime technical assistance and spare parts service.
