Our boom lift is available in telescopic and articulating types. The telescopic boom lift is powered by an internal combustion engine, with 4x4 and 4x2 driving modes available. This aerial working platform offers a wide operation range, suitable for rough terrain in building construction, bridge building, ship building, outdoor advertising, and mining operations.
| MODEL: GTZZ16Z | |||
|---|---|---|---|
| MEASUREMENTS | Metric | US | |
| Working height maximum | 17.7m | 58ft | |
| Platform height maximum | 16m | 52ft 6in | |
| Horizontal reach maximum | 9.5m | 25ft | |
| Platform length | 0.76m | 2ft 6in | |
| Platform width | 1.83m | 6ft | |
| Height-stowed | 2.38m | 7ft 5in | |
| Length-stowed | 6.80m | 22ft 3in | |
| Width | 2.29m | 7ft 5in | |
| Wheelbase | 2.20m | 7ft 2in | |
| Ground clearance-center | 430mm | 1ft 4in | |
| Lift capacity (restricted) | 230kg | 500lbs | |
| Turntable Swing | 360° non-continuous | ||
| Drive speed - stowed | 6.3 km/h | 3.9mph | |
| Gradeability - stowed (2WD) | 30% | ||
| Turning radius - inside | 3.0m | 9ft 8in | |
| Power source | 45kw (60HP) / 45.5kw (61hp) | ||
| Fuel tank capacity | 100L | - | |

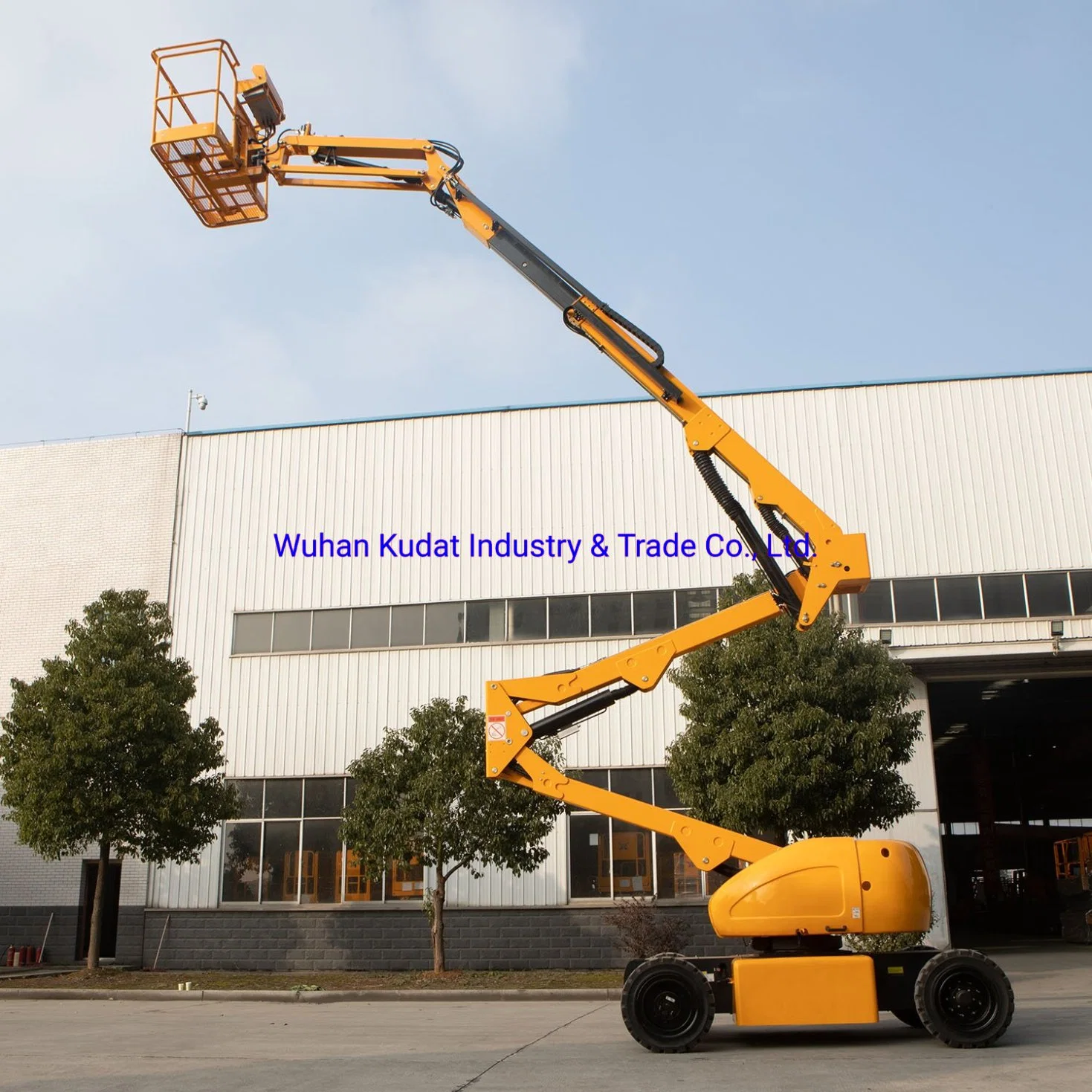

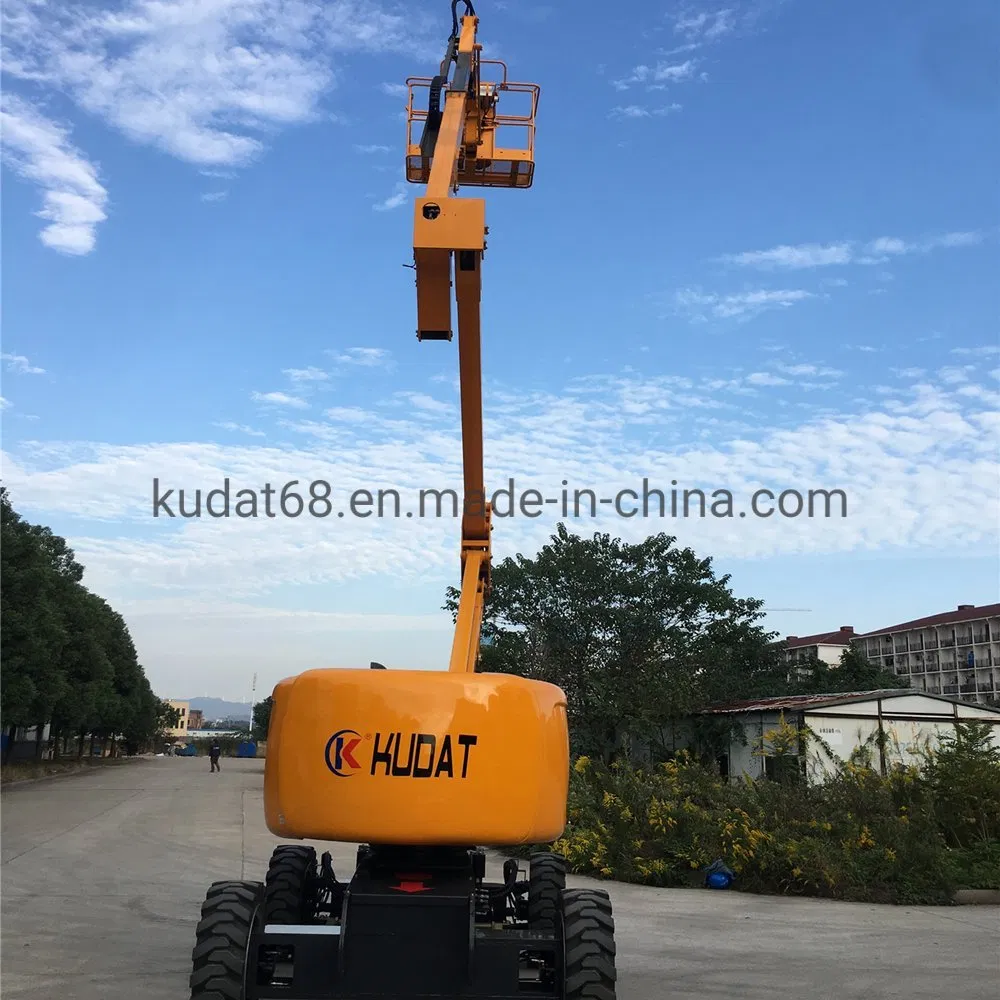

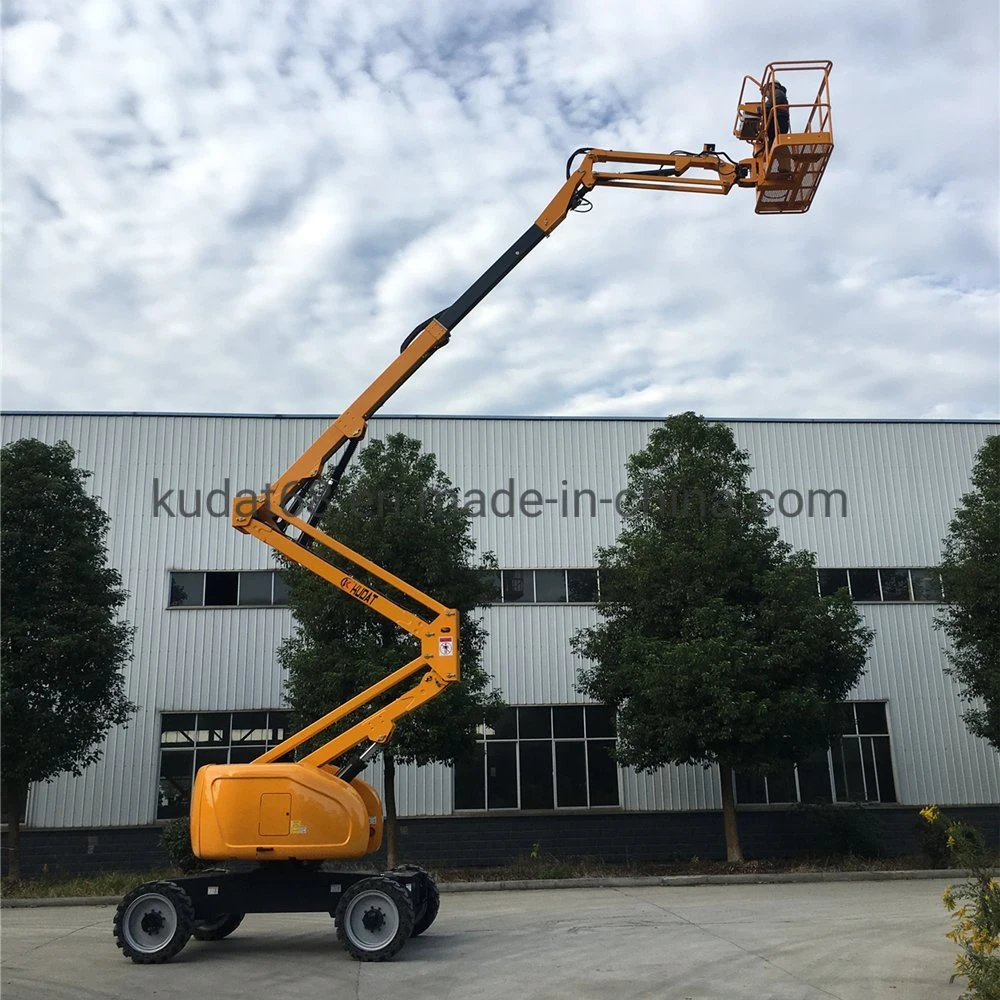

The articulating boom machine offers multi-faceted functions of positioning upward, outward, and crossing, allowing access to difficult areas through various paths.

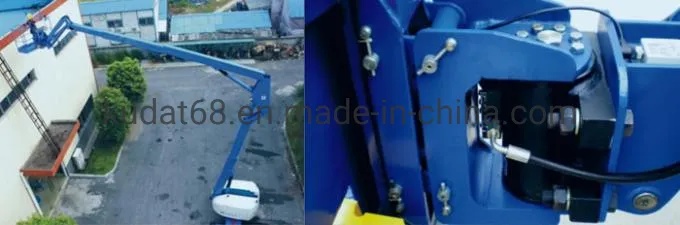

Standard configuration includes four-link weighing devices, overload protection, automated detection for platform amplitude and height, and high-precision load sensors.

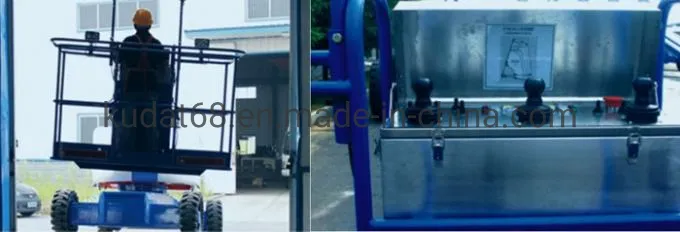

Compact design for models under 16m allows operation in small spaces. The stainless steel control box features full-proportion joysticks and a CAN bus PLC control system.

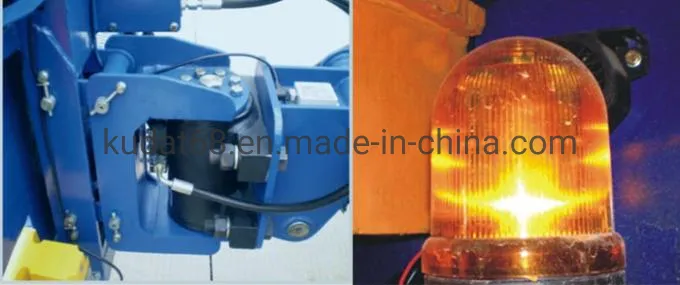

The platform offers a ±80° rotation range. The active oscillation axle perceives terrain to ensure all four wheels maintain contact on uneven roads.

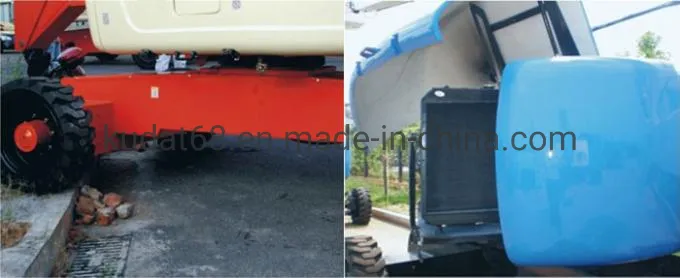

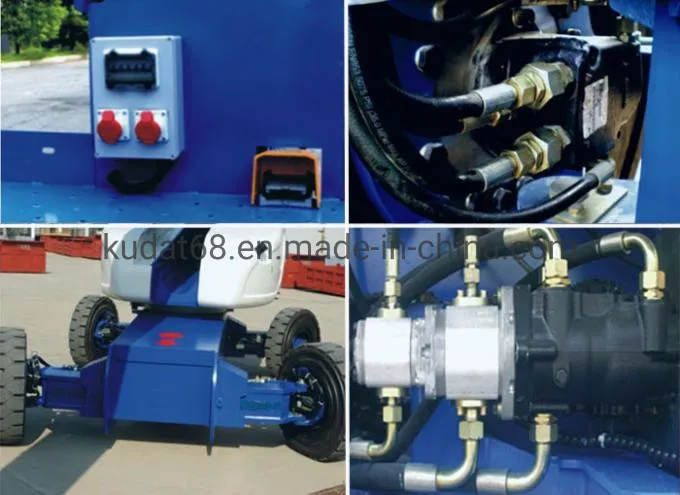

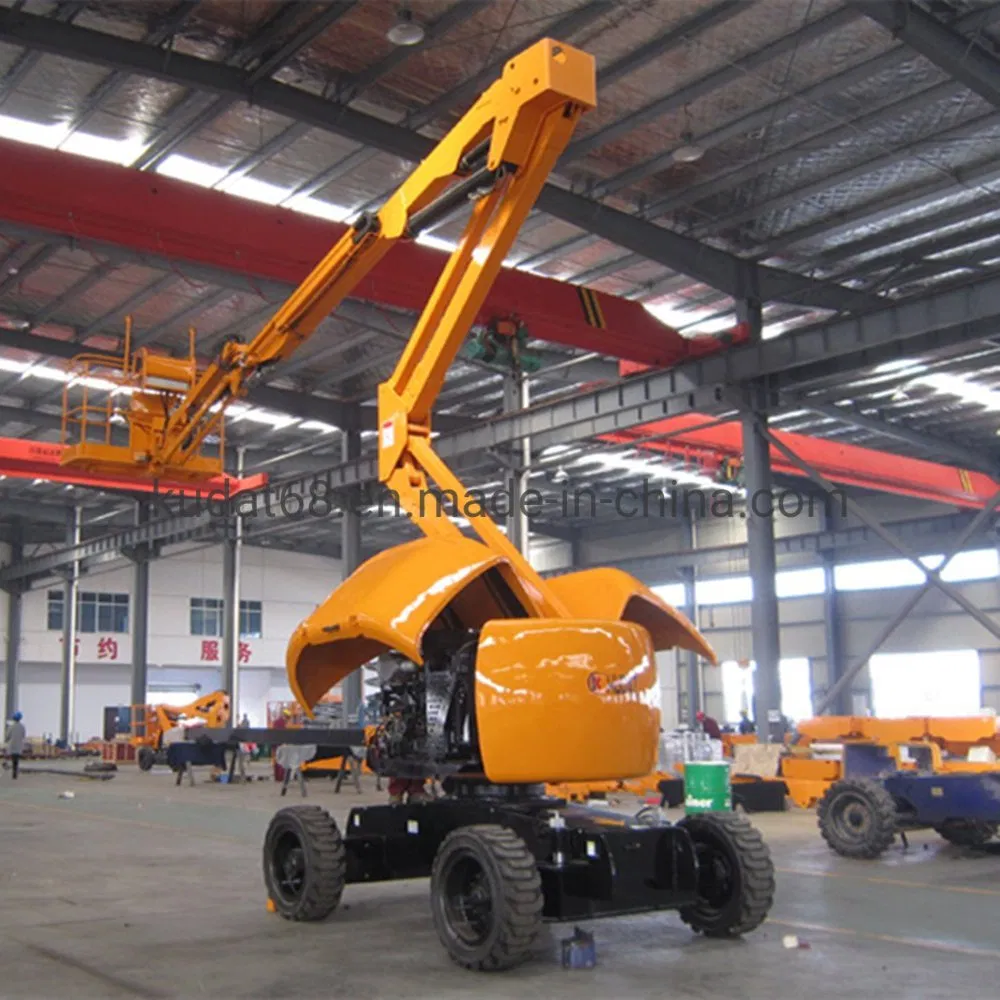

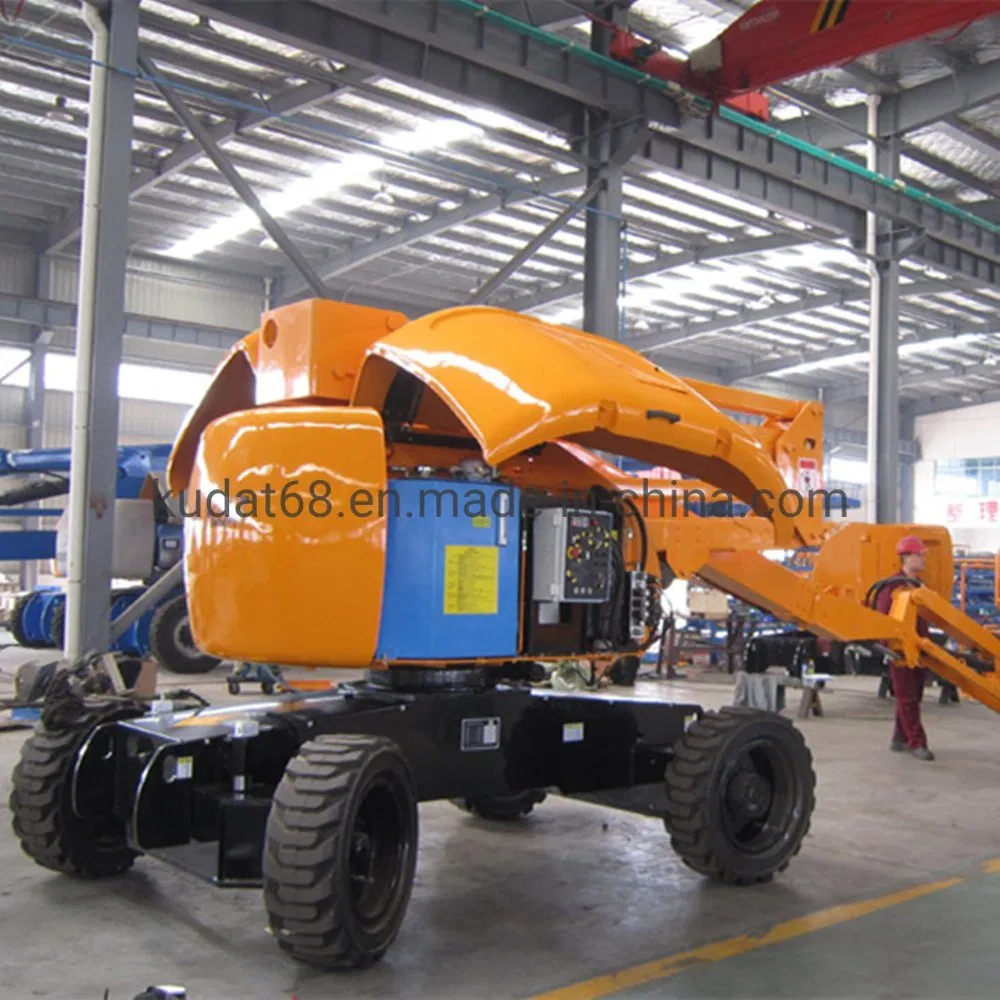

Features a swing-out engine tray for easy repair. The closed-circuit hydraulic system uses high-quality European and North American components.

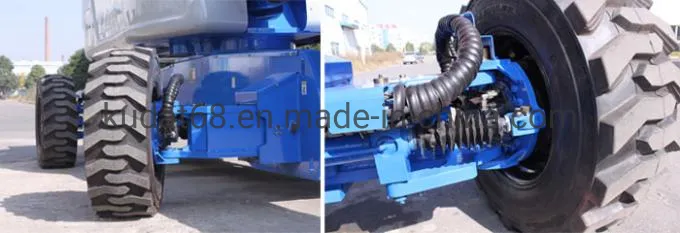

The four-wheel drive configuration provides powerful performance and superior grade-ability for challenging environments.
